Accurate 0–14 pH Electrode Sensor Probe – Lab, Pool & Arduino Compatible

Get precise, repeatable pH readings for your experiments, pool maintenance, aquariums, or Arduino-based projects with this professional-grade pH electrode sensor probe. Engineered for hobbyists and developers alike, it delivers a cost-effective, plug-and-play solution for open-source pH measurement across a full 0–14 range.

Made in Mainland China.

Key Features

  • Full 0–14 pH Range: Measures the complete pH spectrum with an accuracy of ±0.1 pH at 25°C, ideal for labs, pools, hydroponic setups, and water quality monitoring.
  • Arduino-Ready Connectivity: Features a BNC connector for the pH probe and an XH2.54 3-pin interface for seamless integration with Arduino controllers and analog inputs — no complex wiring required.
  • Composite Electrode Design: Combines a glass electrode and a reference electrode in a durable, non-refillable plastic shell for long-term reliability and consistent hydrogen activity measurement.
  • Compact & Precise: Module size 43 × 32 × 13 mm; electrode size 12 × 120 mm; operating temperature range 0–60°C; response time ≤1 minute.
  • Protective Packaging: Arrives in a sturdy black box cushioned with high-quality sponge padding to protect the sensor during transit and storage.
  • Developer-Friendly: Includes a detailed instruction manual for the composite electrode, supporting easy secondary development for new and experienced Arduino users.

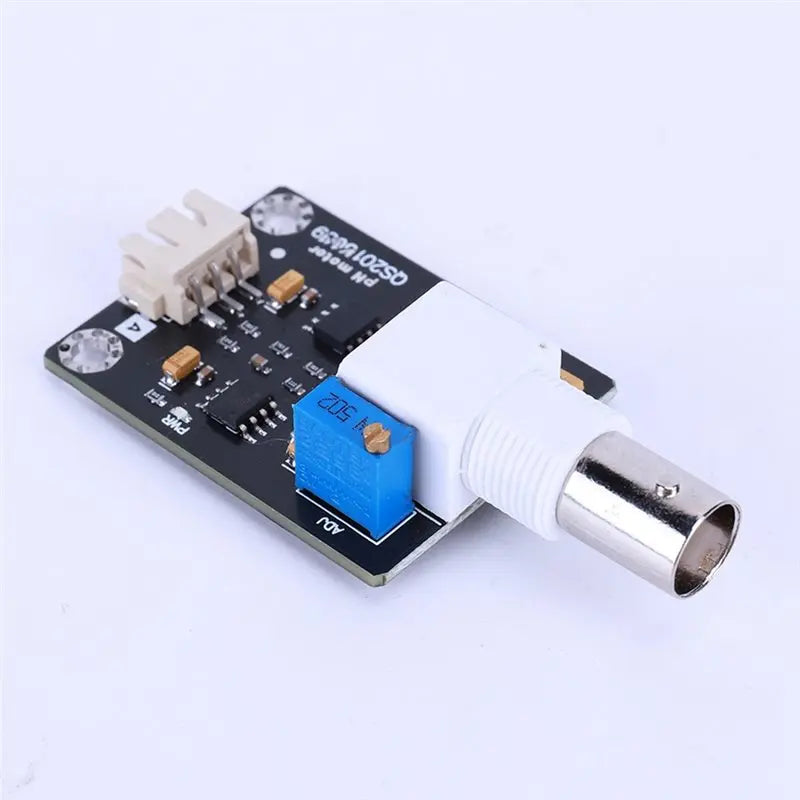

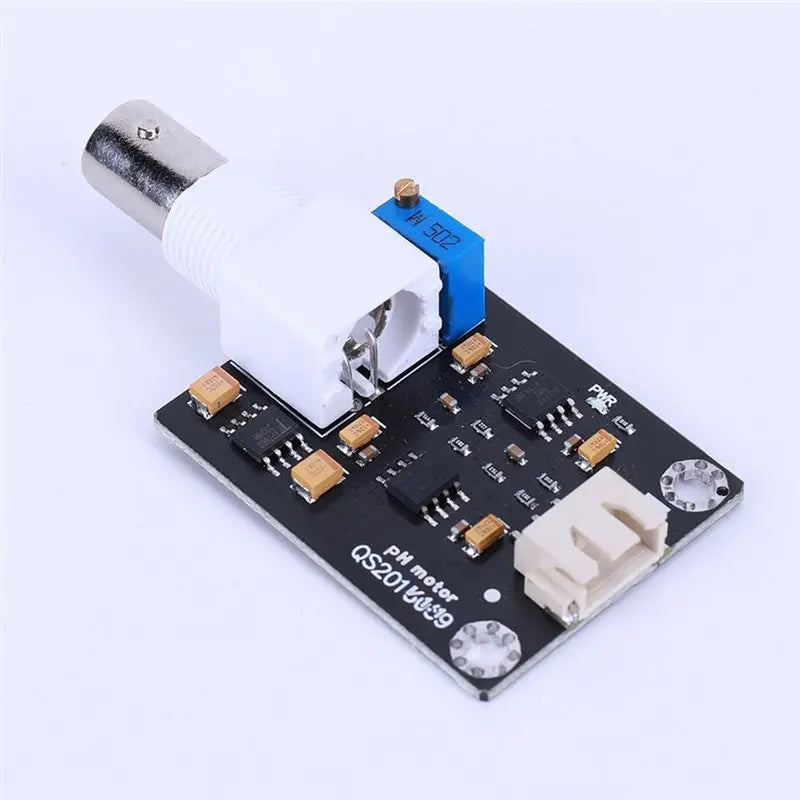

  • Onboard Features: Gain adjustment potentiometer and power indicator LED for straightforward calibration and status monitoring.

Specifications

  • Measuring Range: 0–14 pH
  • Accuracy: ±0.1 pH (25°C)
  • Measuring Temperature: 0–60°C
  • Response Time: ≤1 minute
  • Module Power Supply: +5.00V

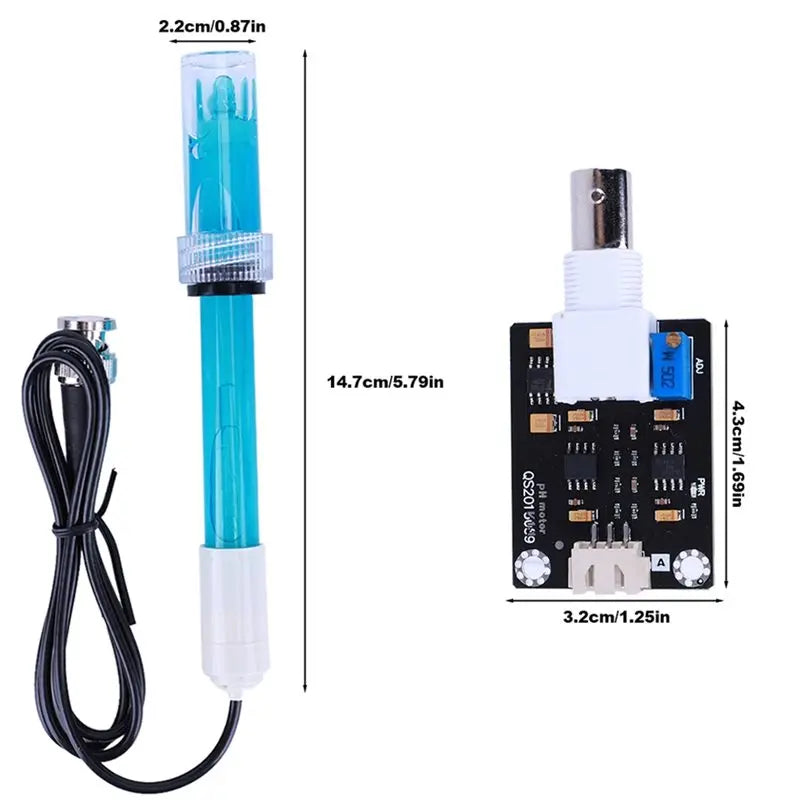

  • Module Size: 43 × 32 × 13 mm
  • Electrode Size: Diameter 12 × 120 mm
  • Product Size: 147 × 22 × 22 mm (5.79 × 0.87 × 0.87 in)
  • Interface: BNC (pH probe) + XH2.54 3-pin (Arduino analog input)
  • Display Type: Digital
  • Backlight: No
  • Origin: Mainland China

What's in the Box

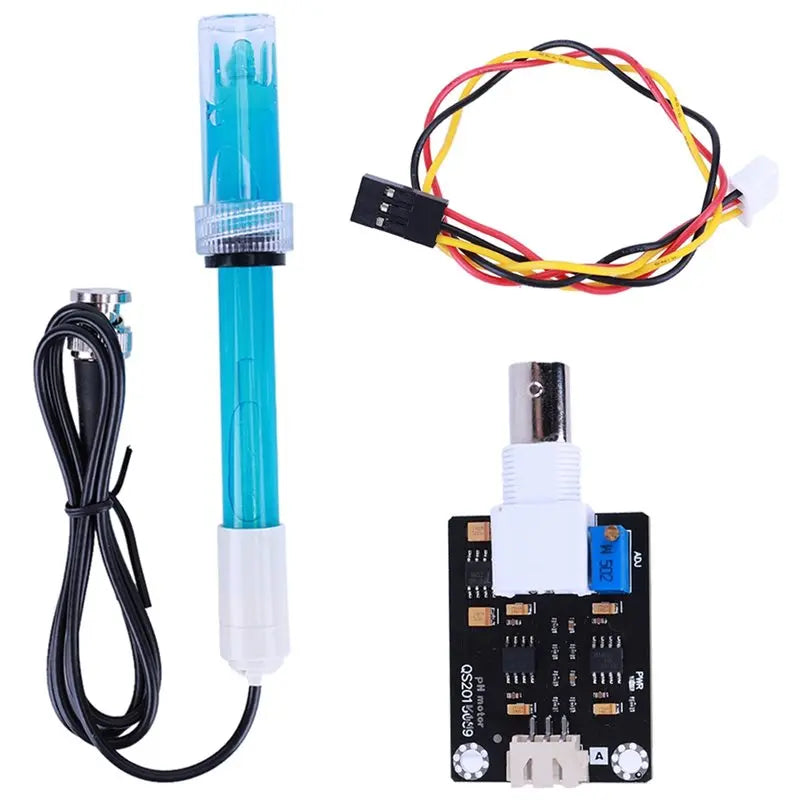

  • 1 × pH Electrode Sensor Probe
  • 1 × Instruction Manual

Calibration Note

For best accuracy, calibrate the sensor with standard calibration fluid regularly — typically every six months. If the tested solution contains a high level of impurities, increase calibration frequency accordingly.

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Is this pH electrode sensor probe compatible with all Arduino boards?

A: Yes. The sensor uses a standard BNC connector for the pH probe and an XH2.54 3-pin interface that connects directly to Arduino's analog input pins. It is compatible with most popular Arduino boards including Uno, Mega, and Nano, making it a versatile choice for a wide range of DIY and professional pH measurement projects.

Q: How often should I calibrate the pH electrode sensor probe?

A: We recommend calibrating the sensor with standard calibration fluid at least once every six months under normal conditions. If the solution being tested contains many impurities or contaminants, you should calibrate more frequently to maintain measurement accuracy of ±0.1 pH.

Q: Can this sensor be used for pool water and aquarium monitoring as well as laboratory use?

A: Absolutely. With a full 0–14 pH measuring range and an operating temperature of 0–60°C, this sensor is suitable for a variety of applications including swimming pool water testing, aquarium monitoring, hydroponics, and laboratory experiments. Its durable composite electrode design ensures reliable readings across these different environments.

Q: Does the package include calibration fluid or an Arduino controller?

A: The package includes one pH electrode sensor probe and an instruction manual. Calibration fluid and Arduino controllers are not included and must be purchased separately.
