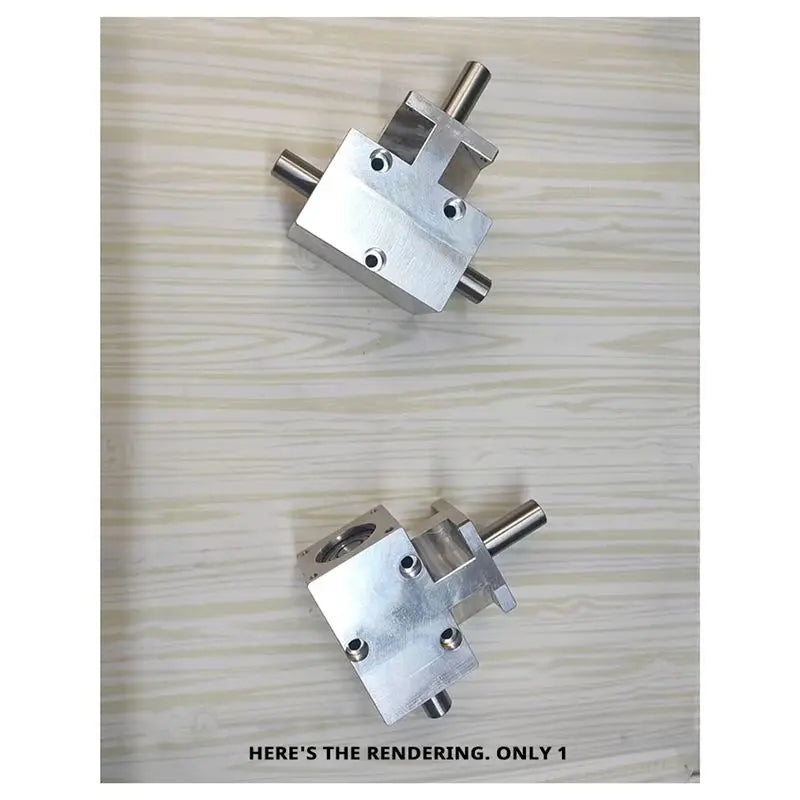

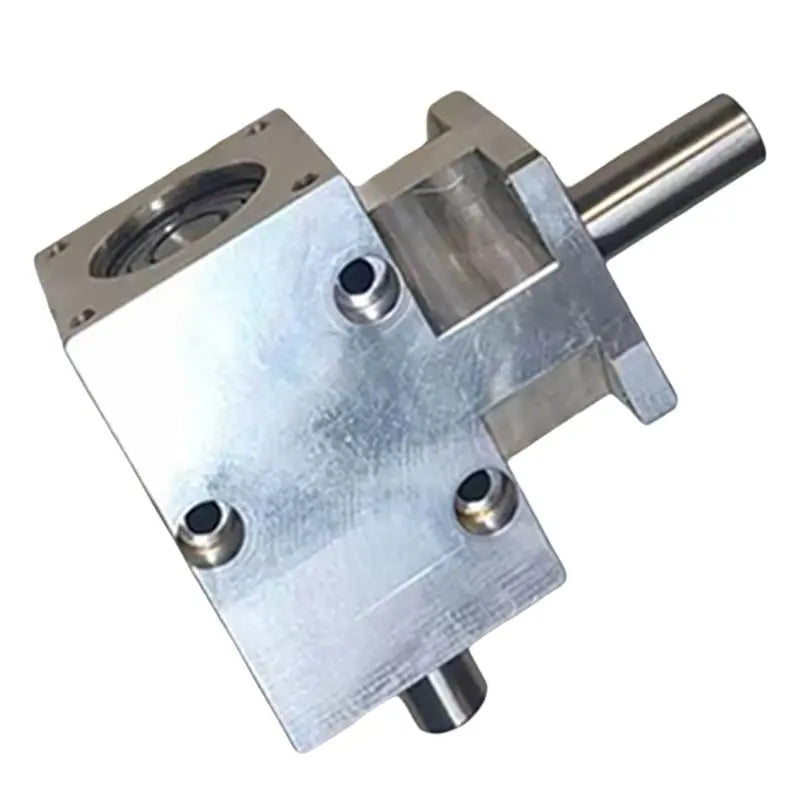

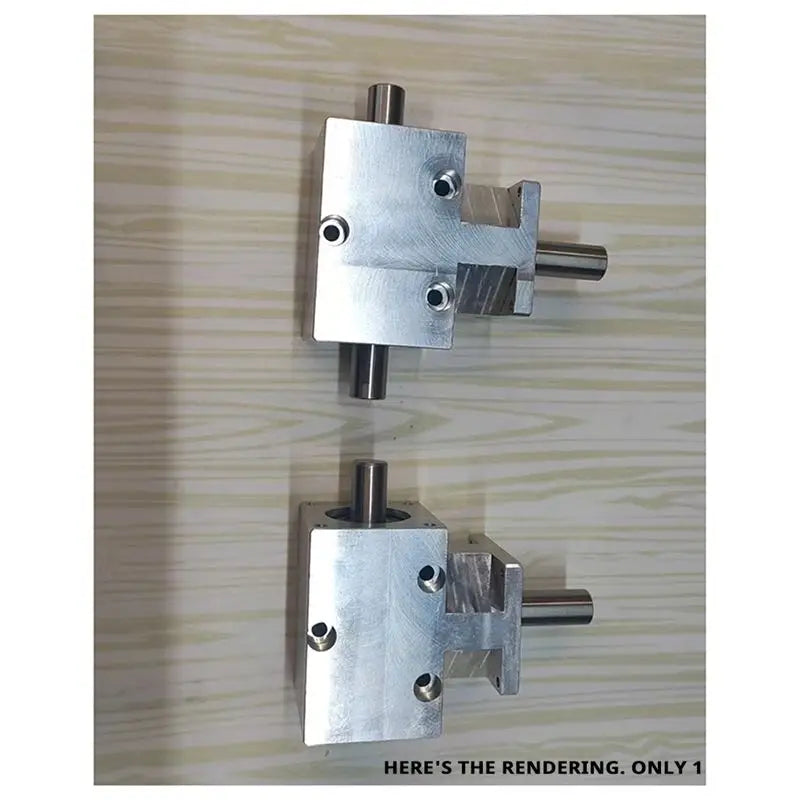

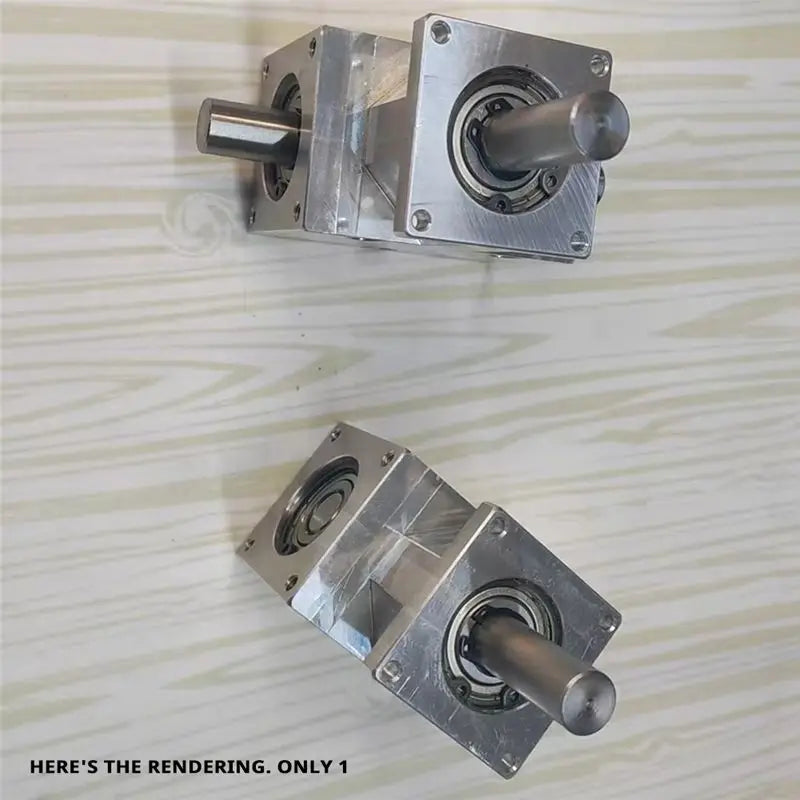

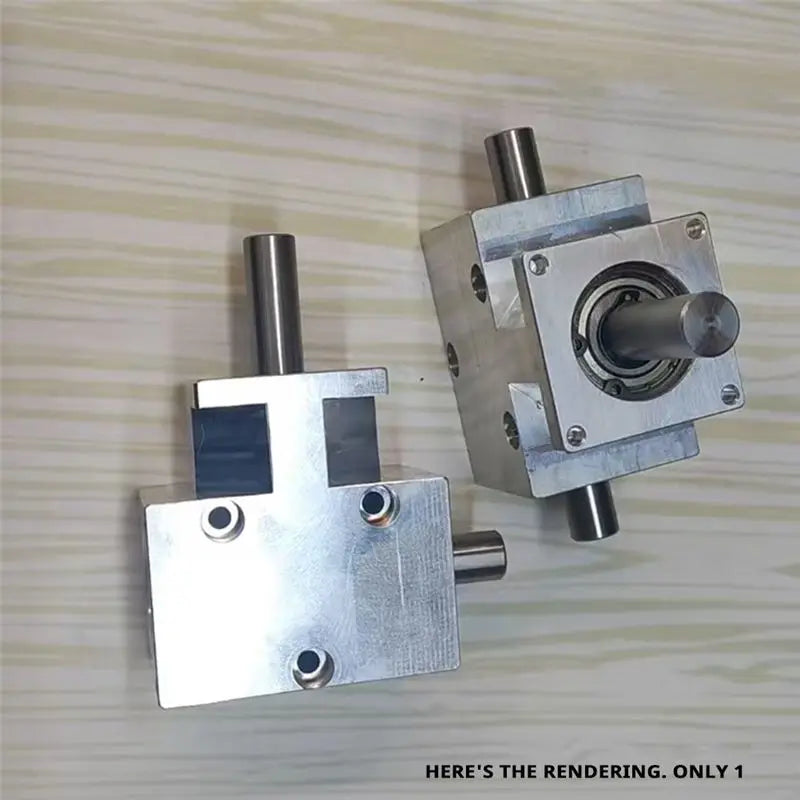

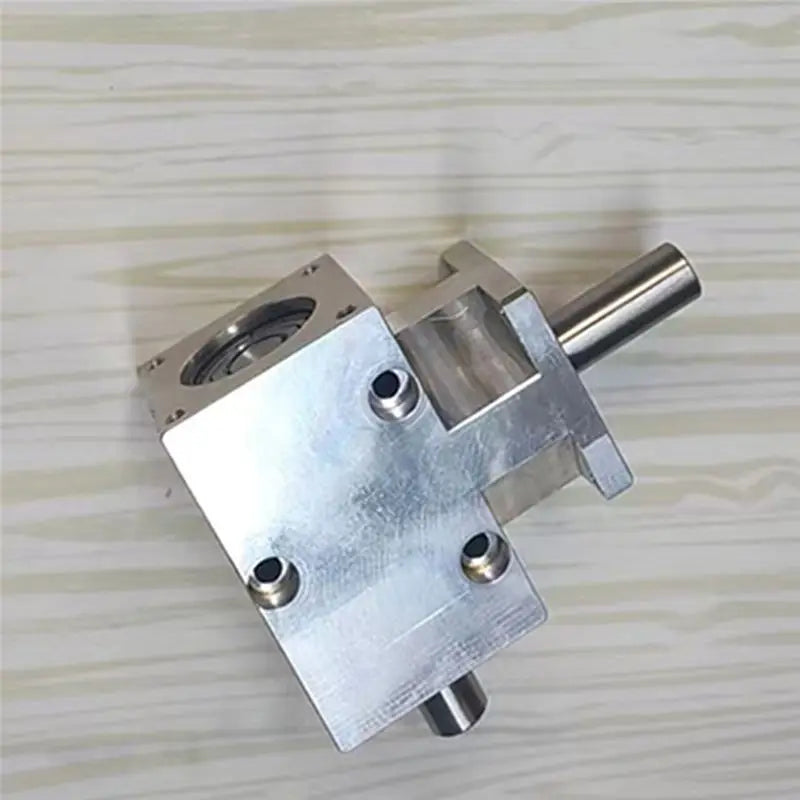

1:1 Small Angle Device – Dual Output Shafts, Spiral Bevel Gear, 12MM
This precision-engineered 1:1 small angle gearbox features dual output shafts in the same direction and a countersunk hole design, making it an ideal solution for compact mechanical assemblies, custom machinery, and DIY engineering projects. Built with a spiral bevel gear mechanism, it delivers smooth, efficient power transmission at a true 1:1 gear ratio.
Key Features
- 1:1 Gear Ratio: True same-speed transmission — input and output rotate at equal speeds for predictable, reliable performance.
- Dual Output Shafts: Both shafts rotate in the same direction, enabling versatile drive configurations in a single compact unit.
- Spiral Bevel Gear Design: Ensures quiet, low-vibration operation and efficient torque transfer at right angles.
- 12MM Shaft Diameter: Compatible with standard 12MM shaft setups for easy integration into existing builds.
- Countersunk Hole Design: Allows for flush, secure mounting with a clean finish — no protruding bolt heads.
- Differential Assembly Gearbox: Functions as a differential assembly, giving you flexibility in multi-axis drive systems.
- Premium Materials: Constructed from a combination of aluminum, stainless steel, and carbon steel for strength, corrosion resistance, and durability.
Specifications
| Type | 1:1 Small Angle Device – Spiral Bevel Gear |
| Gear Ratio | 1:1 |
| Output Shafts | Dual, same direction |
| Shaft Diameter | 12MM |
| Mounting | Countersunk hole |
| Material | Aluminum + Stainless Steel + Carbon Steel |
| Color | As shown |
| Country of Origin | Made in China |
What's in the Box
- 1 × Small angle cutter with countersunk holes and dual output shafts
Note: Slight color variations may occur due to lighting and monitor display differences. Measurement tolerance of ±1–3cm applies.
You May Also Like
- 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16 in 1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does "1:1 gear ratio" mean in this small angle gearbox?
A: A 1:1 gear ratio means the input shaft and output shafts rotate at exactly the same speed — one full rotation of the input produces one full rotation of each output. This is ideal when you need to redirect or split power without changing rotational speed.
Q: What are the dual output shafts used for?
A: The dual output shafts in the same direction allow you to drive two separate components simultaneously from a single input source. This is commonly used in custom machinery, robotics, agricultural equipment, and DIY mechanical builds where split-power drive is needed.
Q: What materials is this gearbox made from?
A: This small angle device is constructed from a combination of aluminum, stainless steel, and carbon steel, providing an excellent balance of lightweight construction, strength, and corrosion resistance for long-lasting performance.
Q: What shaft diameter is this gearbox compatible with?
A: This gearbox is designed for a standard 12MM shaft diameter, making it compatible with a wide range of motors and drive shafts commonly used in mechanical and engineering applications.
