Gmarty 12V 4-Wire PWM Fan Temperature Control Speed Controller
Take full command of your PC chassis or server cooling system with this intelligent 4-wire PWM fan speed controller. Featuring a built-in digital display for real-time temperature and RPM monitoring, this compact controller automatically adjusts fan speed based on thermal readings — keeping your system cool and quiet without manual intervention.
Key Features
- Intelligent PWM Speed Control: Supports 4-wire PWM fans with precise speed regulation across a 1–100% PWM range (±0.5%), balancing cooling performance with low-noise operation.

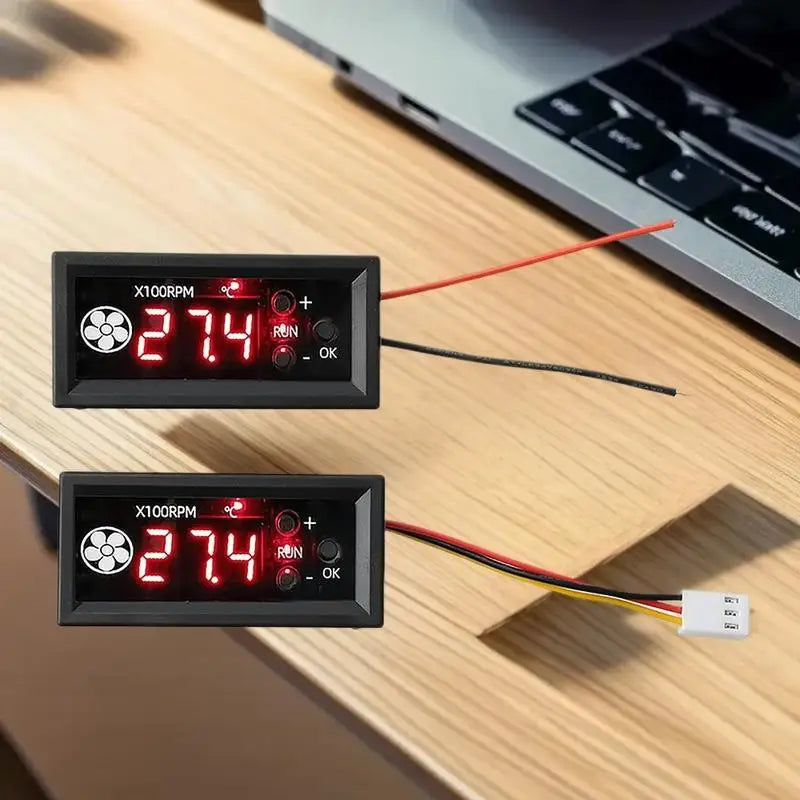

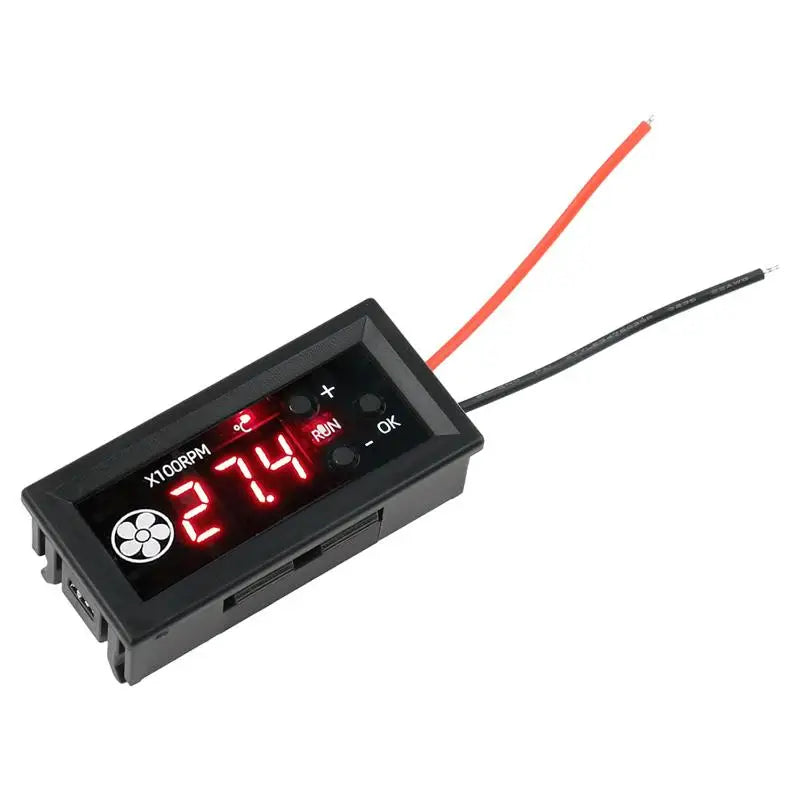

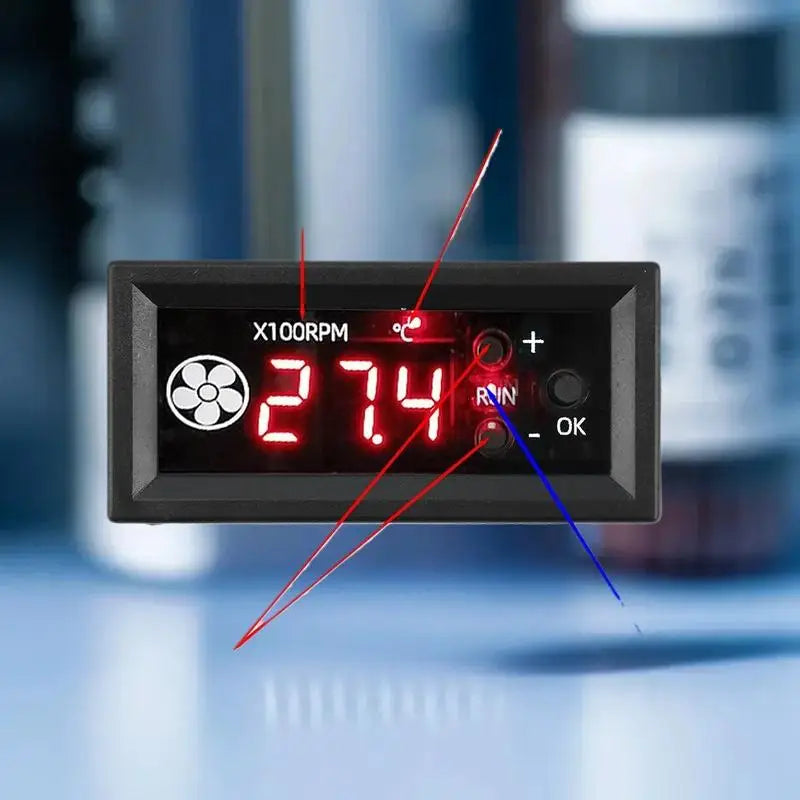

- Digital Temperature & Speed Display: Built-in readout provides real-time monitoring of both temperature and fan RPM — clear, intuitive, and always visible.
- Low-Temperature Auto Shutdown: Automatically powers off the fan when temperatures drop below the set threshold (supports fans up to 3A), reducing unnecessary noise and energy consumption.
- Wide Compatibility: Compatible with all standard 4-wire PWM fans used in PC chassis, CPU coolers, and server cooling systems. Supports reverse chronological fans and fan speeds up to 10,000 RPM (theoretical maximum: 30,000 RPM).

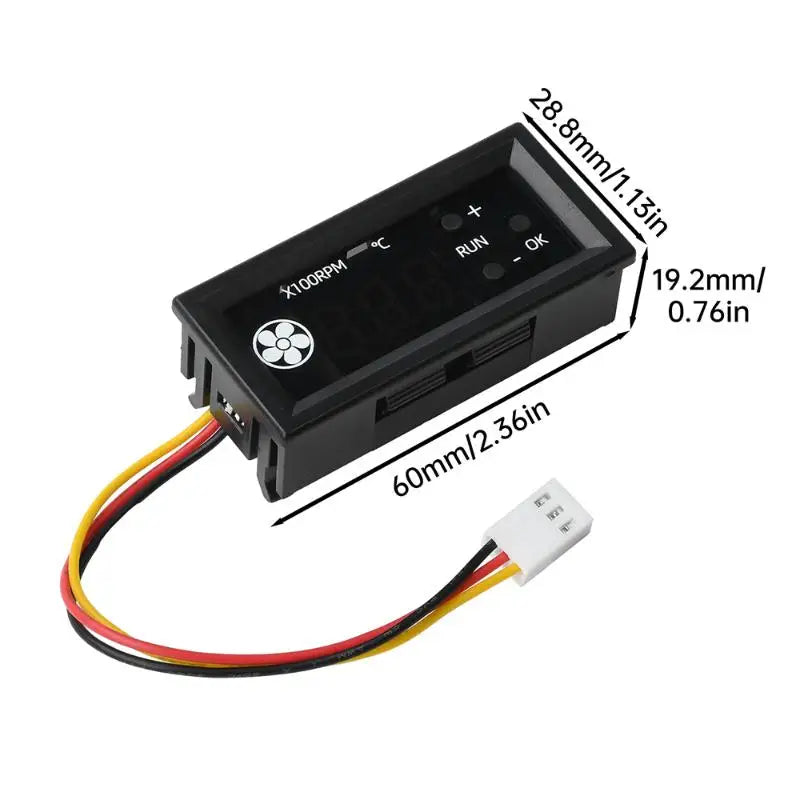

- Compact & Easy to Install: Small footprint makes it ideal for integration into tight chassis spaces, with straightforward wiring and reliable connections.
Technical Specifications
- Design Supply Voltage: DC 12V
- Operating Voltage Range: DC 8–16V
- Circuit Self-Consumption: <40mA (at 12V)
- Maximum Fan Current: 3.5A
- PWM Range: 1–100 (±0.5%)
- PWM Frequency: 25 kHz (±1 kHz)
- PWM Signal Amplitude: 5V (no load)

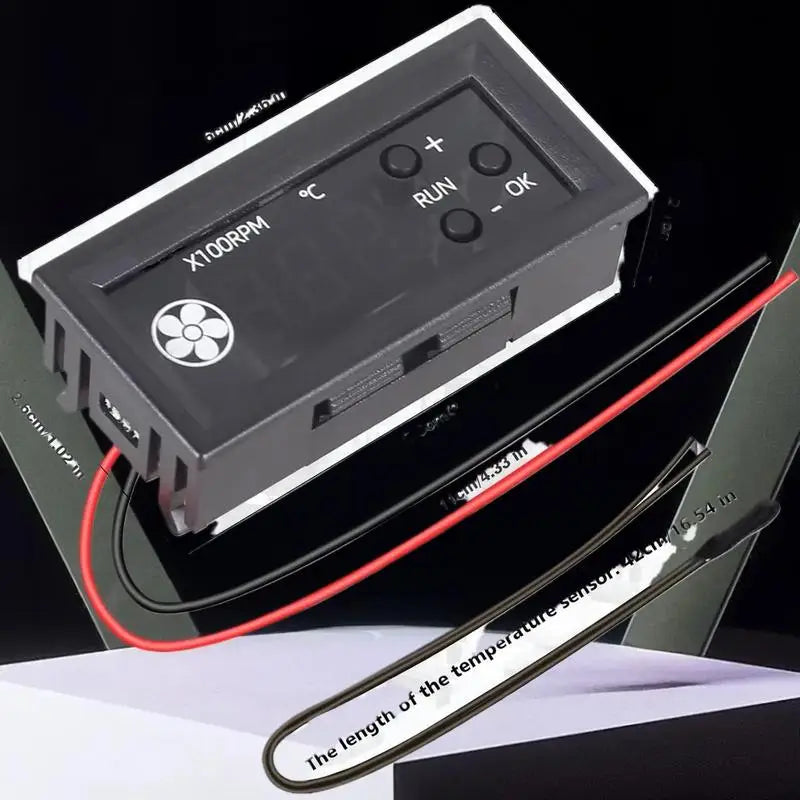

- Temperature Measurement Range: -9.9°C to 99.9°C
- Temperature Accuracy: <1.2°C error (0–50°C range); <2°C error (full range)
- Materials: Plastic & Metal
- Package Contents: 1 × Fan Speed Controller Set
Important Note: This controller is designed exclusively for 4-wire PWM fans using a 25 kHz / 5V signal standard. It does NOT support 2-wire or 3-wire fans. Please confirm your fan type before purchasing.
Made in Mainland China.
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Will this PWM fan controller work with my 3-wire chassis fan?
A: No — this controller is designed specifically for 4-wire PWM fans only. It uses a 25 kHz / 5V PWM signal standard and cannot regulate the speed of 2-wire or 3-wire fans. Please verify your fan connector type before purchasing.
Q: What is the maximum fan current this controller can handle?
A: The controller supports fans with a current draw of up to 3.5A. The low-temperature auto-shutdown function works with fans rated at 3A or below. Always check your fan's rated current before connecting.
Q: Can I use this controller outside of a standard PC chassis?
A: Yes. The wide operating voltage range (DC 8–16V) and compact design make it suitable for any cooling system that uses a 4-wire PWM fan — including servers, industrial equipment, custom PC builds, and other compact electronics requiring active thermal management.
Q: How accurate is the temperature reading on the digital display?
A: Within the 0–50°C range, the temperature measurement error is less than 1.2°C. Across the full measurement range (-9.9°C to 99.9°C), the error is less than 2°C, making it reliable for real-time system monitoring.
