12V 5A Touch Dimmer Switch for LED Bathroom Mirror
12V 5A Touch Dimmer Switch for LED Bathroom Mirror
12V 5A Touch Dimmer Switch for LED Bathroom Mirrors
Upgrade your bathroom with this sleek, hidden-touch dimmer switch designed specifically for LED light mirrors. Installed behind the mirror glass, the switch remains completely invisible from the front — only the soft backlight indicator shows through, giving your bathroom a clean, modern look.
Whether you're fitting a smart bathroom mirror, an anti-fog LED mirror, or an LED mirror cabinet, this touch switch delivers smooth stepless dimming and clear on/off indication at your fingertips.
Made in Mainland China.
Key Features
- Invisible Installation: Switch hardware sits behind the mirror — only the glowing touch indicator is visible through the glass for a seamless, premium appearance.
- Smart Backlight Indicator: White light when the mirror is OFF; switches to blue when the mirror light is ON — always clear at a glance.
- Stepless Dimming: Long-press the touch zone to smoothly adjust brightness from 10% to 100% to suit any mood or task.
- Wide Compatibility: Works with glass, acrylic, plastic, and ceramic mirror surfaces up to 5mm thick.

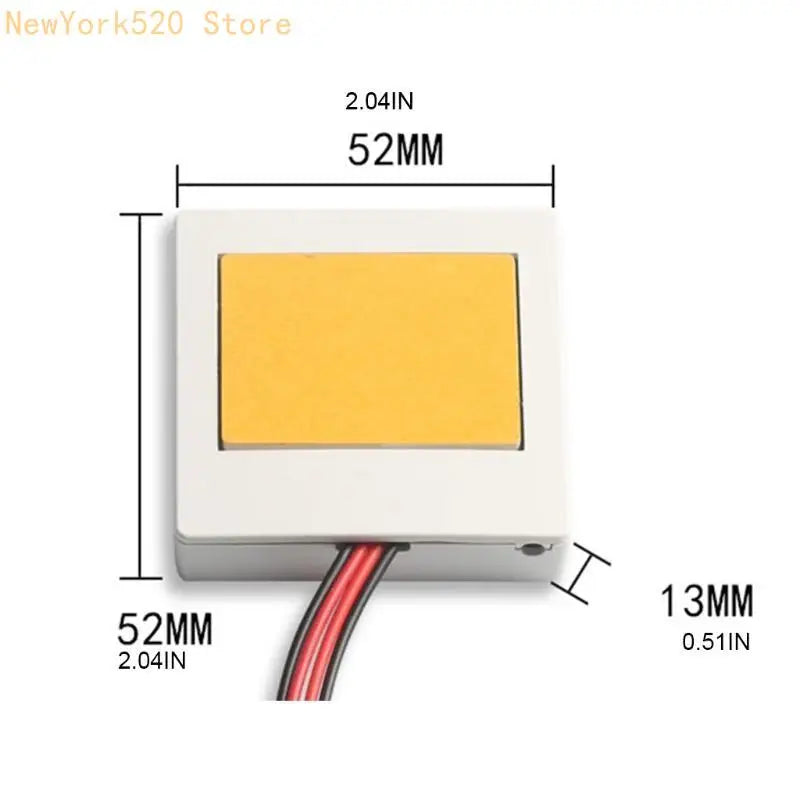

- Compact & Durable: Made from ABS plastic with a low-profile 52 × 52 × 13 mm form factor — easy to fit in tight mirror cavities.
- Low Voltage Output: Input AC 180V–240V; Output 12V 5A — safe, efficient, and EU LVD compliant (below 50Vac / 75Vdc).
Specifications
| Material | ABS Plastic |
| Dimming | Monochrome Stepless / 3-Level Colour Temperature Stepless |
| Input Voltage | AC 180V – 240V |
| Output | 12V – 5A |
| Backlight | Blue (ON) / White (OFF) |
| Dimensions | 52 × 52 × 13 mm (approx. 2.04 × 2.04 × 0.51 in) |
| Mirror Thickness | Up to 5 mm / 0.2 in |
| Switch Type | Capacitive Touch On/Off with Dimming |
| Model | N84C1AA804402 |
What's in the Box
- 1 × Touch Dimmer Switch (N84C)

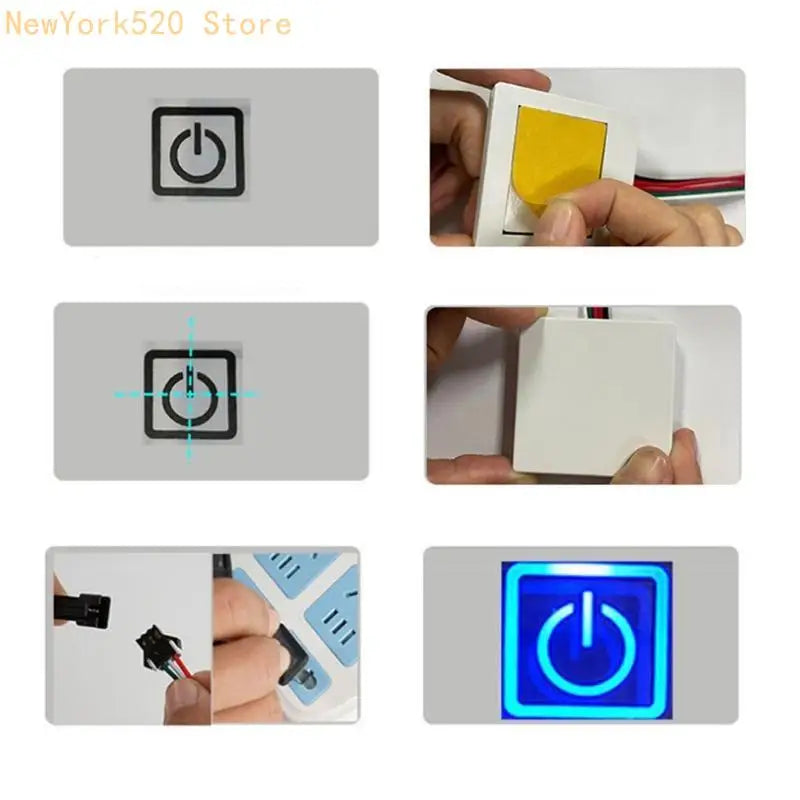

Installation Notes
- Please remove the yellow protective film from the backlight window before installation.
- Allow 1–2 cm measurement tolerance due to manual sizing.
- Actual product colour may vary slightly from screen to screen.
Complete Your Bathroom Setup
Pair this touch switch with other smart bathroom accessories from our store:
- 1pc Self Draining Soap Holder Bamboo Soap Dish – Bathroom Accessories
- 2PCS Stainless Steel Self-Adhesive Bathroom Wall Hooks
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What mirror types is this 12V touch dimmer switch compatible with?
A: This touch dimmer switch is compatible with LED light mirrors made from glass, acrylic, plastic, or ceramic surfaces, including bathroom LED mirrors, anti-fog LED mirrors, and LED mirror cabinets. The mirror surface must be no more than 5 mm (0.2 in) thick for the capacitive touch to work correctly.
Q: How do I adjust the brightness with this touch switch?
A: Simply tap the touch zone once to turn the LED mirror light on or off. To adjust brightness, long-press the touch area — the light will smoothly dim or brighten through a stepless range from approximately 10% up to 100%.
Q: Will the switch be visible after installation on my bathroom mirror?
A: No — the switch hardware is mounted behind the mirror and is completely hidden. Only the small backlight indicator shines through: white when the mirror is off, and blue when it's on, giving your mirror a sleek, minimalist look.
Q: What are the electrical specifications for this touch switch?
A: The switch accepts an AC input of 180V–240V and delivers a 12V 5A DC output. It operates at low voltage (below 50Vac / 75Vdc) in line with EU LVD standards, making it safe for bathroom mirror lighting applications.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
