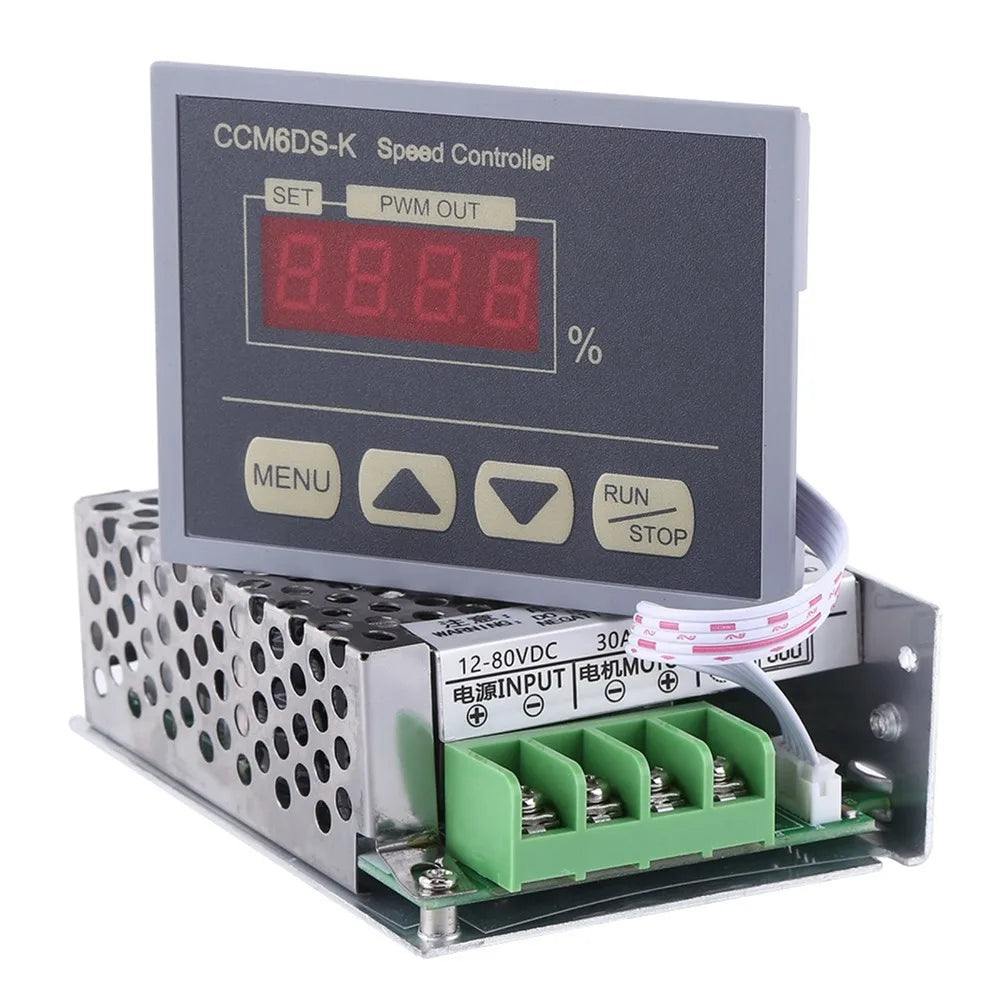

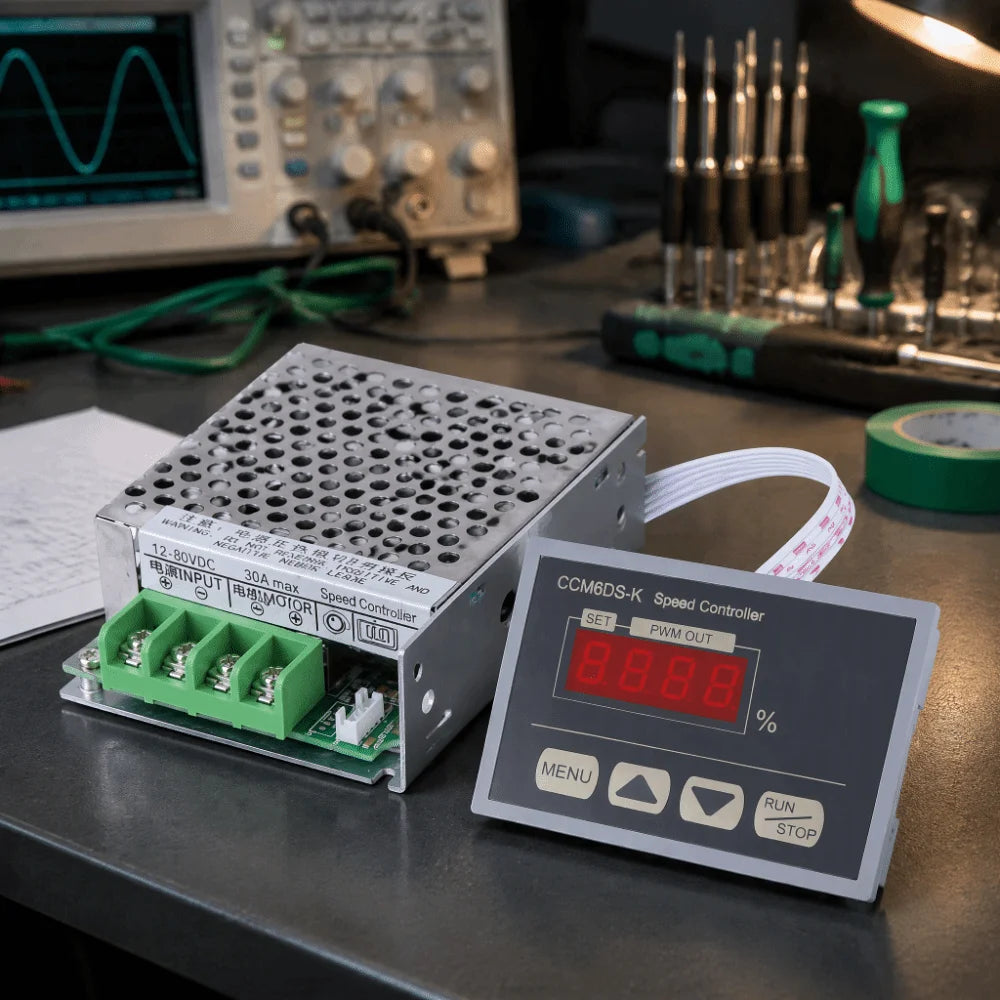

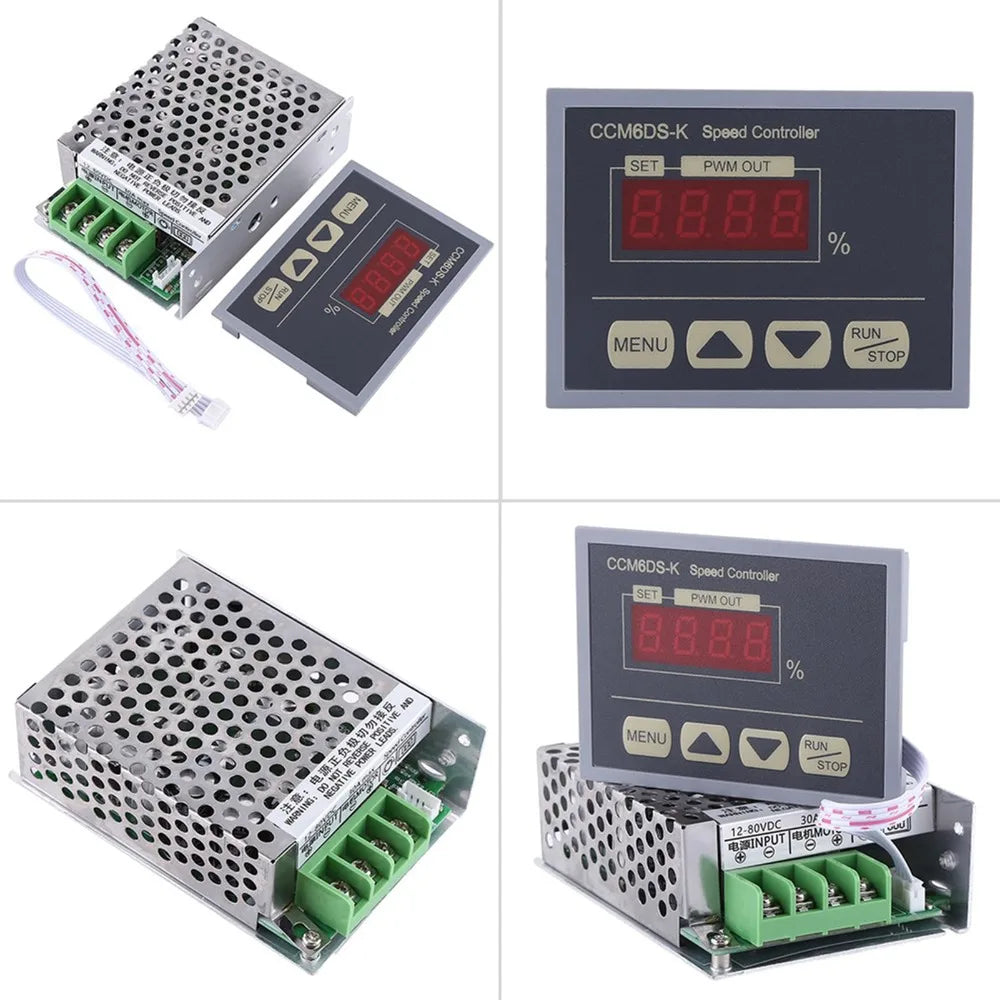

VIBE 12V–80V DC Motor Speed Controller – 30A Digital Display Panel with Soft Start & Slow Stop
Take full control of your DC motors with this high-power PWM Motor Speed Controller from VIBE. Featuring a clear digital display panel, stepless speed adjustment, and programmable soft start / slow stop functions, this compact regulator is ideal for DIY electrical projects, industrial equipment, electric vehicles, and more.
Key Features

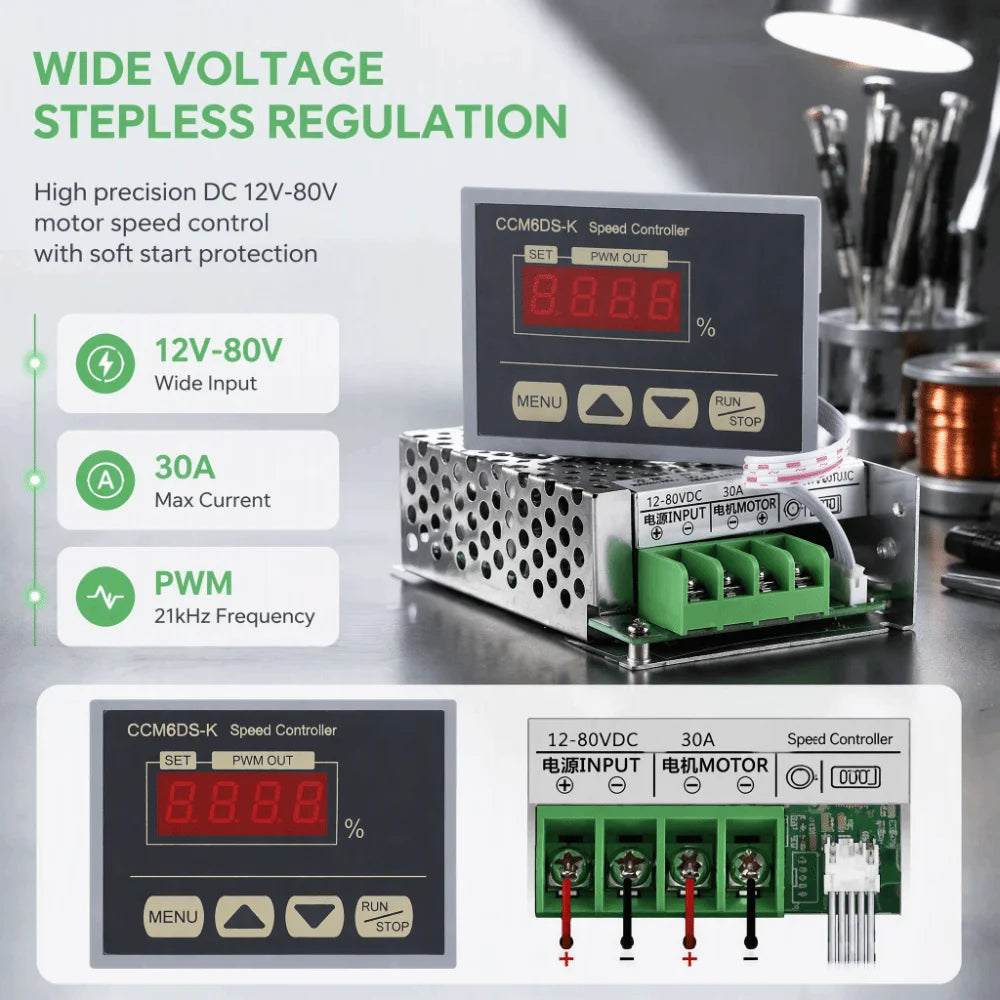

- Wide Voltage Compatibility: Accepts DC 12V to 80V input — compatible with 12V motors (up to 250W), 24V motors (up to 350W), and 48V motors (up to 500W).
- High 30A Current Rating: Handles demanding, high-power motor applications with confidence.
- Digital Display Panel: Easy-to-read screen for real-time speed monitoring and quick, accurate adjustments.
- Soft Start & Slow Stop: Programmable ramp-up (0–10 seconds) and ramp-down (0–10 seconds) times reduce mechanical stress on motors and drive shafts, extending equipment life.
- Stepless PWM Speed Control: Smooth, continuous speed adjustment from 0–100% with a 21 kHz PWM frequency for stable, flicker-free motor operation.
-
Fully Programmable Settings:
- Set 1: Slow start time (0–10.0 sec, default 1 sec)
- Set 2: Slow stop time (0–10.0 sec, default 1 sec)
- Set 3: Minimum speed (0–80%, default 0%)
- Set 4: Maximum speed (0–100%, default 100%)
- Set 5: Speed increment per button press (1%, 2%, 5%, 10%, 15%, 20%, or 25%)
- Compact & Durable Build: PCB and alloy construction in a slim 110 × 77 × 36 mm housing ensures a long service life and easy panel mounting.
Technical Specifications
| Input Voltage | DC 12V – 80V |
| Output Voltage | 0–100% of input voltage |
| Maximum Current | 30A |
| Control Power | 12V ≤250W | 24V ≤350W | 48V ≤500W |
| PWM Frequency | 21 kHz |
| Speed Range | 0–100% stepless |
| Material | PCB, Alloy |

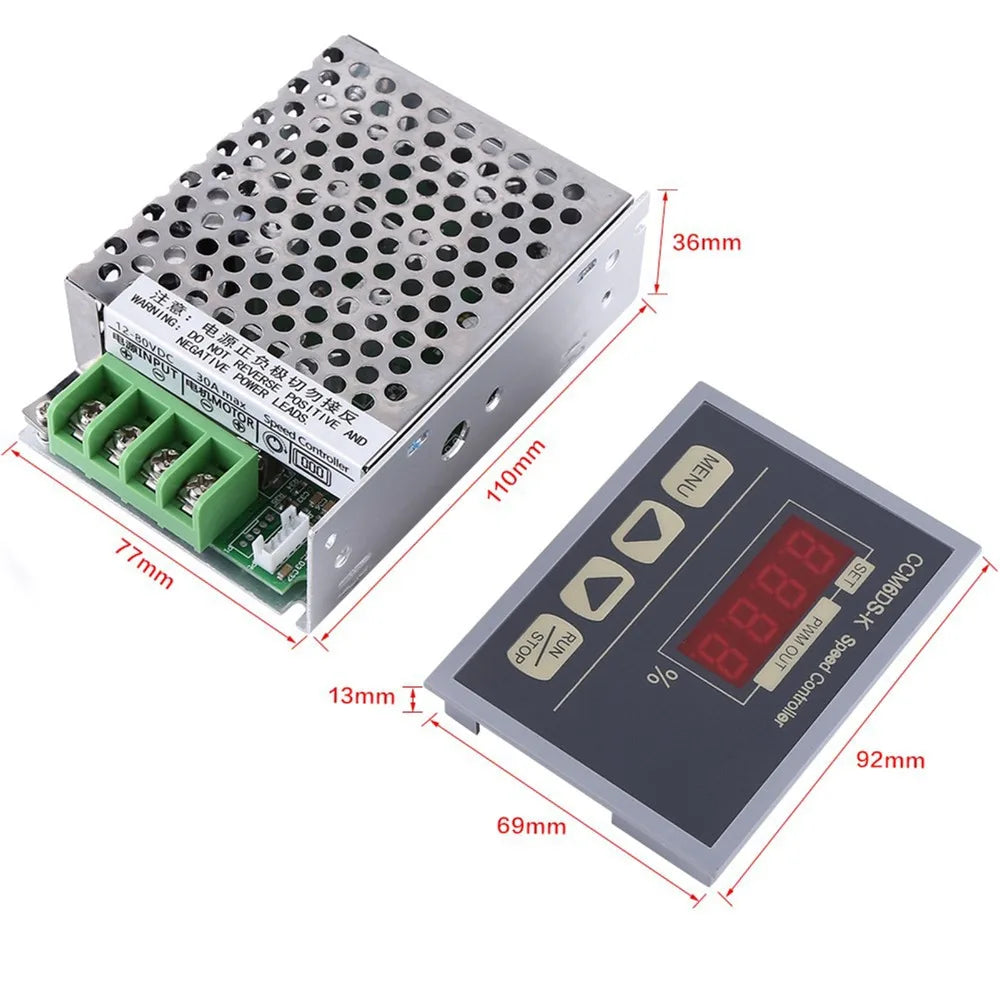

| Controller Size | 110 × 77 × 36 mm (4.37 × 3.03 × 1.41 in) |
| Panel Size | 92 × 69 × 13 mm (3.62 × 2.71 × 0.51 in) |

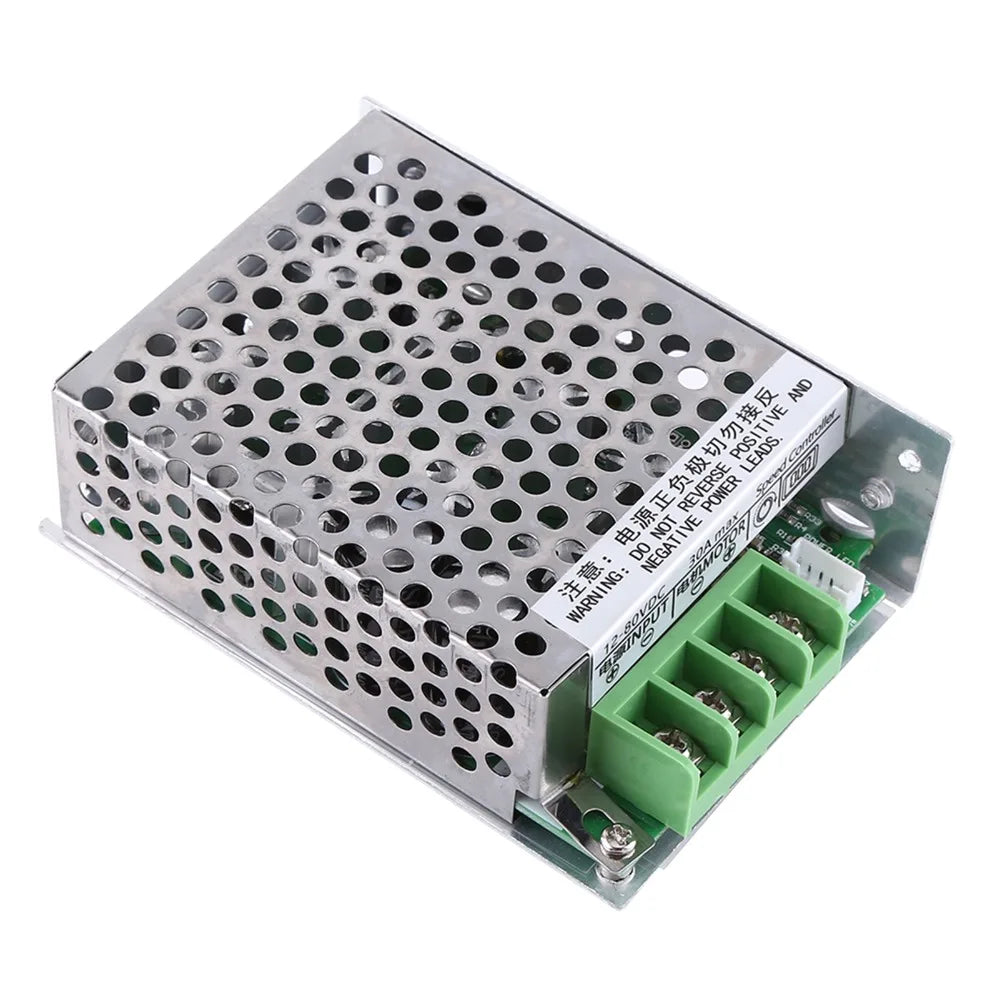

⚠️ Important: Connect to DC (direct current) only. Do NOT connect to AC (alternating current), as this will damage the controller. Always verify correct positive (+) and negative (−) polarity before powering on.
Made in Mainland China.
Package Contents
- 1 × DC Motor Speed Controller with Digital Display Panel
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of motors is this DC motor speed controller compatible with?
A: This PWM speed controller is designed for DC (direct current) motors operating between 12V and 80V. It supports 12V motors up to 250W, 24V motors up to 350W, and 48V motors up to 500W. It is NOT compatible with AC (alternating current) motors — connecting to AC will damage the unit.
Q: How does the soft start feature work on this motor speed regulator?
A: The soft start function gradually ramps up motor speed from 0% to the set target speed over a user-defined period of 0 to 10 seconds (default: 1 second). This reduces sudden mechanical stress on the motor shaft and connected components, helping to extend the lifespan of your equipment. The slow stop feature works similarly, gently ramping speed down rather than cutting power abruptly.
Q: Can I set minimum and maximum speed limits on this controller?
A: Yes. Using the onboard programming buttons and digital display, you can set a minimum speed between 0% and 80%, and a maximum speed between 0% and 100%. You can also choose how much speed changes with each button press — options include 1%, 2%, 5%, 10%, 15%, 20%, or 25% per step.
Q: What is the PWM frequency of this speed controller?
A: This motor speed controller operates at a 21 kHz PWM (Pulse Width Modulation) frequency, which provides smooth, stable motor operation with minimal electrical noise across the full 0–100% speed range.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
