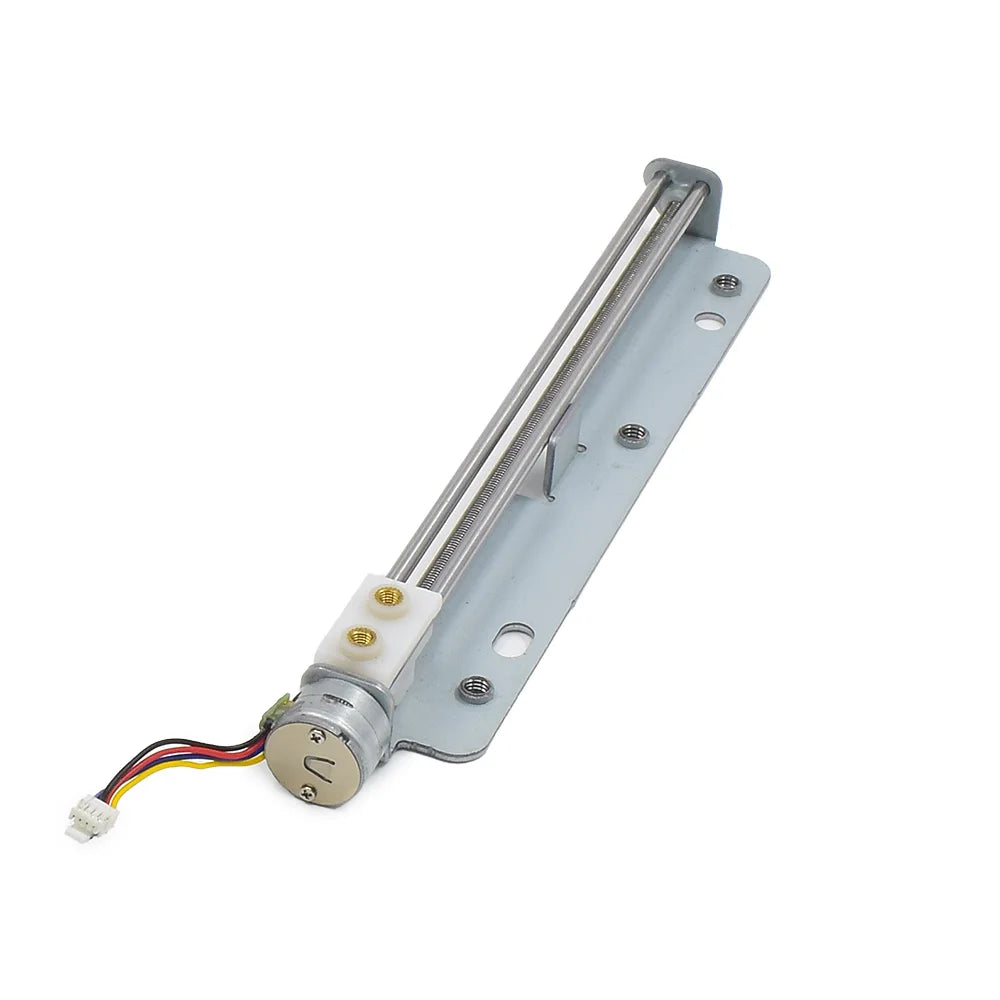

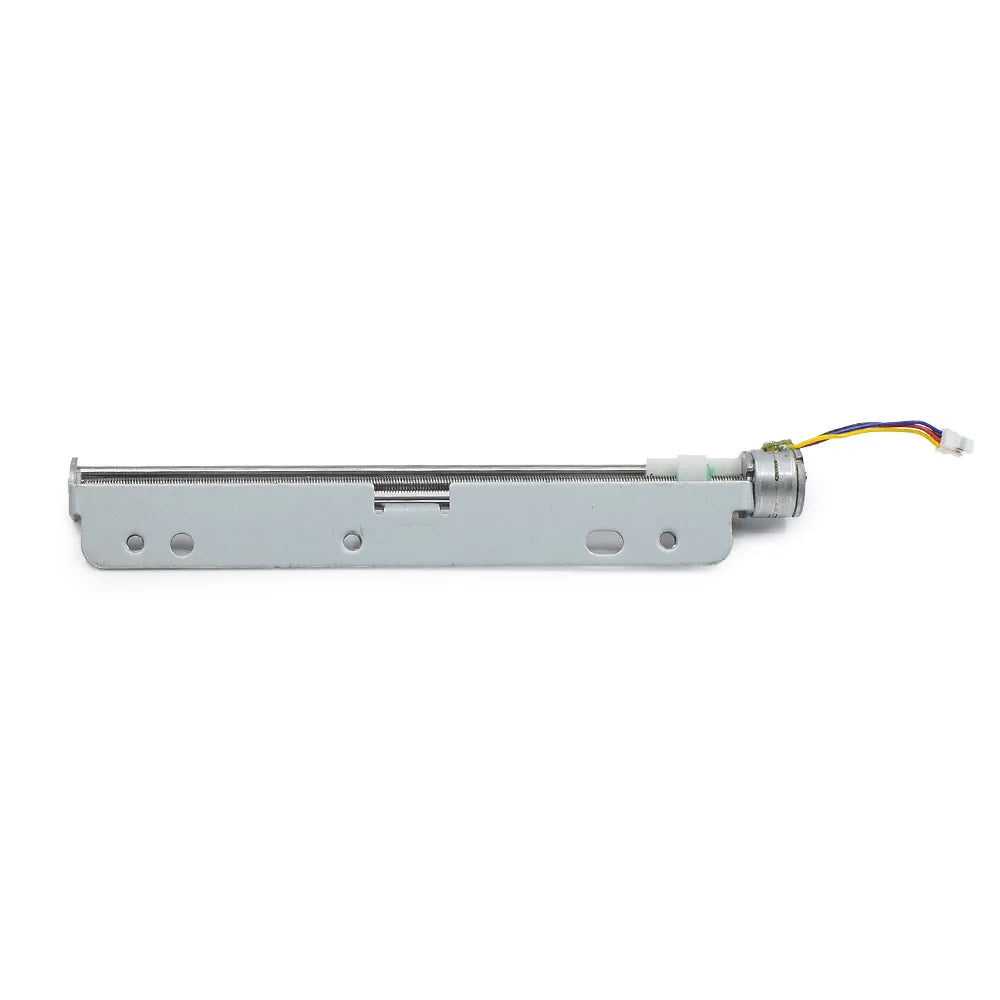

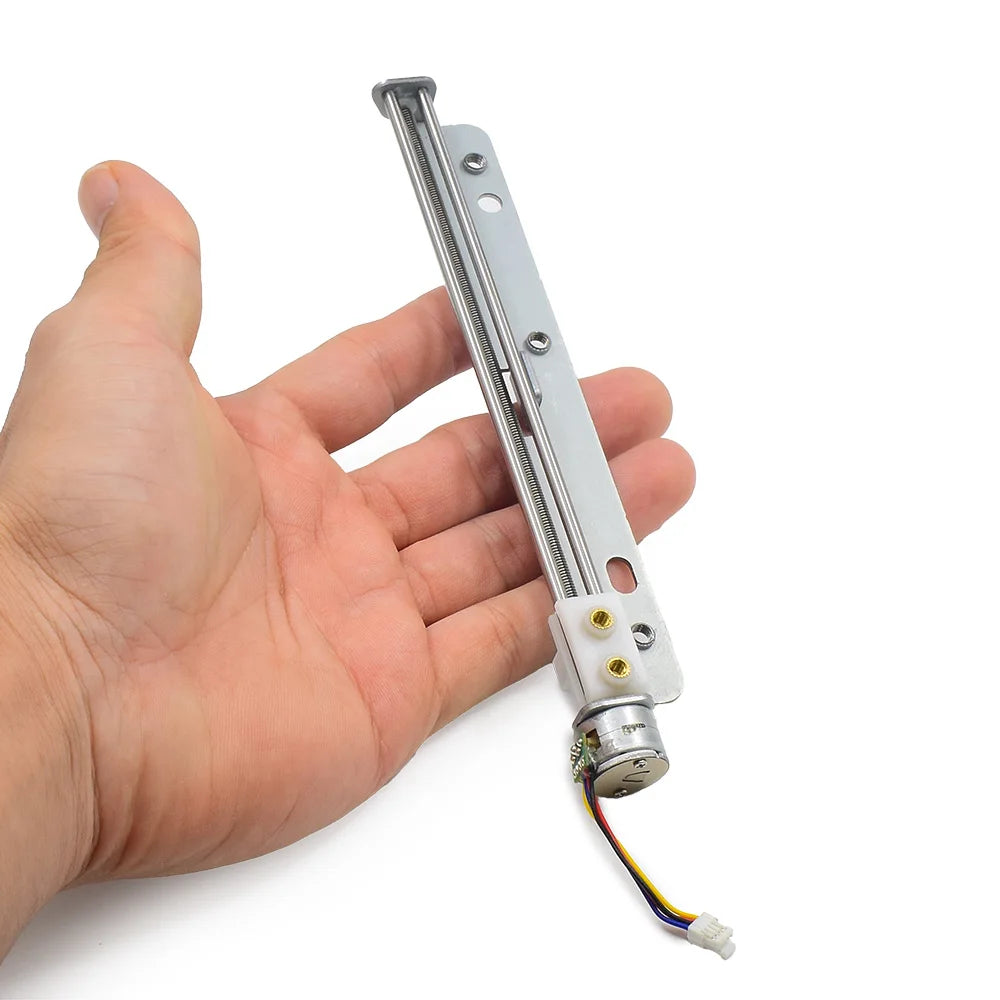

15mm Micro Linear Screw Stepper Motor – 123mm Stroke Slider for 3D Printers & DIY Projects
Upgrade your CNC machine, 3D printer, or precision automation project with this compact 2-phase 4-wire 15mm micro linear screw stepper motor. Featuring a generous 123mm slide stroke and a precision lead screw, this stepping motor delivers accurate, repeatable linear motion in a remarkably small footprint — perfect for DIY builds where space and precision matter.
Unlike conventional rotary motors, this stepper converts rotational motion directly into controlled linear displacement via its integrated lead screw and slider nut, eliminating the need for separate mechanical linkages. Whether you're building a custom 3D printer axis, a camera slider, a micro-robot, or a lab automation fixture, this motor gives you the precise step control you need.
⚠️ Important Note: This is a stepper motor — it will not spin when connected directly to a power supply. A stepper motor driver board and control board (e.g., Arduino, Raspberry Pi, or dedicated CNC controller) are required for operation.

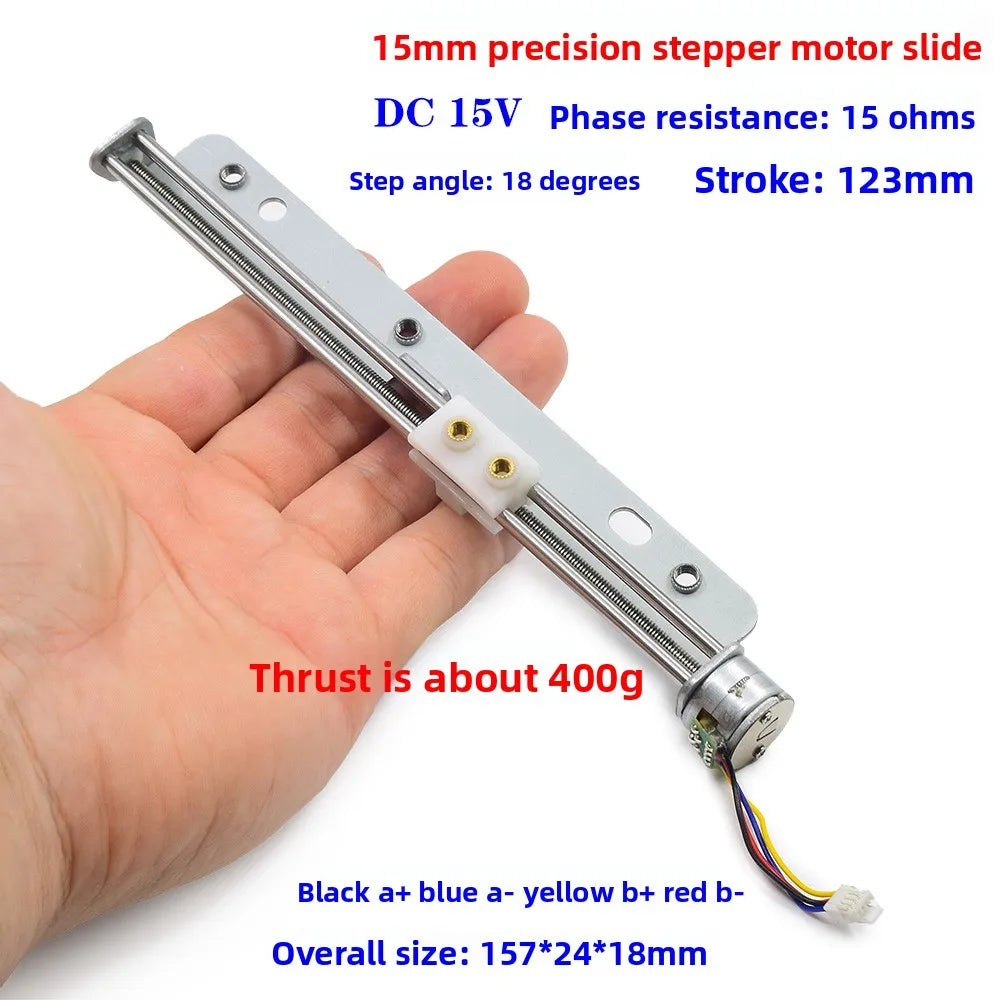

Key Specifications
- Motor Type: 2-Phase, 4-Wire Bipolar Stepper
- Motor Diameter: 15mm

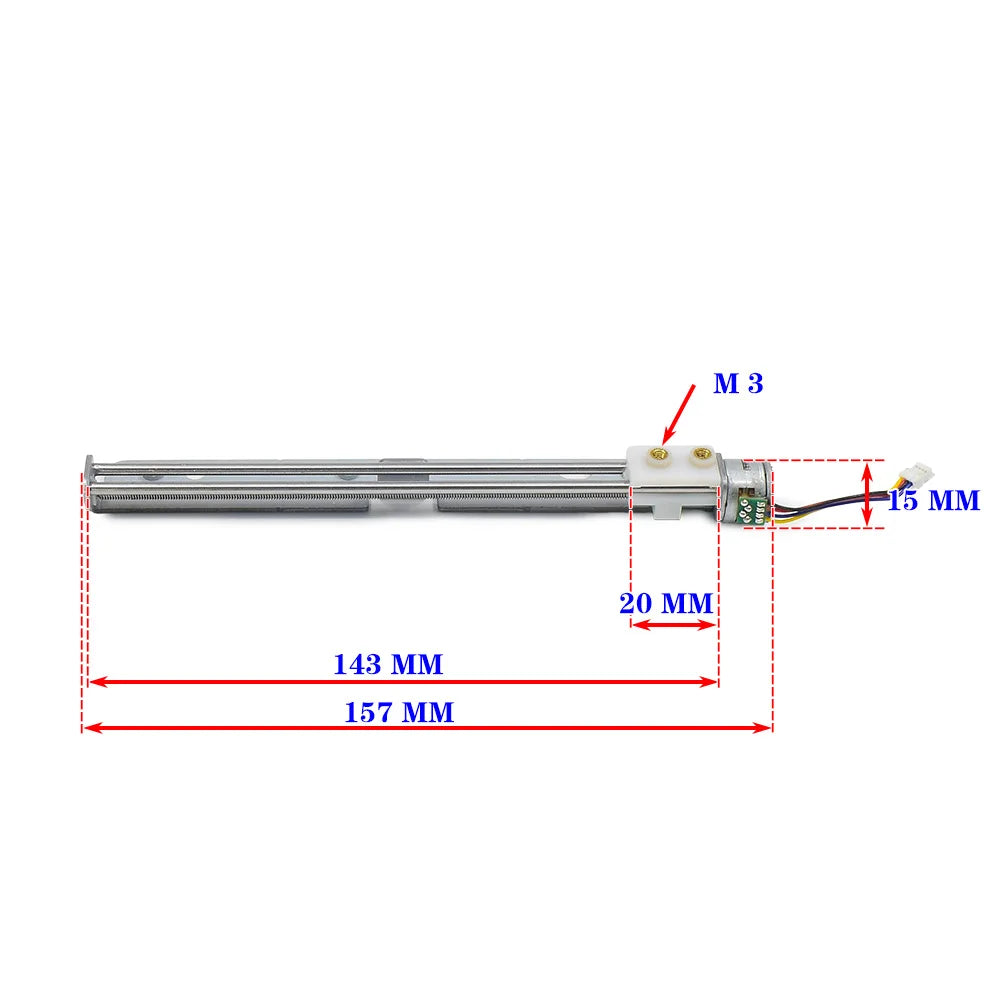

- Overall Dimensions: 105 × 15 × 18mm
- Driving Voltage: 9–15V DC / 100–650mA (rated 12V)
- Power Supply: DC (low voltage: below 50VAC or 75VDC)
- Screw Length: 143mm
- Slide Stroke: 123mm

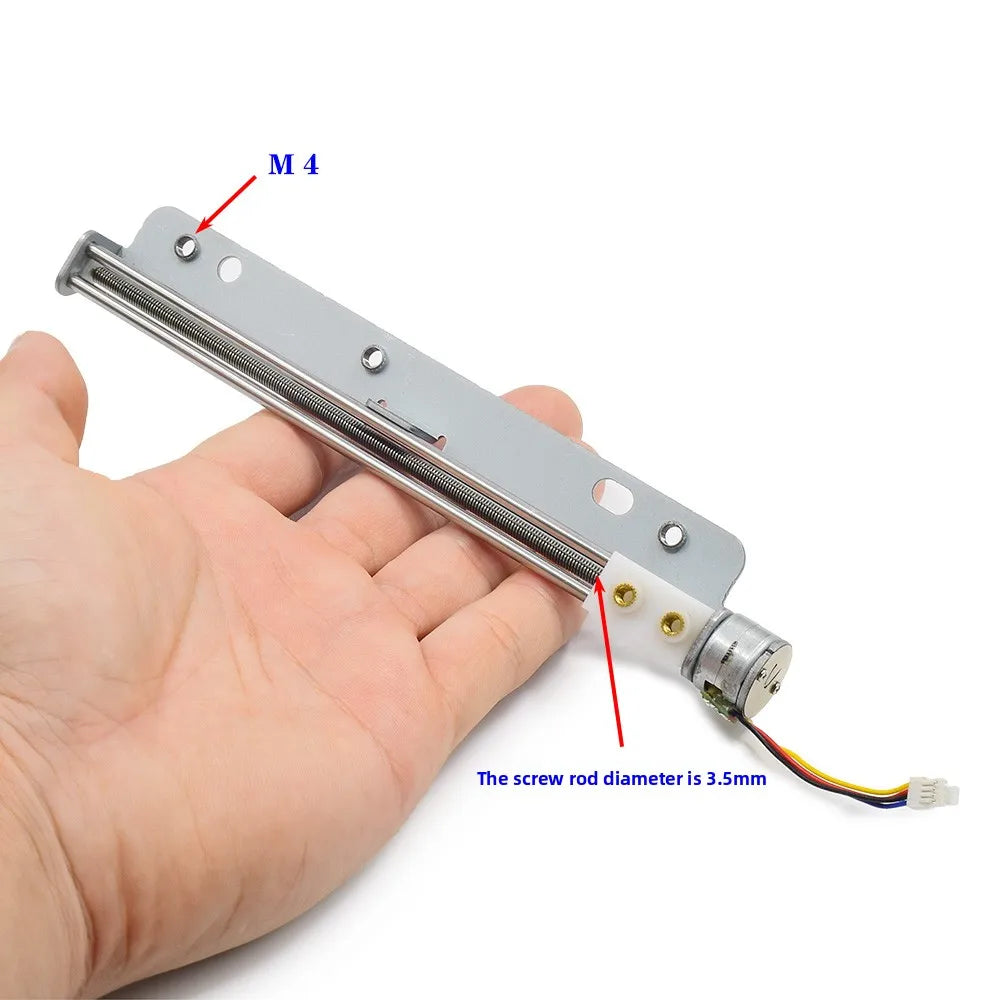

- Screw Diameter: 3.5mm
- Optical Axis Diameter: 3mm
- Screw Pitch: 0.6mm
- Step Angle: 18°
- Phase Resistance: 15 Ohms
- Connector: Terminal NHS-4Y
- Wire Color Coding: Black (A+) | Blue (A−) | Yellow (B+) | Red (B−)
- Battery: Not included / Not required
- Wireless: None
Why Choose This Linear Stepper?
- ✅ High Precision Movement: 0.6mm screw pitch delivers fine, repeatable positioning with each step
- ✅ Compact & Lightweight: 15mm diameter body fits into tight spaces in desktop 3D printers and micro-robot arms
- ✅ Wide Voltage Range: Flexible 9–15V operation lets you tune force output versus heat generation
- ✅ Integrated Slider Nut: Built-in linear slide eliminates the need for external guide rails in many applications
- ✅ Standard 4-Wire Interface: Compatible with popular stepper drivers such as A4988, DRV8825, and L298N
Compatible Applications
- 3D Printer Z-axis or extruder assemblies
- CNC engravers and laser cutter stages
- Camera sliders and focus pullers
- Micro-robot linear joints
- Lab automation and precision dispensing equipment
- DIY electronic projects requiring controlled linear motion
Made in Mainland China.
Related Products You May Also Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Can I connect this linear stepper motor directly to a 12V power supply to make it run?
A: No — stepper motors require a dedicated stepper motor driver board (such as an A4988 or DRV8825) and a microcontroller (such as an Arduino or CNC control board) to generate the proper step and direction signals. Simply applying DC voltage will not cause the motor to rotate or move the slider.
Q: What is the maximum linear travel distance of this stepper motor slider?
A: The slide stroke of this micro linear screw stepper motor is 123mm, with a lead screw length of 143mm and a fine pitch of 0.6mm per revolution for high-precision positioning.
Q: Is this 15mm linear stepper motor compatible with standard 3D printer control boards?
A: Yes. The 2-phase 4-wire bipolar configuration with NHS-4Y terminal connector is compatible with most standard 3D printer and CNC driver boards. Ensure your driver is configured for the correct voltage range (9–15V DC) and current limit to match this motor's phase resistance of 15 ohms.
Q: How does the voltage setting affect performance of this stepper motor?
A: Within the 9–15V operating range, a higher voltage increases driving force and speed but also increases heat generated by the motor. For sustained operation, it is recommended to run at a moderate voltage and use a driver with adjustable current limiting to balance performance and temperature.
