18V/21V PCB Lithium Battery Protection Board 3MOS for Drills
18V/21V PCB Lithium Battery Protection Board 3MOS for Drills
18V/21V PCB Charging Protection Board – 3MOS for Lithium Battery Packs
Keep your cordless drill's lithium battery pack running safely and efficiently with this robust 18V/21V PCB Charging Protection Board. Built with a reliable 3MOS design, this circuit board guards your battery against overcharge, overcurrent, and damaging temperature extremes — extending battery life and protecting your investment in power tools.
Key Features
- Wide Compatibility: Designed for 18V and 21V lithium battery packs used in electric drills and similar power tools
- 3MOS Protection Circuit: Triple MOSFET design delivers stable, dependable battery management performance
- Overcharge Protection: Automatically cuts charging at the correct voltage threshold with a 1-second protection delay
- Overcurrent Protection: Triggers between 40A–50A to prevent damage from excessive current draw
- Continuous Discharge Current: Supports 8–20A for consistent power delivery during heavy-duty use
- Wide Operating Temperature Range: Functions reliably from -55°C to 120°C (RH ≤ 75%)
- Durable ABS + Metal Construction: Compact and tough housing stands up to workshop conditions
- No Indicator Lamp: Clean, streamlined board without an LED lamp circuit
Specifications
| Charge Voltage | 25V |
| Quiescent Current | 25µA (25°C) |
| Continuous Discharge Current | 8–20A |
| Overcurrent Protection | 40A–50A |
| Overcharge Protection Delay | 1 Second |
| Operating Temperature | -55°C to 120°C, RH ≤ 75% |
| Storage Temperature | -55°C to 175°C, RH ≤ 75% |
| Material | ABS + Metal |

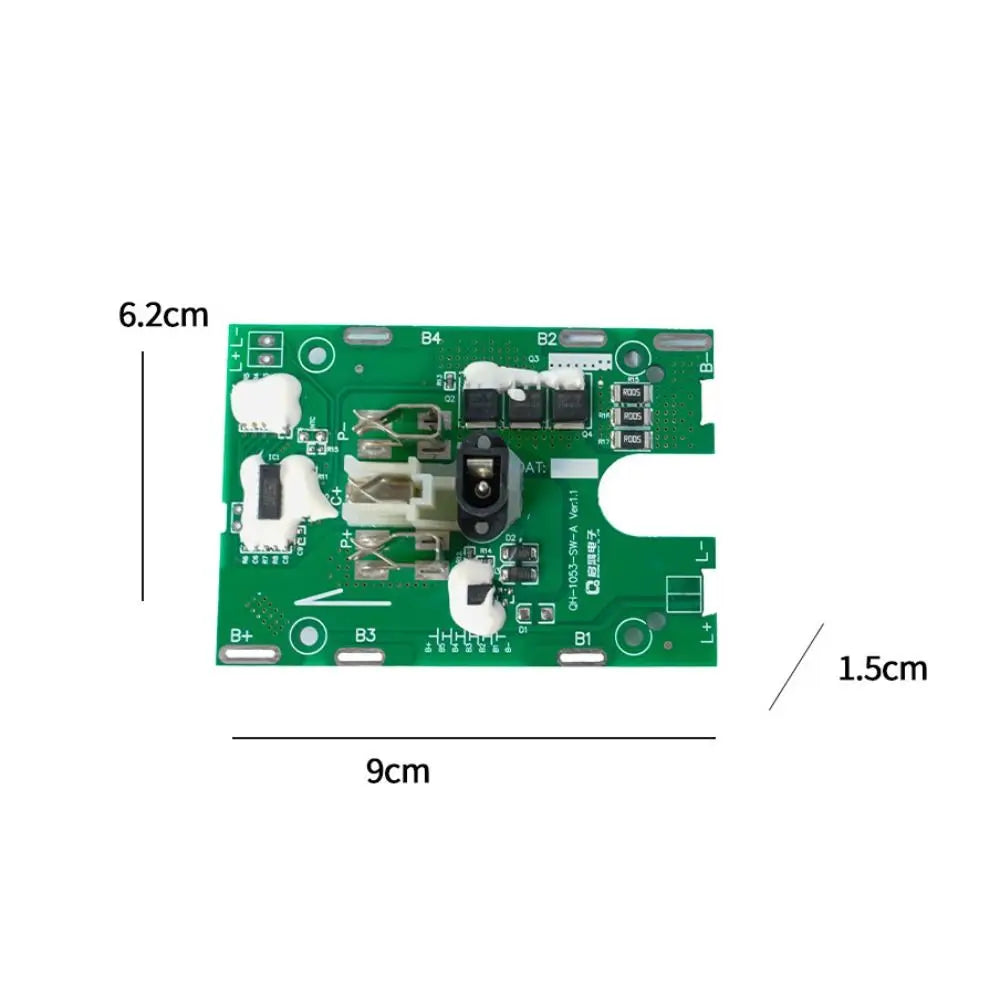

| Dimensions | 90 × 62 × 15 mm (3.54 × 2.44 × 0.59 in) |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × PCB Charging Protection Board

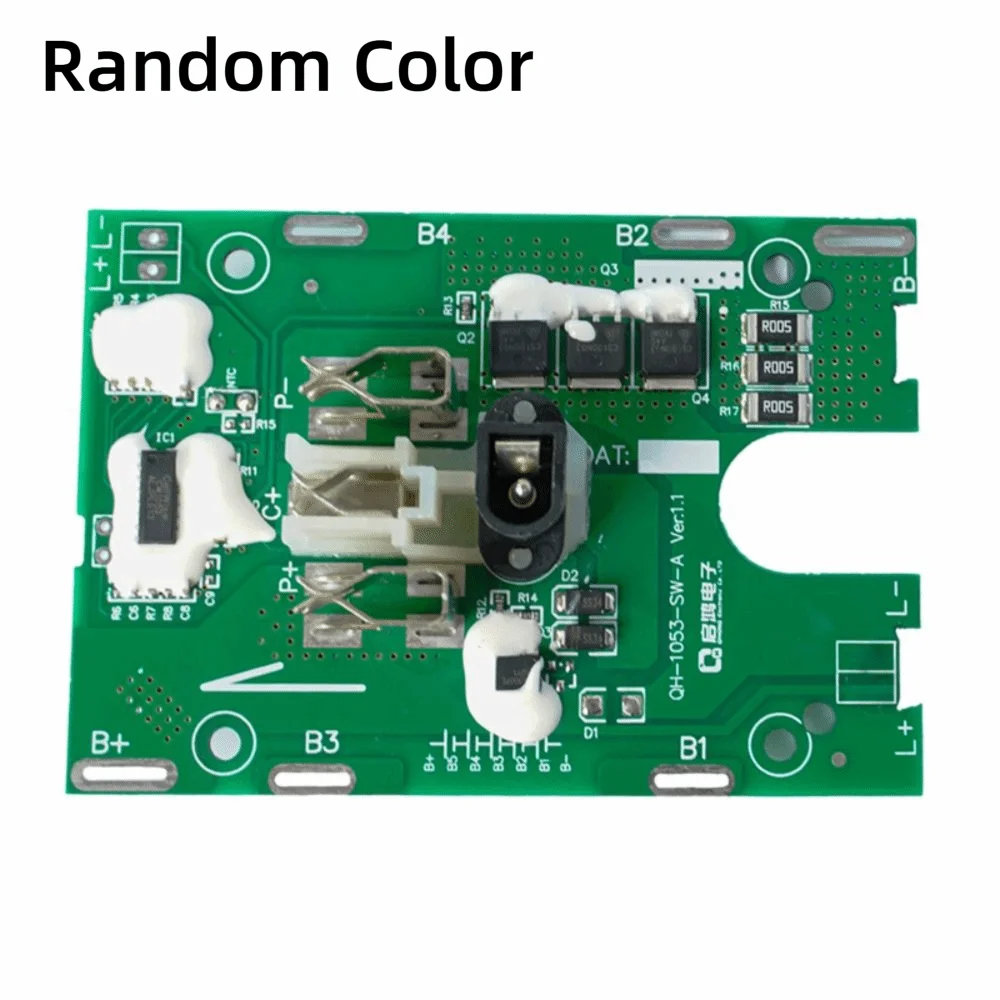

Note: The board base plate color (green or blue) is assigned at random. This does not affect performance or functionality in any way.
