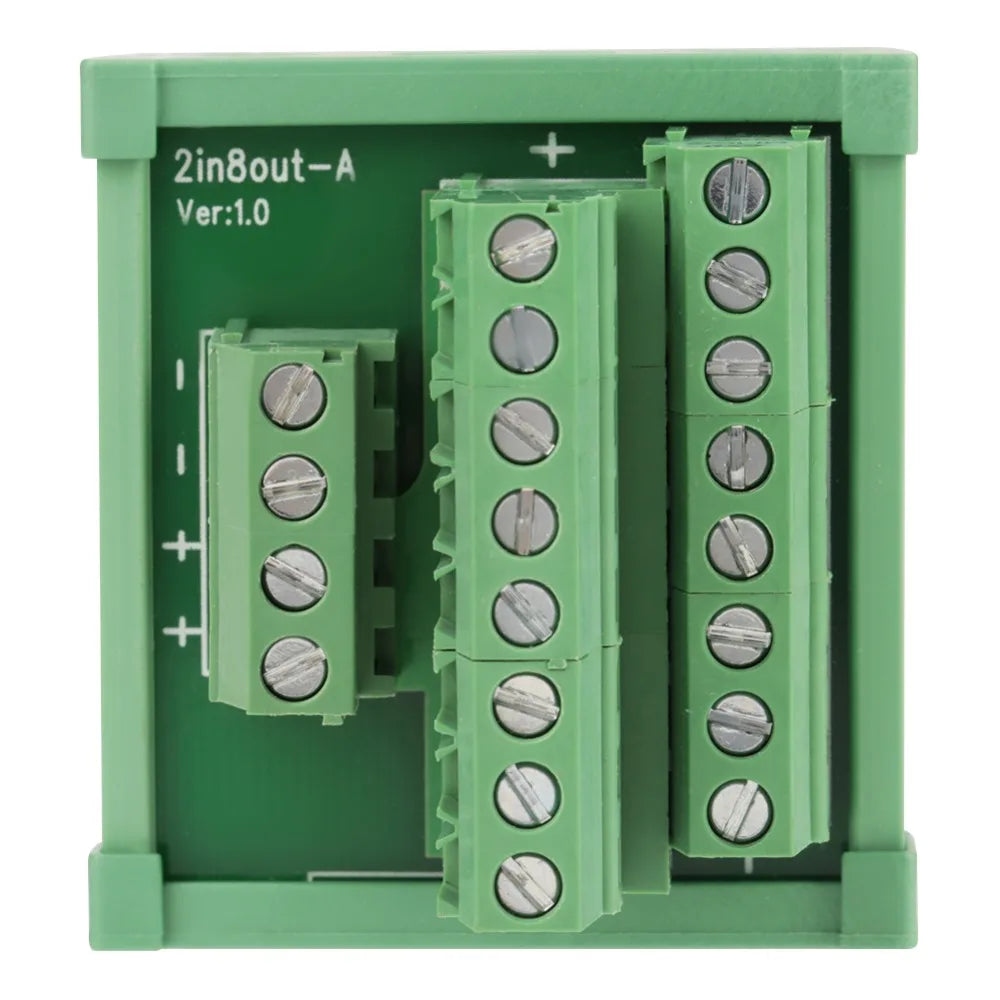

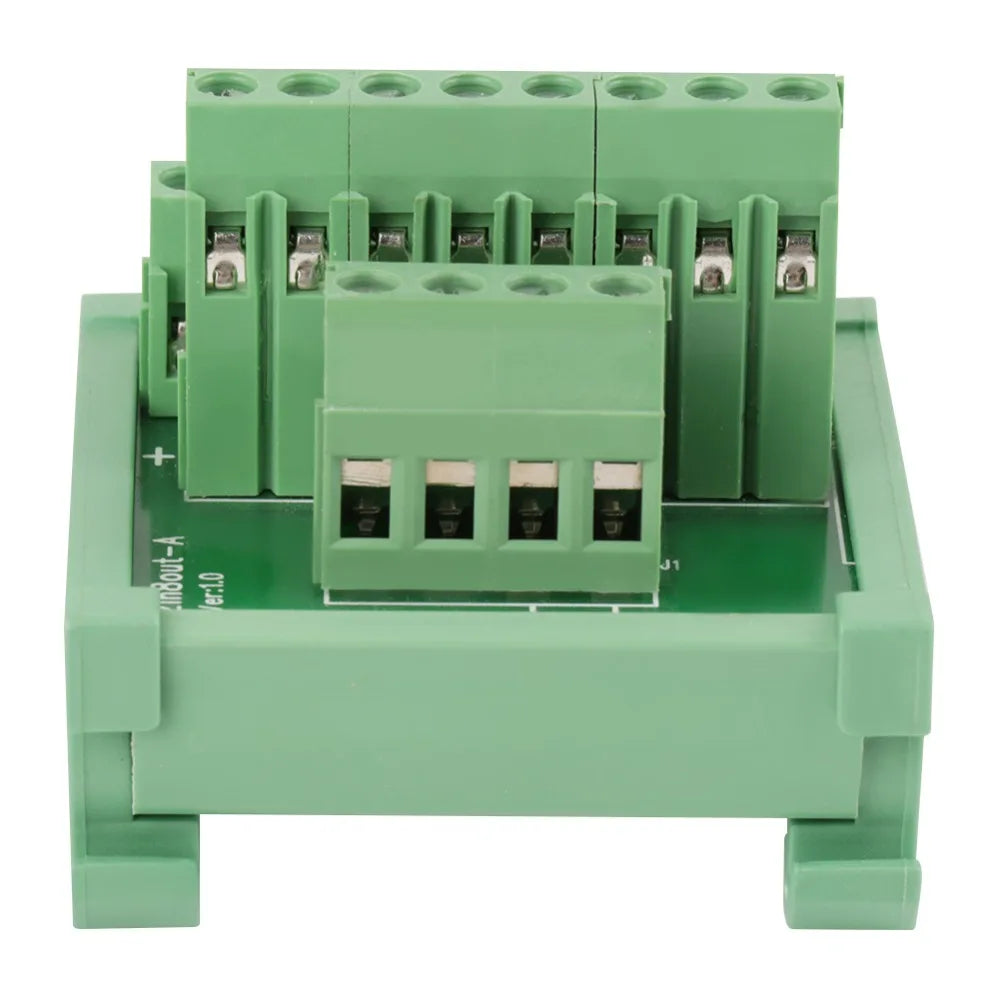

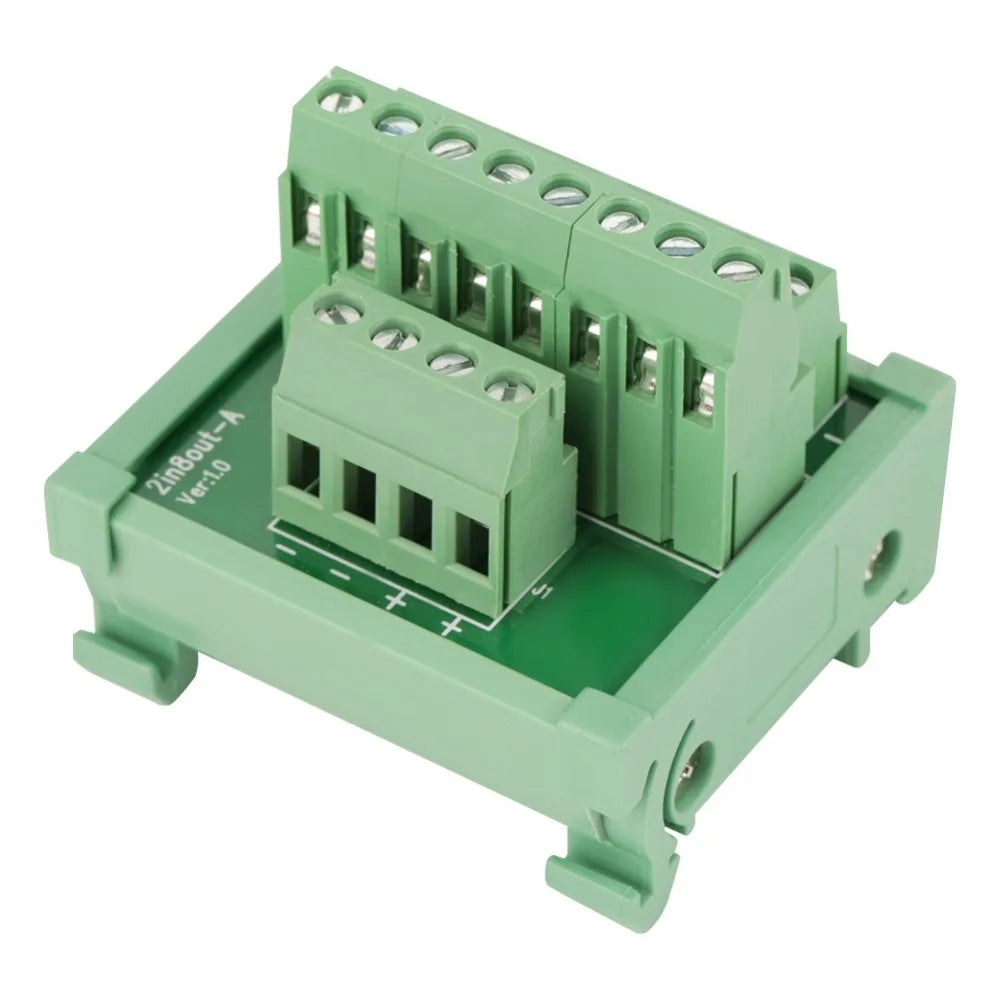

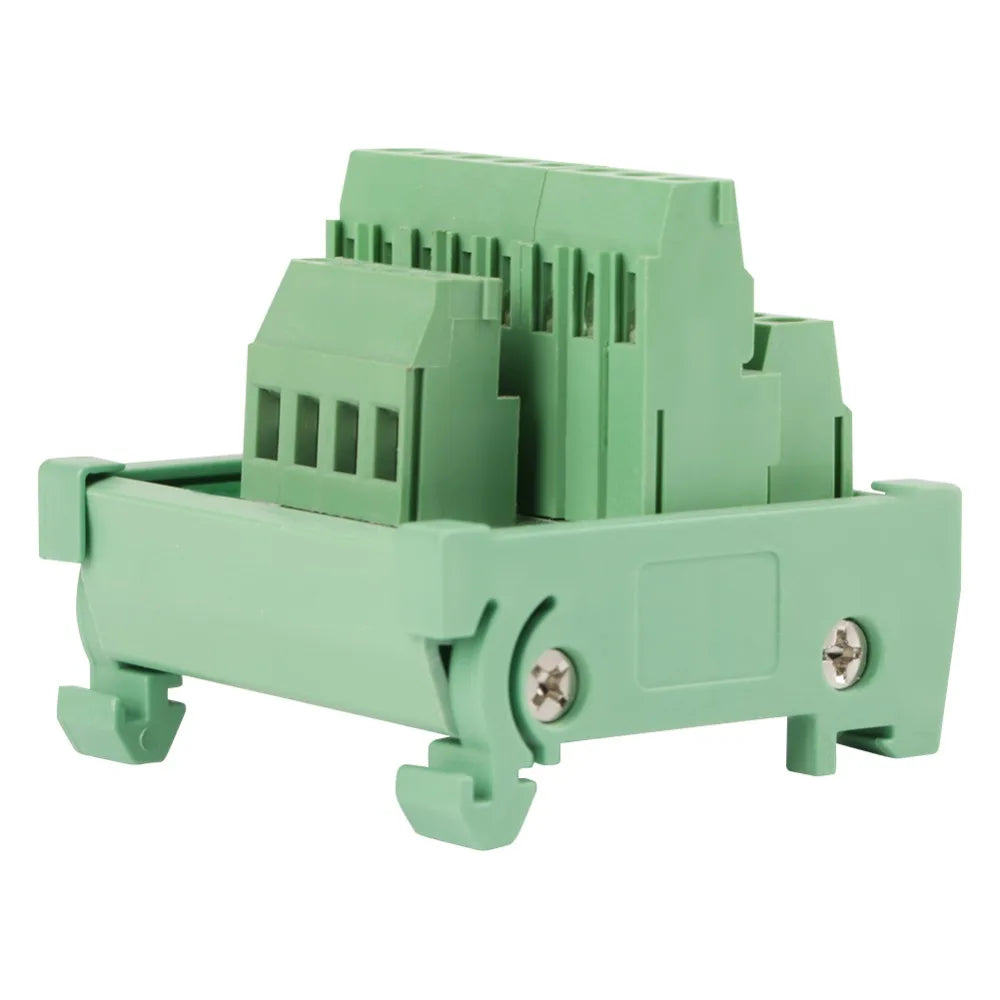

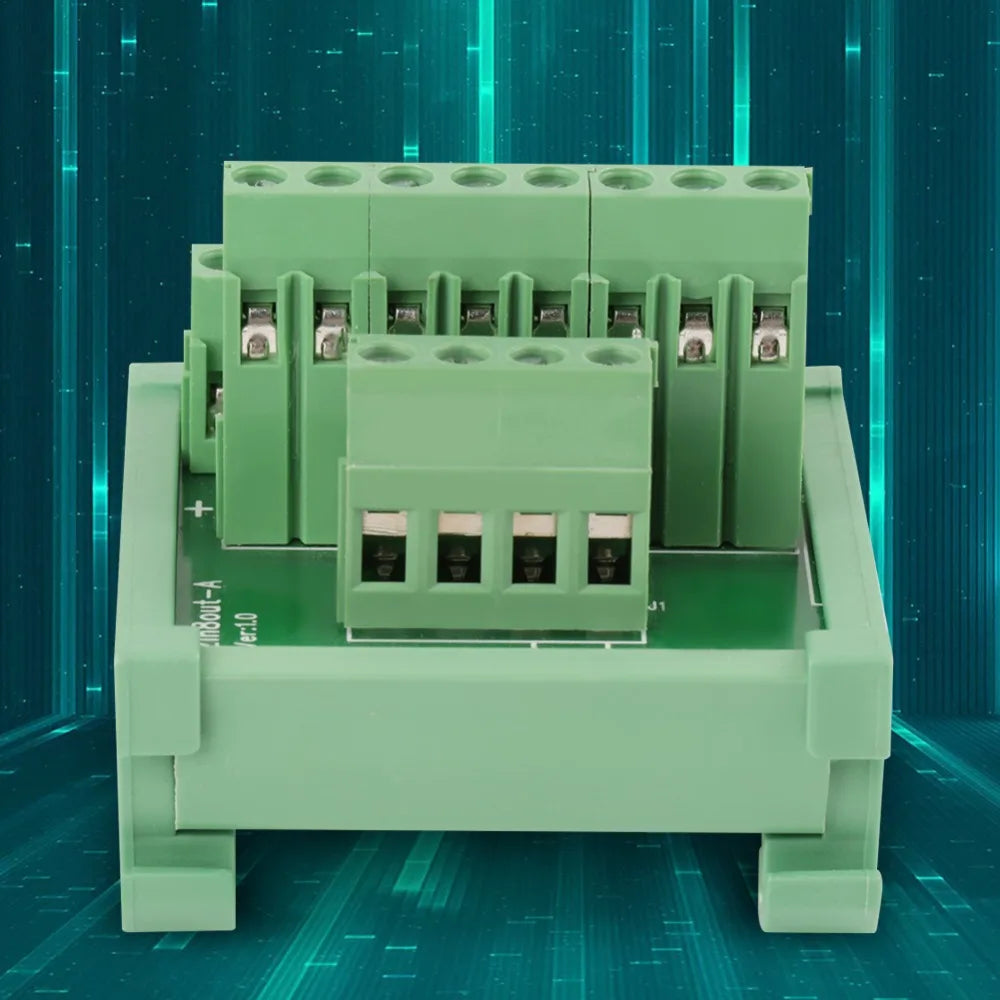

2 In 8 Out DIN Rail Breakout Board – 25A Power Distribution Module
Organize and distribute power efficiently with this compact 2 In 8 Out DIN Rail Mount Breakout Board. Built around a premium FR-4 fiber PCB with brass pin-and-cage terminals, this module delivers a clean, reliable way to split one or two power inputs across up to eight output lines — perfect for control panels, automation cabinets, and electrical enclosures.
Key Features
- 2 Inputs / 8 Outputs – Ideal for distributing low-voltage DC/AC power in a tidy, organized manner
- 25A Large-Current Rating – Handles high-load applications without compromise
- DIN Rail Compatible – Snaps securely onto standard 35 mm (1.38 in) DIN rails for fast, tool-free installation
- Premium FR-4 PCB Construction – Durable fiberglass carrier board with brass pin and cage terminals for long service life
- Screw Terminal Blocks – 5 mm terminal pitch ensures secure, vibration-resistant connections
- Compact Form Factor – Only 52 × 49 × 46 mm, saving valuable panel space

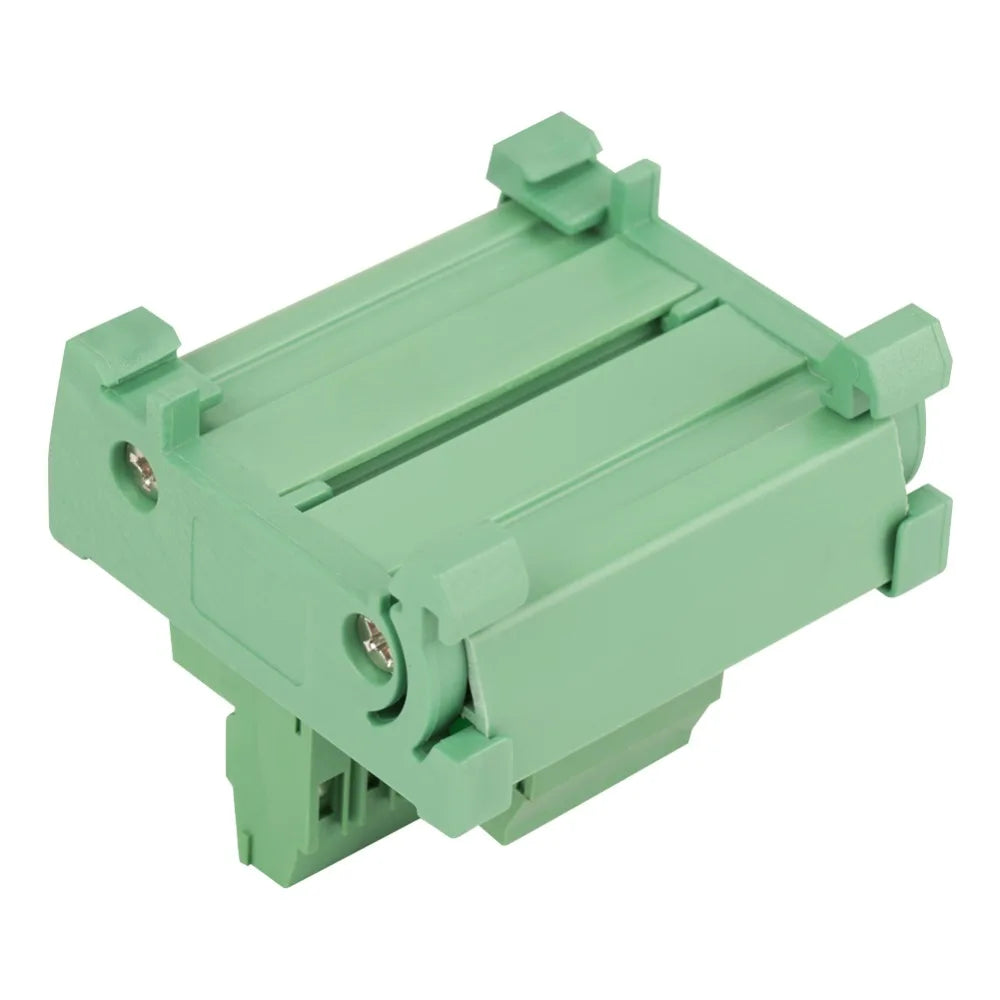

- Simple Mounting Feet – Additional mounting feet for added installation flexibility beyond DIN rail
Specifications
| Rated Voltage | 48 V |
| Rated Current | 1 A (per terminal) / 25 A max |
| Pin & Cage Material | Brass |
| Terminal Pitch | 5 mm (0.20 in) |
| PCB Type | FR-4 Fiberglass |
| DIN Rail Width | 35 mm (1.38 in) |

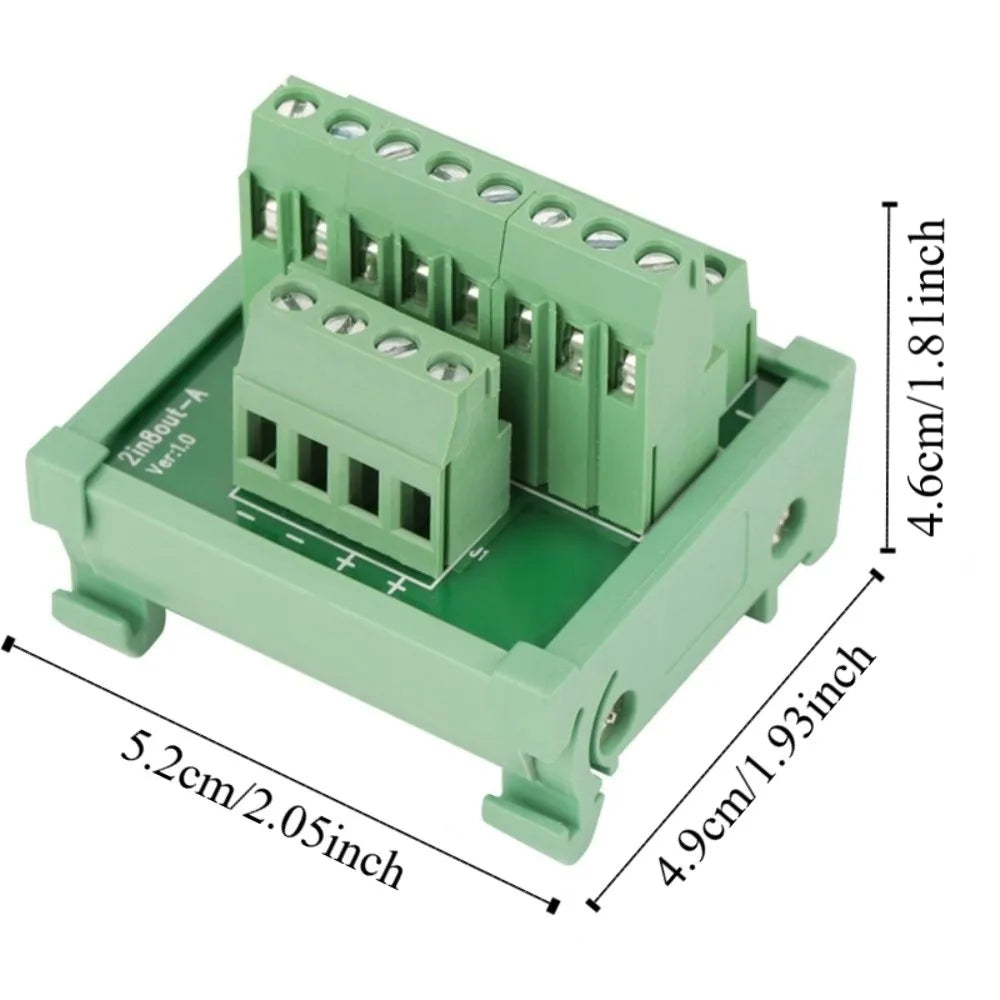

| Dimensions | 52 × 49 × 46 mm (2.05 × 1.93 × 1.81 in) |
| Weight | 97 g |
| EU LVD Voltage | Low Voltage – Below 50 V AC or 75 V DC |
| Country of Origin | Made in China |
What's in the Box
- 1 × 2 In 8 Out Breakout Board Module
Perfect For
Electrical control panels, home automation setups, industrial enclosures, DIY power distribution boards, solar energy systems, and any project requiring neat, reliable low-voltage power splitting on a DIN rail.
Looking for more tools and hardware for your projects? Check out our 10 in 1 Multi-Functional Bone Wrench Hex Socket Spanner or the 16 in 1 Multi-Function Bike Repair Tool Folding Hex Wrench Set for your workshop essentials.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What DIN rail size is compatible with this 2 In 8 Out breakout board module?
A: This DIN rail mount breakout board is designed for standard 35 mm (1.38 in) wide DIN rails, which are the most common size used in electrical enclosures and control panels worldwide.
Q: What is the maximum current this terminal block module can handle?
A: The module supports up to 25 A of large current, with a rated voltage of 48 V, making it well-suited for low-voltage DC power distribution applications in automation and DIY electrical panels.
Q: Can this module be mounted without a DIN rail?
A: Yes. In addition to the DIN rail clip, the module includes simple mounting feet, giving you flexible installation options even in enclosures without a DIN rail fitted.
Q: What type of PCB does this breakout board use?
A: It uses a premium FR-4 fiberglass PCB carrier, which offers excellent durability, heat resistance, and electrical insulation — ensuring a long and reliable service life for your installation.
