20mm Micro Linear Screw Stepper Motor – 2-Phase 4-Wire Linear Actuator

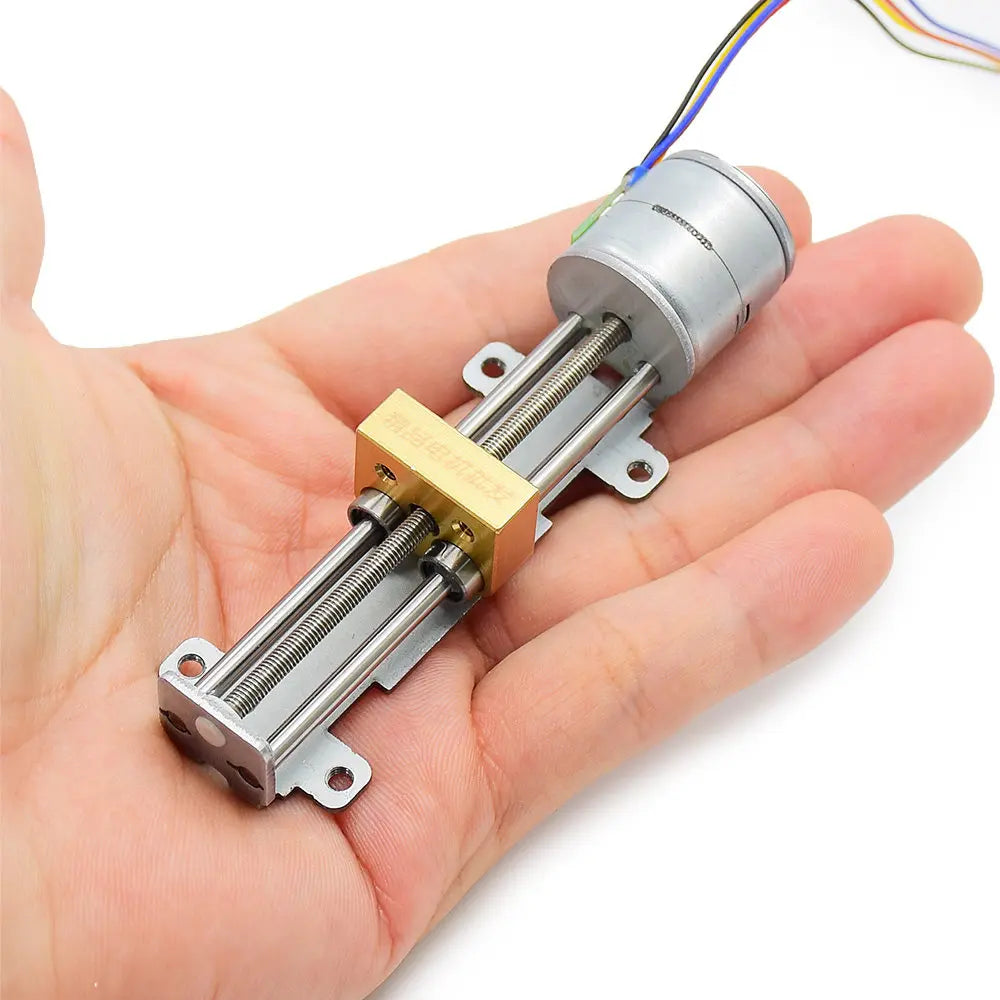

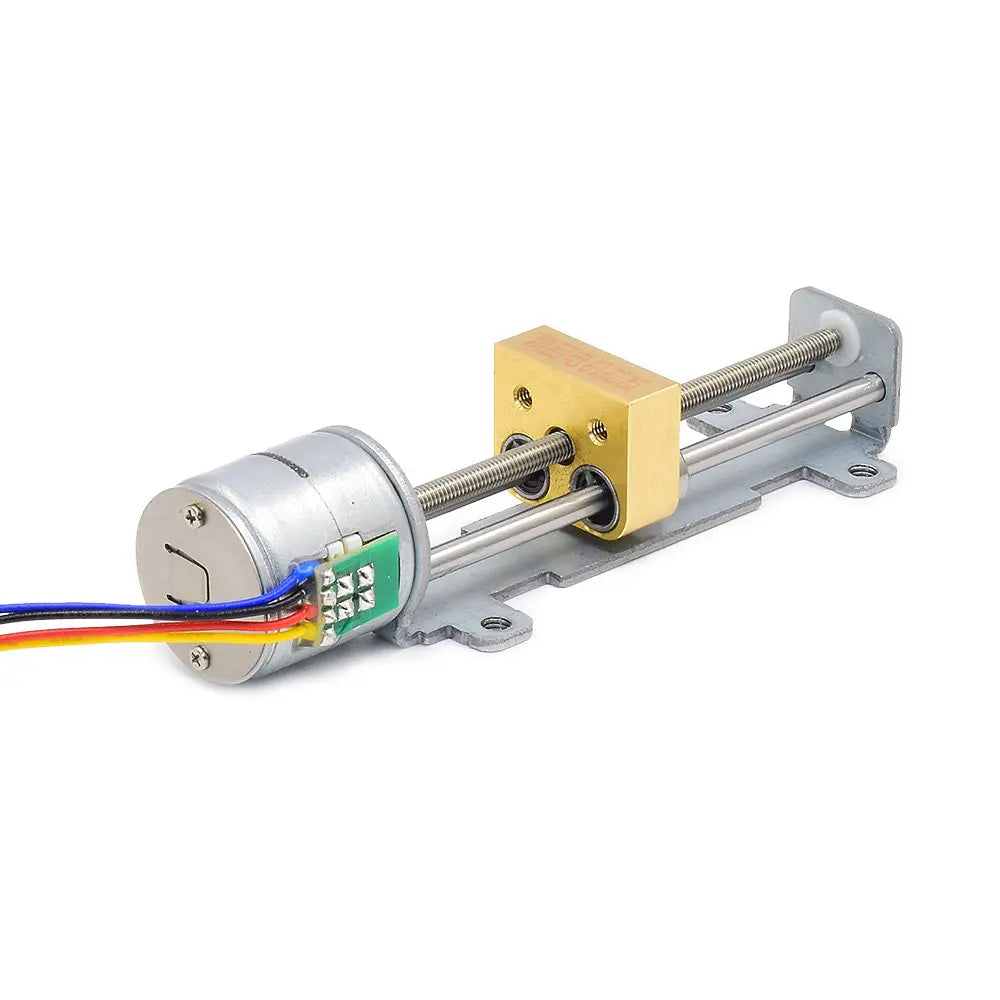

Precision-engineered for makers, engineers, and DIY enthusiasts, this compact 20mm 2-phase 4-wire linear screw stepper motor delivers accurate, repeatable linear motion in a slim, lightweight form factor. Ideal for 3D printers, CNC machines, robotic arms, camera sliders, lab equipment, and automated mechanisms, this miniature linear actuator combines a threaded screw with a stepper motor to convert rotational steps into precise straight-line travel — all within an 88mm overall length.
Key Features
- Compact 20mm Diameter — Fits tight spaces without sacrificing precision or torque
- 55mm Slider Stroke — Generous travel range for a micro-class actuator
- 0.5mm Screw Pitch — Fine resolution per step for accurate positioning
- 18° Step Angle — 20 steps per revolution for smooth, controllable incremental movement
- 12V / 600mA Drive Voltage — Standard voltage compatible with most microcontroller driver boards
- Low Operating Voltage — Below 50Vac / 75Vdc, EU LVD compliant
- No Battery Required — Runs directly from your project's power supply
- Standard 4-Wire Wiring — Yellow A+, Blue A−, Black B+, Red B− for straightforward driver hookup
Technical Specifications
| Motor Type | 2-Phase, 4-Wire Stepper |
| Motor Diameter | 20mm |
| Drive Voltage | 12V / 600mA |
| Screw Length | 66mm |
| Slider Stroke | 55mm |
| Screw Diameter | 3mm |
| Light Shaft Diameter | 3mm |
| Screw Pitch | 0.5mm |
| Step Angle | 18° |
| Phase Resistance | 20 Ohms |
| Overall Dimensions | 88 × 20 × 21.5mm |
| Wire Colors | Yellow A+, Blue A−, Black B+, Red B− |
⚠️ Important Note: This stepper motor cannot be operated by directly connecting to a power source — it requires a compatible stepper motor driver board and a microcontroller board (e.g. Arduino, Raspberry Pi) to function. Higher drive voltage increases thrust force but also generates more heat; ensure adequate cooling in enclosed builds.
Made in Mainland China.
Perfect For
- DIY 3D printer Z-axis or extruder mechanisms
- CNC engraver and router tables
- Automated camera sliders and focus rails
- Robotic arm linear joints
- Lab automation and scientific instruments
- Electronics prototyping and maker projects
