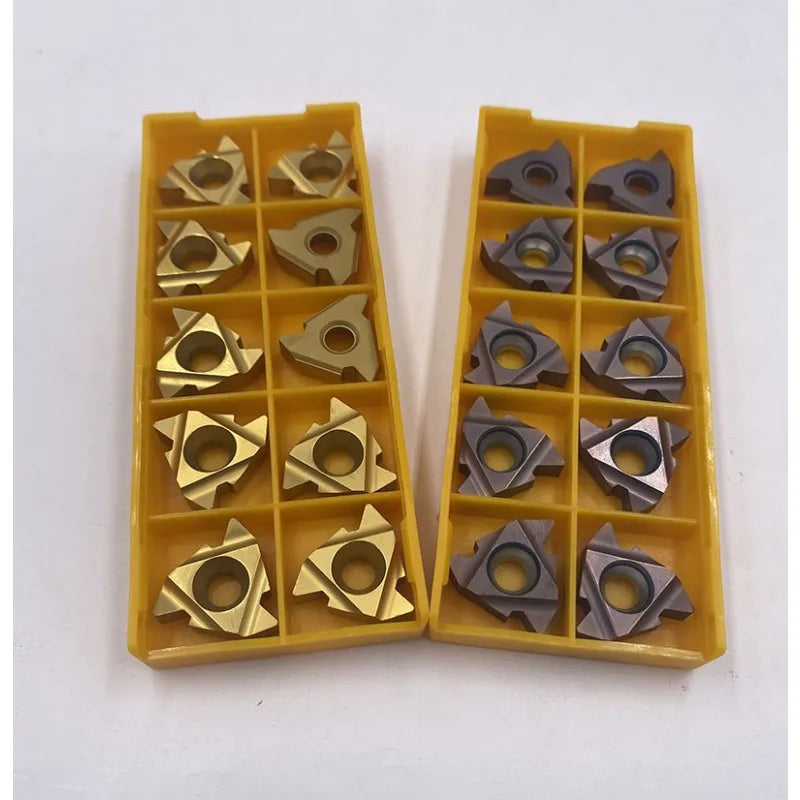

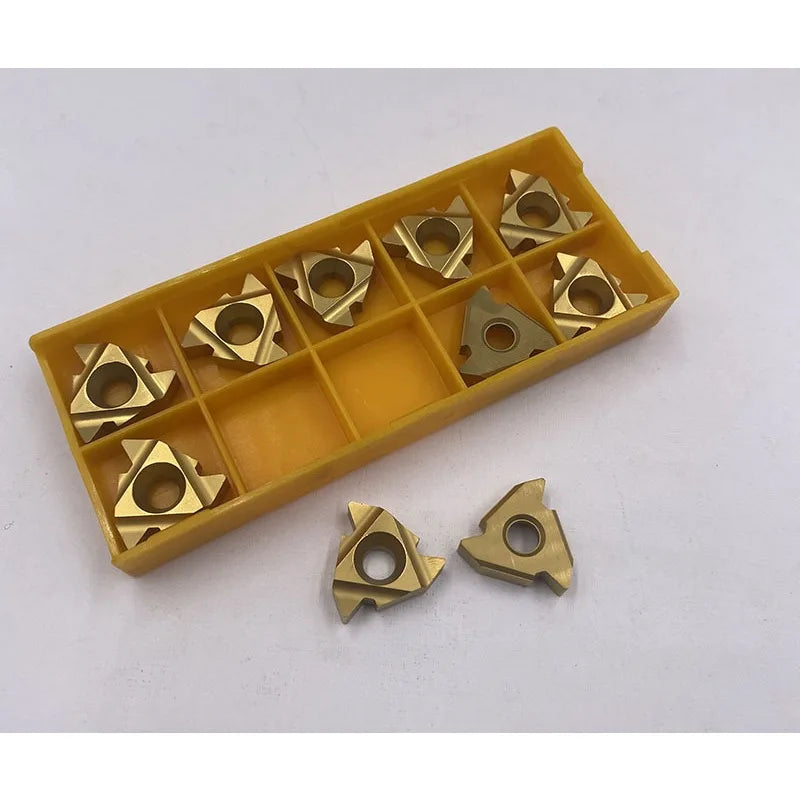

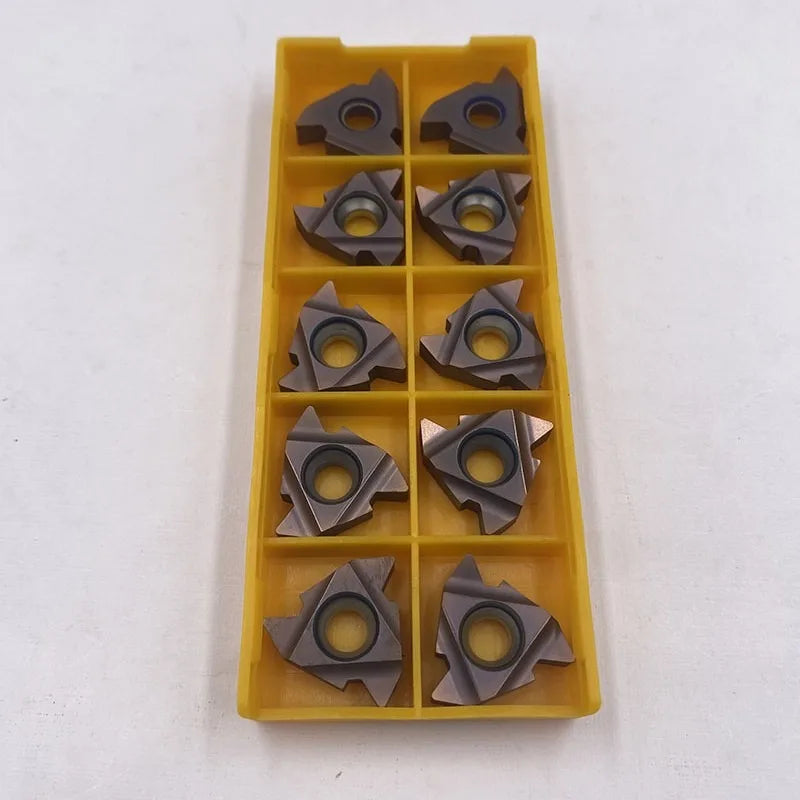

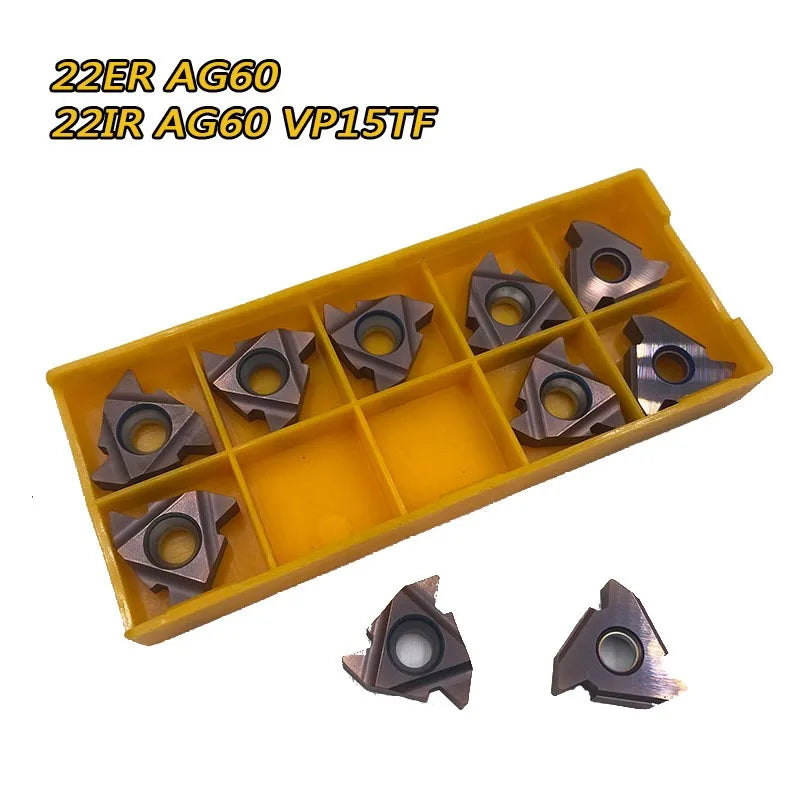

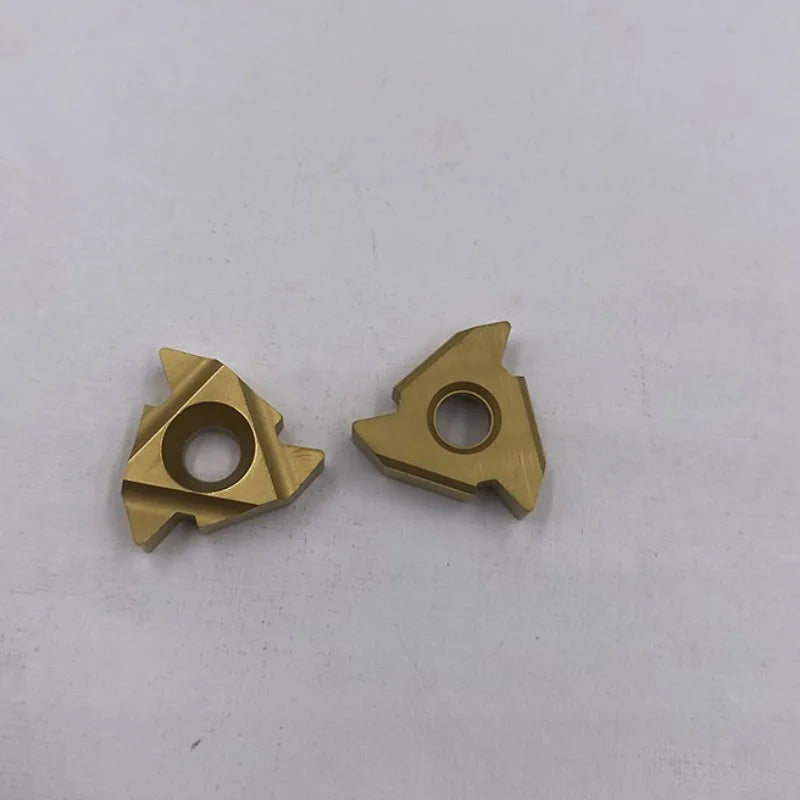

Precision Carbide Threading Inserts – AG60 / US735 / VP15TF / UE6020
Upgrade your lathe threading operations with this professional-grade set of carbide threading inserts. Compatible with 22IR and 22ER toolholders, these hard alloy inserts are engineered for consistent, accurate thread profiles on a wide range of materials. Whether you're cutting external or internal threads, the NC-style chipbreaker blade geometry ensures excellent chip control and long-lasting cutting performance.
Key Features
- Grade Compatibility: Available in popular grades including AG60, US735, VP15TF, and UE6020 — suitable for steel, stainless steel, cast iron, and more
- Hard Alloy Construction: Premium tungsten carbide substrate provides exceptional hardness and wear resistance for high-volume threading
- 22IR / 22ER Insert Style: Standard 22-series profile fits a wide range of indexable threading toolholders
- NC Chipbreaker Blade: Optimised geometry for reliable chip evacuation and clean thread profiles
- Precision Ground Cutting Edges: Sharp, consistent edges deliver repeatable thread accuracy pass after pass
- Versatile Application: Suitable for CNC lathes, manual lathes, and turning centres
Specifications
| Material | Hard Alloy (Carbide) |
| Insert Style | 22IR (Internal) / 22ER (External) |
| Thread Profile | AG60 (60° General Purpose) |
| Available Grades | US735, VP15TF, UE6020 |
| Blade Type | NC |
| Use | Thread Turning Tool |
| Country of Origin | Made in China |
Who Is This For?
These threading inserts are ideal for machinists, toolmakers, and manufacturing engineers who require reliable, cost-effective indexable inserts for both production runs and one-off jobs. The multi-grade selection makes it easy to match the insert to your workpiece material for optimum results.
Related Products You May Like
- 10 in 1 Multi Functional Bone Wrench – Portable Repair Hand Tool
- 16 in 1 Multi-Function Folding Hex Wrench Set
- A01F-DF-6 Handheld Electric Wire Stripper 110V
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What thread profiles do the 22IR and 22ER AG60 carbide inserts cut?
A: The AG60 designation indicates a 60° thread angle, which covers the most common thread standards including Unified National (UN/UNC/UNF), Metric (M), and other 60° profile threads. The 22IR inserts are designed for internal threading, while 22ER inserts handle external threading operations.
Q: Which materials are these carbide threading inserts suitable for?
A: The available grades cover a broad range of workpiece materials. VP15TF and UE6020 grades are typically suited to steel and stainless steel, while US735 offers excellent performance on hardened steels and difficult-to-machine alloys. The hard alloy carbide substrate provides durability across general-purpose turning applications on CNC and manual lathes.
Q: Are these inserts compatible with standard 22-series toolholders?
A: Yes. The 22IR and 22ER insert sizes conform to the standard indexable insert dimensions for 22-series threading toolholders, making them a direct fit for most compatible toolholder brands used in CNC turning centres and manual lathes.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
