24-Pc Aluminum Solar PV Rail Mount Kit – End & Middle Clamps

24-Piece Aluminum Solar Panel PV Rail Mounting Kit – Trapezoidal Roof End & Middle Clamps

Secure your photovoltaic panels with confidence using this comprehensive 24-piece aluminum PV rail mounting kit. Engineered specifically for trapezoidal metal sheet roofs, this system provides a robust, low-profile mounting solution that distributes static loads evenly across the roof surface — reducing suction stress on the outer skin and extending the life of both your roof and your solar installation.

Made in Mainland China.

Why Choose This Solar Rail Mounting Kit?

• Aluminum Alloy Construction: Lightweight yet strong, these rails and clamps resist corrosion and hold up to outdoor conditions year-round.

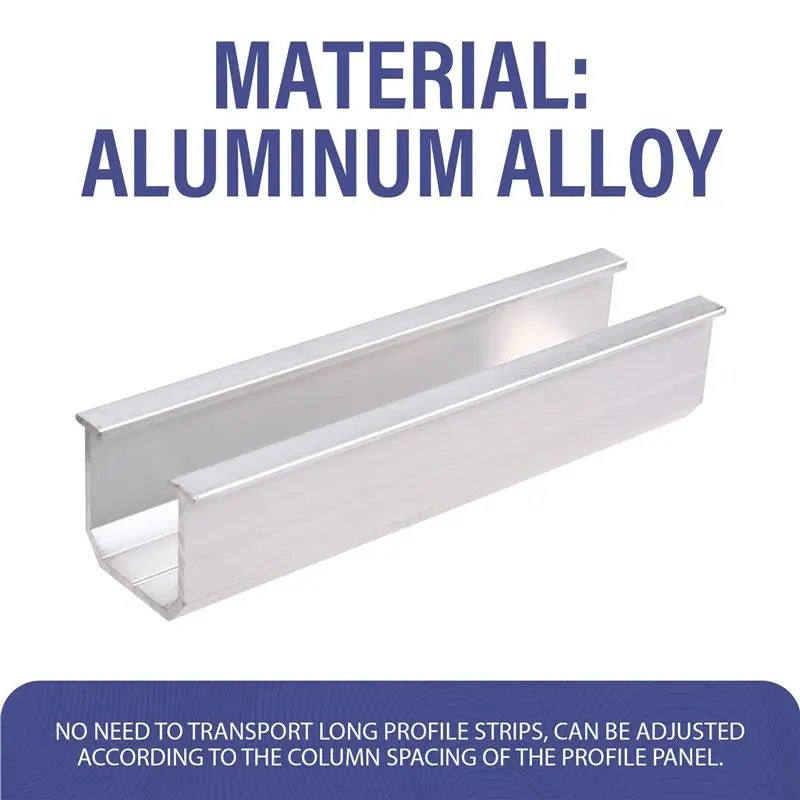

• Designed for Trapezoidal Roofs: Purpose-built mini-rail sections are pre-drilled and sealed, fitting the post spacing of trapezoidal profile panels perfectly — no long profile strips to transport or cut on-site.
• Optimized Load Distribution: The rail system spreads the weight of the PV array evenly, minimizing point-load stress on your roof covering.

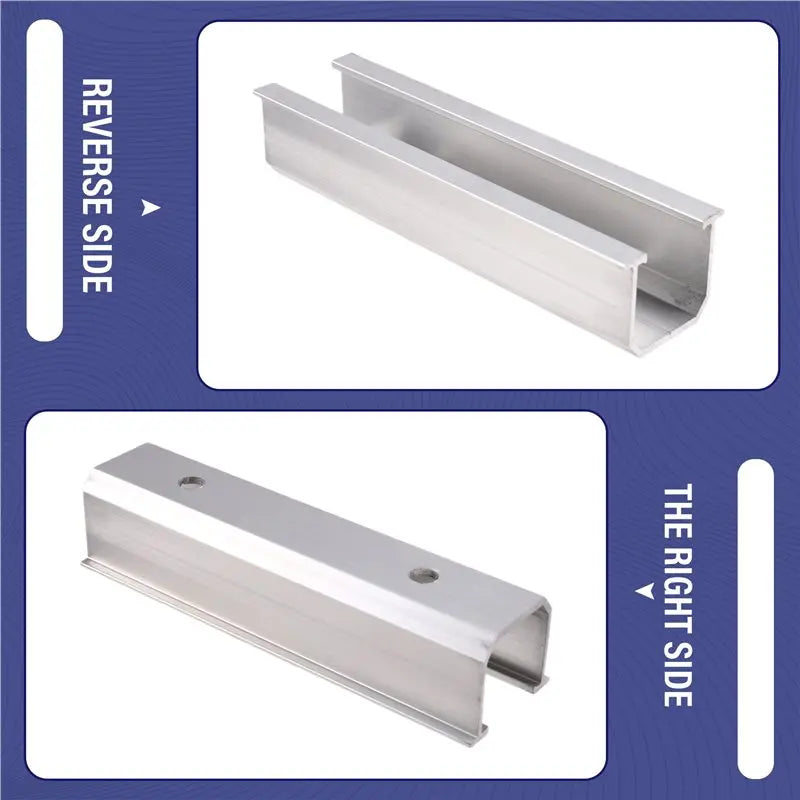

• Sealed & Ready to Install: Profile sections come pre-drilled and covered with sealing tape for a weather-tight fit straight out of the box.
• Dual Color Options: Available in Black & Silver to blend with your roof aesthetic.

Kit Specifications

• Material: Aluminum Alloy
• Colors: Black & Silver

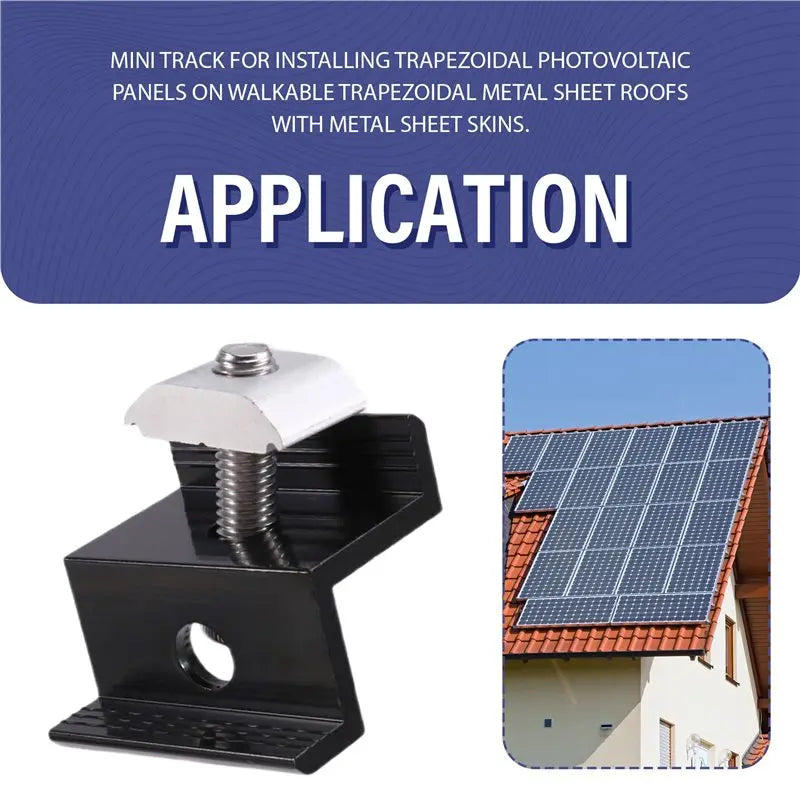

• Application: Trapezoidal metal sheet roofs with walkable metal skin surfaces
• Mounting Type: Mini-rail PV bracket system

Package Contents

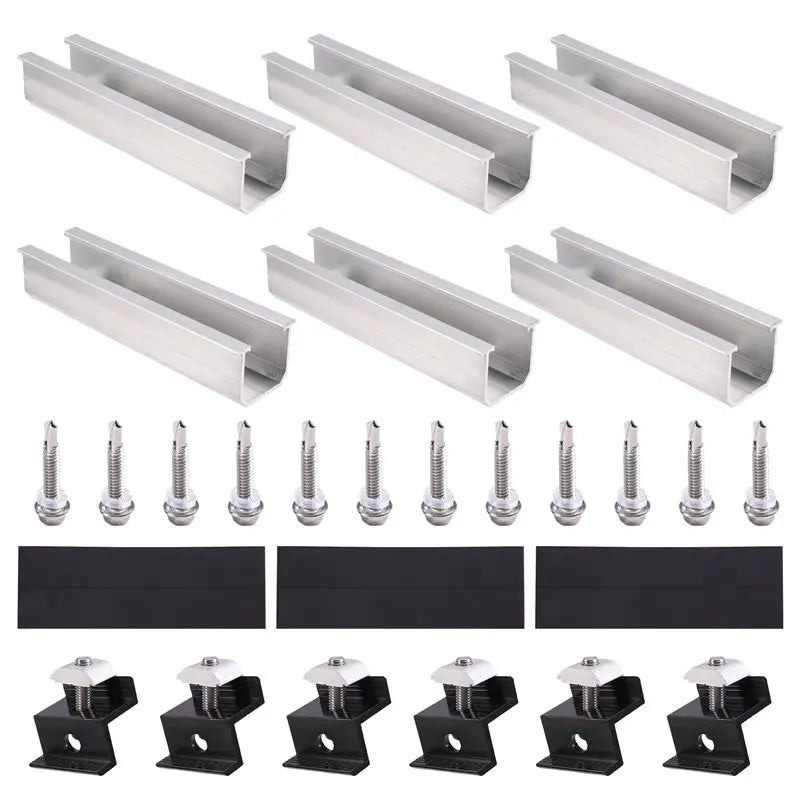

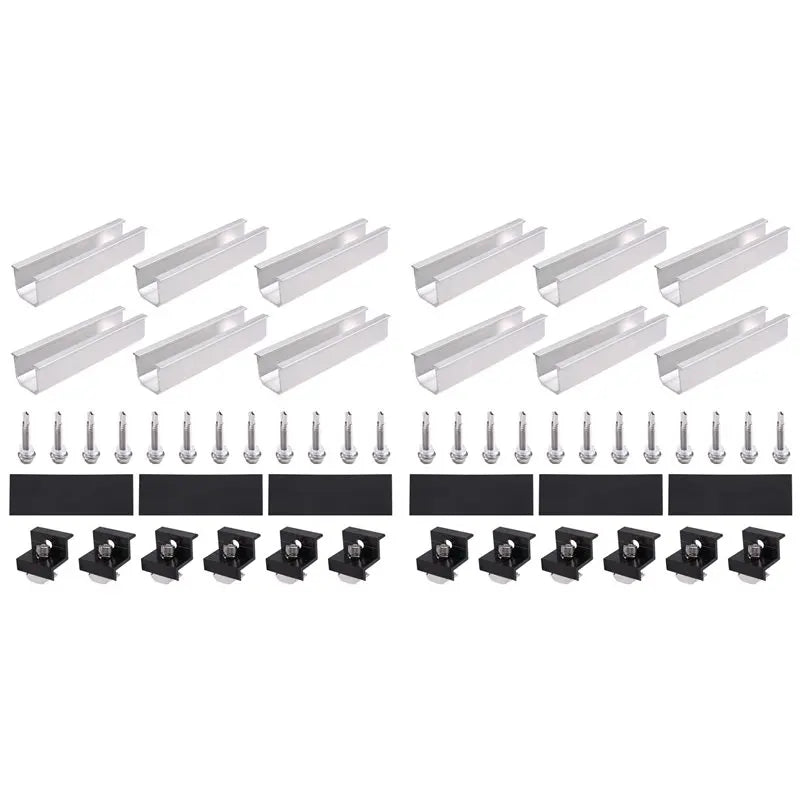

• 12 × Aluminum PV Rails
• 8 × End Clamps
• (4 × Middle Clamps may be included per variant — see product images for full contents)

Note: Due to lighting and display differences, colors may appear slightly different from actual product. Measurement tolerance is ±1–3 cm.

Complete Your Solar Setup

Pair this mounting kit with our 120mm U-Rail Solar Panel Mounting Kit – Clamps Included for a full trapezoidal and flat-roof solution. Need tools for installation? Check out our 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner for on-roof fastening tasks.
