3-Axis CNC Control Card NCStudio 5.4.49 Engraving Machine

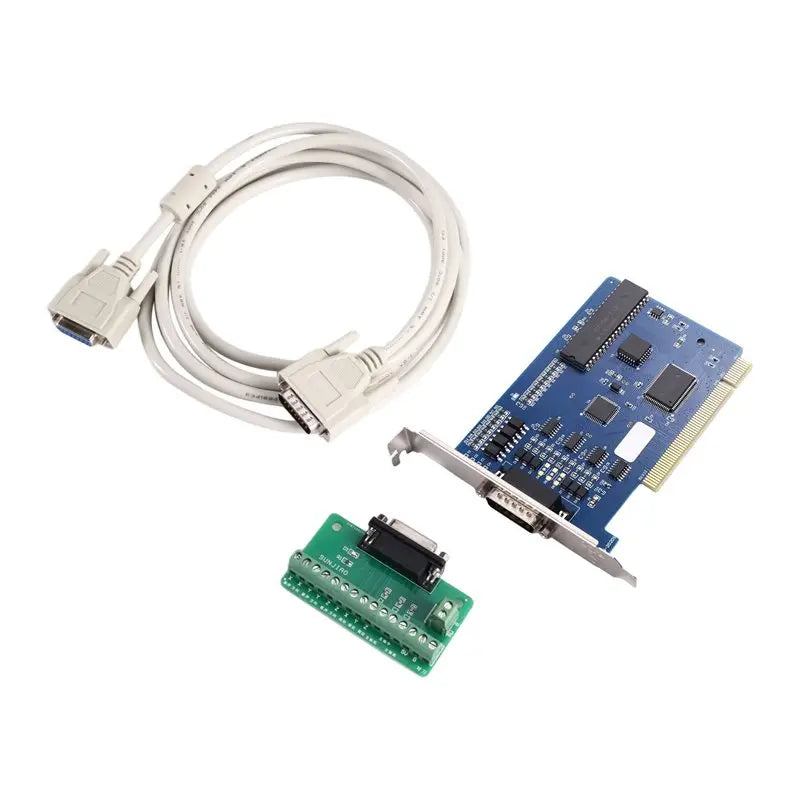

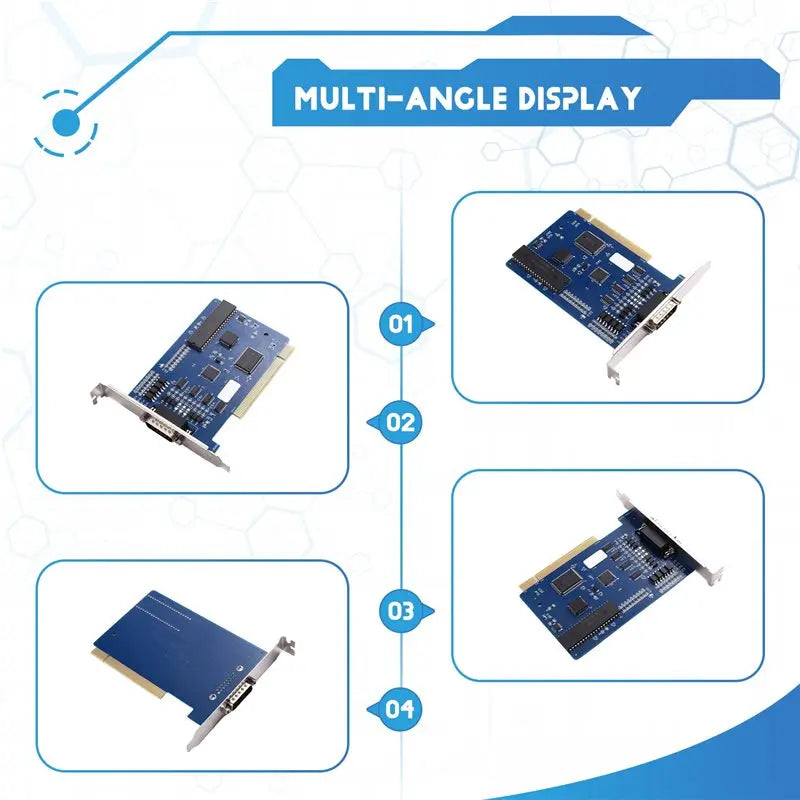

3-Axis CNC Engraving Machine Control Card – NCStudio 5.4.49

Upgrade or replace the control card in your CNC engraving or milling machine with this reliable 3-Axis NCStudio Control Card (v5.4.49). Designed for seamless compatibility with the NCStudio ecosystem, this control card delivers precise motion control across all three axes — making it an ideal replacement or upgrade component for CNC routers, mold-processing machines, advertising cutters, and woodworking engravers.

Made in Mainland China.

Key Features

• Broad CAD/CAM Software Compatibility: Directly reads G-code and PLT code generated by UG, Mastercam, CASMATE, ArtCAM, AutoCAD, CorelDraw, and more — no file conversion required.
• Full ISO G-Code Support: Supports the full ISO standard G-command set, HP plotter (PLT) format, and ENG carved processing file format right out of the box.
• 3-Axis Motion Control: Configured for three-axis motion with CNC turret support and fully automated processing capability.
• Versatile Manual Operation: Supports input from handheld devices, keyboards, and mice — giving you flexible manual control on the machine floor.
• Incremental Feed Function: Allows users to set precise feed rates and adjust them in incremental steps for fine control over cutting and engraving depth.
• Wide Industry Application: Suitable for complex mold processing, advertising and sign-making, decorating, routing, and precision cutting industries.
• 3D Sculpting & Milling Ready: Compatible with a variety of three-dimensional sculpting, carving, and milling machine configurations.
• Durable Construction: Built from PC and plastic components for lasting performance in workshop environments.

Specifications

Package Contents

• 1 × 3-Axis NCStudio CNC Control Card (v5.4.49)

Note: Only the above package content is included. Other products are not included. Color may vary slightly due to display settings. Measurement tolerance: ±1–3 cm.

Related Products You May Like

• 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
• 16 in 1 Multi-Function Folding Hex Wrench Set – Portable Repair Hand Tools
• 48-Pc MIG Welding Nozzle & Tip Set – MB15 AK15 Torch

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Which NCStudio software version is this CNC control card compatible with?

A: This 3-axis CNC control card is specifically designed for NCStudio version 5.4.49. It is important to verify your machine's software version before purchasing to ensure full compatibility with your CNC engraving or milling system.

Q: What file formats does the NCStudio 5.4.49 control card support?

A: The control card supports ISO standard G-code, HP plotter PLT format, and ENG carved processing file formats. It is compatible with output from popular CAD/CAM software including AutoCAD, CorelDraw, ArtCAM, Mastercam, UG, and CASMATE — with no file conversion required.

Q: What types of CNC machines is this control card suitable for?

A: This control card is suitable for a wide range of CNC machines including 3-axis CNC routers, engraving machines, milling machines, and woodworking centers used in industries such as mold processing, advertising sign-making, decorating, and precision cutting.

Q: Can this control card be used with handheld input devices?

A: Yes. The NCStudio control card supports both embedded computer input devices (keyboard and mouse) and external machine input devices such as handheld controllers, allowing flexible manual operation directly at the machine.
