3-Phase Sequence Rotation Tester with LED & Buzzer Indicator – 2-Pack (TD-LED02)
Quickly and confidently verify three-phase AC line rotation and sequence with this compact, professional-grade Phase Sequence Tester. Whether you're commissioning motors, control panels, or electrical systems, the TD-LED02 delivers instant visual and audible feedback — no batteries required. Made in Mainland China.
Key Features
- Instant LED Indication: Green LED + intermittent beep for correct phase sequence; Red LED + continuous beep for reverse phase sequence — results at a glance.
- Wide Operating Voltage: Supports 60V–600V AC three-phase systems for broad compatibility across industrial and commercial applications.
- Wide Frequency Range: Operates across 20Hz–400Hz, making it suitable for variable-frequency drive (VFD) applications and non-standard supply frequencies.
- Open-Phase Detection: Clearly indicates whether any phase is open, helping you troubleshoot wiring issues quickly.
-

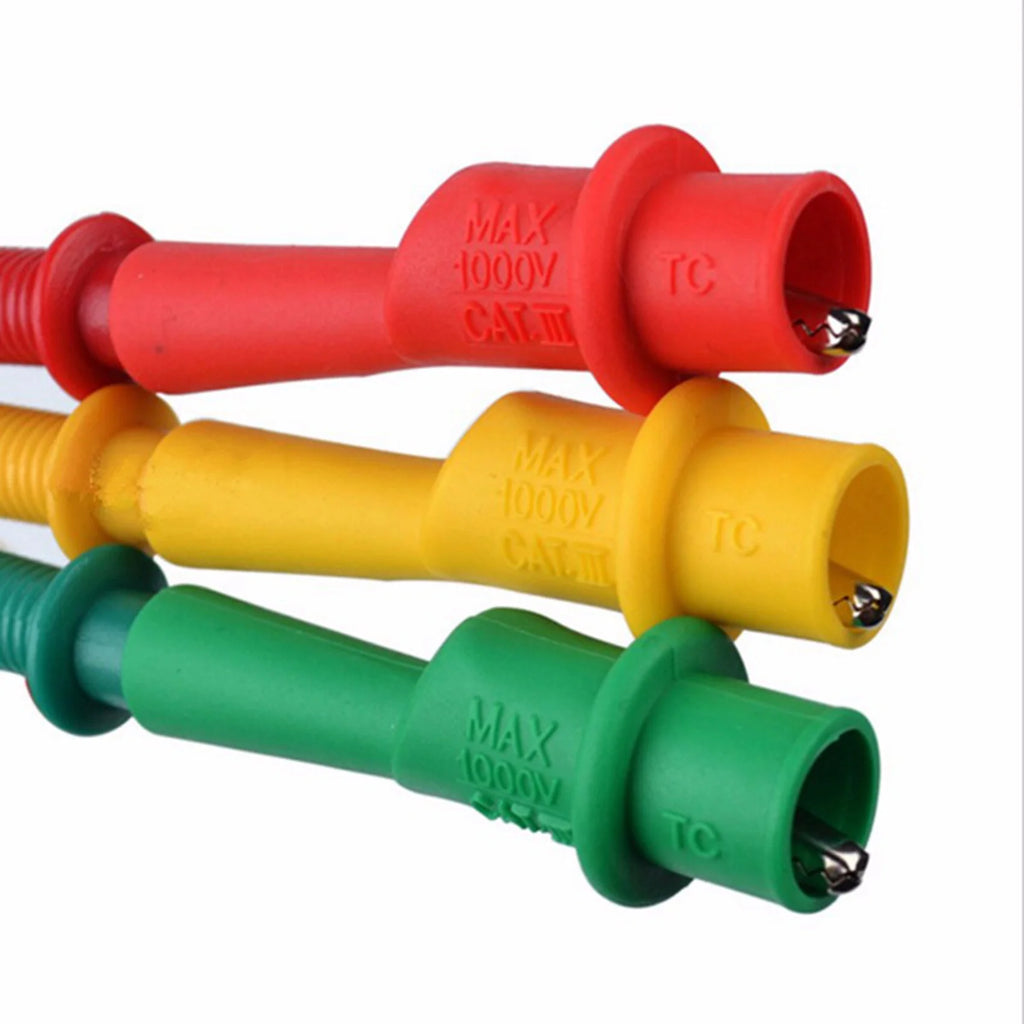

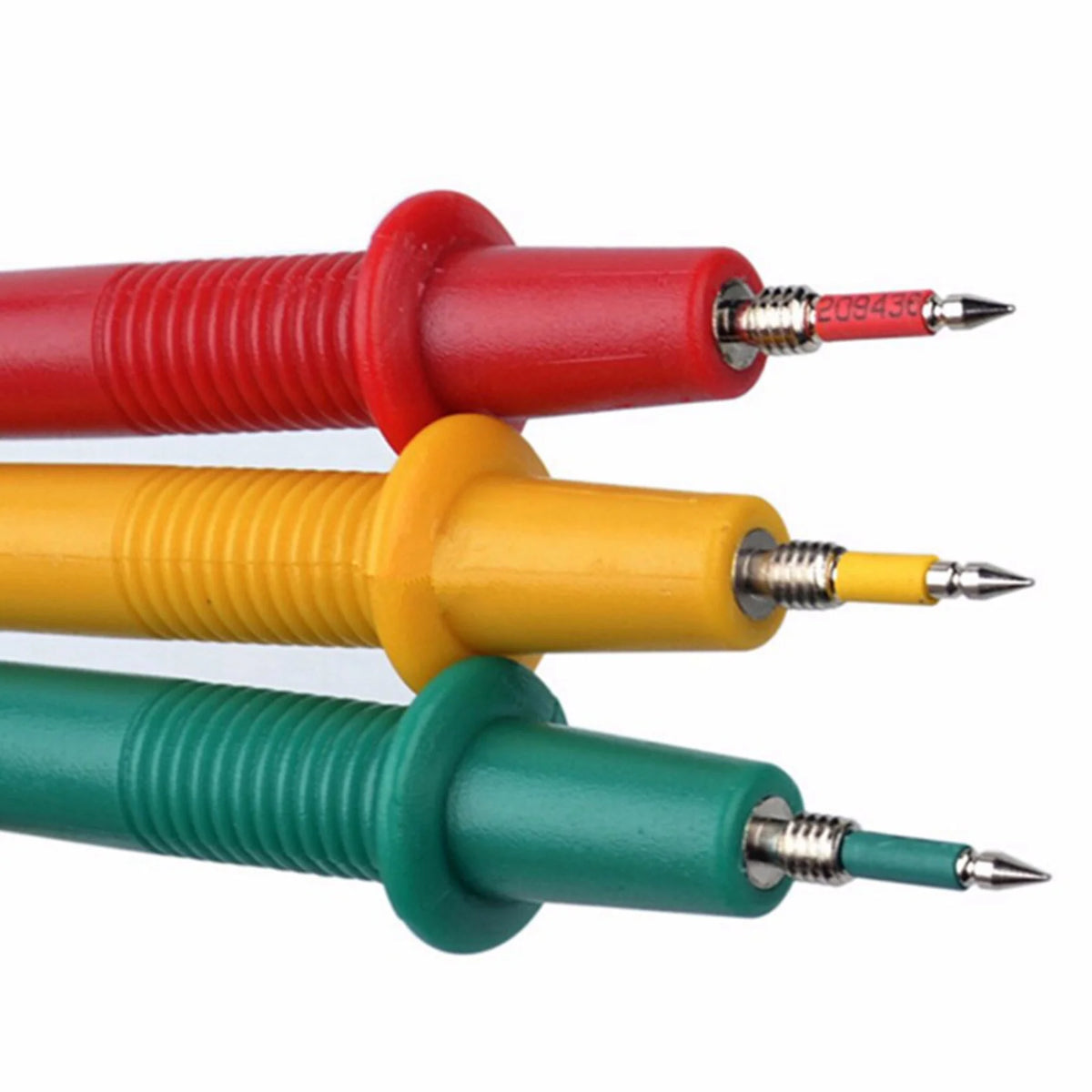

Alligator Clip Test Leads: Double-insulated, colour-coded leads (~80cm) with alligator clips for secure, safe connections to control panel terminals:
- Yellow — U phase (L1/R)
- Green — V phase (L2/S)
- Red — W phase (L3/T)
- No Battery Needed: Powered entirely by the line under test — no battery to replace or forget.
- Portable & Lightweight: Compact 8 × 6 × 2.4 cm body weighs just 136g; comes with a protective carrying pouch for easy transport to job sites.
- High Accuracy: Accuracy Class 0.1 for reliable, repeatable measurements.
Technical Specifications
| Operating Voltage | 60V–600V AC (three-phase) |
| Limit Support Voltage | 2000V/min (Impulse: 4000V) |
| Frequency Range | 20Hz–400Hz |
| Accuracy Class | 0.1 |
| Max Continuous Use | 60 min @ 200V AC / 4 min @ 600V AC |
| Test Lead Length | ~80cm (double-insulated) |

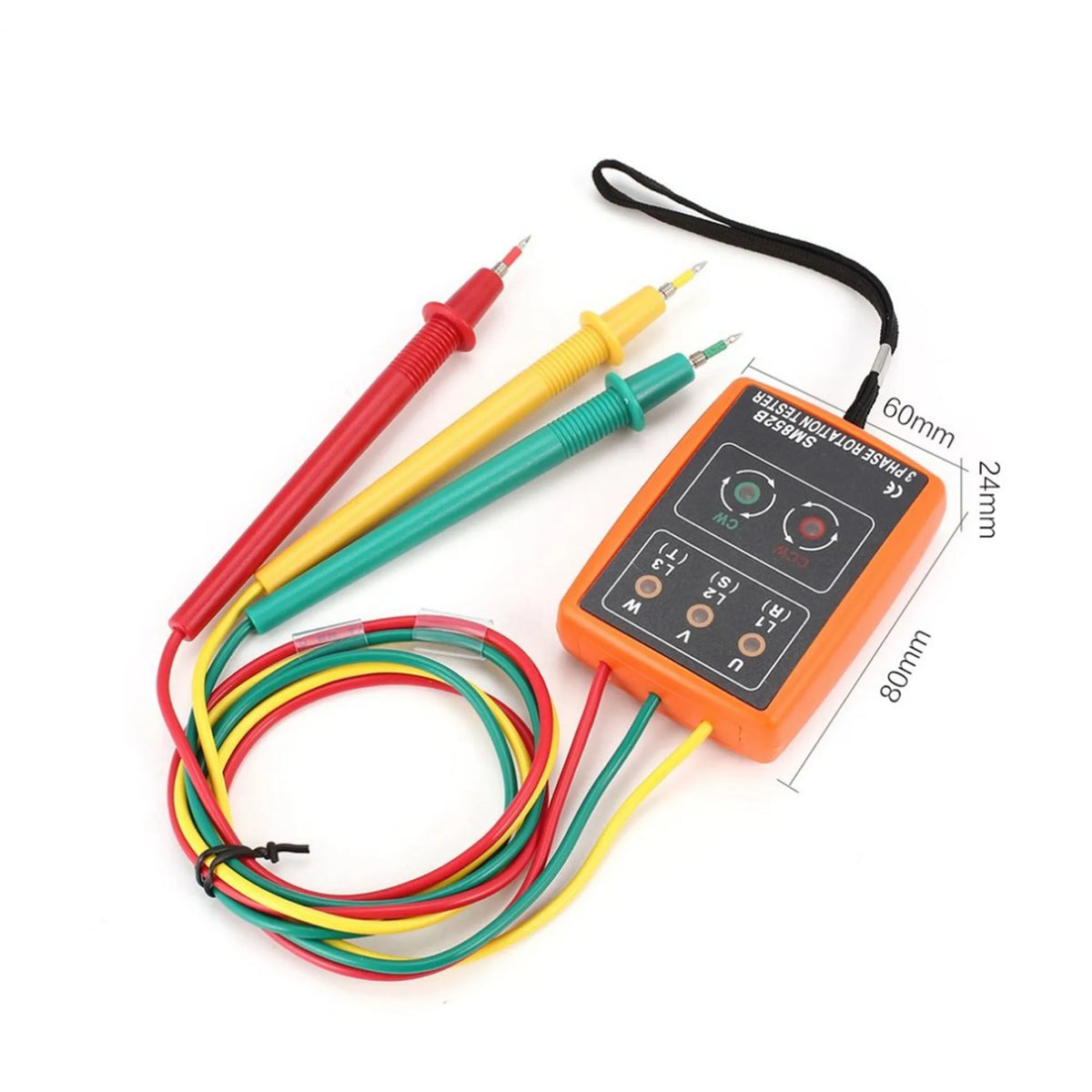

| Dimensions | 8 × 6 × 2.4 cm |
| Net Weight | 136g per unit |
| Material | Plastic housing |
| Battery Required | No |

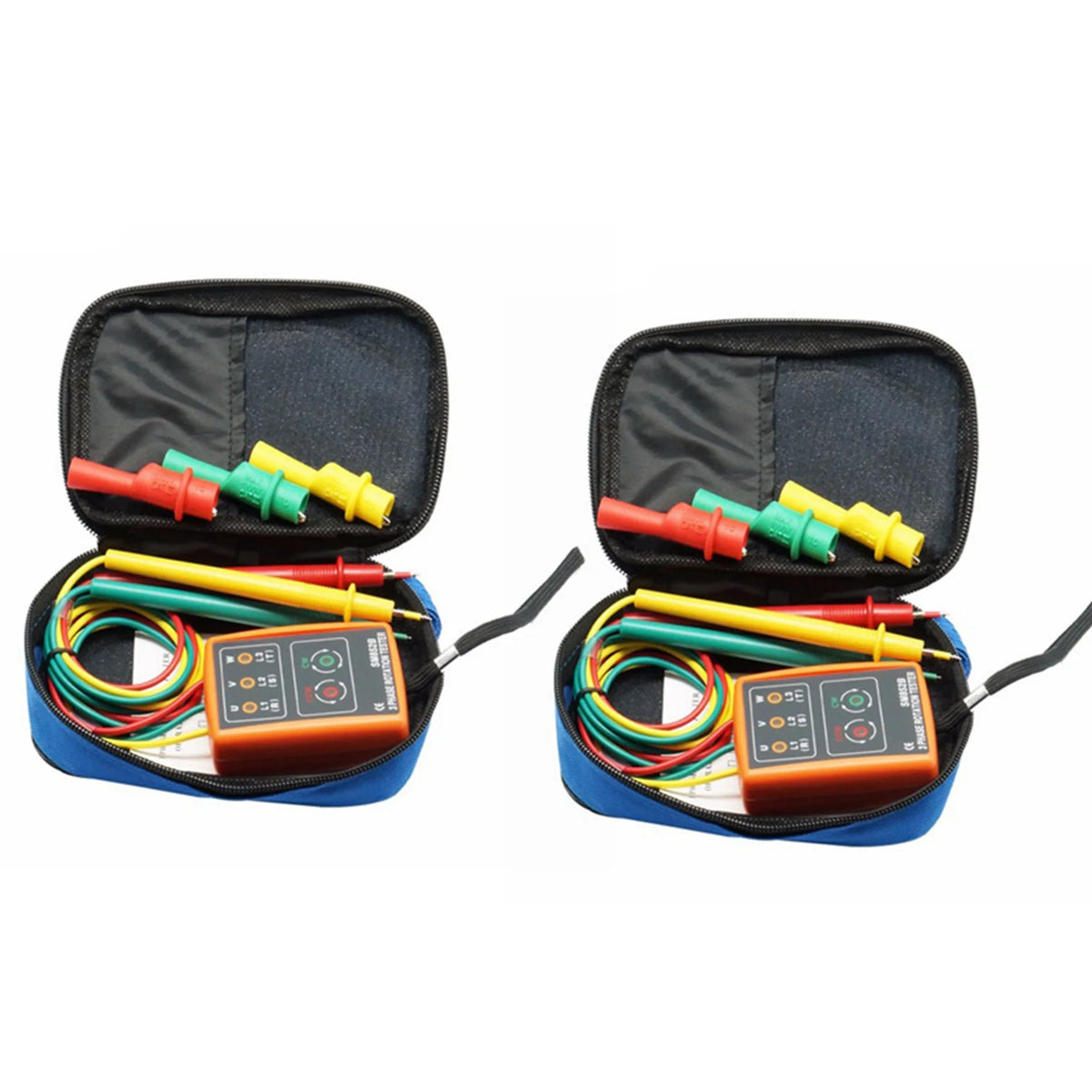

What's in the Box (2-Pack)
- 2 × TD-LED02 Phase Sequence Tester
- 6 × Alligator Clips (colour-coded)
- 2 × Protective Carrying Pouch
- 2 × User Manual
