32-Channel ES32 PIR Stair Light Controller – LED Strip Switch

32-Channel ES32 PIR Sensor Stair Light Controller

Transform your staircase into a smart, motion-activated lighting experience with the ES32 32-Channel PIR Sensor Stair Light Controller. Featuring a built-in daylight sensor and dual PIR motion detectors, this controller automatically activates your stair LED lights when movement is detected — delivering smooth, sequential illumination with every step. Made in Mainland China.

Key Features

• 32 Independent Channels: Constant voltage output drives low-voltage LED strips with a maximum of 1A current per channel — perfect for single-colour stair lighting setups.
• Dual SPI (TTL) Signal Output: Supports 27 types of IC digital RGB LED strips, with configurable IC type and R/G/B channel order.
• Wide IC Compatibility: Works seamlessly with TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, TM1829, TM1914A, GW6205, GS8206, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, and SK9822.
• OLED Display + 3-Button Control: Intuitive on-device interface makes setup and adjustments quick and straightforward — no computer or app required.
• 4 Selectable Work Light Modes: Choose from multiple built-in colour and animation modes; speed is adjustable across 8 grades.
• Cascadeable Design: Two stair light controllers can be daisy-chained for longer or multi-section stairways.
• Daylight Sensor Included: Automatically disables activation during daytime to save energy.
• Push Switch Input: The push-switch port doubles as an additional induction signal input for flexible installation.
• Fast Self-Testing Function: Quickly verify all channels are working correctly after installation.
• Material: ABS housing in white and green.

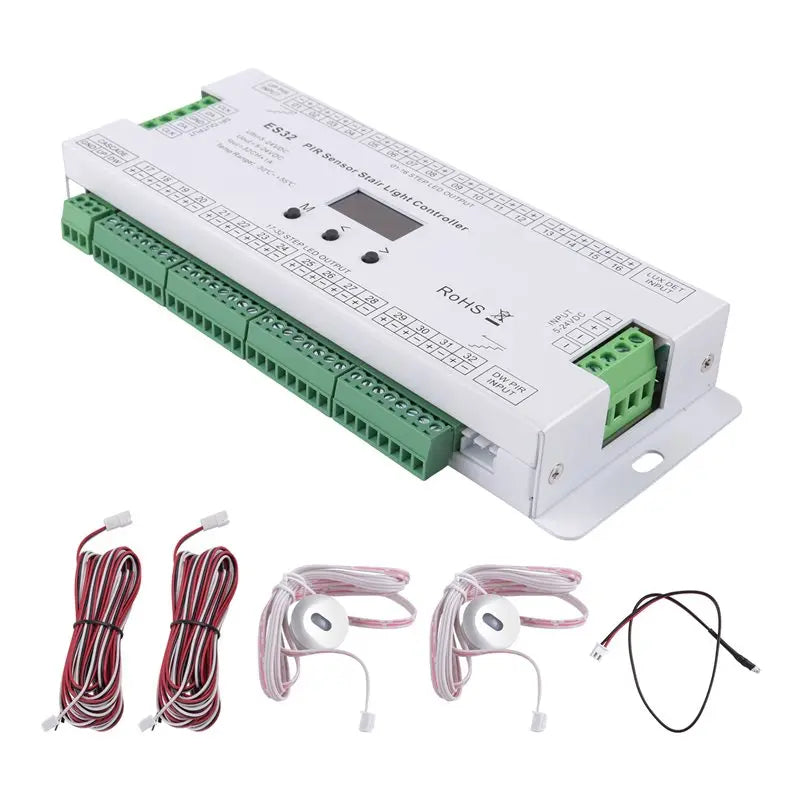

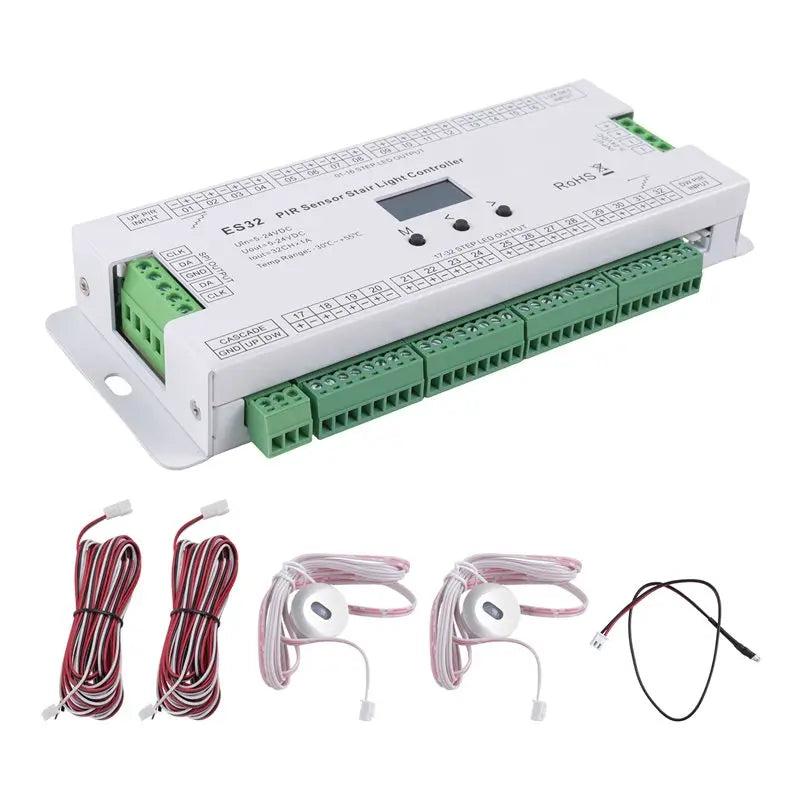

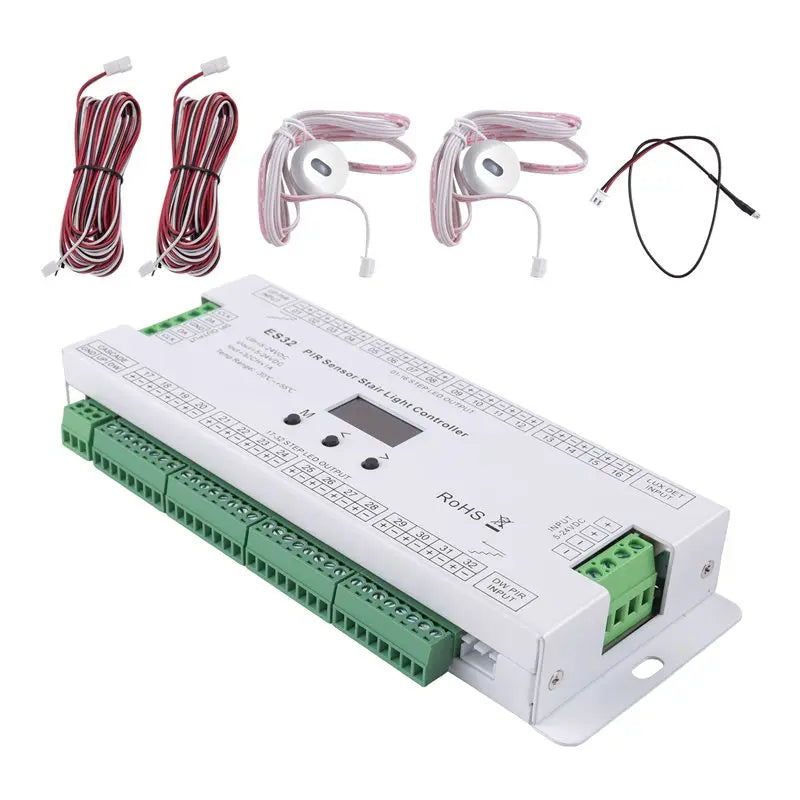

What's in the Box

• 1 × ES32 32-Channel Stair Light Controller
• 1 × 30cm Daylight Sensor
• 2 × PIR Motion Sensors
• 2 × 5m PIR Sensor Extension Cables

Related Products You May Like

• 10-in-1 Multi-Functional Bone Wrench – Portable Repair Hand Tool
• A01F Full Spectrum PAR PPFD Light Meter for Indoor Grow Lights
• 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What type of LED strips is the ES32 32-Channel Stair Light Controller compatible with?

A: The ES32 stair light controller supports both single-colour low-voltage LED strips (constant voltage, up to 1A per channel across 32 channels) and 27 types of IC-driven digital RGB LED strips via its SPI (TTL) output. Compatible ICs include WS2811, WS2812, SK9822, P9813, LPD8806, and many more.

Q: Can I use this controller on a long or multi-section staircase?

A: Yes. Two ES32 stair light controllers can be cascaded together, allowing you to cover longer staircases or split lighting zones across two separate controller units for expanded coverage.

Q: Does the controller work during the day?

A: The included 30cm daylight sensor automatically detects ambient light levels. When sufficient daylight is present, the controller suppresses motion-triggered activation, helping conserve energy during daytime hours.

Q: How difficult is the ES32 to set up and configure?

A: Setup is straightforward thanks to the built-in OLED display and 3-button interface. You can select light modes, adjust animation speed across 8 grades, configure the IC type, and set R/G/B channel order directly on the device — no software or app needed. A fast self-testing function also lets you verify all 32 channels are operational after wiring.
