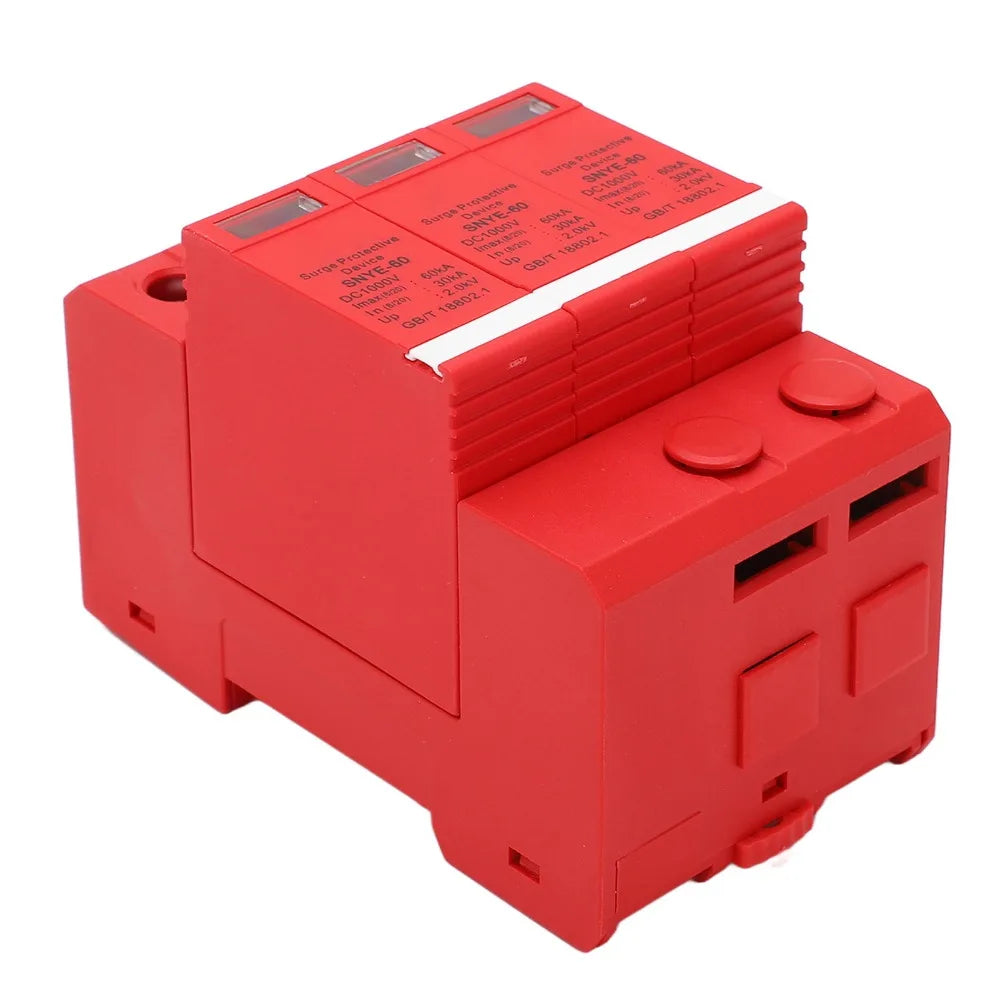

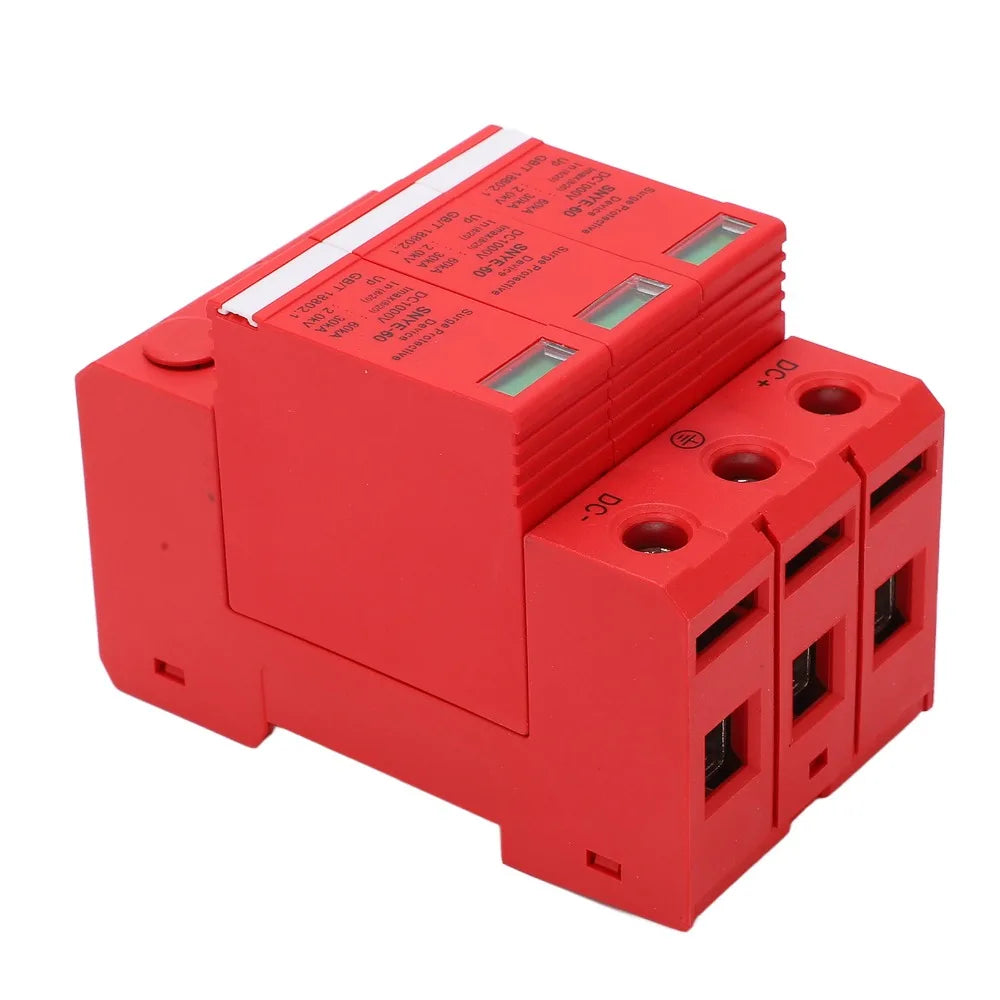

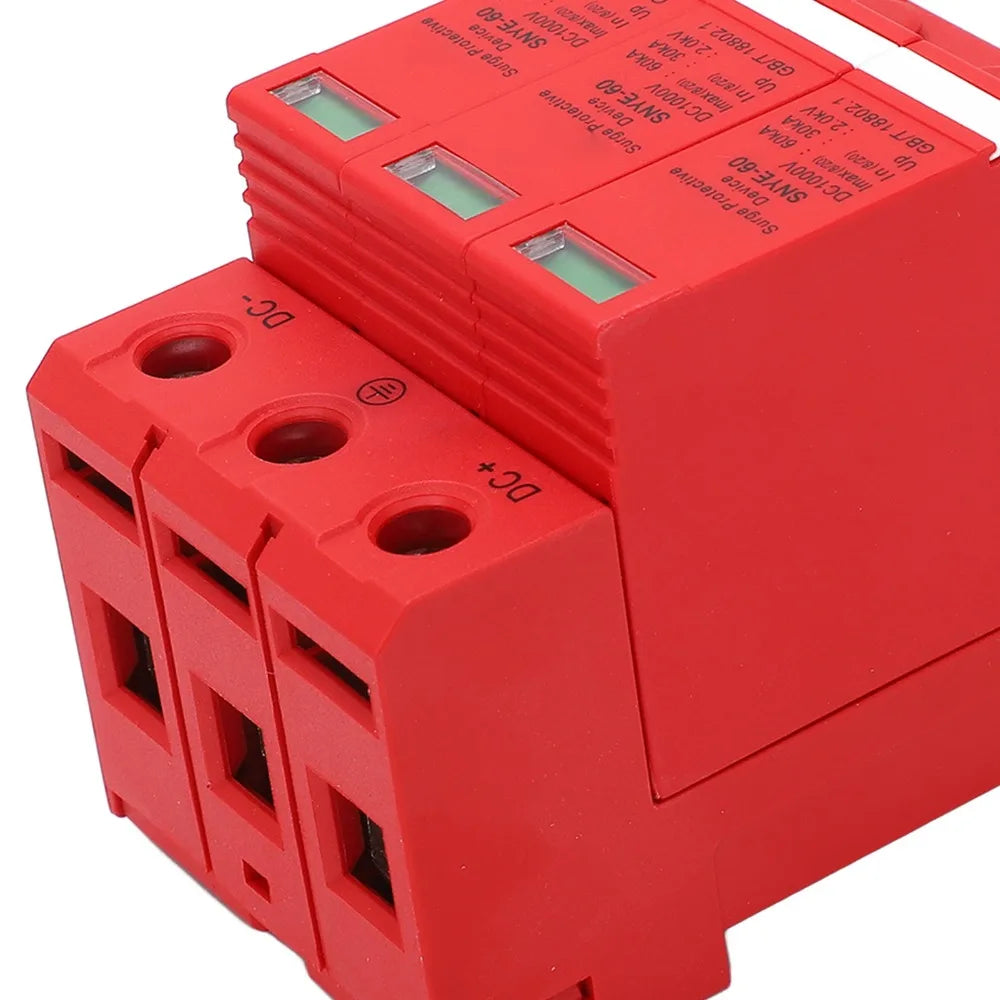

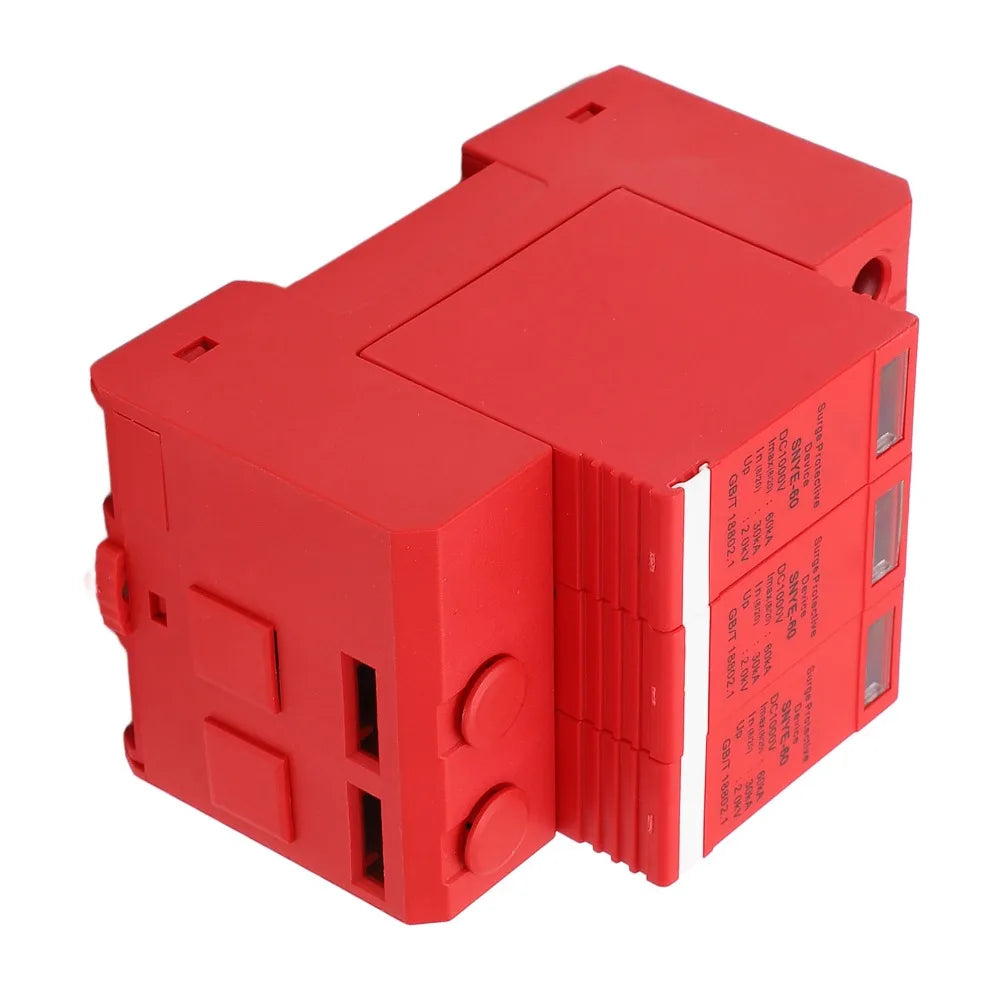

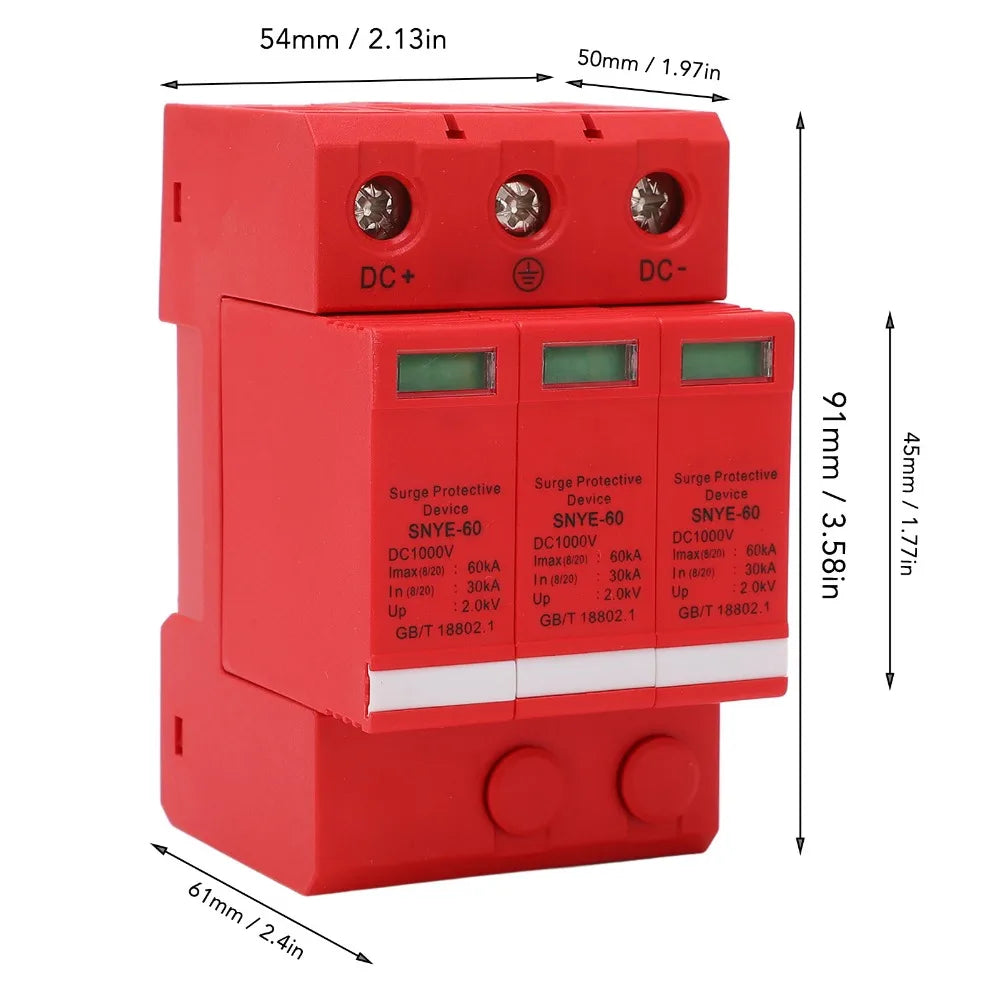

3P 1000V DC Surge Protective Device 60KA Solar PV SPD

3-Pole 1000V DC Surge Protective Device – 60KA for Photovoltaic Systems

Keep your solar installation safe from unexpected voltage spikes with this heavy-duty 3-Pole DC Surge Protective Device. Rated at 1000V DC with a maximum discharge current of 60KA, this DIN-rail-mounted SPD is engineered for photovoltaic (PV) and solar energy systems where reliable surge protection is critical for safeguarding your equipment.

Made in China.

Key Features

• Fire & Corrosion Resistant: Constructed from durable PC material that is both fire resistant and corrosion resistant for long-lasting performance in demanding environments.
• Clear Status Indicator: Built-in working status indicator window — green means normal operation, red signals a fault — so you always know your system's protection status at a glance.
• Ultra-Fast Response: Response time of ≤25ns ensures the device acts within nanoseconds when a surge overvoltage occurs, immediately channelling the surge safely to ground before it can damage your electrical equipment.
• High Discharge Capacity: Maximum discharge current (Imax) of 60KA and nominal discharge current (In) of 30KA provide robust protection against lightning strikes and other large transient surges.
• Plug-In / Hot-Line Operation: Supports hot-line operation with a plug-in design — no need to power down the system for installation or replacement.
• Easy DIN Rail Mounting: Designed for standard 35mm electric guide rail (DIN rail) installation, making setup quick and straightforward.
• Insulated Terminals: Fully insulated terminals for enhanced safety and reliability during wiring.

Technical Specifications

Package Contents

• 1 × 3P Surge Protective Device
• 2 × Accessories

Note: New and old type versions of this product may be shipped randomly. Please ensure you are comfortable with this before placing your order.

You Might Also Like

• 120mm U-Rail Solar Panel Mounting Kit – Clamps Included
• 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
• 16 in 1 Multi-function Bike Repair Tool Portable Folding Hex Wrench Set

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What type of systems is this 3P 1000V surge protective device designed for?

A: This surge protective device is specifically designed for photovoltaic (PV) and solar energy systems operating at up to DC 1000V. It is ideal for protecting solar inverters and other DC electrical equipment from lightning-induced surges and transient overvoltages.

Q: How do I know if the surge protective device is working correctly?

A: The device features a built-in status indicator window. A green light indicates normal operation, while a red light signals a fault condition, allowing you to monitor the device's protection status quickly and easily.

Q: How is this surge protective device installed?

A: Installation is straightforward — the device uses a standard 35mm DIN rail mount, making it compatible with most electrical enclosures and distribution boards. It also supports plug-in, hot-line operation, so replacement can be performed without shutting down your system.

Q: What wire sizes are compatible with this SPD?

A: The device supports a maximum wire diameter of 35mm² (hard wire or multi-strand), with a suggested connection range of 4–25mm², covering most standard photovoltaic wiring configurations.
