4K 60Hz HDMI 3x1 Switch Audio Extractor ARC SPDIF Toslink
4K 60Hz HDMI 3x1 Switch Audio Extractor ARC SPDIF Toslink

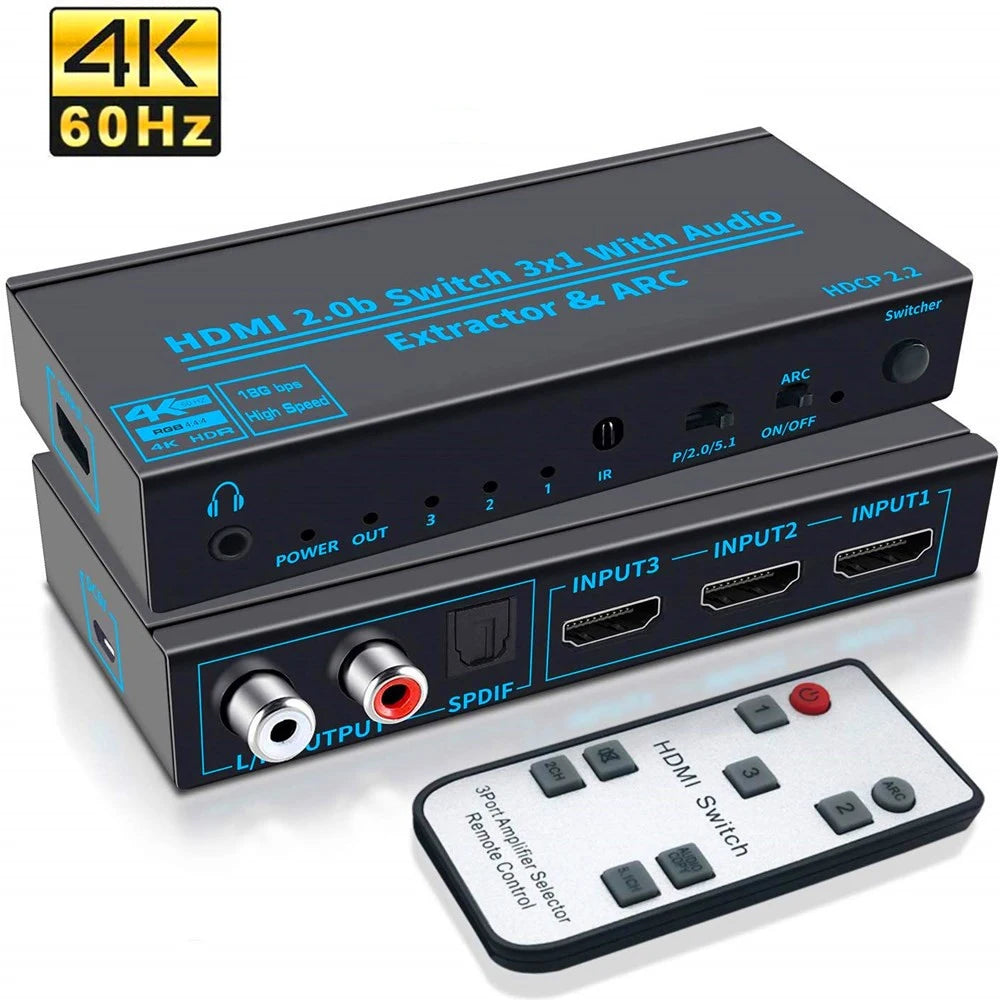

Upgrade your home theater setup with this 4K@60Hz HDMI 3-in-1 Switch with Audio Extractor. Connect up to three HDMI sources — such as a PS4/PS5, Xbox, Blu-ray player, laptop, or Fire TV stick — to a single display, while simultaneously extracting high-quality audio to your soundbar, stereo speakers, or A/V receiver via Toslink SPDIF, RCA L/R, or 3.5mm. Made in Mainland China.
Why You'll Love This HDMI Switch
- 3-in-1 Out Design: Seamlessly routes three HDMI sources to one display with zero signal degradation — no need to constantly swap cables.
- 4K Ultra HD @ 60Hz: Supports 4K×2K@60Hz (YUV 4:4:4), 3D, HDR10, Dolby Vision, Dolby Atmos, and HDCP 2.2 for a stunning, cinema-quality picture.
- ARC (Audio Return Channel): Connect your TV's ARC port to route audio back through to a soundbar or amplifier via optical or coaxial — no extra cables needed.

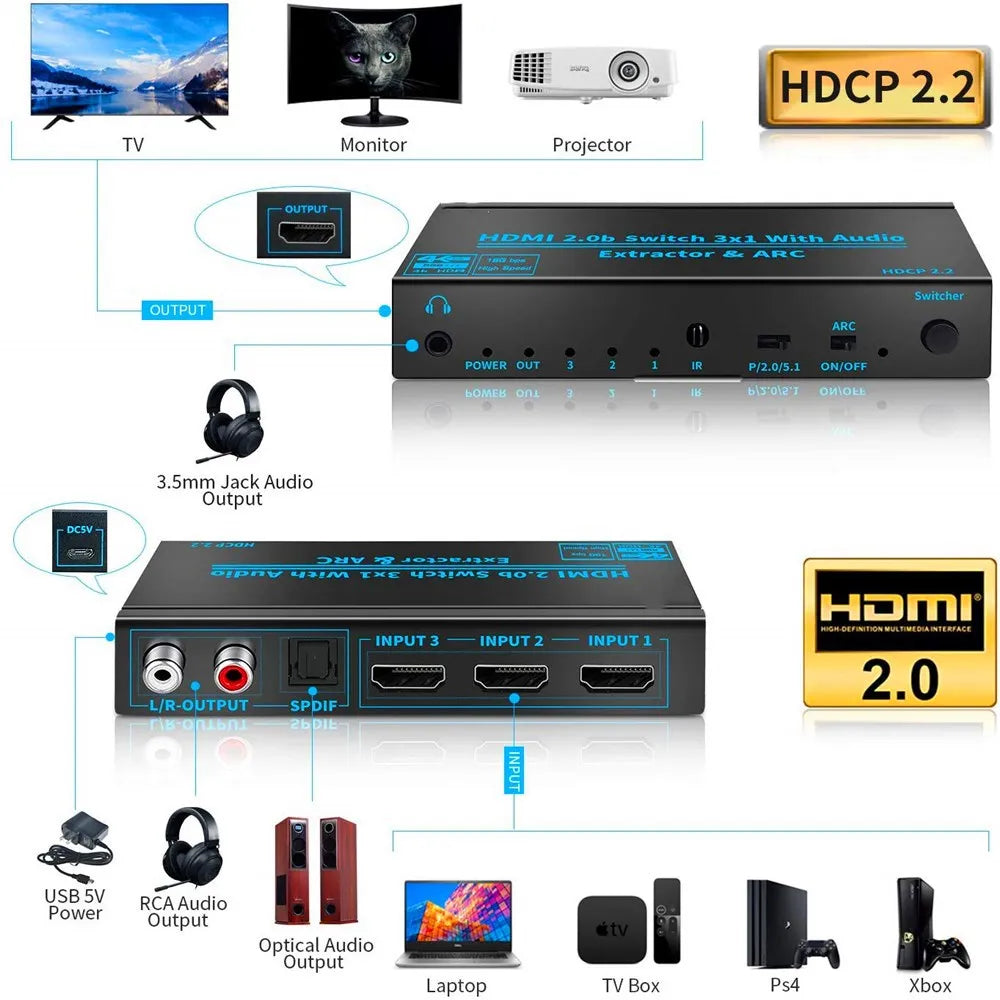

- Flexible Audio Output: Extract audio via optical Toslink SPDIF, RCA L/R stereo, or 3.5mm jack to any compatible speaker system or home theater receiver.

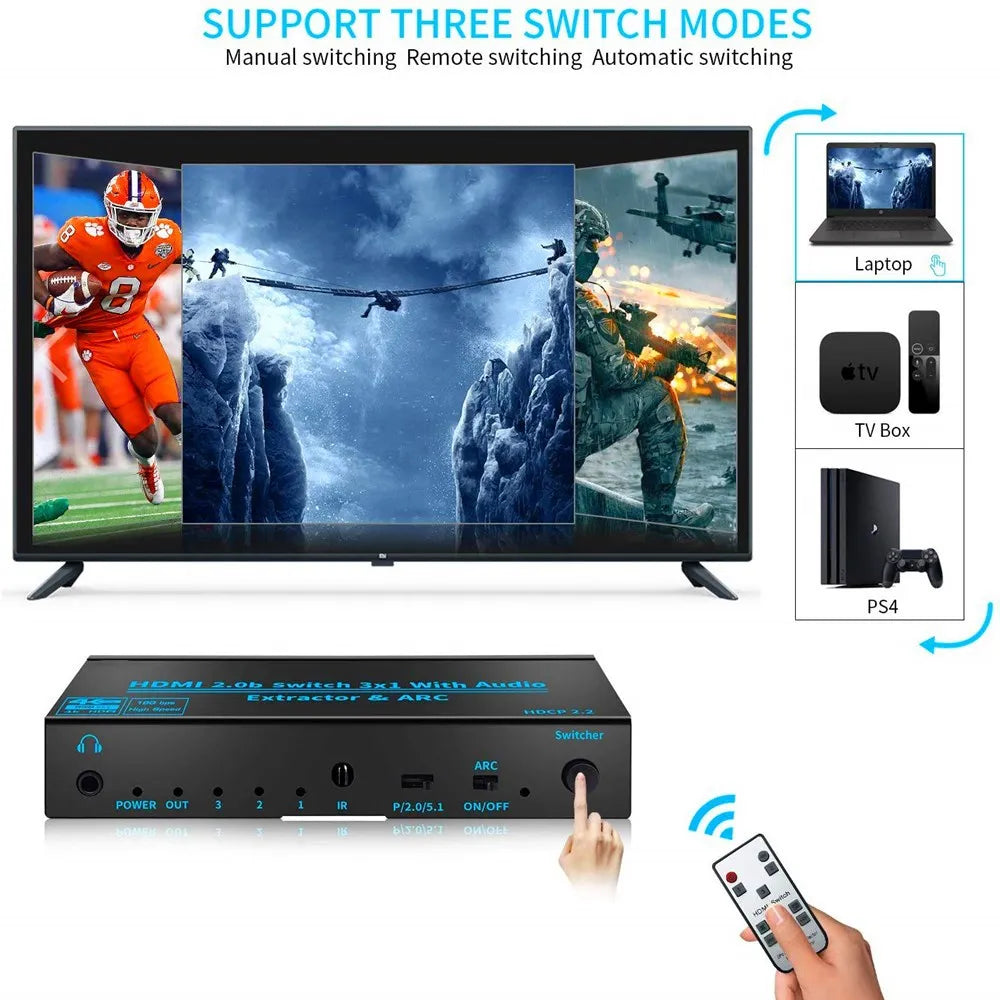

- 3 Switching Modes: Choose from automatic source detection, manual button switching, or the included infrared remote control — switch channels from your couch without getting up.
- Wide Format Support: Compatible with Dolby TrueHD, DTS-HD, LPCM 7.1, DTS, Dolby AC3, DSD, Blu-ray 24/50/60fps, HD-DVD, and xvYCC.
- Plug & Play: No drivers or software needed — simply connect and go. LED indicators show the active input at a glance.
- Premium Aluminum Alloy Build: Compact and durable at just 115 × 58 × 21 mm, designed to blend neatly into your entertainment center.
Technical Specifications
| Video Resolution | 4K×2K@60Hz, 3D, 1080p/i, 720p/i, 576p/i, 480p/i |
| Max Bandwidth | 600 MHz |
| Max Data Rate | 18 Gbps |
| Color Depth | 24-bit RGB / YCbCR 8:8 / YCbCR 4:4:4 |
| Audio Outputs | Optical SPDIF (Toslink), RCA L/R, 3.5mm |
| ARC Support | Yes |
| HDCP | Up to 2.2 |
| Power Supply | DC 5V via Micro USB (adapter not included) |
| Cable Distance | ≤10m AWG26 HDMI 2.0a |
| Dimensions | 115 × 58 × 21 mm |
| Material | Aluminum alloy |
| Certification | CE |
What's in the Box
- 1 × HDMI Audio Switch / Extractor unit
- 1 × IR Remote Control (battery included)
- 1 × Micro USB power cable (adapter not included)
- 1 × User manual
Compatible With
PS4, PS5, Xbox Series X/S, Xbox One, Blu-ray/DVD/HD players, Fire TV, Apple TV, Roku, PC/Laptop, Projectors, Monitors, Smart TVs, and more.
Helpful Notes
When ARC mode is active, TV remote volume control is disabled — volume must be adjusted directly on your connected speaker/soundbar/home theater system. For HDR or Dolby Vision issues, ensure your HDMI cable meets the HDMI 2.0 specification (replace if needed). This device passes through Dolby/DTS audio signals — it does not decode them; decoding is handled by your connected display or receiver.
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench — Portable Repair Hand Tool
- 3-in-1 Precision Eyeglass Screwdriver Keychain — Mini Repair Tool
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Can I use this HDMI switch with my PS5 and Xbox at the same time on one TV?
A: Yes! This 3x1 HDMI switch lets you connect up to three devices — such as a PS5, Xbox, and a laptop or streaming stick — to a single TV or monitor. You can switch between them using the manual button, the auto-detect function, or the included IR remote control, making it effortless to jump between your gaming consoles without swapping cables.
Q: Does this switch support 4K HDR and Dolby Atmos audio?
A: Absolutely. The switch supports 4K@60Hz with HDR10, Dolby Vision, and passes through premium audio formats including Dolby Atmos, Dolby TrueHD, DTS-HD, and LPCM 7.1 via the optical Toslink SPDIF output to your soundbar or home theater receiver — no quality loss.
Q: What does the ARC function do and how do I set it up?

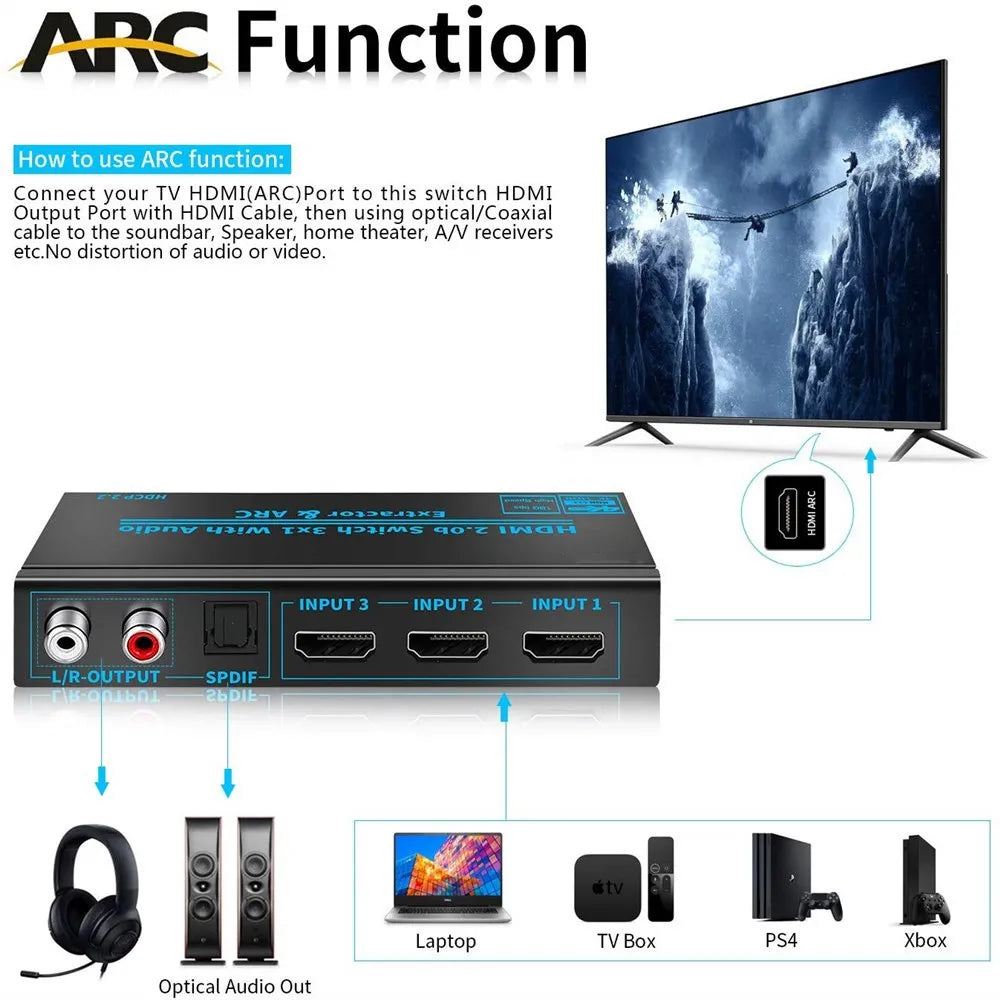

A: ARC (Audio Return Channel) allows your TV to send its built-in audio (e.g. from streaming apps) back through the HDMI connection to your external speakers or soundbar. To use it, connect your TV's HDMI ARC port to this switch's HDMI output port, then connect the switch's optical or coaxial output to your soundbar or A/V receiver. Note that when ARC is active, TV remote volume control is managed by the speaker system instead.
Q: Is a power adapter included?
A: A Micro USB power cable is included, but the DC 5V power adapter (USB wall charger) is not included. You can use any standard 5V USB adapter or power bank to power the device.
