500W 22A KT Sine Wave Brushless Motor Controller + KT-LCD3 Display Kit
Upgrade your electric bike with this complete KT 500W 22A Sine Wave Brushless Motor Controller and KT-LCD3 Display Kit. Designed for 36V and 48V e-bike systems, this kit delivers smooth, quiet motor operation with precise speed control — making it an ideal replacement or upgrade component for DIY e-bike builders and enthusiasts.

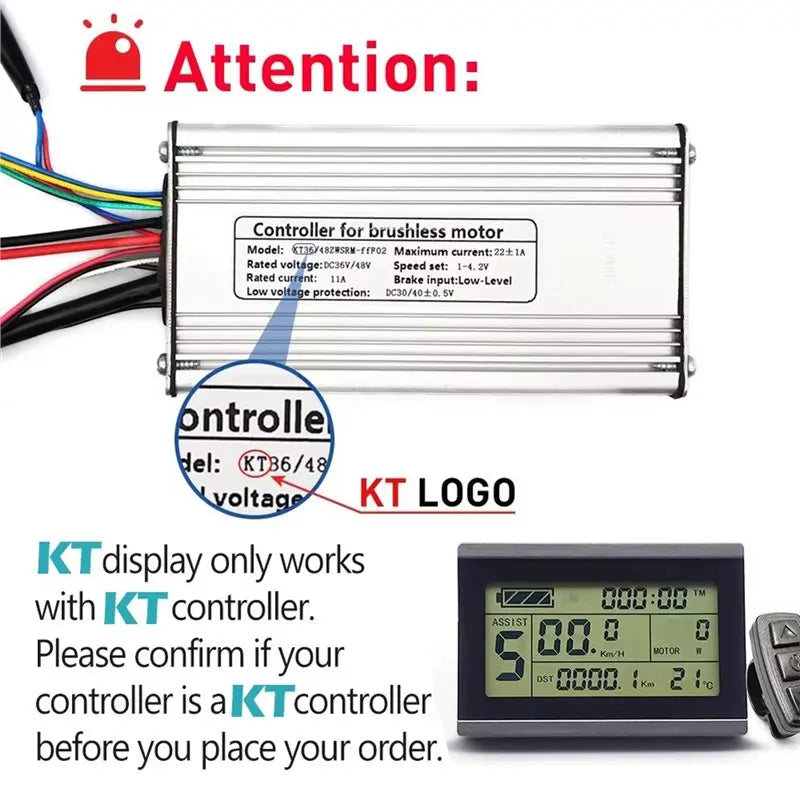

KT-22A Sine Wave Controller Specifications
- Rated Voltage: DC 36V / 48V
- Maximum Current: 22 ± 1A
- Rated Current: 11A
- Brake Input: Low-level
- Speed Set: 1 – 4.2V
- MOSFETs: 9 MOS
- Dimensions: 128mm × 68mm × 38mm
- Compatible With: 36V / 48V 500W Brushless Motors
- Material: Plastic + Metal
- EU LVD Voltage: Low voltage – Below 50Vac or 75Vdc
What's in the Box

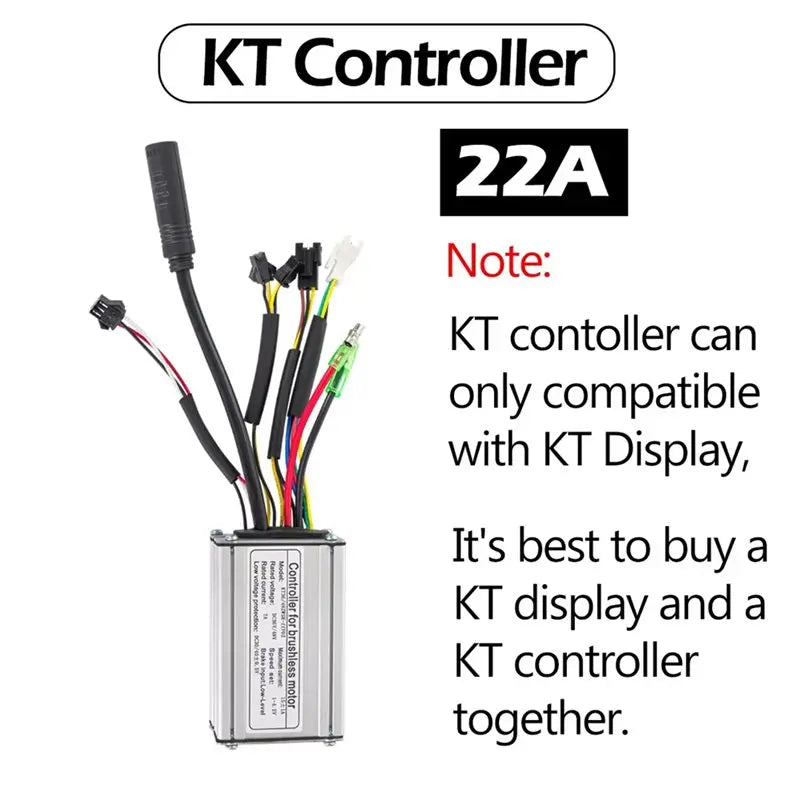

- 1 × KT 22A Sine Wave Controller

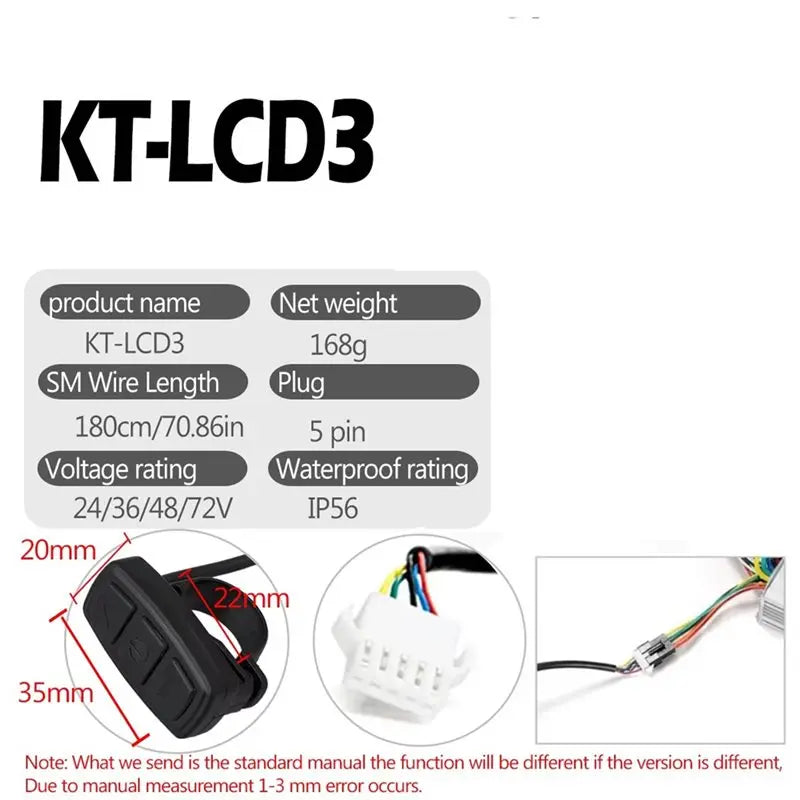

- 1 × KT-LCD3 Display
Battery and motor are NOT included. Only the items listed above are included in this package.
Key Features
- Sine Wave Technology: Delivers whisper-quiet, smooth motor operation compared to square-wave controllers.
- Dual Voltage Compatibility: Works seamlessly with both 36V and 48V battery systems.

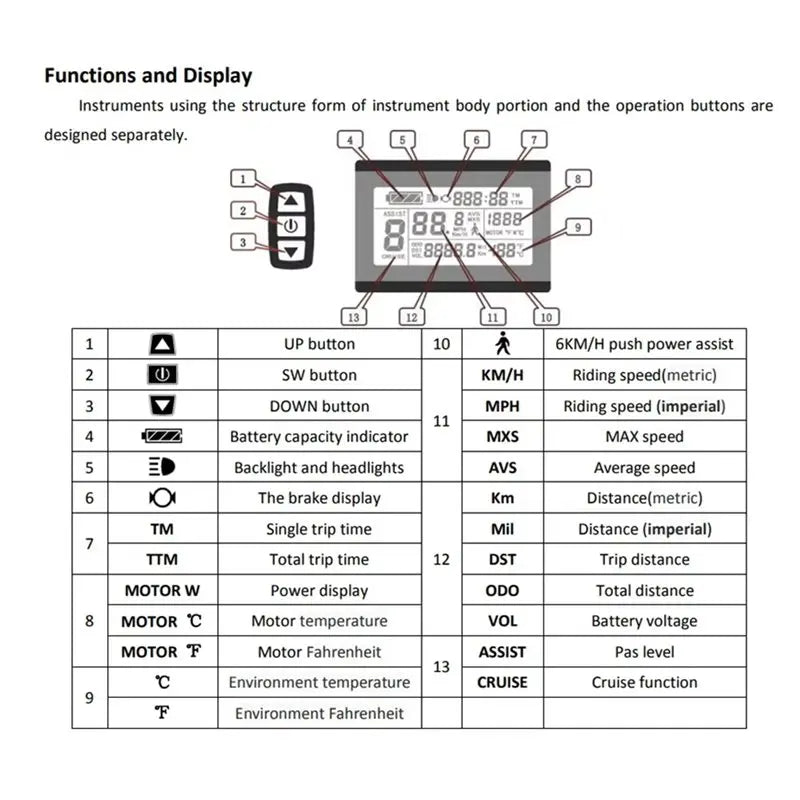

- KT-LCD3 Display Included: Real-time speed, battery level, and assist mode data at a glance.
- 9 MOSFET Design: Efficient power handling for reliable performance during extended rides.
- Low-Level Brake Input: Compatible with most standard e-bike brake sensors for safe, responsive braking.
- Compact Build: Space-saving dimensions fit neatly into standard e-bike frames.
Who Is This For?
Whether you're building a custom e-bike from scratch or upgrading an existing one, this KT controller and display combo is a trusted choice for hobbyists, mechanics, and e-bike conversion kit users. Compatible with a wide range of 36V/48V 500W brushless hub motors.
Made in Mainland China.
Note: Due to lighting conditions and display settings, colors shown in product images may vary slightly from the actual item. Measurement tolerance is ±1–3cm.
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Bicycle & Motorcycle Repair Tool
- 16-in-1 Multi-Function Bike Repair Tool Portable Folding Hex Wrench Set
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is the KT-LCD3 display compatible with 36V and 48V systems?
A: Yes, the KT-LCD3 display included in this kit is compatible with both 36V and 48V e-bike systems when paired with the KT 22A Sine Wave Controller provided.
Q: Does this kit include a battery or motor?
A: No, this kit includes only the KT 22A Sine Wave Controller and the KT-LCD3 Display. A battery and brushless motor must be sourced separately. The controller is designed for 36V/48V 500W brushless motors.
Q: What is the advantage of a sine wave controller over a square wave controller?
A: Sine wave controllers like this KT 22A unit provide significantly smoother and quieter motor operation by delivering a cleaner power signal, reducing vibration and motor noise — especially noticeable at low speeds.
Q: What are the dimensions of the KT controller?
A: The KT 22A Sine Wave Controller measures 128mm × 68mm × 38mm, making it compact enough to fit inside most standard e-bike frames or battery compartments.
