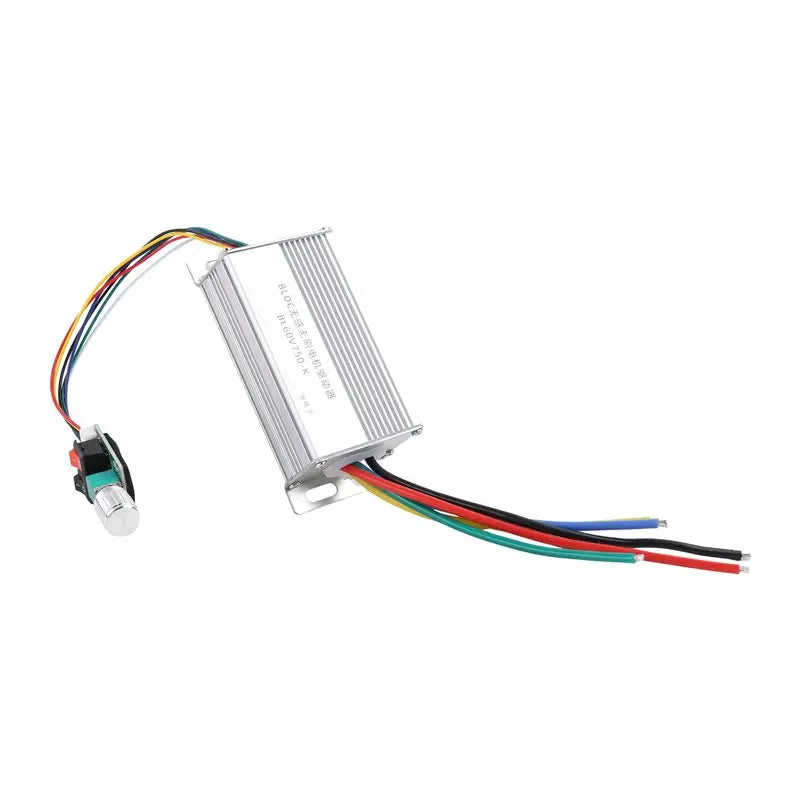

750W Brushless DC Motor Driver Module – 3-Phase, DC 6–60V, No Hall Sensor
Take precise command of your brushless DC motor projects with this high-performance 750W BLDC Motor Driver Module. Engineered for industrial, robotic, and high-performance electric systems, this compact controller supports a wide DC voltage range of 6–60V and delivers up to 750W peak power — all without requiring Hall sensors for operation.
Made in Mainland China.
Key Features
- Wide Voltage Range: Operates on DC 6–60V, compatible with a broad range of external DC power supplies for flexible installation.
- High Power Output: Rated at 500W continuous with 750W peak power and a maximum peak current of 50A — built for demanding applications.
- No Hall Sensor Required: Sensorless (No Hall) design simplifies wiring and reduces setup complexity.
- 3 Control Modes: Supports 0–5V analog signal, PWM, and potentiometer-based speed regulation for versatile integration.

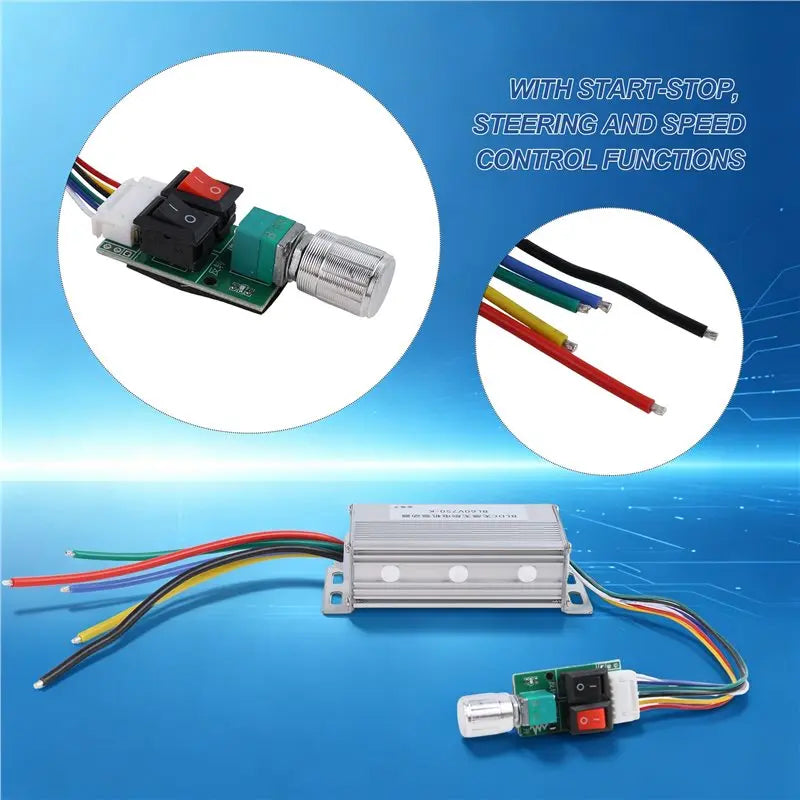

- Stop & Reverse Control: Built-in stop/reverse functionality enables smooth directional changes and controlled motor halting for enhanced system responsiveness.
- FG Speed Output: Features rotational speed frequency (FG) output for closed-loop feedback or monitoring.
- Thermal Protection: Automatic protection activates at 100°C with recovery at 85°C to safeguard your driver and motor.

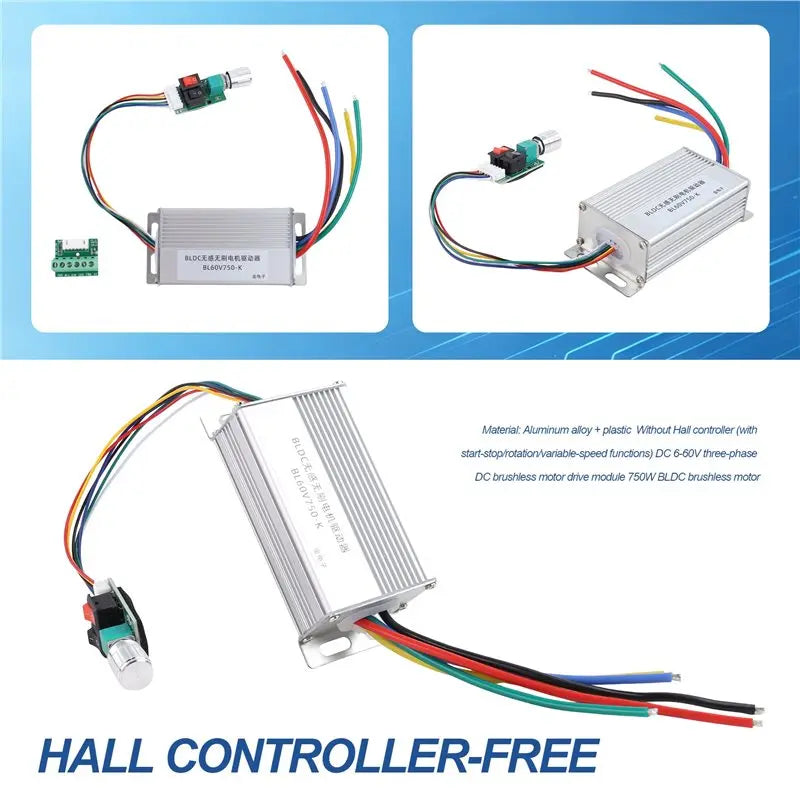

- Durable Construction: Aluminum alloy and plastic housing ensures effective heat dissipation and long service life.
Full Specifications
| Working Voltage | DC 6–60V |
| Rated Power | 500W |
| Peak Power | 750W |
| Peak Current | 50A |
| Max Long-Term Current | 20A |
| Maximum Speed | 130,000 RPM |
| Control Modes | 0–5V / PWM / Potentiometer |
| Temperature Protection | 100°C (recovery at 85°C) |
| Additional Functions | Stop control, Forward/Reverse control, FG speed output |
| Material | Aluminum Alloy + Plastic |
| Battery Included | No |
| Wireless Functionality | No |
| Origin | Mainland China |
Package Contents
- 1× Brushless DC Motor Driver Module
Related Products You May Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
- 48-Pc MIG Welding Nozzle & Tip Set – MB15 AK15 Torch
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Does this brushless motor driver module require Hall sensors?
A: No — this is a sensorless (No Hall) BLDC motor driver. It does not require Hall effect sensors, which simplifies wiring and makes it easier to integrate with motors that lack Hall sensor connectors.
Q: What control methods are supported for speed regulation?
A: The module supports three speed control modes: 0–5V analog input, PWM signal, and potentiometer adjustment — giving you flexibility to integrate it with microcontrollers, PLCs, or manual controls.
Q: What is the difference between the rated power and peak power?
A: The rated (continuous) power is 500W, which is the safe long-term operating level with a maximum continuous current of 20A. The peak power of 750W (up to 50A) is available for short-duration bursts such as motor startup or sudden load changes.
Q: Is a power supply or battery included with this motor driver module?
A: No, a battery or power supply is not included. The module is designed to connect to an external DC power supply within the 6–60V range, giving you the flexibility to pair it with your preferred power source.
