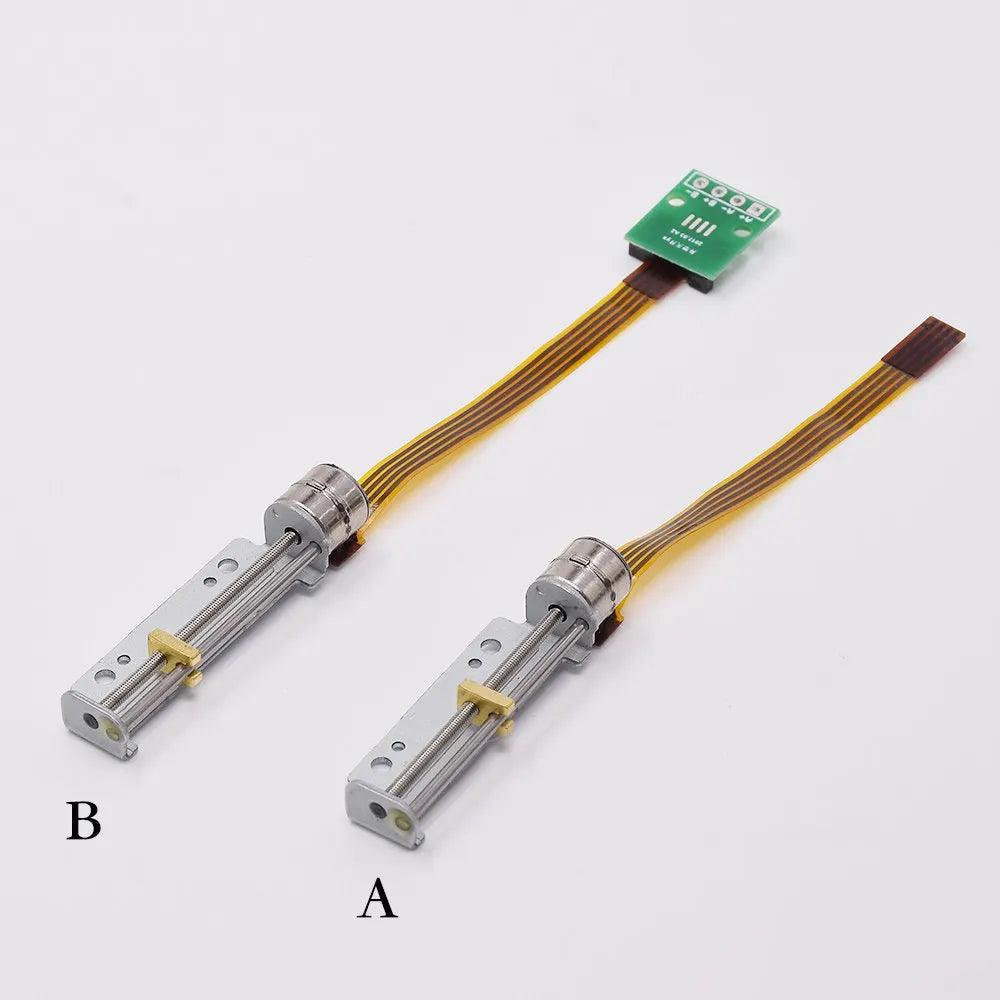

8mm Micro Linear Stepper Motor – Precision Screw Actuator
This compact 8mm 2-phase 4-wire micro stepper motor delivers precise linear motion in an ultra-small form factor. Running on DC 5V–6V, it's ideal for DIY electronics projects, miniature robotics, optical lens positioning, camera autofocus mechanisms, lab instruments, and any application requiring highly controlled linear displacement.
Key Features
- Compact 8mm body – fits easily into tight spaces and miniature assemblies
- 2-Phase, 4-Wire design – compatible with standard stepper motor driver boards and microcontrollers (Arduino, Raspberry Pi, etc.)

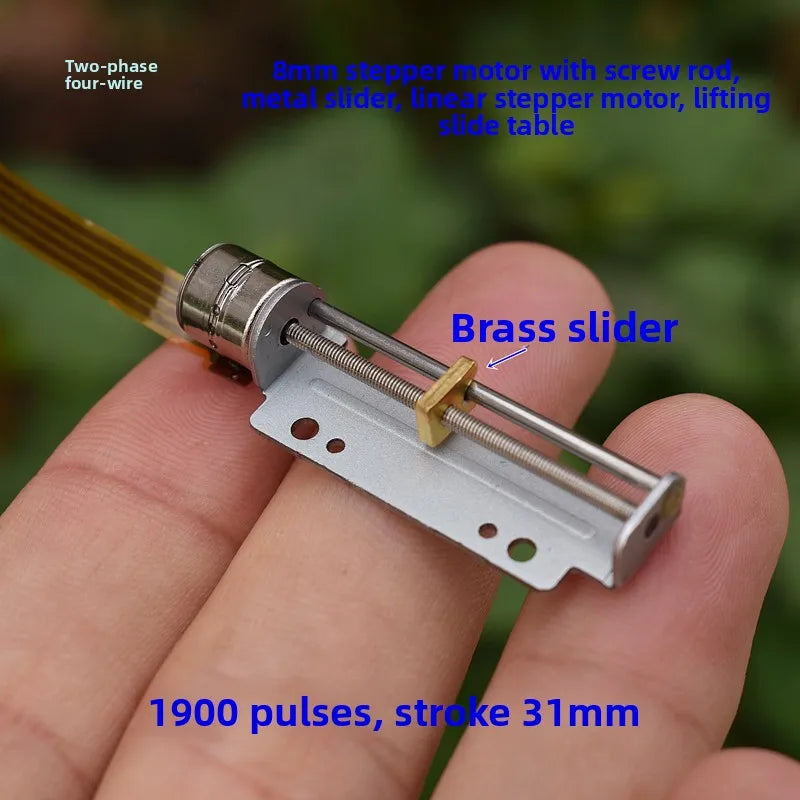

- Precision screw drive – converts rotary motion to smooth, accurate linear displacement

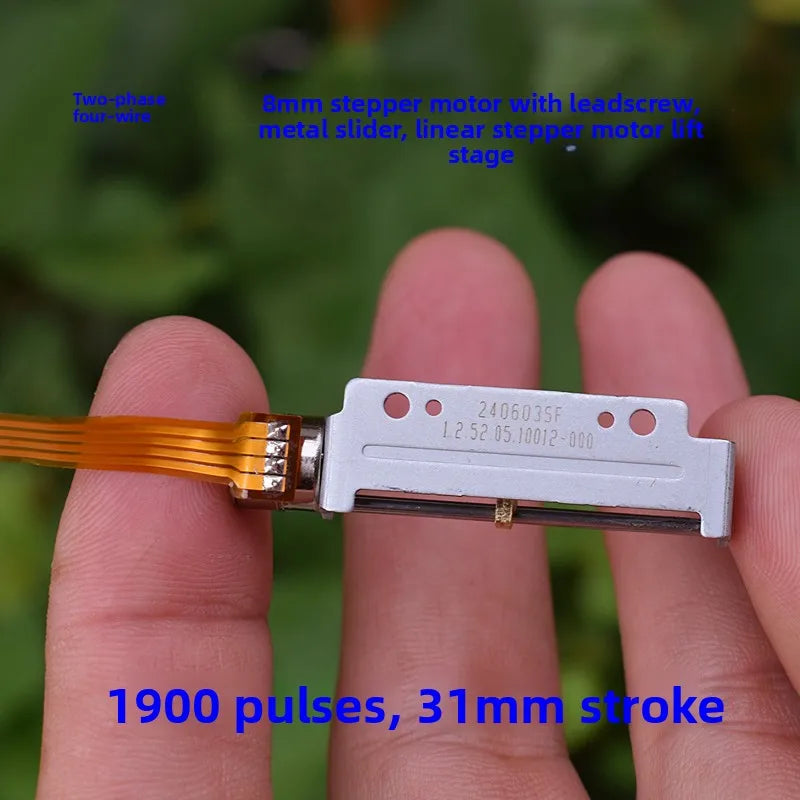

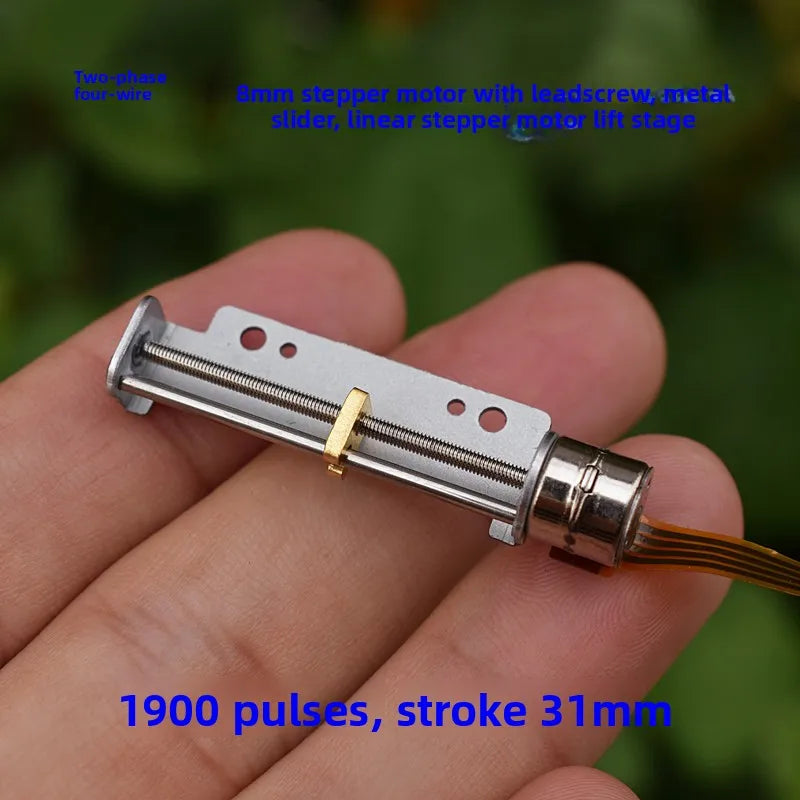

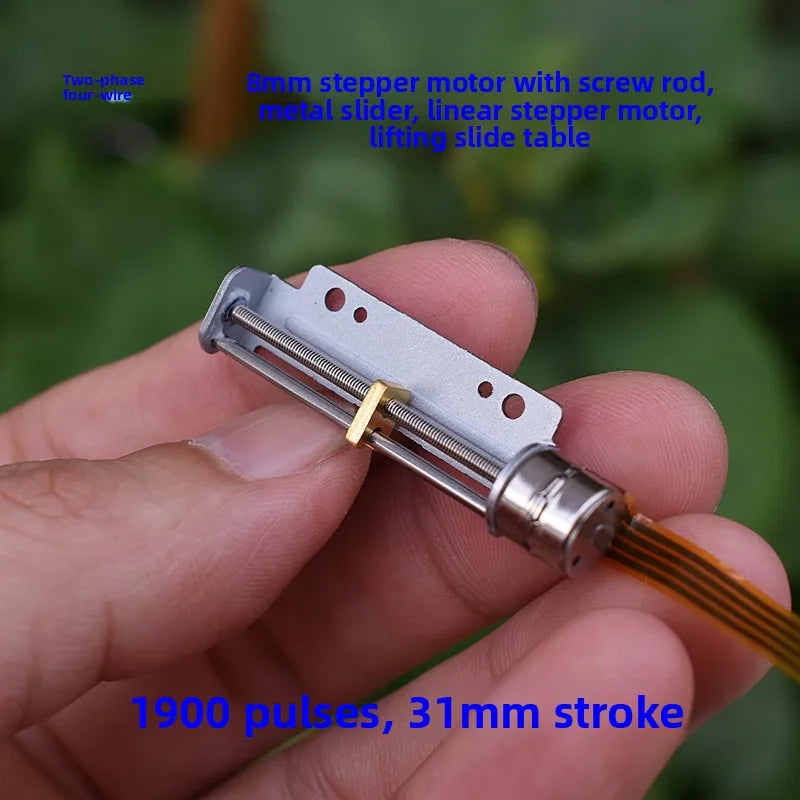

- Slide stroke: 29.5mm (1,900 pulses) for reliable, repeatable positioning
- Low power draw – phase resistance ~21.8Ω; short-circuit current at 5V: 0.21A
- Smooth operation – best driven with medium-to-low frequency pulse signals; recommended driver current: 0.14A
- Ultralight weight – approximately 5.2 grams, minimizing load on delicate assemblies
- Low voltage operation – below 50Vac / 75Vdc, EU LVD compliant
Technical Specifications
| Rated Voltage | DC 5V – 6V (12V rated) |
| Phase | 2-Phase |
| Wire Count | 4-Wire |
| Phase Resistance | ~21.8 Ω |
| 5V Short-Circuit Current | 0.21 A |
| Recommended Driver Current | 0.14 A |
| Slide Stroke | 29.5 mm (1,900 pulses) |

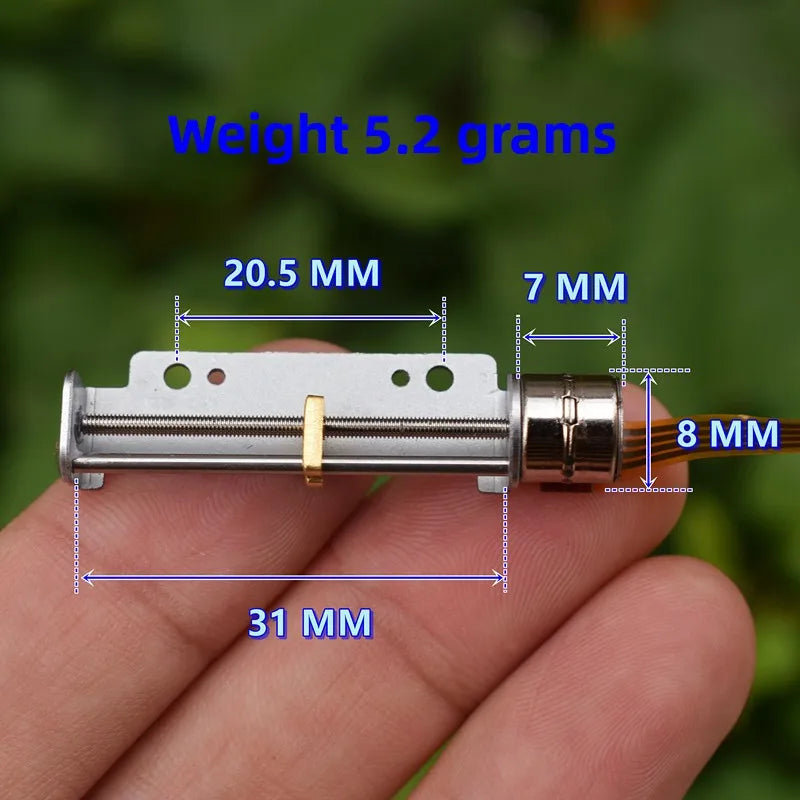

| Motor Diameter | 8 mm |
| Weight | ~5.2 g |
| Power Supply | DC (no battery included) |
| Wireless | No |
| Country of Origin | Made in Mainland China |
What's Included

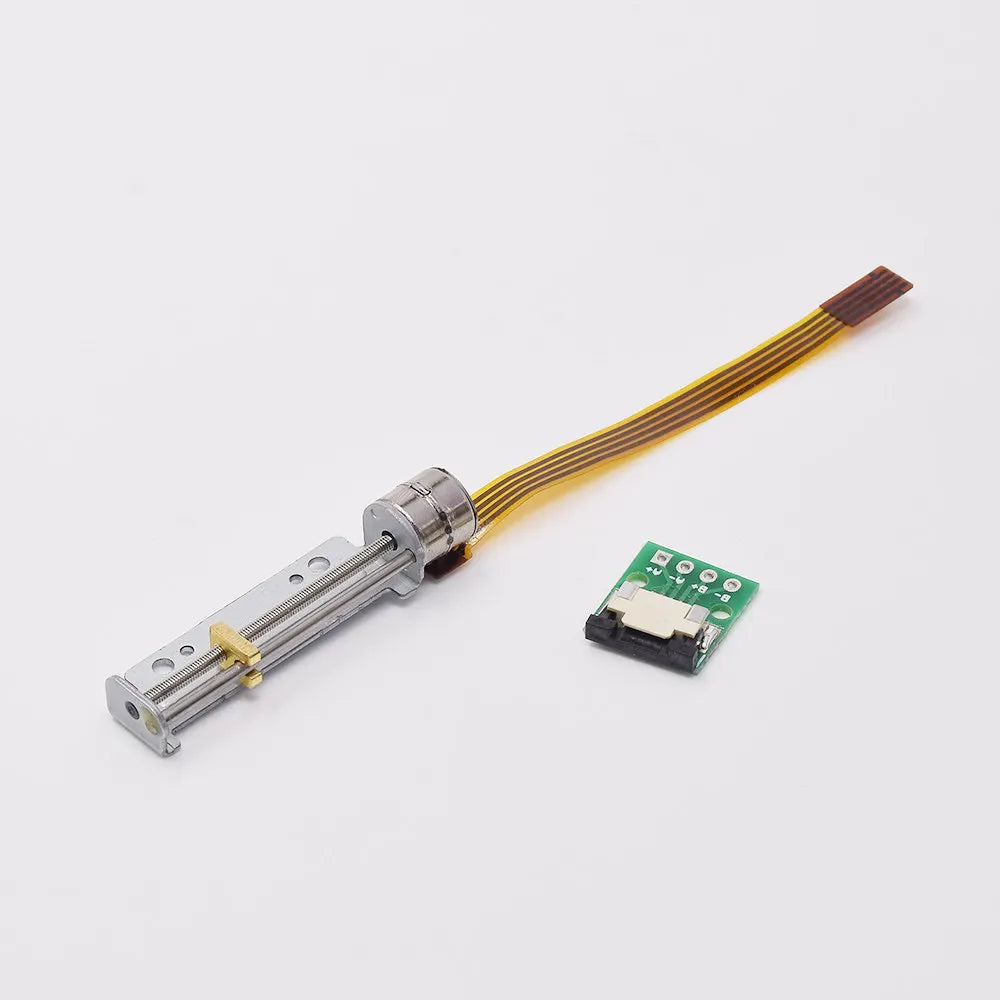

- 1 × 8mm Micro Linear Stepper Motor with Screw Slider Nut
Perfect For
- DIY robotics and automation projects
- Miniature camera or optical lens positioning
- 3D printer Z-axis fine adjustments
- Medical and lab instrumentation prototyping
- Precision linear actuator applications
Looking for other handy tools for your builds? Check out our 10-in-1 Multi-Functional Bone Wrench or the 16-in-1 Multi-Function Bike Repair Tool for your workshop toolkit.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage should I use to operate this 8mm micro linear stepper motor?
A: This micro stepper motor is designed to operate at DC 5V–6V. For smooth, reliable linear movement, drive it with medium-to-low frequency pulse signals and set the driver current to approximately 0.14A to prevent overheating and ensure precise positioning.
Q: How much linear travel does this screw stepper motor provide?
A: The screw slider provides a total slide stroke of 29.5mm, achieved over 1,900 motor pulses. This makes it well suited for applications requiring fine, repeatable linear displacement in a compact space.
Q: Is this stepper motor compatible with Arduino or Raspberry Pi?
A: Yes. The 2-phase, 4-wire configuration is widely compatible with standard stepper motor driver modules (such as the A4988, DRV8825, or ULN2003) that work seamlessly with Arduino, Raspberry Pi, and other common microcontroller platforms.
