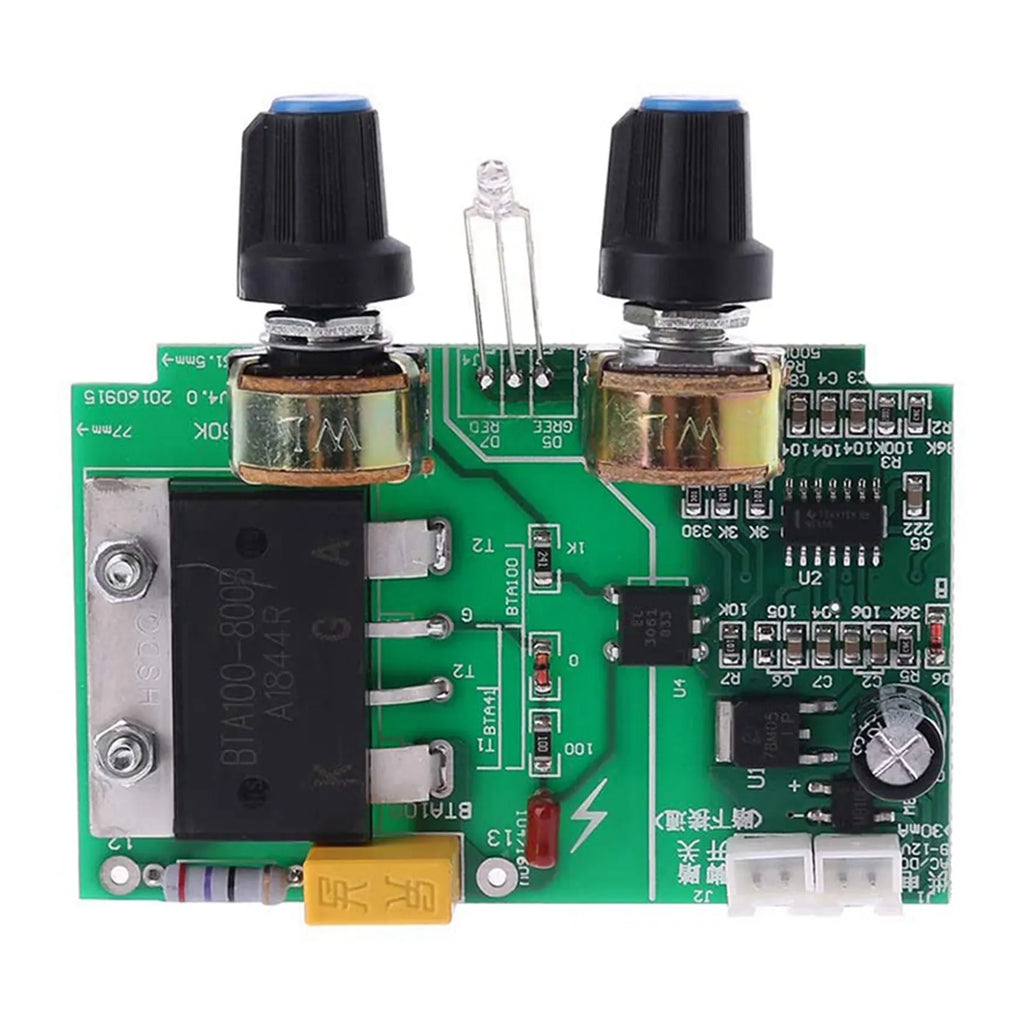

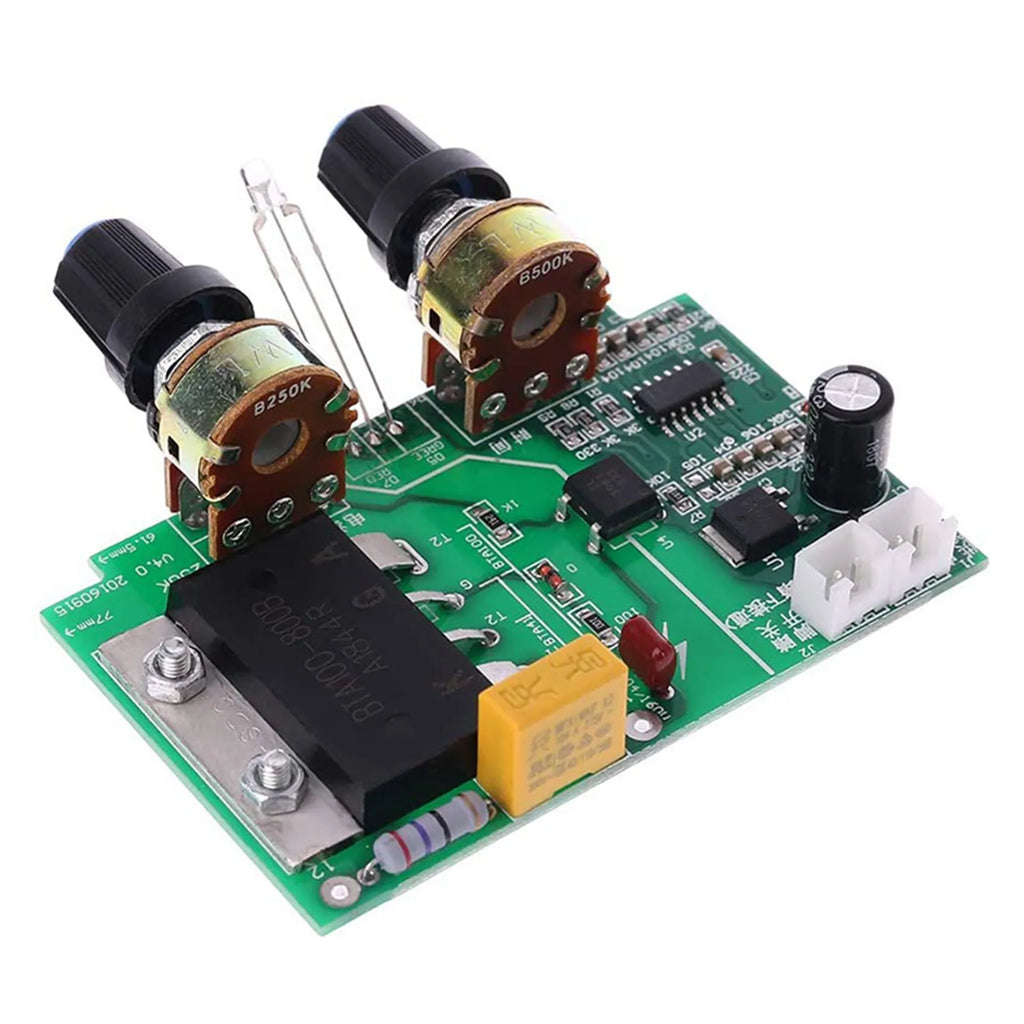

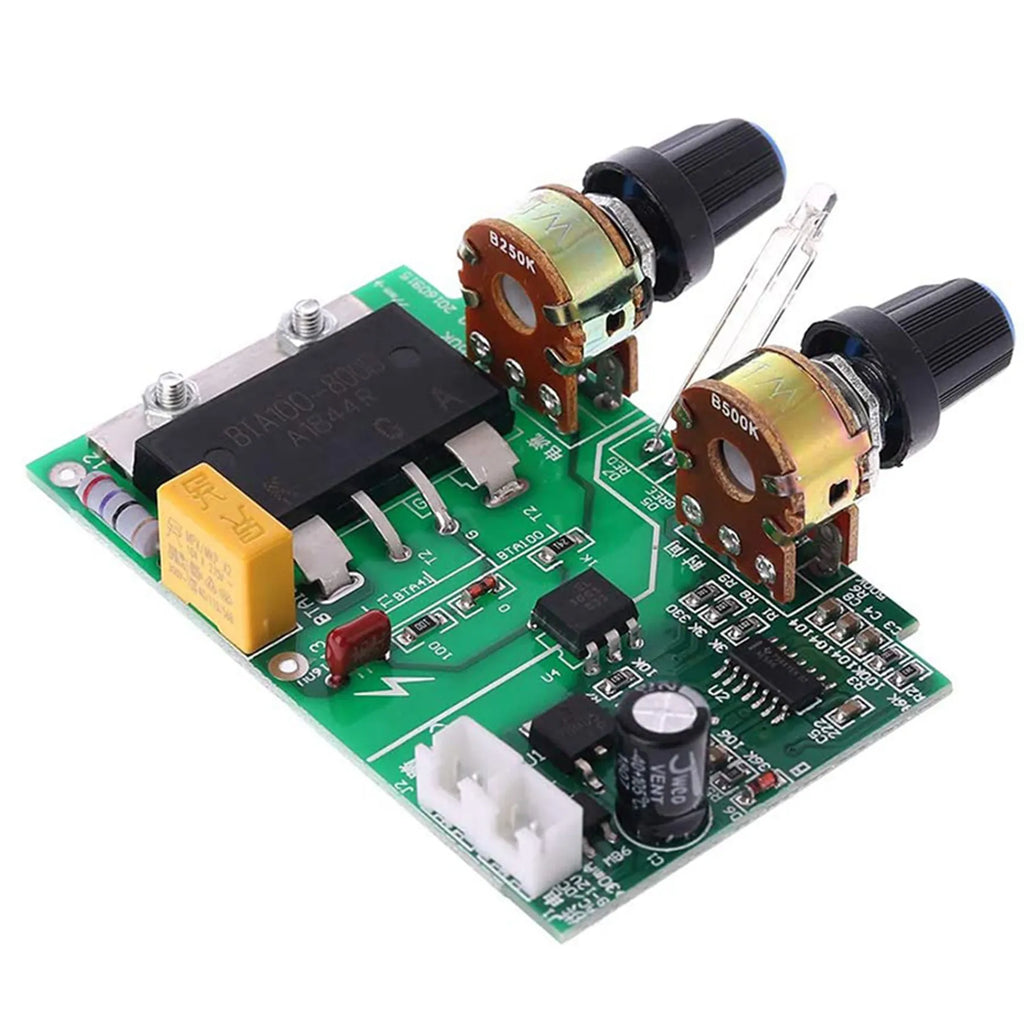

A01F-5X Spot Welding Machine Time Relay Control Board – Compatible with 100A SCR
Take precise control of your spot welding operations with the A01F-5X Time Relay Control Board. Designed for compatibility with 100A SCR modules, this 5-pack of control boards lets you fine-tune both welding time and current output — giving you consistent, repeatable solder points every time. Made in Mainland China.
Key Features
- Adjustable Welding Time: Set welding duration in the 0.02–0.1 s range using the left front button for accurate, controlled results.
- Adjustable Current Output: Right button lets you dial in current from 40% to 100% to match your specific welding requirements.
- Anti-Shake Circuit Breaker: Built-in anti-shake circuit prevents false triggers caused by foot switch jitter, ensuring only one clean weld per press.
- Single-Weld Foot Switch Logic: The pedal switch is engineered to produce exactly one weld point per press — release and re-press for each additional weld, eliminating accidental double-welds.
- Safe Insulated Design: Foot switch connection uses city insulation for enhanced operator safety during use.
- Custom Plastic Handle on Current Knob: Potentiometer fitted with an insulated plastic handle for safe, easy current adjustment.

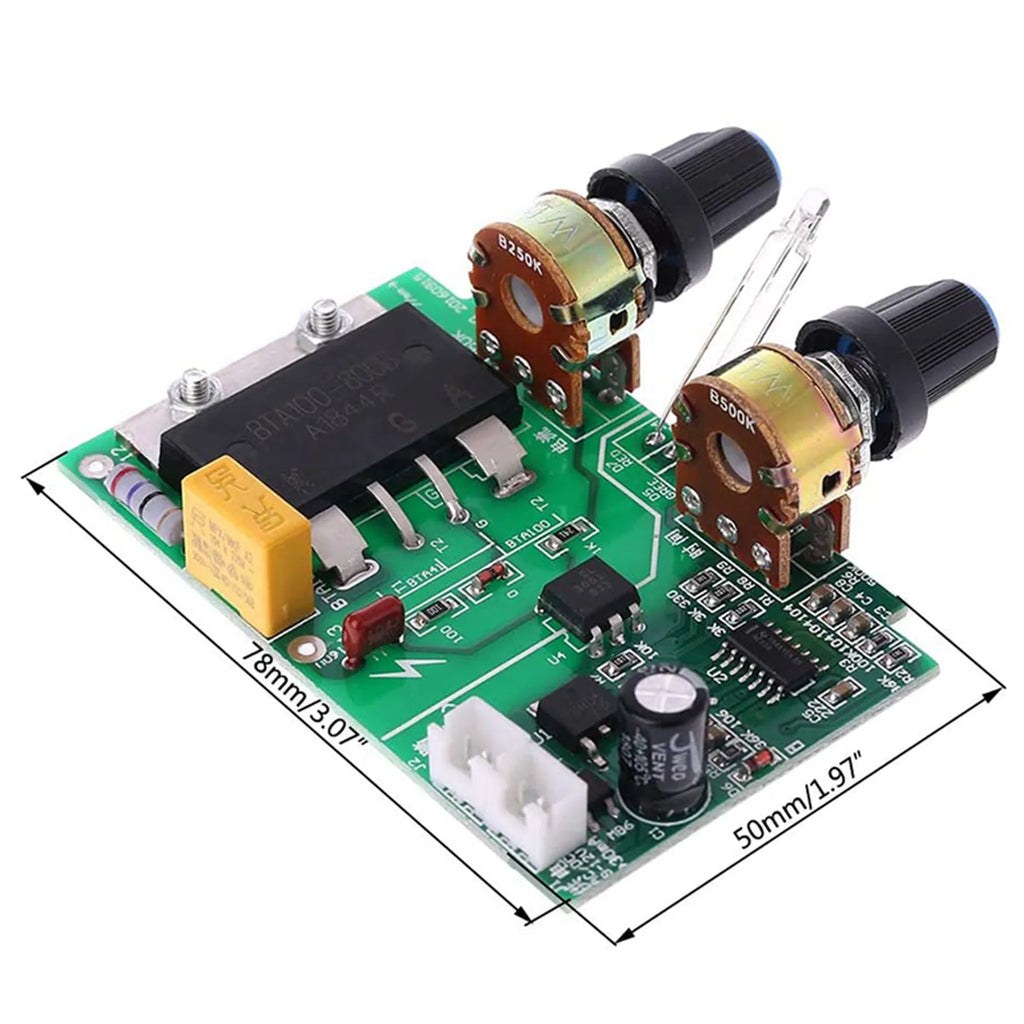

- Compact Form Factor: At just 78 × 50 mm (3.07 × 1.97 in), these boards fit neatly into your welding machine enclosure.
- Durable ABS + Metal Construction: Green and black finish with a rugged build for workshop environments.
Specifications
| Model | A01F-5X |
| Voltage | 220V |
| Compatible SCR | 100A SCR |
| Welding Time Range | 0.02 – 0.1 s |
| Current Range | 40% – 100% |
| Material | ABS + Metal |
| Color | Green + Black |
| Dimensions | 78 × 50 mm / 3.07 × 1.97 in |

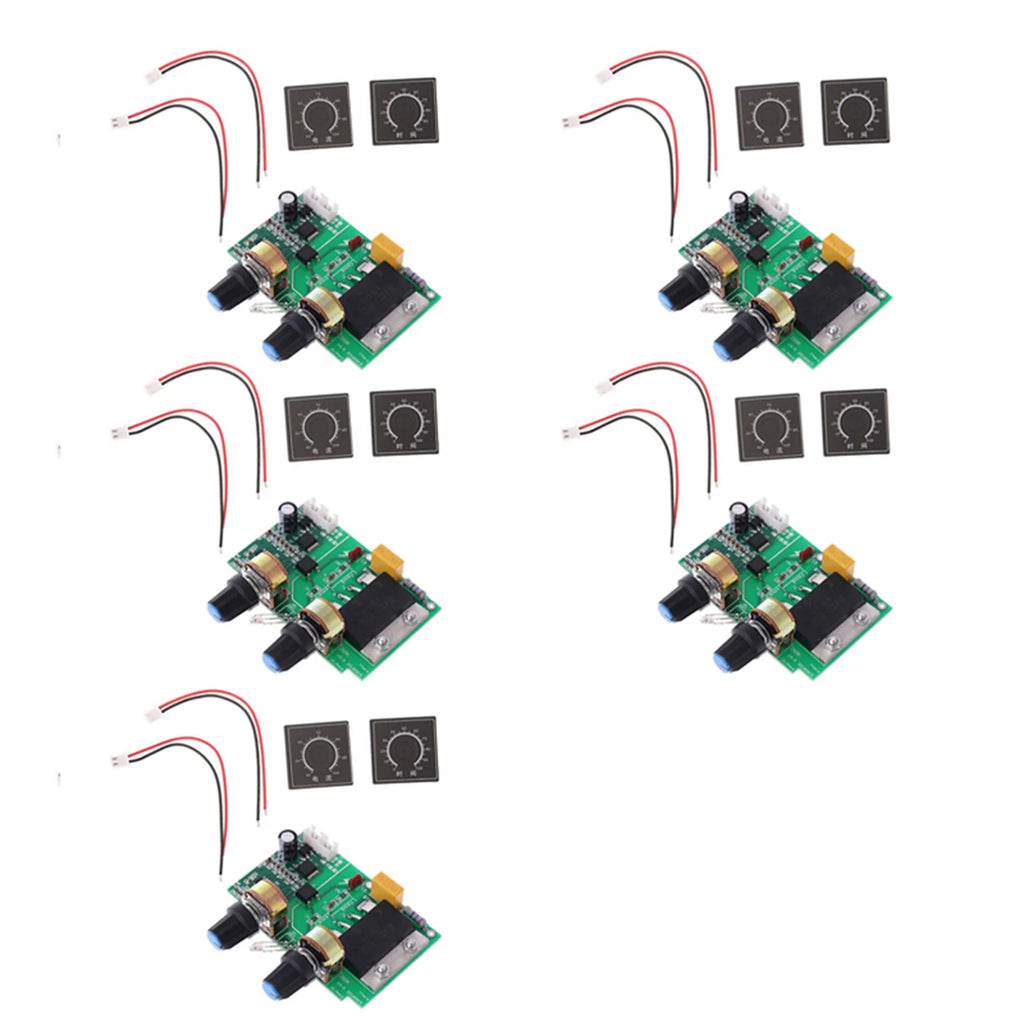

| Package Contents | 5 × Time Relay Control Boards |
| Origin | Made in Mainland China |
Related Tools & Accessories
Looking for more precision tools and repair equipment? Check out these related products:
- 48-Pc MIG Welding Nozzle & Tip Set – MB15 AK15 Torch
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
- 10 in 1 Multi Functional Bone Wrench – Portable Repair Hand Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What SCR is the A01F-5X control board compatible with?
A: The A01F-5X Spot Welding Time Relay Control Board is specifically designed for use with 100A SCR (Silicon Controlled Rectifier) modules, making it a reliable replacement or upgrade component for standard spot welding machines.
Q: Can I adjust both welding time and current on this control board?
A: Yes. The left front button adjusts welding time within the 0.02–0.1 second range, while the right button controls current output between 40% and 100%. This dual-adjustment capability gives you precise control over each weld point.
Q: What voltage does the A01F-5X control board operate on?
A: This control board operates at 220V. Please ensure your spot welding machine setup is compatible with 220V before installation.
Q: How many boards are included in this listing?
A: This listing includes a pack of 5 × A01F-5X Time Relay Control Boards. Only the control boards are included; no other accessories or components are bundled in the package.
