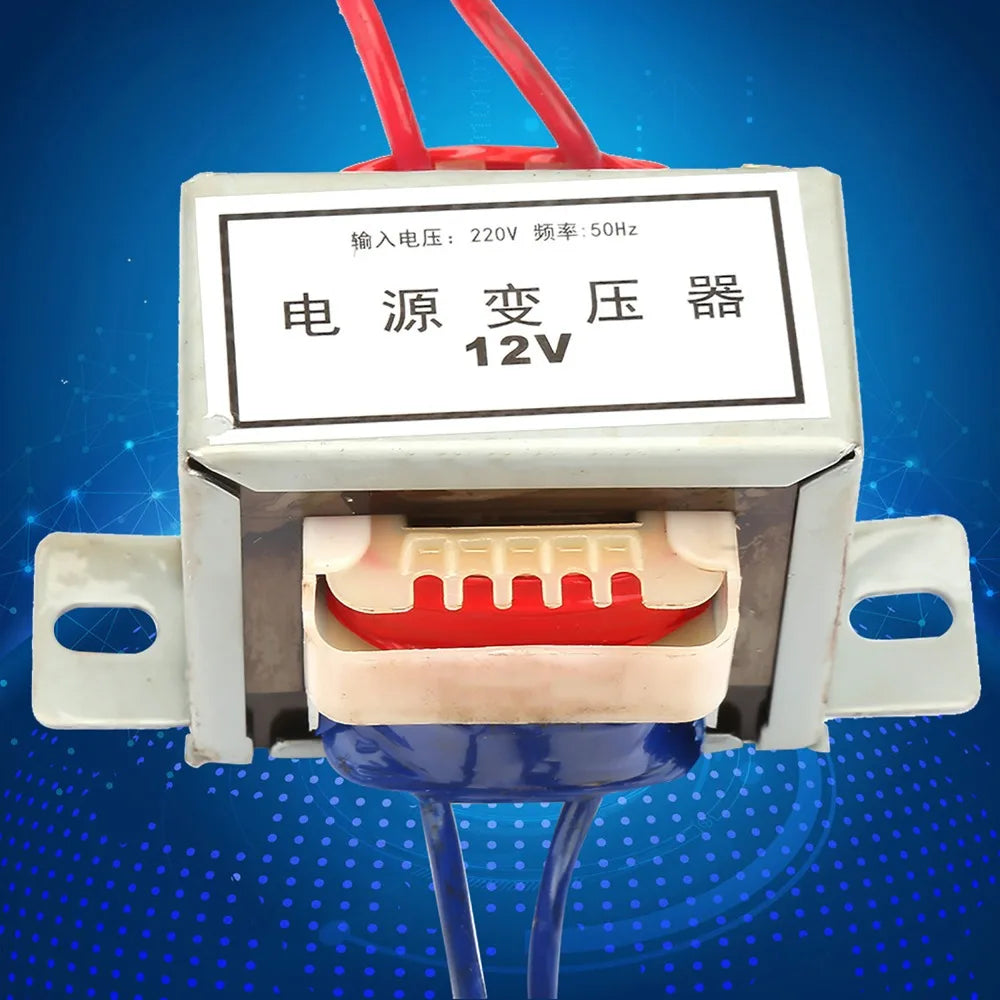

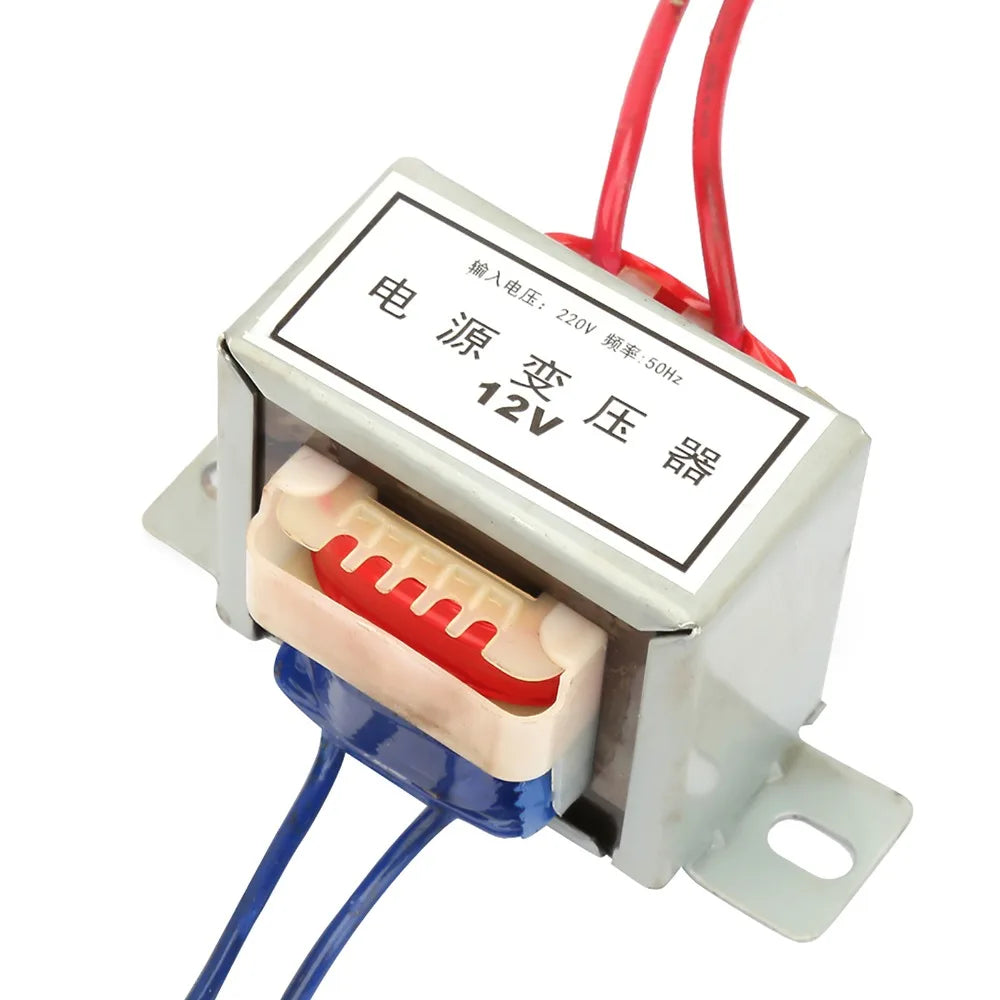

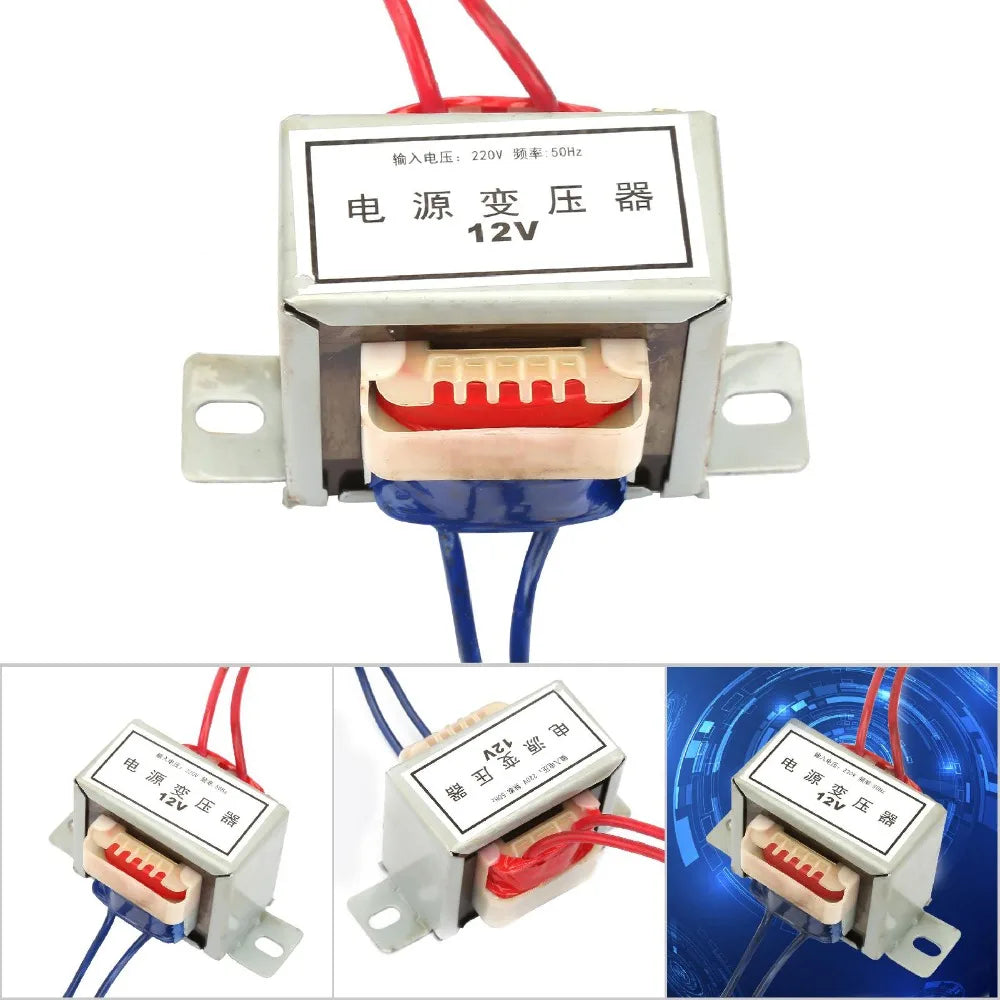

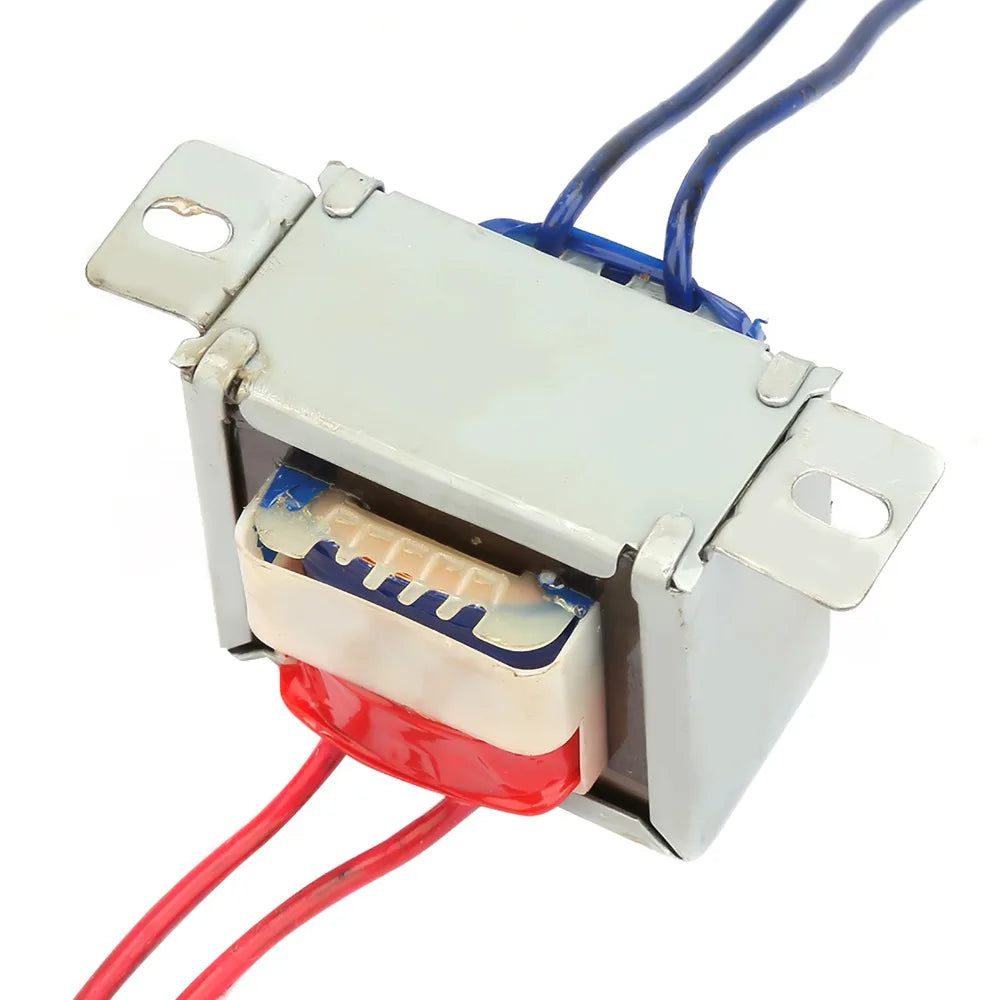

AC 220V to 12V/24V Power Transformer 10W 50Hz EI Core Single Phase
AC 220V to 12V/24V Power Transformer 10W 50Hz EI Core Single Phase
AC 220V Single Phase Power Transformer – 10W, 50Hz, 12V/24V Output
This compact and reliable single-phase power transformer steps down AC 220V input to a selectable AC 12V or 24V output, making it an essential component for low-voltage electronics, lighting circuits, control systems, and DIY electrical projects. Built with full copper winding and a fire-retardant nylon bobbin, it delivers stable, long-lasting performance in a small footprint.
Made in Mainland China.
Key Features
- Stable Voltage Conversion: Converts AC 220V input to AC 12V or 24V output (model/configuration dependent) with rated 10W power at 50Hz.
- EI Core Construction: High-quality EI laminated core ensures efficient magnetic flux and minimal energy loss during operation.
- Fire-Retardant Nylon Bobbin: The transformer bobbin is manufactured from fire-retardant nylon material, contributing to a safer and more reliable build.
- Full Copper Winding: Pure copper wire provides excellent electrical conductivity, high-temperature resistance, and long-term durability.
- Vacuum-Impregnated Insulation: Each unit undergoes vacuum insulating varnish treatment, enhancing both insulation performance and structural integrity.

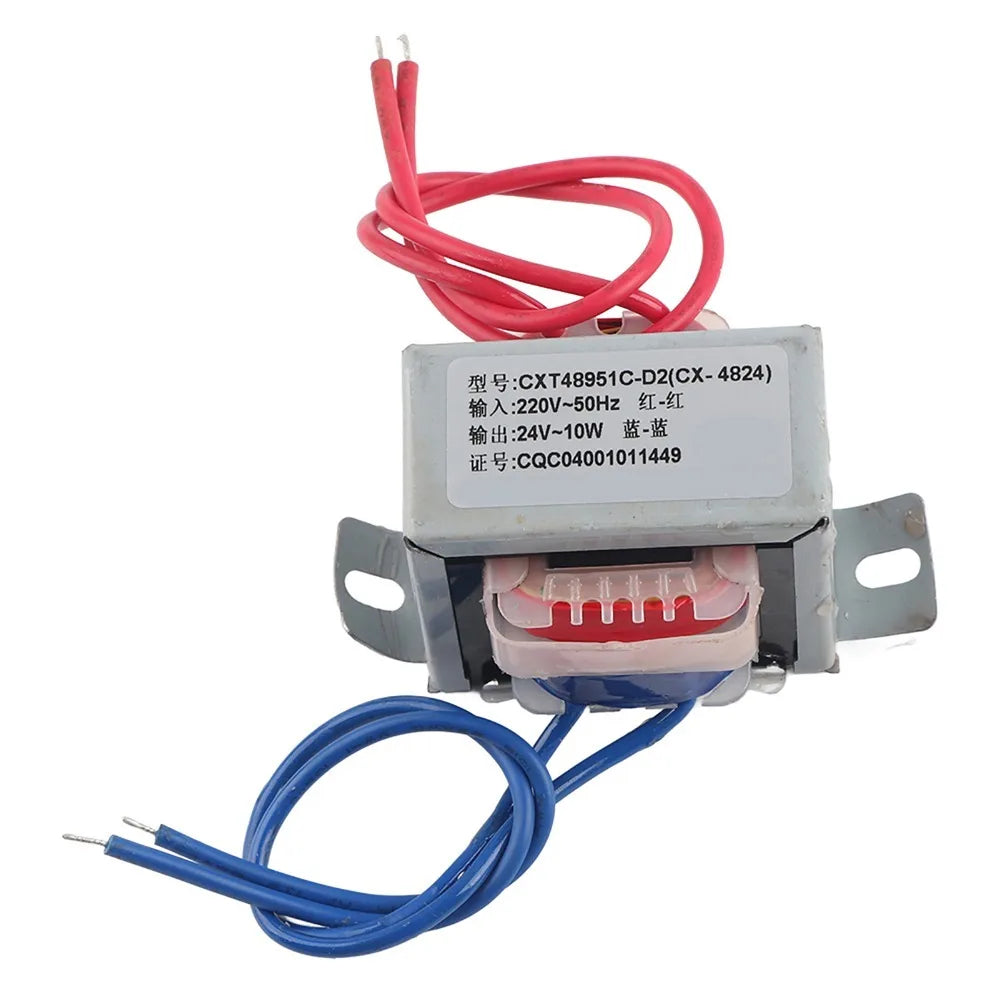

- Clear Wiring Identification: Red wire for AC input, blue wire for AC output — straightforward and safe installation.

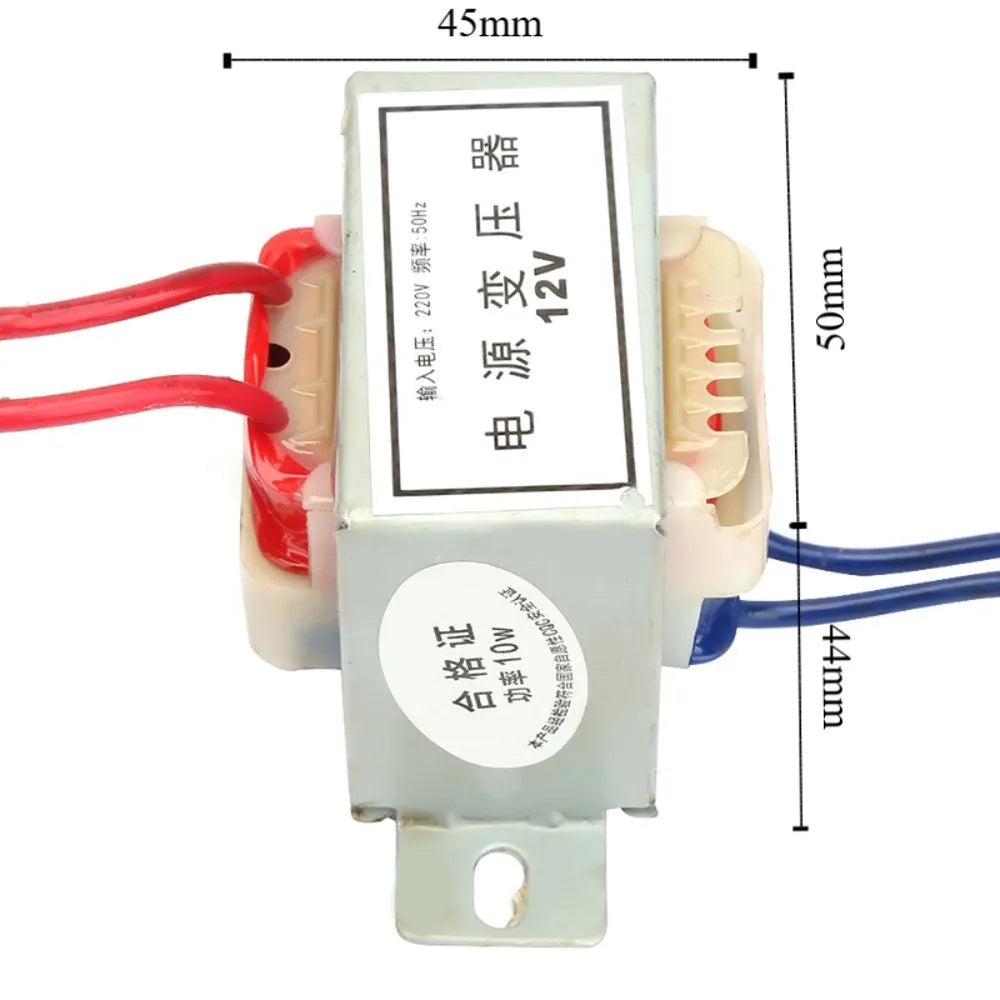

- Compact Size: Dimensions of just 50 × 45 × 44 mm (1.97 × 1.77 × 1.73 in) allow easy integration into enclosures and control panels.
Specifications
| Input Voltage | AC 220V (Nominal Range: 120V–240V) |
| Output Voltage | AC 12V or AC 24V (optional) |
| Rated Power | 10W |
| Frequency | 50Hz |
| Core Type | EI Laminated Core |
| Power Phase | Single Phase |
| Wiring | Red = Input, Blue = Output |
| Color | Silver White |
| Dimensions | 50 × 45 × 44 mm (1.97 × 1.77 × 1.73 in) |
| Country of Origin | Mainland China |
Package Contents
- 1 × AC 220V Single Phase Power Transformer (10W)
Related Products You May Like
- 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner Portable Repair Hand Tool
- 16 in 1 Multi-Function Bike Repair Tool Portable Folding Hex Wrench Set
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What output voltage options does this 220V power transformer support?
A: This single-phase AC transformer supports either AC 12V or AC 24V output depending on the model and configuration selected at time of purchase. The input is AC 220V at 50Hz with a nominal range of 120V–240V.
Q: What is the rated power of this EI core transformer?
A: The transformer is rated at 10W, making it ideal for low-power electronics, small control circuits, LED lighting drivers, and similar applications requiring a step-down voltage conversion from 220V AC.
Q: How is the transformer wired — which wire is input and which is output?
A: Wiring is clearly colour-coded for safe and easy installation: the red wire connects to the AC input (220V), and the blue wire connects to the AC output (12V or 24V).
Q: Is this transformer safe for enclosed or panel-mount installations?
A: Yes. The transformer features a fire-retardant nylon bobbin and vacuum-impregnated insulating varnish treatment for enhanced insulation and structural integrity. Its compact dimensions (50 × 45 × 44 mm) make it well-suited for enclosures and control panel mounting.
