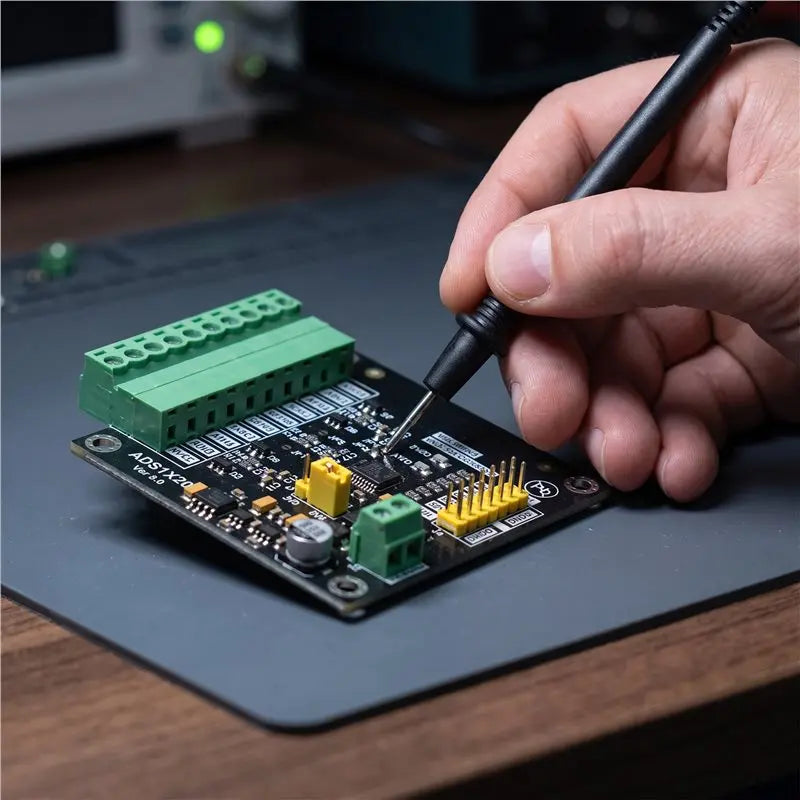

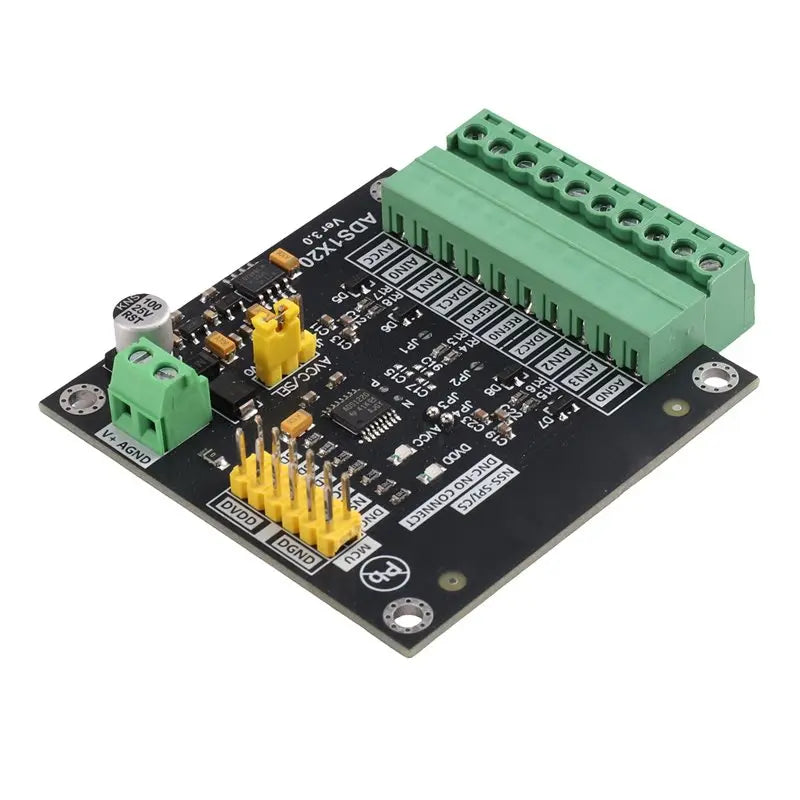

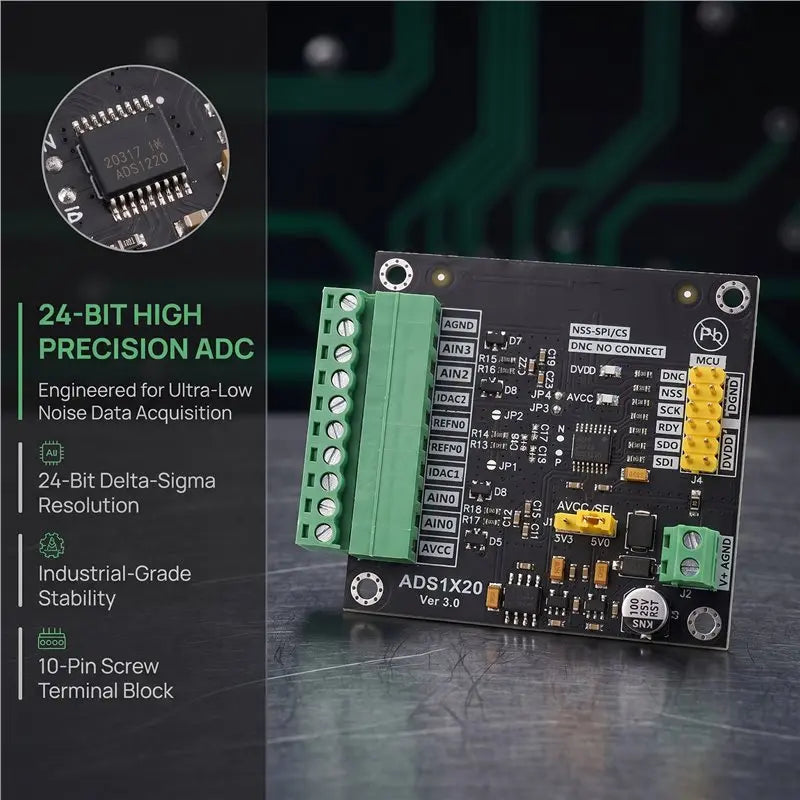

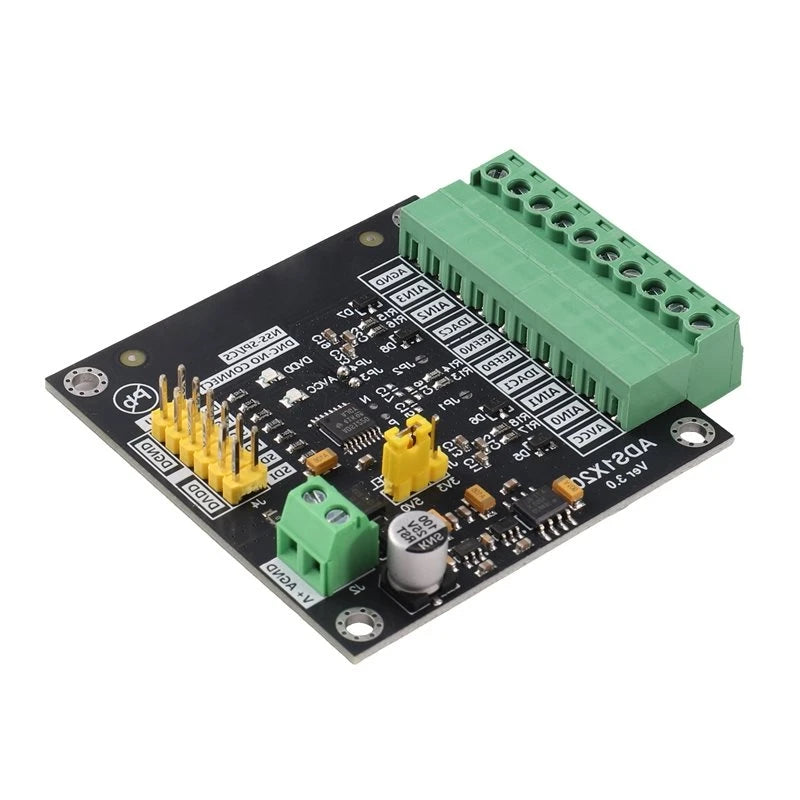

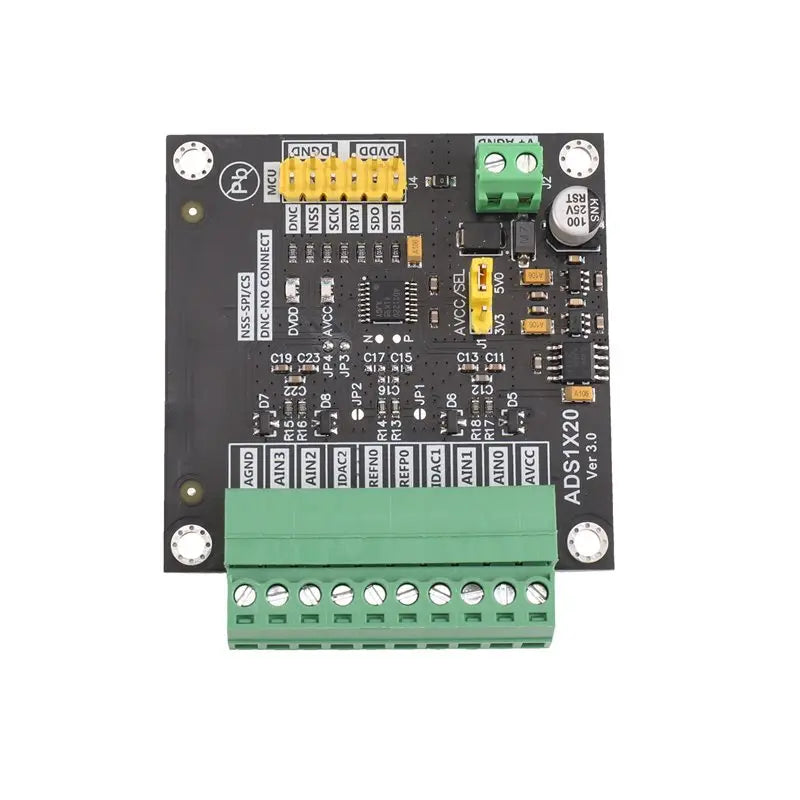

ADS1220 24-Bit ADC Module – High Accuracy Analog to Digital Converter

Take your data acquisition projects to the next level with the ADS1220 24-Bit ADC Module. Built around Texas Instruments' ADS1220 chip, this module delivers exceptional resolution and stability — making it a top choice for industrial weighing systems, temperature sensing, and precision measurement applications.

Key Features

  • 24-Bit Resolution: Captures extremely fine signal variations for highly accurate analog-to-digital conversion, ideal for precision weighing and sensor interfacing.
  • High Stability & Low Noise: Industrial-grade performance ensures reliable, consistent signal conversion even in demanding environments with electrical interference.
  • Wide Application Range: Perfectly suited for load cell amplifiers, digital scales, temperature sensors, bridge sensor readouts, and general-purpose data logging.
  • Compact & Easy to Integrate: PC + Metal construction keeps the module durable yet lightweight, with standard pinout for easy integration into microcontroller-based projects (Arduino, STM32, Raspberry Pi, etc.).
  • Cost-Effective Industrial Solution: Delivers high-end ADC performance at an accessible price point — ideal for engineers, makers, and OEM integrators worldwide.

Specifications

  • ADC Resolution: 24-Bit
  • IC: ADS1220
  • Material: PC + Metal
  • Application: Industrial weighing, temperature sensing, data acquisition
  • Package Contents: 1 × ADS1220 ADC Module

Made in Mainland China.

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the ADS1220 24-Bit ADC Module used for?

A: The ADS1220 24-Bit ADC Module is primarily used for high-accuracy data acquisition tasks such as industrial weighing systems, load cell readout, temperature sensing, and precision analog signal measurement. Its 24-bit resolution makes it ideal for applications that require extremely fine measurement granularity.

Q: Is the ADS1220 module compatible with Arduino or Raspberry Pi?

A: Yes. The ADS1220 ADC module uses a standard SPI interface and is compatible with popular microcontroller and single-board computer platforms including Arduino, STM32, ESP32, and Raspberry Pi. Libraries are widely available in the open-source community to simplify integration.

Q: What does the package include?

A: The package includes 1 × ADS1220 24-Bit ADC Module. No other accessories or components are included. Please note that minor color variations may occur due to lighting and display differences, and dimensional tolerances of ±1–3 cm may apply.
