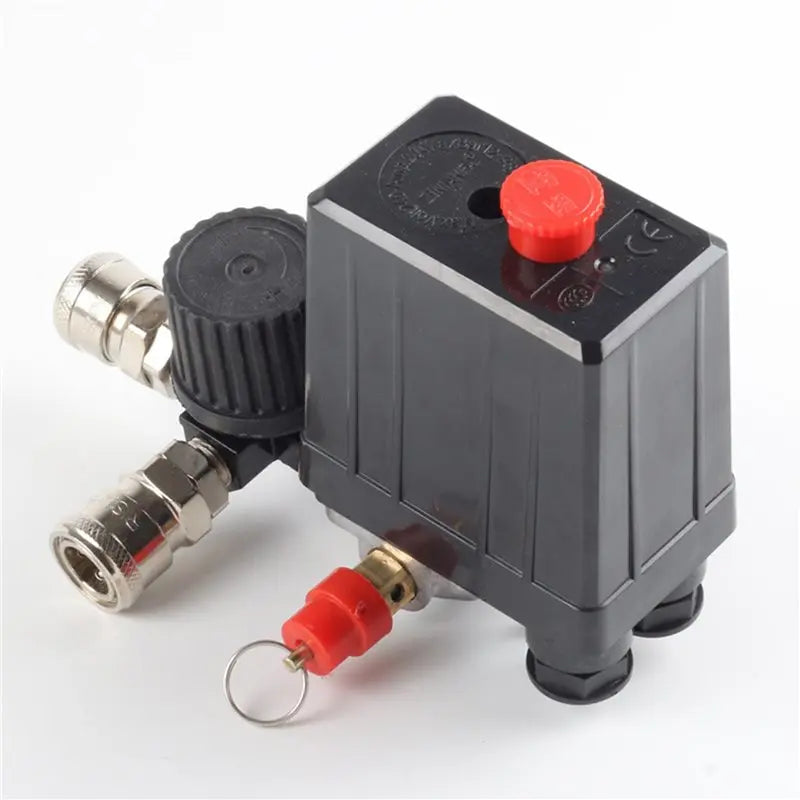

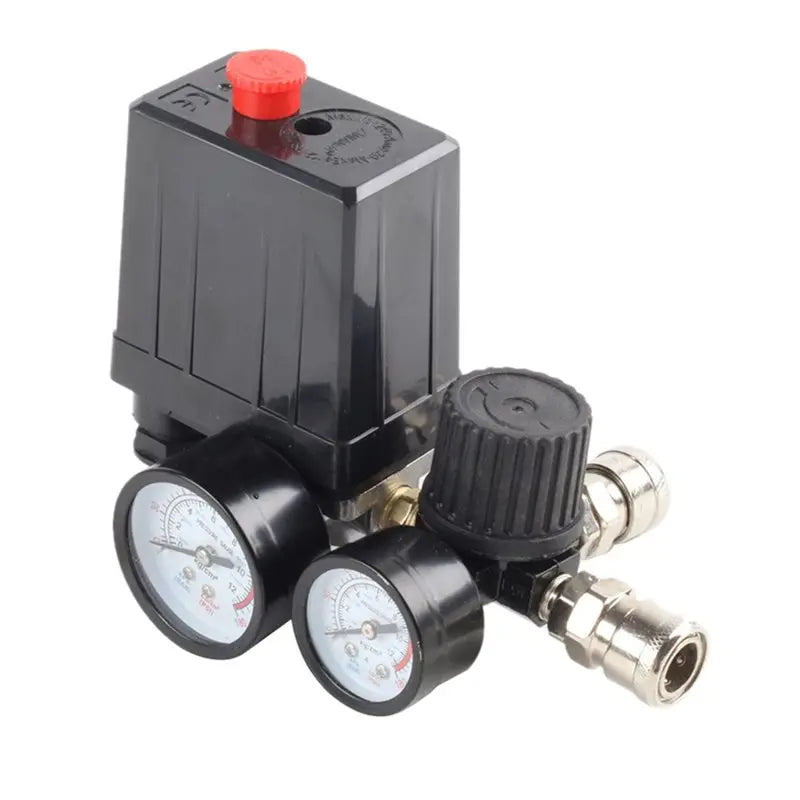

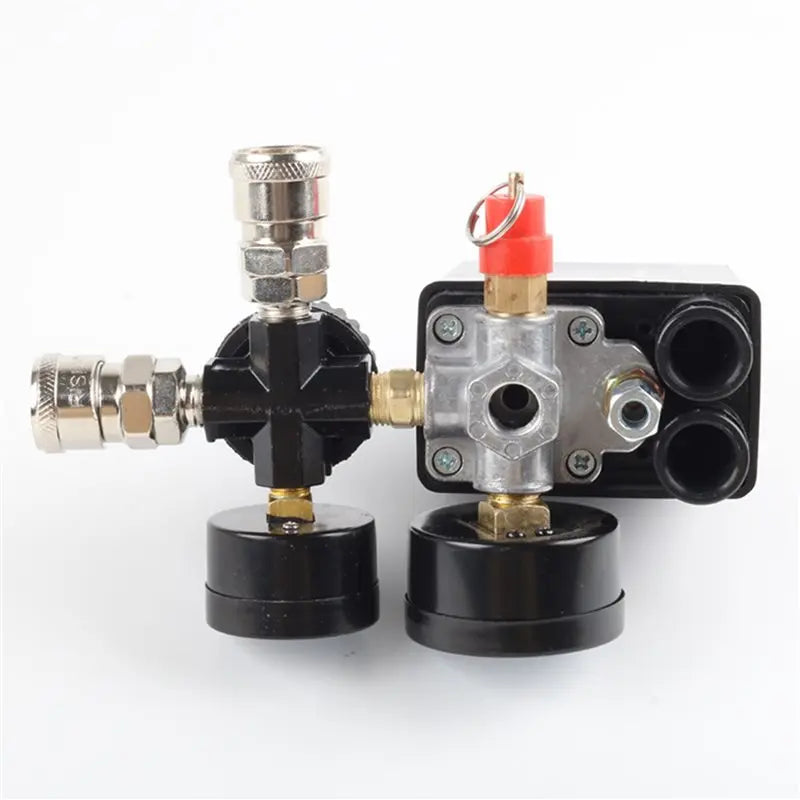

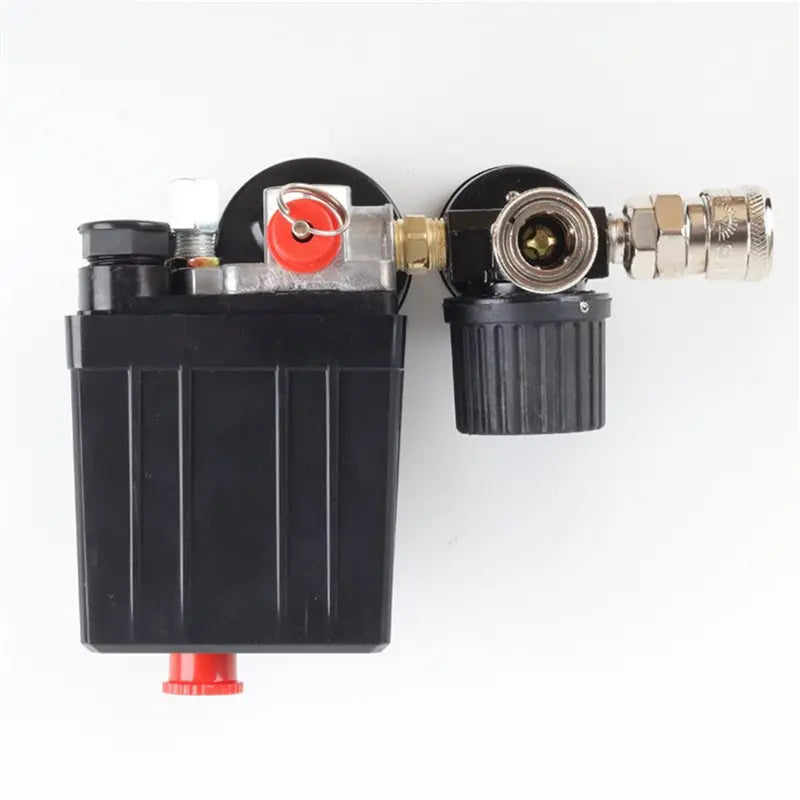

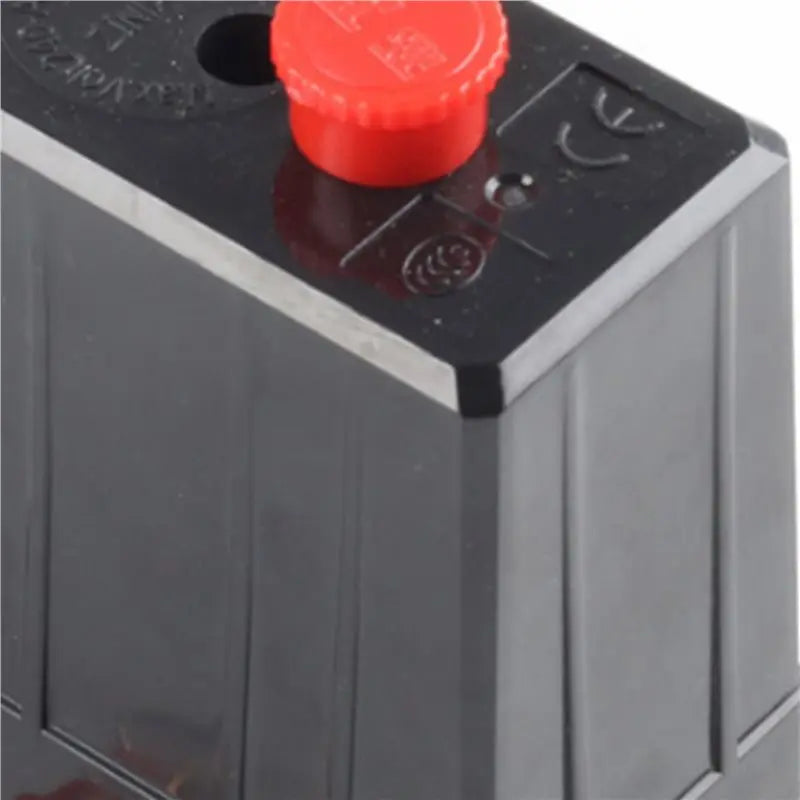

2-Pack Air Compressor Pressure Control Switch 220V 0-180 PSI
2-Pack Air Compressor Pressure Control Switch 220V 0-180 PSI
2-Pack Air Compressor Pump Pressure Control Switch — 3000 L/Min, 220V, 0–180 PSI
Take full command of your air compressor system with this high-performance Pressure Control Switch and Regulator Valve. Designed for heavy-duty use, this 220V switch delivers precise pressure regulation up to 180 PSI and an impressive maximum flow rate of 3,000 L/min — making it an ideal upgrade or replacement for workshops, garages, and industrial compressor setups. This pack includes 2 valves for added value.
Made in Mainland China.
Why Choose This Pressure Control Switch?
- V-Shaped Piston Seal: Advanced V-ring sealing technology provides superior air-tight performance, outstanding wear resistance, and long-term stability under repeated cycling.
- 30% Higher Flow Rate: Piston-based architecture delivers 30% greater flow compared to traditional diaphragm designs — minimising compressor downtime and maximising output efficiency.
- Overflow Port Design: Built-in overflow port allows fast and intuitive pressure release, giving you clear, responsive control at all times.
- High Regulation Accuracy: Sensitive response across the full working pressure range ensures your equipment always operates at the right pressure level.
- Rated for 80,000 Cycles: Built to last through tens of thousands of switching operations in demanding environments.
- Compact Angle Structure: Angle-style body design makes installation straightforward in tight compressor housings and equipment panels.
Technical Specifications
| Switch Pressure Range | 0.5–0.8 MPa (5–8 BAR / 90–120 PSI) |
| Gauge Range | 0–180 PSI |
| Rated Voltage | 220V AC |
| Maximum Current | 20A |
| Maximum Flow Rate | 3,000 L/min |
| Working Pressure Range | 0.05–1.2 MPa (5–8 KG) |
| Exhaust Pipe Diameter | 6 mm |
| Connector Size | 12 mm (1/4 inch) |
| Pressure Relief Port OD | 9.5 mm |
| Service Life | 80,000 switching cycles |
| Material | Plastic |
| Colour | Black |
| Structure | Angle |
| Country of Origin | Mainland China |
What's in the Box?

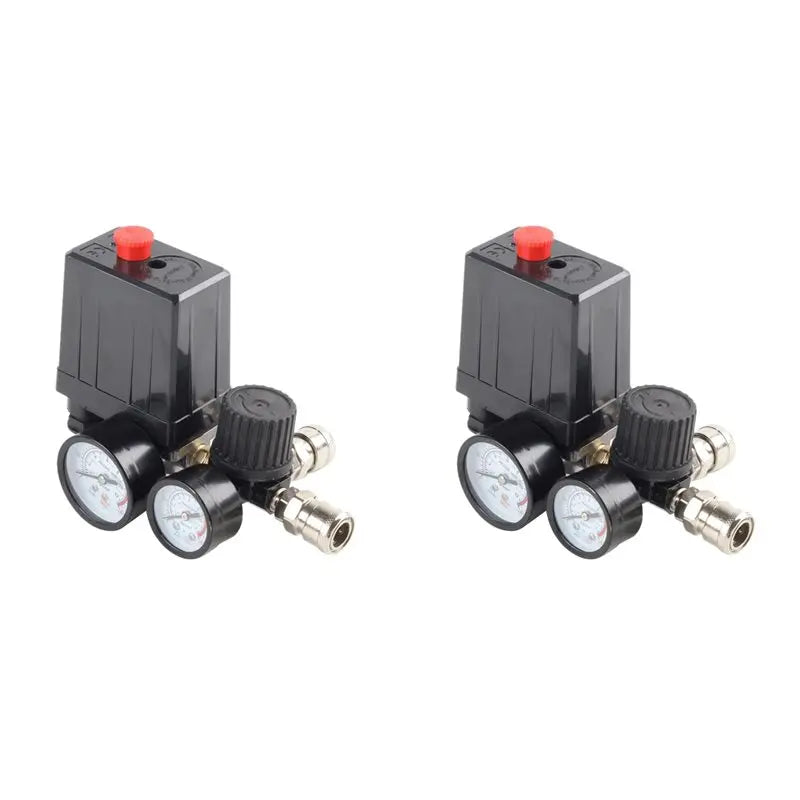

- 2 × Air Compressor Pump Pressure Control Switch / Valve
Note: Only the items listed above are included. Colour may vary slightly due to screen settings. Measurement tolerance: ±1–3 cm.
Related Products You May Also Need
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Portable Folding Hex Wrench Set
- 48-Pc MIG Welding Nozzle & Tip Set – MB15 AK15 Torch
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage does this air compressor pressure control switch require?
A: This pressure control switch is rated for 220V AC with a maximum current of 20A. Please ensure your compressor and electrical supply are compatible with 220V before installation.
Q: What is the switch pressure range for this valve?
A: The switch pressure range is 0.5–0.8 MPa (5–8 BAR / 90–120 PSI), with a working pressure range of 0.05–1.2 MPa. The gauge covers 0–180 PSI for easy monitoring.
Q: How does this pressure switch compare to a diaphragm-type valve?
A: Thanks to its piston-based design with V-shaped sealing rings, this switch offers a 30% higher flow rate than traditional diaphragm valves, plus improved wear resistance and a longer service life of up to 80,000 switching cycles.
Q: How many valves are included in this listing?
A: This listing includes 2 × Air Compressor Pump Pressure Control Switch valves, giving you a spare or allowing you to equip multiple compressors at once.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
