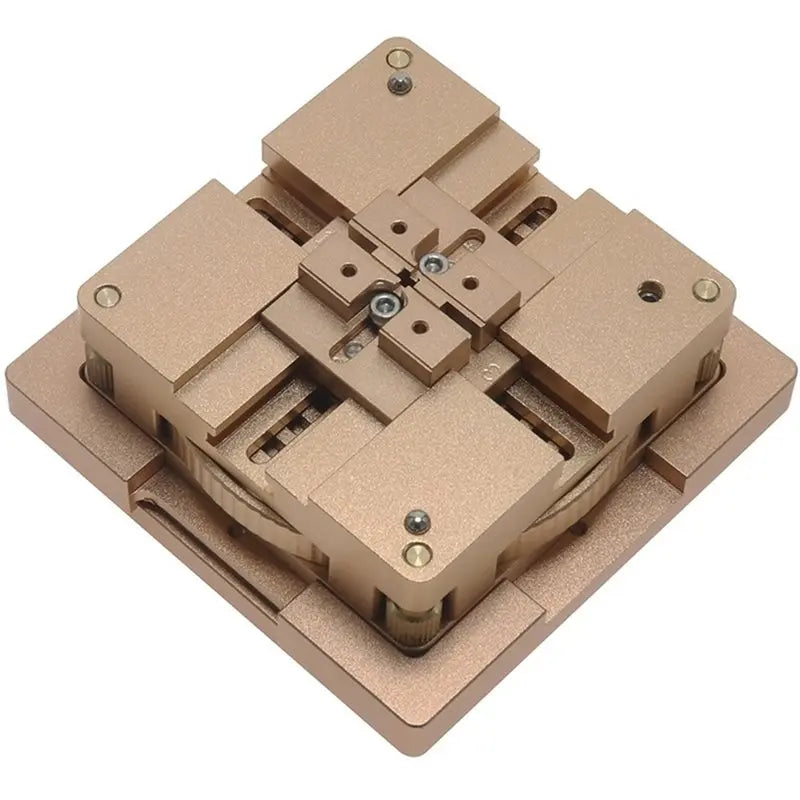

BGA Reballing Station Kit – Professional IC Chip Rework Fixture
The BGA Reballing Station Kit is a complete, precision-engineered solution for electronics technicians, repair engineers, and hobbyists who need reliable IC chip rework performance. Built around a sturdy 90×90mm aluminum fixture with a locking-pin positioning system, this kit ensures accurate solder ball placement and chip alignment every time — ideal for laptops, gaming consoles, smartphones, and motherboard repair projects.
Key Features
- High-Quality Aluminum Construction: The reinforced aluminum body delivers excellent structural strength, corrosion resistance, and an extended service life — built to withstand frequent professional use without warping or wearing down.

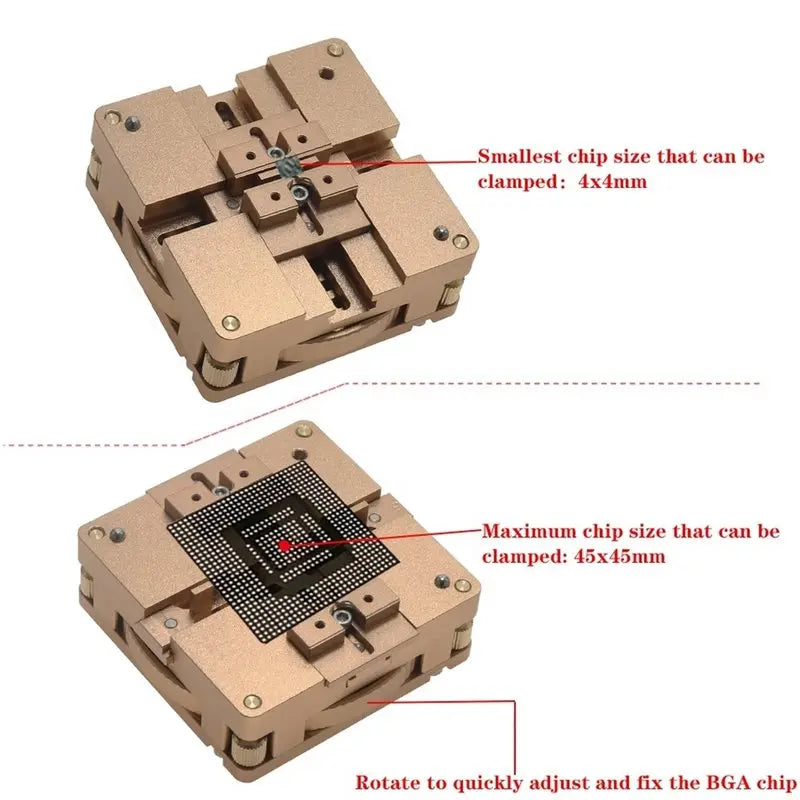

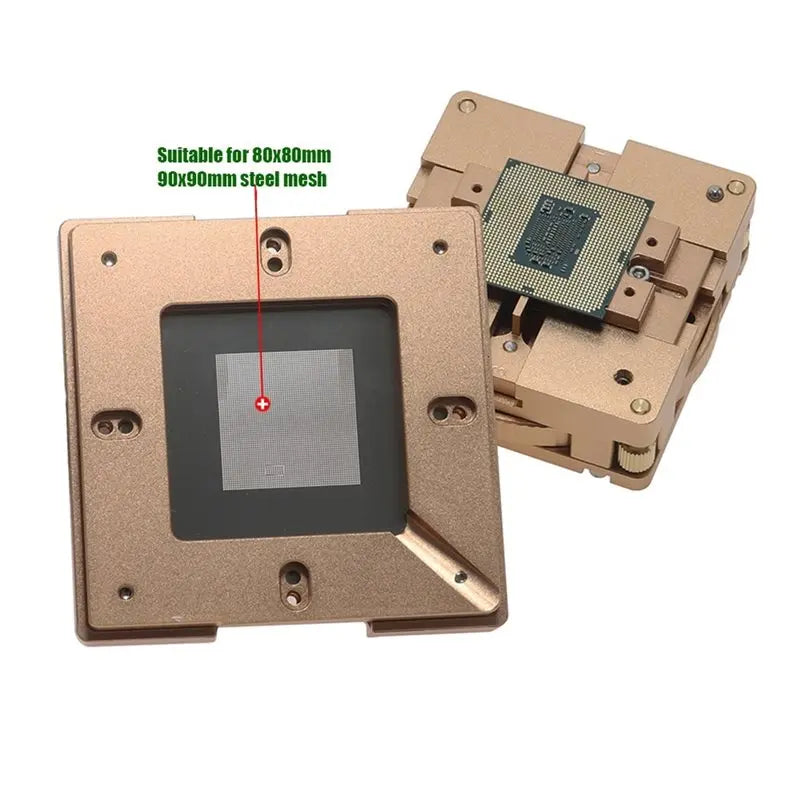

- 90×90mm BGA Reballing Fixture: Securely holds BGA chips during the reflow process, providing precise alignment and minimizing the risk of chip movement or misalignment for clean, consistent results.
- Magnetic Ball Planting Table: The integrated magnetic surface holds solder balls in place during planting, streamlining your workflow and reducing errors.

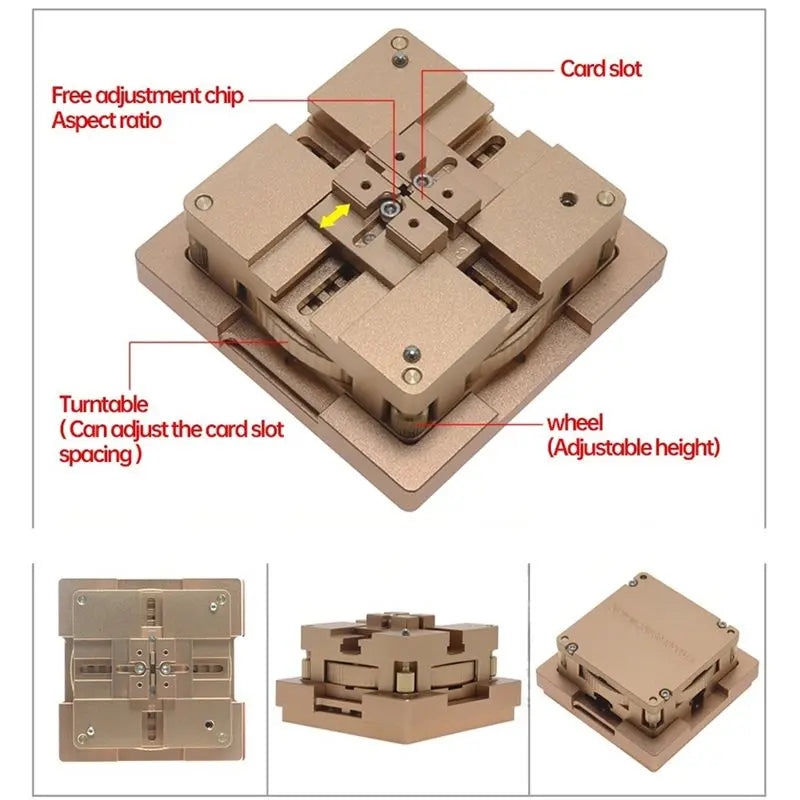

- Locking-Pin Positioning System: Ensures the BGA chip and stencil remain firmly positioned throughout the entire reballing process, delivering repeatable precision on every job.
- Universal Compatibility: Supports common 90mm BGA chip sizes, making it compatible with a wide range of IC chips and motherboard rework applications across consumer electronics.
- Complete Kit: Includes 1× universal BGA reballing station and 3× random stencils — everything you need to get started right away.
Specifications
| Material | High-Quality Aluminum |
| Fixture Size | 90 × 90 mm |
| Positioning | Locking Pin System |
| Compatible Chip Size | 90mm BGA Chips |
| Package Contents | 1× BGA Reballing Station, 3× Random Stencils |
| Country of Origin | Made in China |
Who Is This For?
This kit is designed for professional BGA repair engineers, electronics enthusiasts, and repair shops that demand accurate, efficient IC chip rework. Whether you're reballing a GPU, CPU, or any surface-mount BGA component, this station provides the stability and precision your work requires.
Related Tools You May Need
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver for Repair
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
Note: Color may appear slightly different from the actual product due to lighting and display settings. Measurement tolerance is ±1–3 cm.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What BGA chip sizes is this reballing station compatible with?
A: This BGA reballing station is designed for 90mm BGA chip sizes. The 90×90mm fixture supports a wide range of IC chips and is suitable for common motherboard rework tasks on laptops, smartphones, gaming consoles, and other electronics.
Q: What is included in the BGA reballing station kit?
A: The kit includes 1× universal BGA reballing station (ball planting table fixture) and 3× random BGA stencils. No additional accessories are included beyond what is listed in the package contents.
Q: Is this BGA reballing kit suitable for beginners?
A: While the kit is designed with professional repair engineers in mind, the locking-pin positioning system and magnetic ball planting table make the process more accessible to experienced hobbyists and electronics enthusiasts who are familiar with BGA rework procedures.
Q: What material is the BGA reballing station made from?
A: The station is constructed from high-quality aluminum, offering excellent strength, corrosion resistance, and durability for long-term use in professional repair environments.
