Brass Round Flange Trapezoidal Screw Nuts – Positive & Reverse Thread
Precision-machined from solid brass, these round flange trapezoidal (Tr-series) screw nuts are the go-to choice for CNC machines, 3D printers, linear actuators, and general metalworking projects. Available in both standard (right-hand) and left-hand (reverse) thread configurations across a wide range of sizes, you get exactly the fit your build demands.
Key Features
- Premium All-Brass Construction: Excellent corrosion resistance, low friction, and long service life — ideal for continuous motion applications.
- Round Flange Design: The flanged collar provides a secure, stable mounting surface and prevents axial displacement during operation.
- Wide Size Range: Positive thread sizes Tr10×2 through Tr30×6; reverse (left-hand) thread sizes TrL10×2 through TrL28×5. Pick the exact pitch and diameter you need.
- Customisable Quantities: Order 1, 2, 3, or 5 pieces — perfect for prototyping, replacement, or full builds.
- Tight Tolerances: Machined to ±0.3 mm for consistent, reliable thread engagement every time.
- Both Thread Hands Supported: Standard (right-hand) and reverse (left-hand) threads available, enabling anti-backlash and dual-drive configurations.

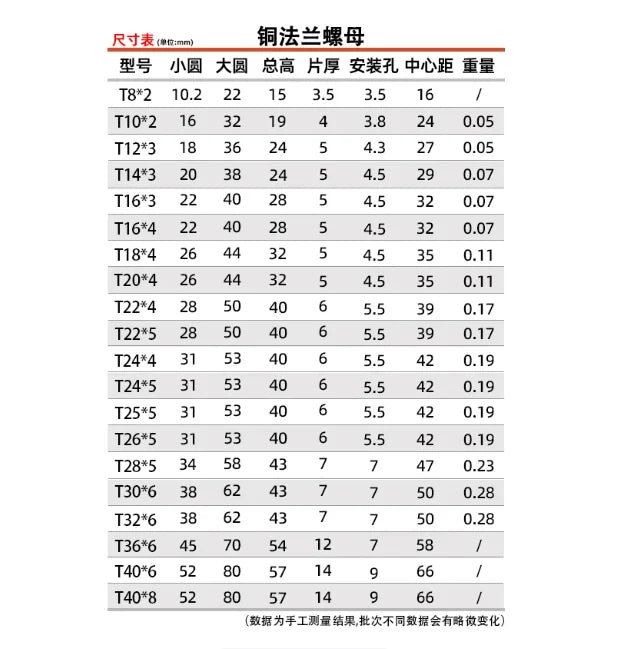

Specifications
| Material | Brass (All-Copper) |
|---|---|
| Type | Round Flange Trapezoidal Nut |
| Thread Standard | Tr (ISO Trapezoidal) |
| Positive Thread Sizes | Tr10×2, Tr12×3, Tr14×3, Tr16×3, Tr16×4, Tr18×4, Tr20×4, Tr22×5, Tr24×4, Tr24×5, Tr25×5, Tr28×5, Tr30×6 |

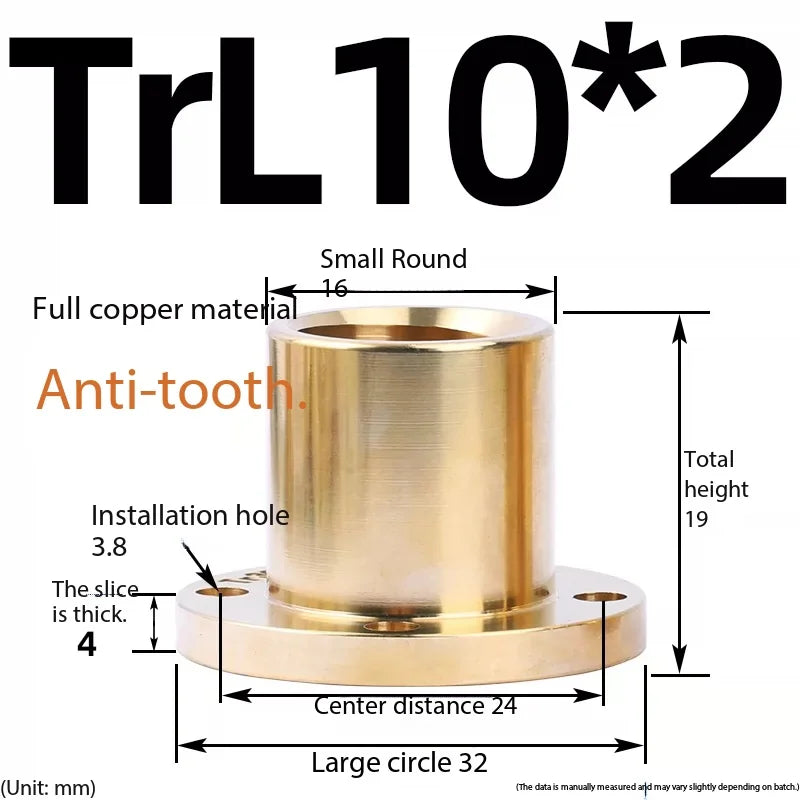

| Reverse Thread Sizes | TrL10×2, TrL12×3, TrL14×3, TrL16×3, TrL16×4, TrL18×4, TrL20×4, TrL22×5, TrL24×4, TrL25×5, TrL28×5 |
| Tolerance | ±0.3 mm |
| Quantity Options | 1 / 2 / 3 / 5 pcs |
| Customisation | Available |
| Country of Origin | Made in China |
Common Applications
- CNC router & milling machine lead screws
- 3D printer Z-axis drive mechanisms
- Linear motion actuators & stages
- Lathe cross-slide & feed-screw assemblies
- DIY automation and robotics projects
Related Products You May Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Folding Hex Wrench Set – Portable Repair Tool
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Mini Portable Repair Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the difference between positive thread (Tr) and reverse thread (TrL) flange nuts?
A: Positive thread (Tr) nuts have a standard right-hand thread — they tighten clockwise. Reverse thread (TrL) nuts have a left-hand thread — they tighten counter-clockwise. Left-hand nuts are commonly used in anti-backlash assemblies or on the opposite side of a dual-drive lead screw to keep both nuts moving symmetrically.
Q: Are these brass trapezoidal flange nuts compatible with standard Tr lead screws?
A: Yes. These nuts conform to the ISO trapezoidal thread standard (Tr series), making them compatible with any matching Tr lead screw of the same nominal diameter and pitch (e.g. a Tr16×4 nut fits a Tr16×4 lead screw). Always verify both diameter and pitch before ordering.
Q: Can I get a custom size or quantity not listed?
A: Customisation is available. If you require a size or quantity outside the standard options listed, please reach out via the store's contact page with your specific requirements.
Q: Why choose brass over steel or plastic for trapezoidal lead screw nuts?
A: Brass offers a favourable balance of low friction, corrosion resistance, and machinability. It runs quietly against steel lead screws, requires less lubrication than plain steel-on-steel contact, and outlasts plastic (e.g. POM/Delrin) nuts in higher-load or higher-temperature environments.
