DC Buck Regulator Module 10-90V 100W Synchronous Rectification
DC Buck Regulator Module 10-90V 100W Synchronous Rectification

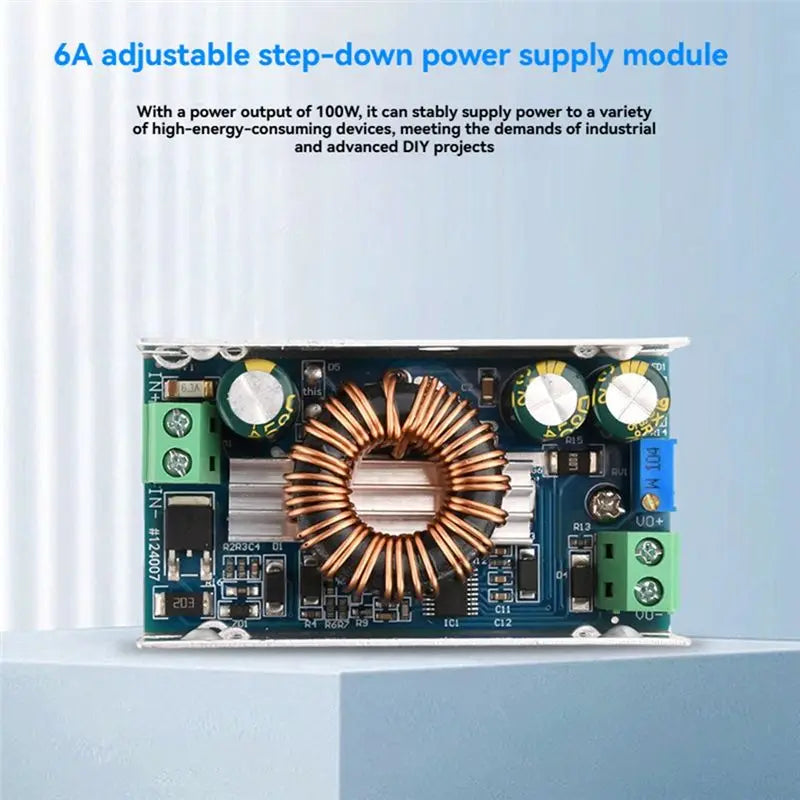

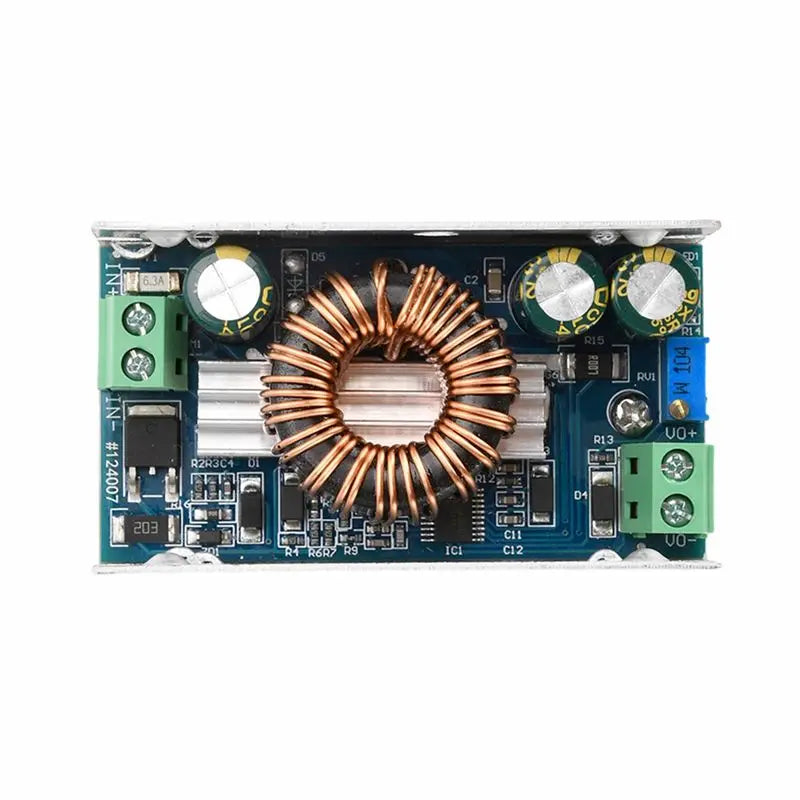

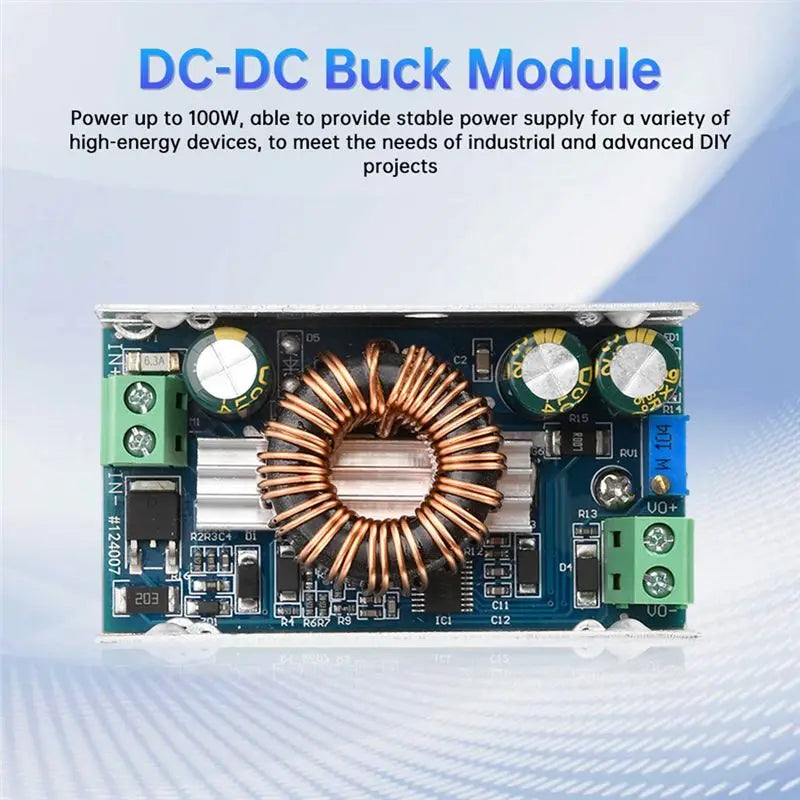

Buck Regulator Module with Synchronous Rectification Technology
This high-efficiency DC Buck Converter Module delivers stable, adjustable voltage output with cutting-edge synchronous rectification technology. Achieve up to 97.5% conversion efficiency — dramatically reducing heat generation and energy waste compared to traditional diode-based regulators. Ideal for electronics hobbyists, engineers, and DIY power supply projects.
Made in Mainland China.
Key Specifications
- Input Voltage: DC 10–90V
- Output Voltage: DC 1.5–60V (adjustable; input must be higher than output)
- Output Current: MAX 6A (derate at high-voltage output; add heat dissipation above 65°C)
- Maximum Power: 100W (6A max at low voltage; 100W max at high voltage)
- Operating Frequency: 180 KHz
- Conversion Efficiency: 97.5% (typical)
- Working Temperature: -40°C to +85°C

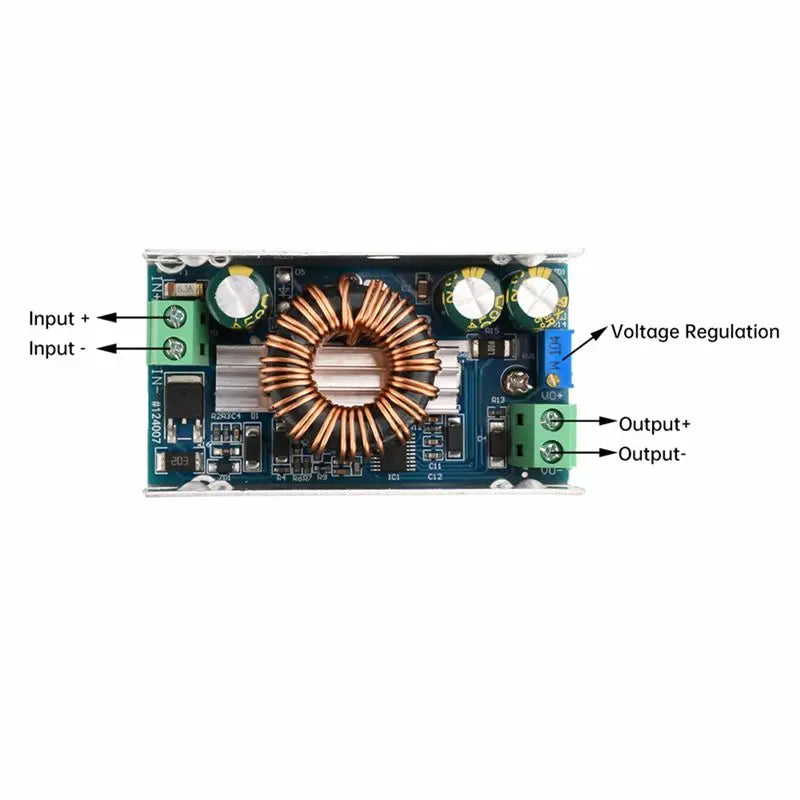

- Potentiometer Adjustment: Clockwise = increase; Counter-clockwise = decrease
- Connection Mode: Terminal board

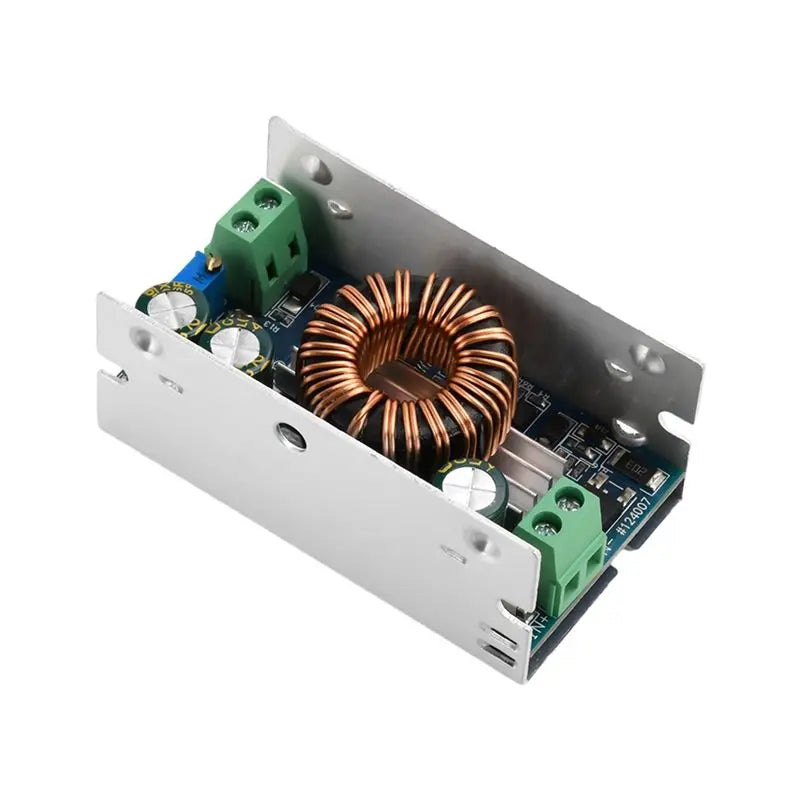

- Material: Metal

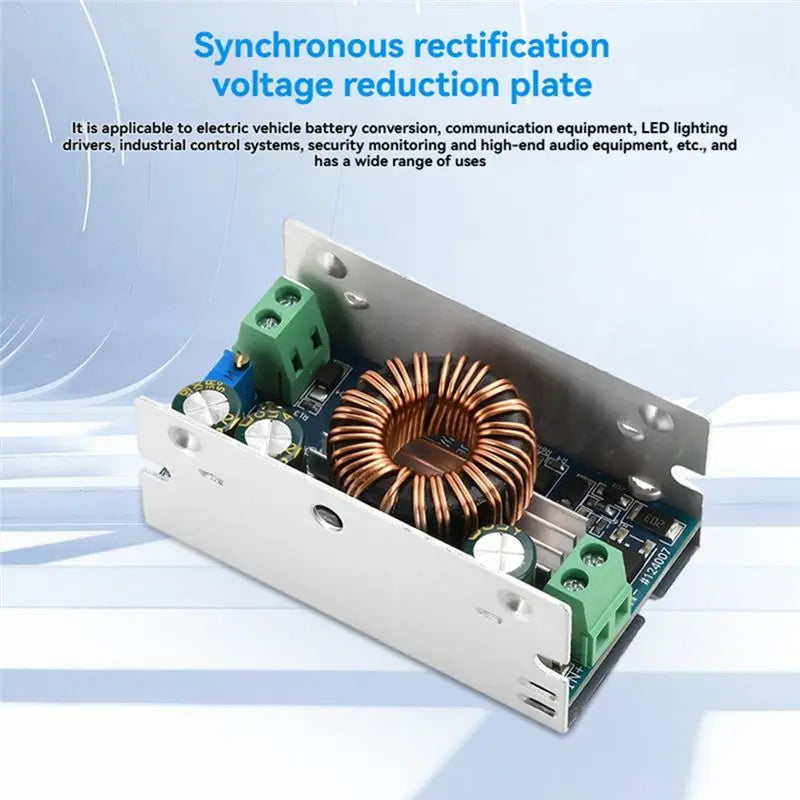

Why Synchronous Rectification?
Synchronous rectification is an advanced switching power supply technology that replaces traditional rectifier diodes with ultra-low on-resistance power MOSFETs. This eliminates the Schottky barrier voltage drop and significantly reduces rectification losses — resulting in higher efficiency, less heat output, and a longer-lasting power supply module. The MOSFET gate voltage is precisely synchronized with the rectified voltage phase to ensure optimal performance at all times.
What's in the Box
- 1 × Buck Converter Module
Note: Color may vary slightly due to lighting and display differences. Measurement tolerance is ±1–3 cm.
Related Products You May Like
- 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16 in 1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the input voltage range for this buck regulator module?
A: This DC buck converter module accepts an input voltage of DC 10V to 90V. It steps the voltage down to an adjustable output of DC 1.5V to 60V — the input voltage must always be higher than the desired output voltage for proper operation.
Q: Do I need a heat sink with this buck power supply module?
A: At standard loads and ambient temperatures, the module runs efficiently at up to 97.5% conversion efficiency. However, when operating above 65°C or at high-voltage/high-current output levels, it is recommended to derate the current and add active or passive heat dissipation to ensure long-term stable performance.
Q: How do I adjust the output voltage on this buck converter?
A: Output voltage is adjusted using the onboard potentiometer. Turn it clockwise to increase the output voltage and counter-clockwise to decrease it. The module uses a terminal board connection for easy wiring integration into your project.
