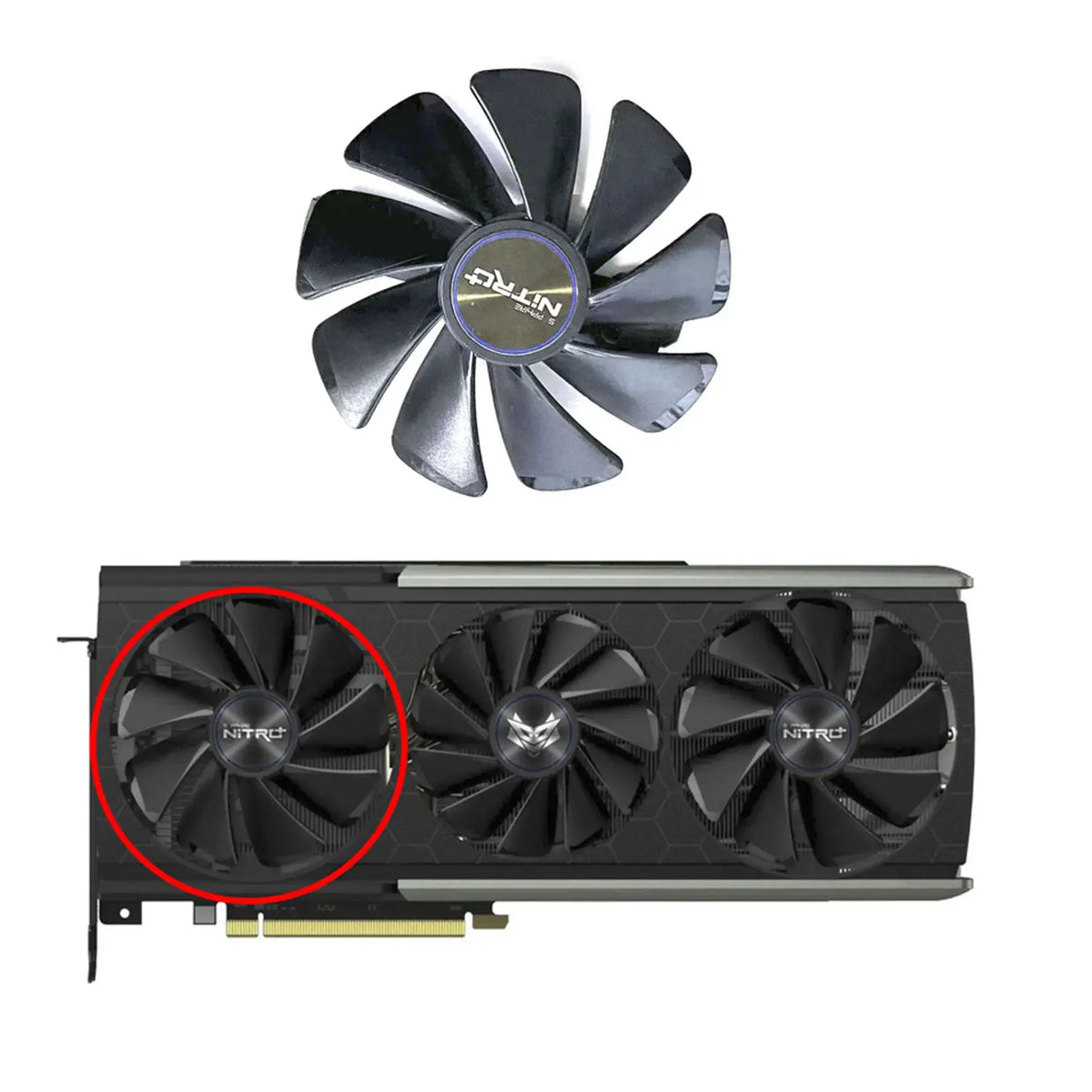

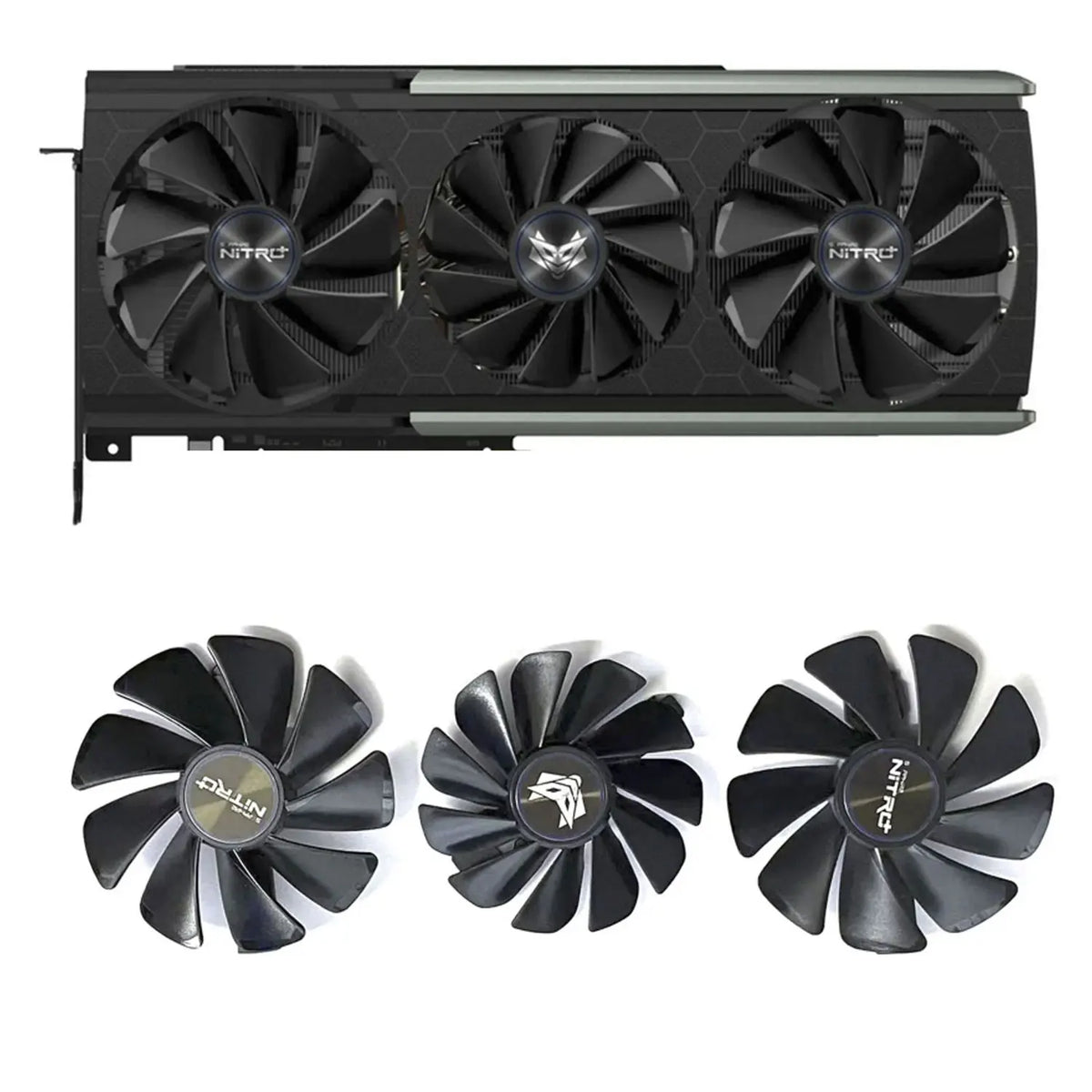

CF1015H12D Triple GPU Cooling Fan for Sapphire RX 5700 XT

Triple Fan Replacement Cooling Assembly for Sapphire RX 5700 XT Graphics Cards

Keep your Sapphire RX 5700 XT running cool and performing at its best with this direct-replacement triple-fan cooling assembly. Engineered to fit the Sapphire RX 5700 XT NITRO+ and NITRO+ Special Edition, this set includes three fans (two 95mm outer fans and one 85mm inner fan) with a 6-pin header connector — a plug-and-play swap that restores your GPU's thermal management without the need for any soldering or modification.

Made in Mainland China.

⚠️ Important Before You Buy

• Do not select based on GPU model name alone. The same GPU model can ship with different fan configurations depending on the revision. Always verify by matching the fan part number (CF1015H12D) and measuring your existing fan dimensions and mounting hole spacing before ordering.
• This listing is for the fan assembly only. Mounting screws, heatsink, and other hardware are not included.
• Please measure your current fan dimensions and mounting hole distances to confirm compatibility.

Product Specifications

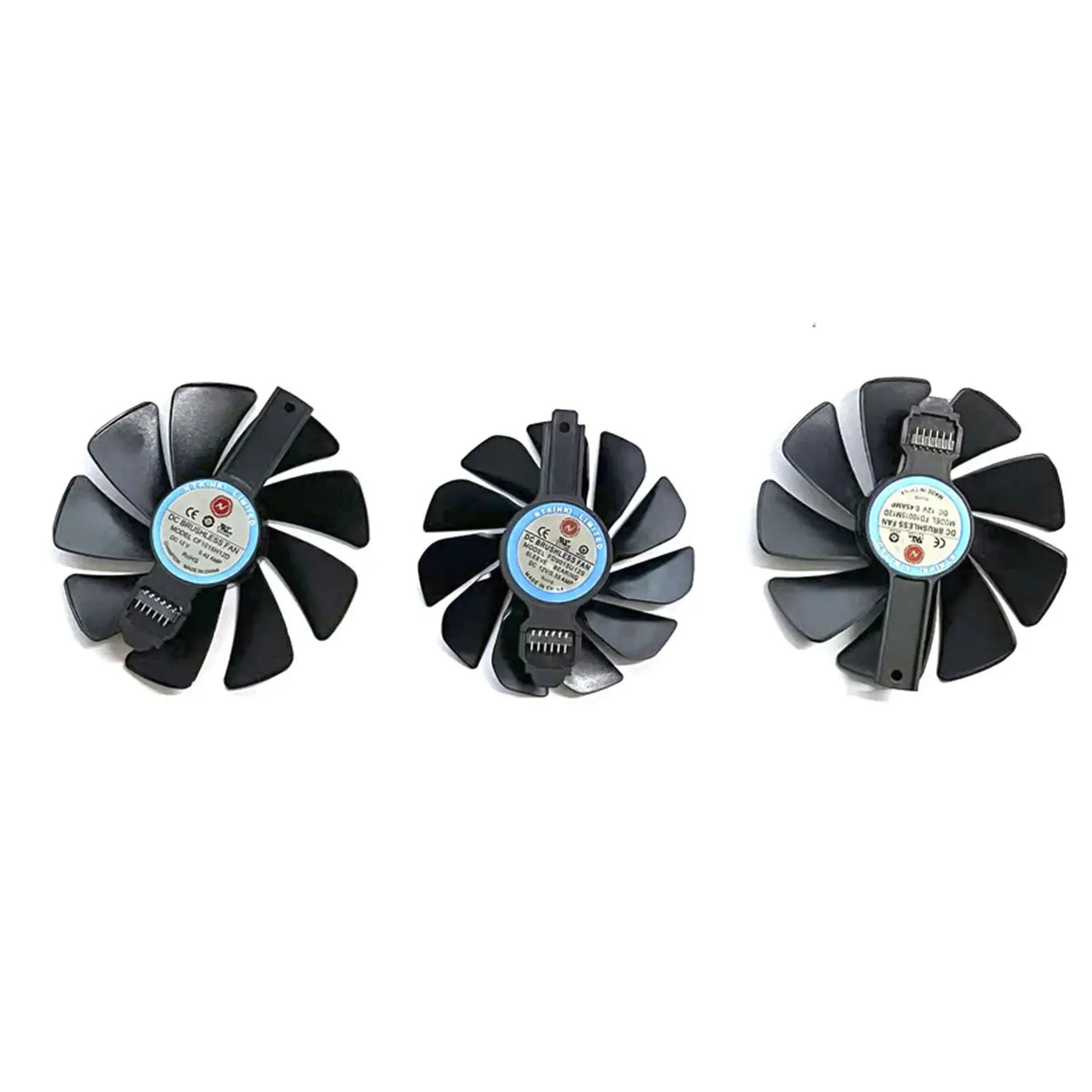

Outer Fans (×2) — Model: FD10015M12D

• Fan Size: 95mm
• Voltage: DC 12V
• Current: 0.45A
• Power Connector: 6-Pin Header

Inner Fan (×1) — Model: FDC10H12D9-C

• Fan Size: 85mm
• Voltage: DC 12V
• Current: 0.35A
• Power Connector: 6-Pin Header

Key Details

• Part Number: CF1015H12D
• Cooling Type: Air-cooled, triple-fan configuration
• Material: Plastic fan blades and frame
• Certification: CE
• High-concern chemicals: None

Compatible With

• Sapphire RX 5700 XT 8GB NITRO+
• Sapphire RX 5700 XT 8GB NITRO+ Special Edition

Why Replace Your GPU Fan?

A worn or failing GPU fan can cause your graphics card to throttle under load or shut down unexpectedly. Replacing the fan assembly is a cost-effective way to extend your card's lifespan and maintain consistent performance during intensive gaming or rendering sessions. This replacement fan set uses the same 6-pin connector as the original, making installation straightforward for anyone comfortable with PC hardware.

Looking for other handy tools for your tech repairs or workspace? Check out our 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner or the 3-in-1 Precision Mini Screwdriver Keychain for precision repair work.

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: Will this triple fan assembly fit my Sapphire RX 5700 XT PRO OC?

A: This fan set is confirmed compatible with the Sapphire RX 5700 XT 8GB NITRO+ and NITRO+ Special Edition. While it may fit other RX 5700 XT variants such as the PRO OC, we strongly recommend verifying the part number (CF1015H12D), fan dimensions (95mm outer / 85mm inner), and mounting hole spacing against your existing fans before purchasing, as different board revisions can use different fan assemblies.

Q: Does this come with mounting screws or a heatsink?

A: No — this listing includes the fan assembly only. Mounting screws, heatsink, thermal pads, and other components are not included. You will reuse your existing hardware during installation.

Q: What connector does the CF1015H12D replacement fan use?

A: All three fans in this assembly use a 6-pin header connector, matching the original Sapphire RX 5700 XT NITRO+ fan configuration for a straightforward, tool-minimal swap.

Q: How do I know if my GPU fan needs replacing?

A: Common signs include unusual rattling or grinding noises from the GPU, significantly elevated GPU temperatures under normal load, or fans that have stopped spinning entirely. If you notice any of these symptoms, replacing the fan assembly can restore normal GPU thermal management.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
