A01F-4X CNC Electronic Handwheel Manual Pulse Encoder – 100PPR, 4-Terminal, 5V–24V
Upgrade or replace your CNC machine's handwheel with this precision 100PPR 4-Terminal Electronic Handwheel Manual Pulse Encoder. Engineered for compatibility with 5V, 12V, and 24V CNC systems, this durable aluminum alloy handwheel delivers smooth, accurate pulse generation for lathes, milling machines, and other CNC-controlled equipment. Whether you're replacing a worn-out unit or expanding your setup, installation is straightforward and hassle-free.
Key Features
- 100PPR (Pulses Per Revolution) – High-resolution pulse output for precise manual axis control
- Wide Voltage Compatibility – Works with 5V, 12V, and 24V CNC systems
- 4-Terminal Configuration – Simple wiring for reliable integration into your CNC controller
- 60mm Diameter – Compact yet comfortable ergonomic size (height: 30mm base to surface, excluding finger posts)
- Aluminum Alloy Construction – Robust, lightweight silver-finish body built for workshop durability
- Easy Installation – Drop-in replacement for damaged or worn handwheels on most CNC systems

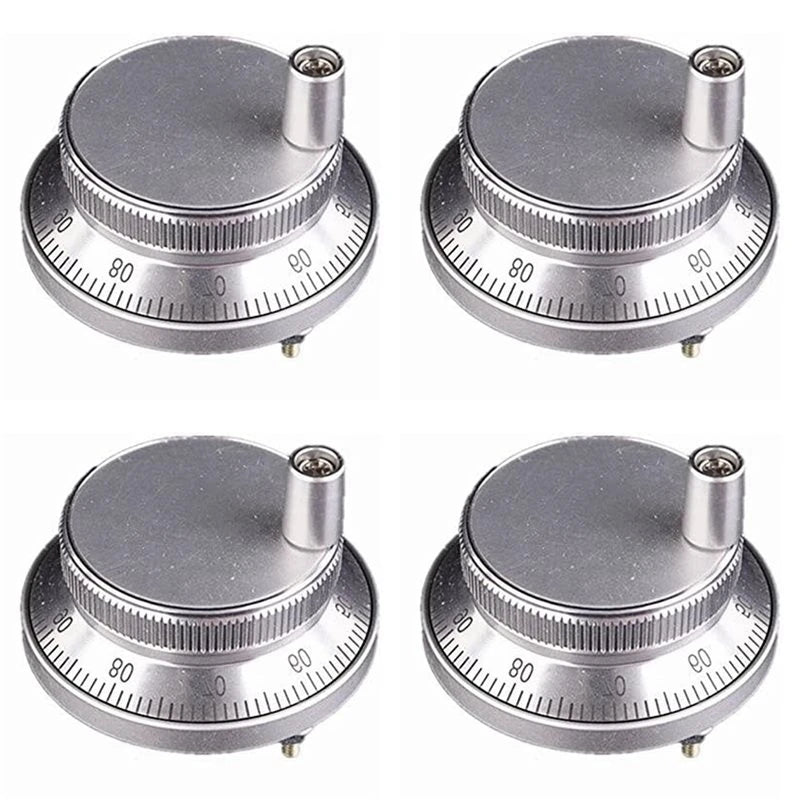

- Pack of 4 – Ideal for multi-axis machines or keeping spares on hand
Specifications
| Model | A01F-4X |
| Resolution | 100 PPR (Pulses Per Revolution) |
| Terminals | 4-Terminal |
| Operating Voltage | 5V – 24V DC |
| Diameter | 60mm / 2.36 inches |
| Height | 30mm / 1.18 inches (base to surface, excluding finger posts) |
| Material | Aluminum Alloy |
| Color | Silver |
| Package Contents | 4 × Electronic Handwheel |
| Country of Origin | Made in China |
What's in the Box?
- 4 × A01F-4X 100PPR 4-Terminal Electronic Handwheel Manual Pulse Encoder
