10-Pack CY-16B 5/8" Ball Transfer Units – 360° Conveyor Rollers
10-Pack CY-16B 5/8" Ball Transfer Units – 360° Conveyor Rollers

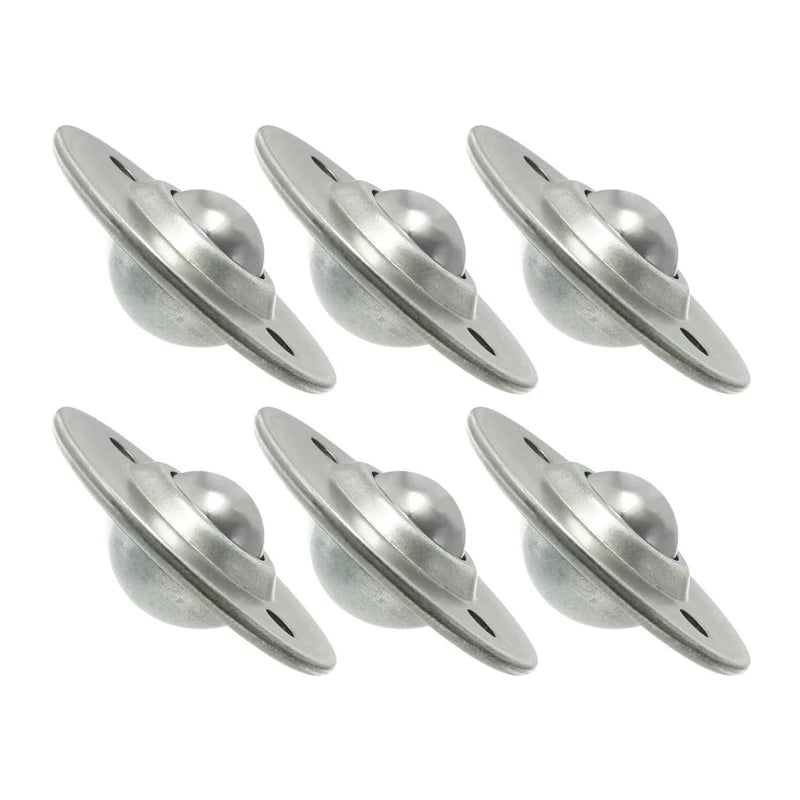

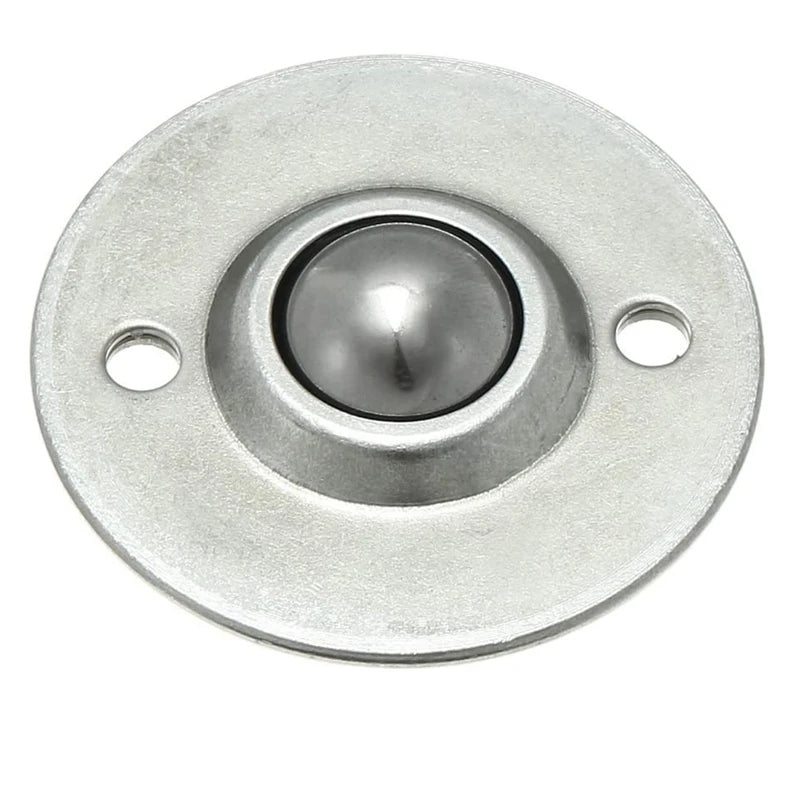

CY-16B 5/8-Inch Ball Transfer Units – 10-Pack
Upgrade your conveyor, woodworking, or material-handling setup with these heavy-duty CY-16B Ball Transfer Units. Each unit features a 5/8-inch carbon steel bearing ball mounted in a flange housing, delivering smooth 360° omnidirectional movement for effortless load transfer on any flat surface. Perfect for band saw tables, router tables, assembly lines, conveyor systems, and more.
Made in Mainland China.
Key Features
- 360° Omnidirectional Movement – Moves loads in any direction with minimal effort, ideal for curved workpieces and assembly workflows.
- 5/8-Inch (15.875mm) Carbon Steel Ball – Precision-ground for smooth, consistent rolling and long-lasting durability.
- Max Load Capacity: 15 kg / 33.07 lbs per unit – Reliable support for moderate industrial and workshop loads.
- Flange Mount Design – Two pre-drilled 4mm mount holes (30mm apart) for secure, tool-free installation onto tables and conveyor beds.
- Compact Profile – 45 × 19mm (1.8" × 0.75") keeps your work surface low-profile and efficient.
- Silver Finish – Clean, professional look suited for workshop and light industrial environments.
Full Specifications
| Model | CY-16B |
| Ball Diameter | 5/8-inch (approx. 15.875mm) |

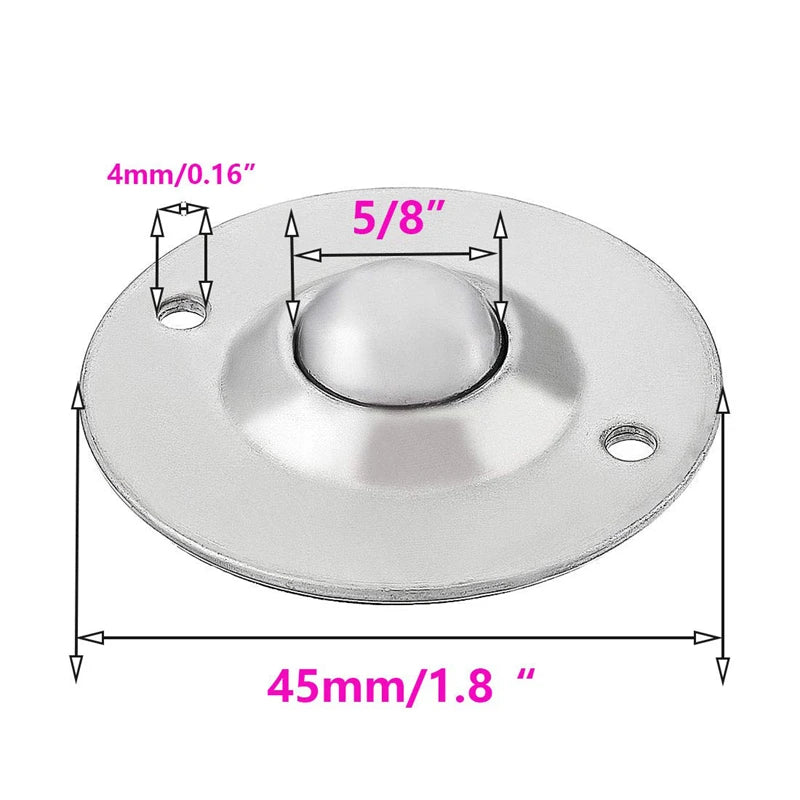

| Overall Dimensions | 45 × 19mm / 1.8" × 0.75" (Max D × H) |
| Mount Hole Diameter | 4mm / 0.16" |
| Mount Hole Spacing | 30mm / 1.2" |
| Max Load Capacity | 15 kg / 33.07 lbs |
| Material | Carbon Steel |
| Color | Silver |
| Package Weight | 260g |
| Quantity | 10 Units |
Note: Mounting screws are not included. Minor color variation may occur due to display settings. Measurement tolerance: ±1–3mm.
Related Products You May Like
- 10 in 1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16 in 1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is a ball transfer unit and what is the CY-16B used for?
A: A ball transfer unit is an omnidirectional roller that allows loads to move freely in any direction across a flat surface. The CY-16B is commonly used in conveyor systems, woodworking tables (such as band saws and router tables), assembly lines, and other material-handling applications where smooth, multidirectional movement is needed.
Q: Are mounting screws included with these ball transfer units?
A: No, mounting screws are not included. Each unit has two 4mm diameter mounting holes spaced 30mm apart. You will need to source M4 screws separately to install them onto your work surface or conveyor frame.
Q: What is the maximum load capacity per unit?
A: Each CY-16B ball transfer unit supports a maximum load of 15 kg (approximately 33.07 lbs). When multiple units are used together on a surface, their combined capacity increases proportionally, making this 10-pack well-suited for light to moderate industrial and workshop use.
Q: What material are these roller ball transfer units made from?
A: These units are constructed from carbon steel with a silver finish, offering good durability and resistance to everyday workshop wear in material-handling and conveyor applications.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
