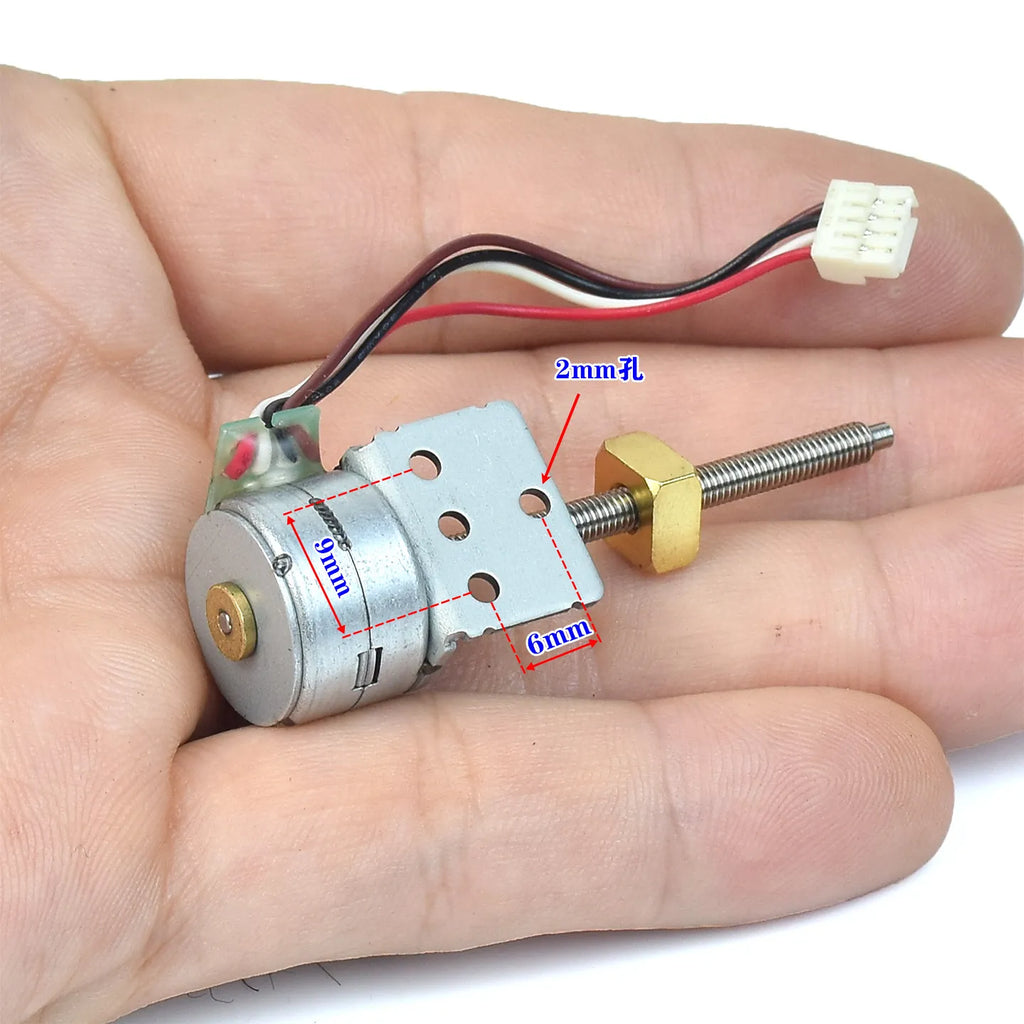

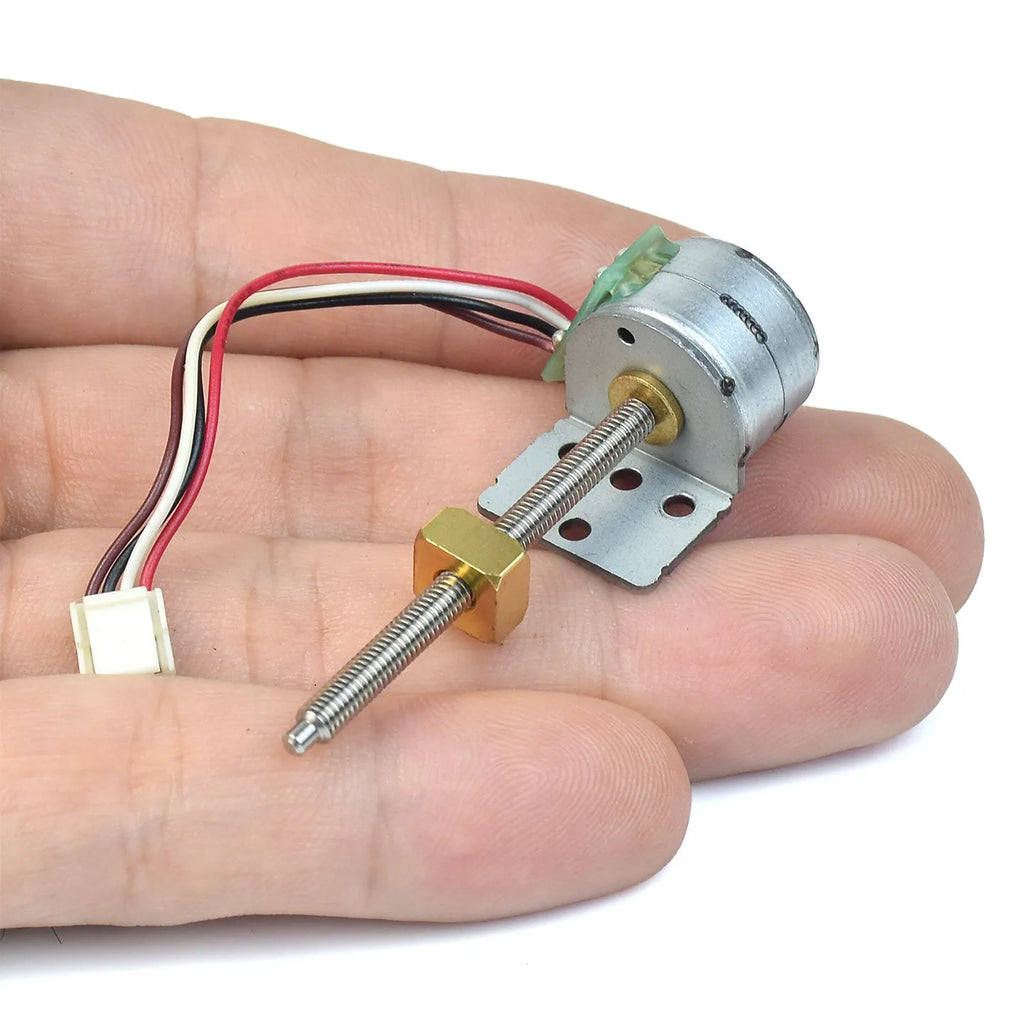

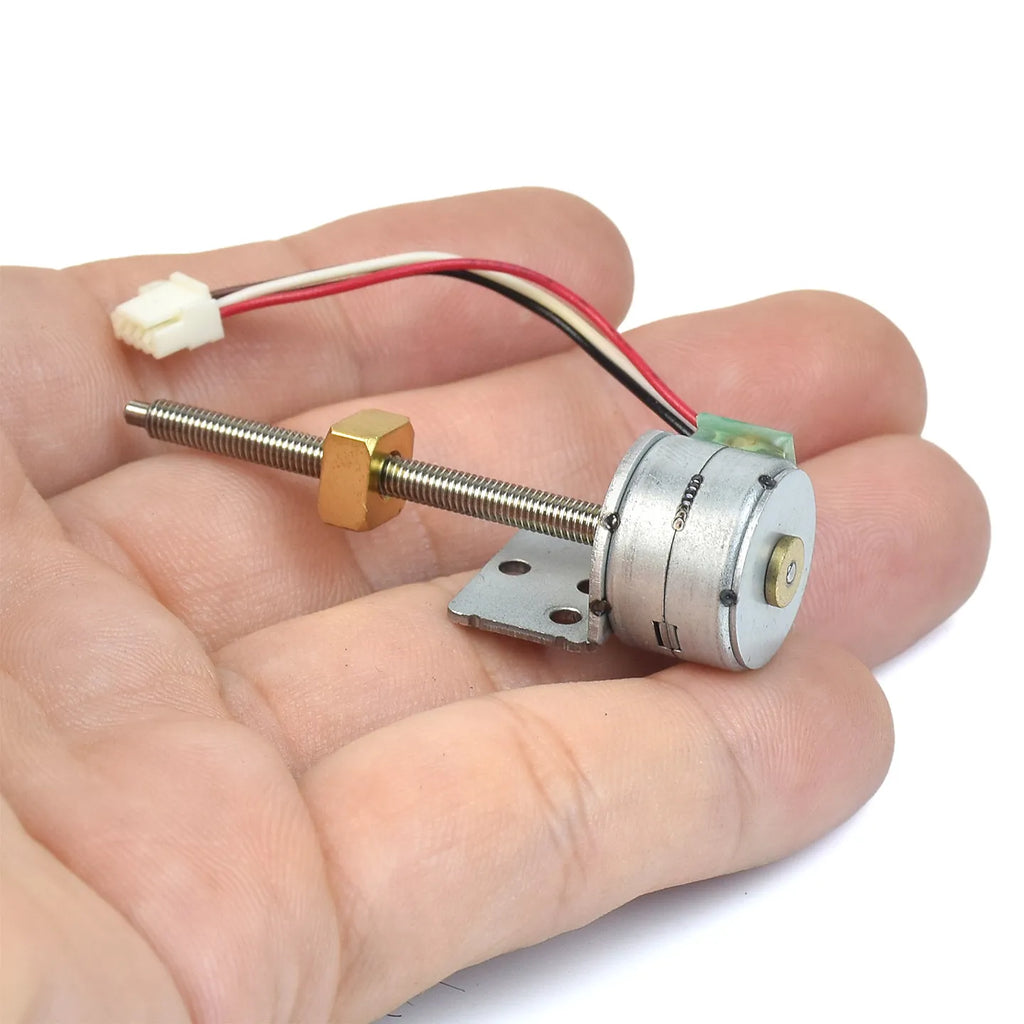

DC 5V/6V Micro 15mm Linear Actuator Stepper Motor with Copper Nut & Driver Board
Achieve ultra-precise linear motion with this compact DC 5V/6V Micro 15mm 2-Phase 4-Wire Stepper Motor. Engineered for applications demanding fine positional accuracy, this miniature linear actuator converts rotary motion into smooth, repeatable linear displacement — ideal for robotics, camera sliders, lab automation, 3D printers, and DIY electronics projects.
Key Specifications
- Rated Voltage: 6V (compatible with 5V systems)

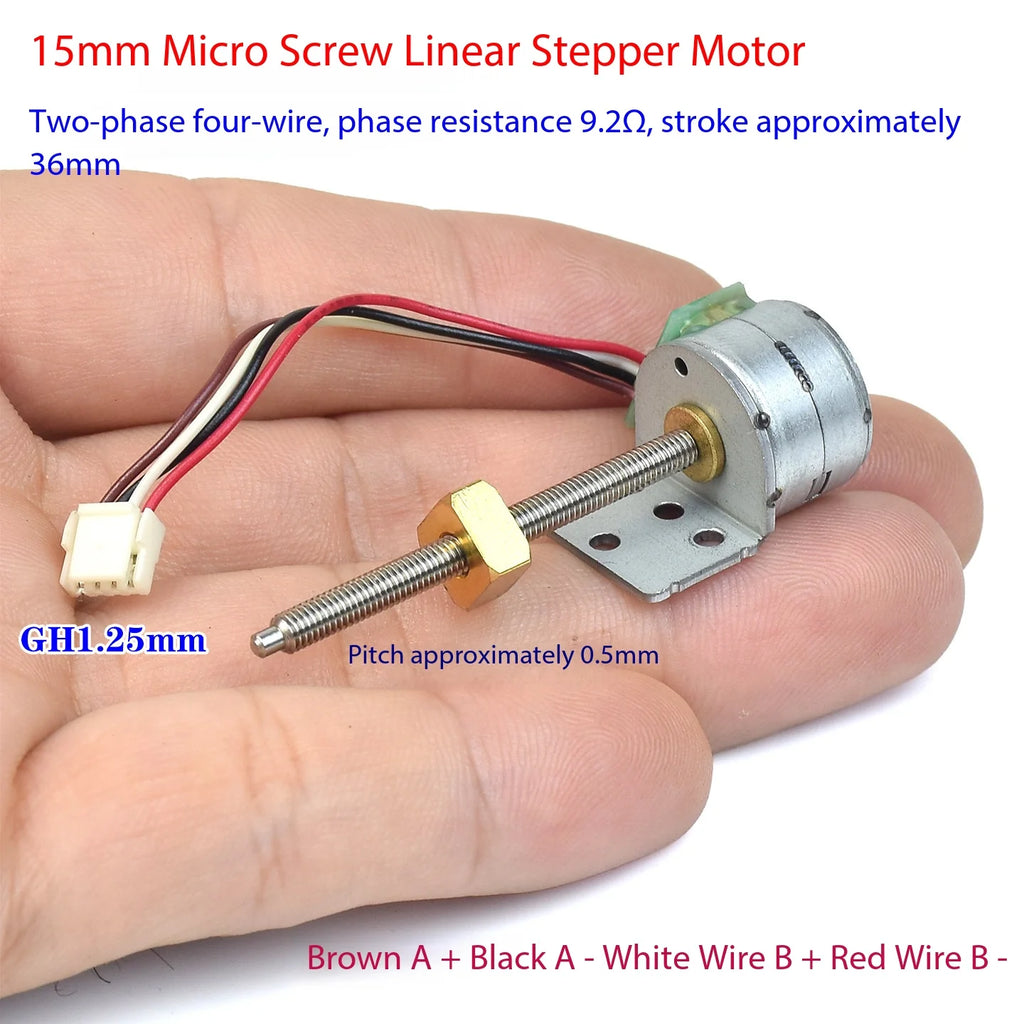

- Motor Type: 2-Phase, 4-Wire (Brown: A+, Black: A−, White: B+, Red: B−)

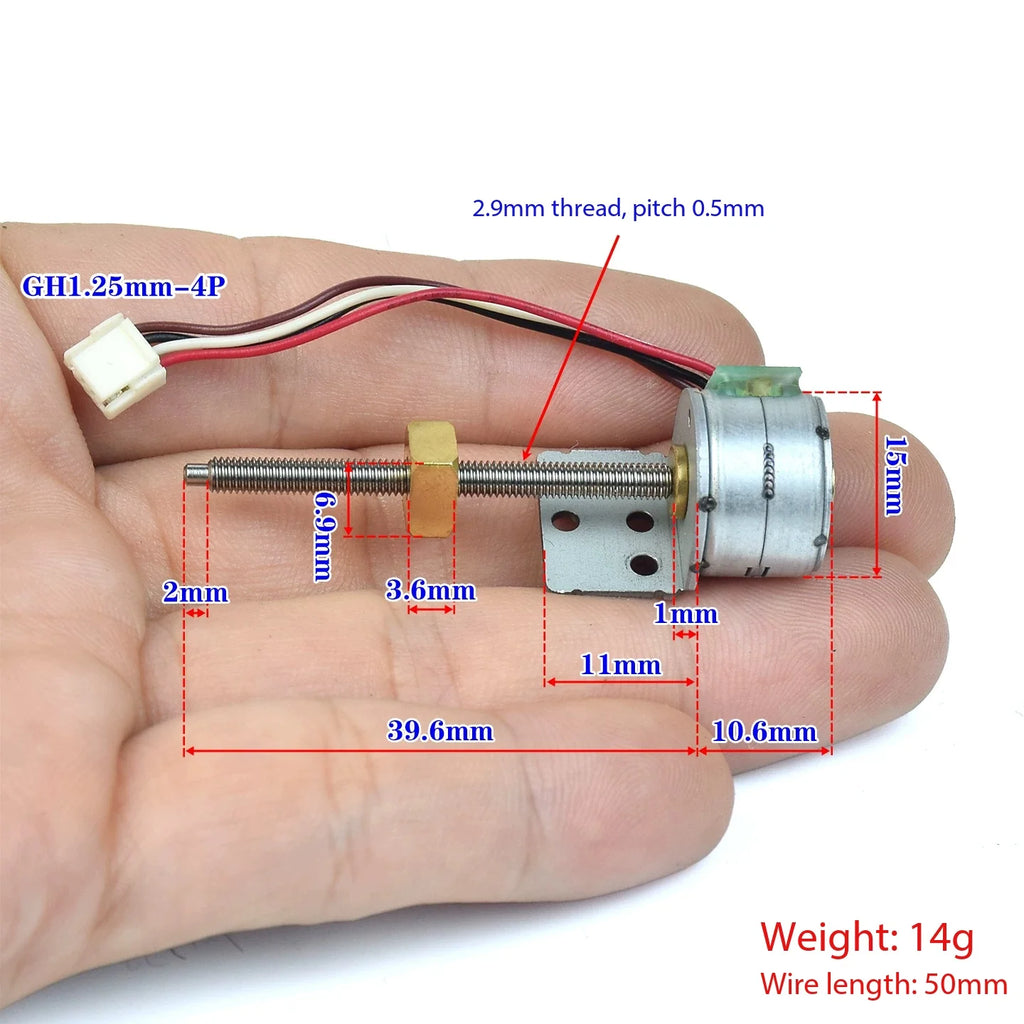

- Motor Diameter: 15mm
- Screw Shaft Threaded Length: ~36mm
- Copper Nut Dimensions: 6.94 × 6.94mm (square)
- Phase Resistance: 92 Ohms
- Drive Current: ~0.5A (6V short-circuit current: 0.62A)
- Wire Length: ~50mm
- Weight: 14 grams
- Power Supply: DC (Low voltage: Below 75Vdc / 50Vac)
- Battery Included: No | Wireless: No
Precision Linear Motion Performance
- 1 pulse = ~0.025mm of nut travel
- 1 full shaft rotation (360°) = ~0.5mm of nut travel
- 1200 pulses = ~30mm of nut travel
The copper nut is fixed against rotation so that as the threaded screw shaft spins, the nut translates linearly along the shaft — converting rotational stepper motion into precise push/pull linear actuation.
What's Included
- 1× 15mm Micro Linear Stepper Motor with Screw Shaft
- 1× Square Copper Slider Nut (6.94 × 6.94mm)
- 1× Compatible Nut Driver / Control Board
Ideal Applications
- Robotics & automation systems
- 3D printer Z-axis or fine-feed mechanisms
- Miniature CNC and lab positioning stages
- Camera focus or slider control
- DIY electronics and maker projects
Made in Mainland China.
Related Products You May Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage does this linear stepper motor operate at?
A: This micro stepper motor is rated at 6V DC and is also compatible with 5V DC systems. The recommended drive current is approximately 0.5A for smooth and reliable linear actuation.
Q: How much linear movement does each pulse produce?
A: Each single pulse moves the copper nut approximately 0.025mm, giving you very fine positional control. A full 360° shaft rotation results in ~0.5mm of linear travel, and 1200 pulses produce approximately 30mm of total displacement.
Q: How does the linear motion work on this stepper motor?
A: The square copper nut is constrained so it cannot rotate with the screw shaft. When the motor spins the threaded shaft, the nut is forced to travel linearly along the shaft's length, converting rotary stepper motion into precise push or pull linear actuation — perfect for positioning stages and automation builds.
Q: Is a driver board included with this stepper motor?
A: Yes, a compatible nut driver/control board is included in the package, making it straightforward to integrate this linear actuator into your project without sourcing separate driver electronics.
