Industrial DC Brushed Motor Speed Controller – 10–60V, 6A, 15KHz PWM
Take precise command of your DC brushed motors with this compact, high-performance speed controller. Featuring a wide 10V–60V input range, a continuous 6A output, and a 15KHz PWM signal, this unit delivers smooth, accurate speed regulation along with easy forward/stop/reverse switching — making it an ideal solution for packaging machinery, conveyor belts, printing presses, and other industrial automation applications.
Key Features
- Wide Voltage Range: Accepts 10V–60V DC input, suitable for a broad range of brushed motor setups including 12V, 24V, and 48V systems.
- 6A Continuous Output: Built to handle continuous 6A workloads with integrated overload protection for reliable, long-term operation.
- 15KHz PWM Technology: High-frequency PWM minimizes electromagnetic interference and maintains precise, consistent motor speed across demanding industrial environments.

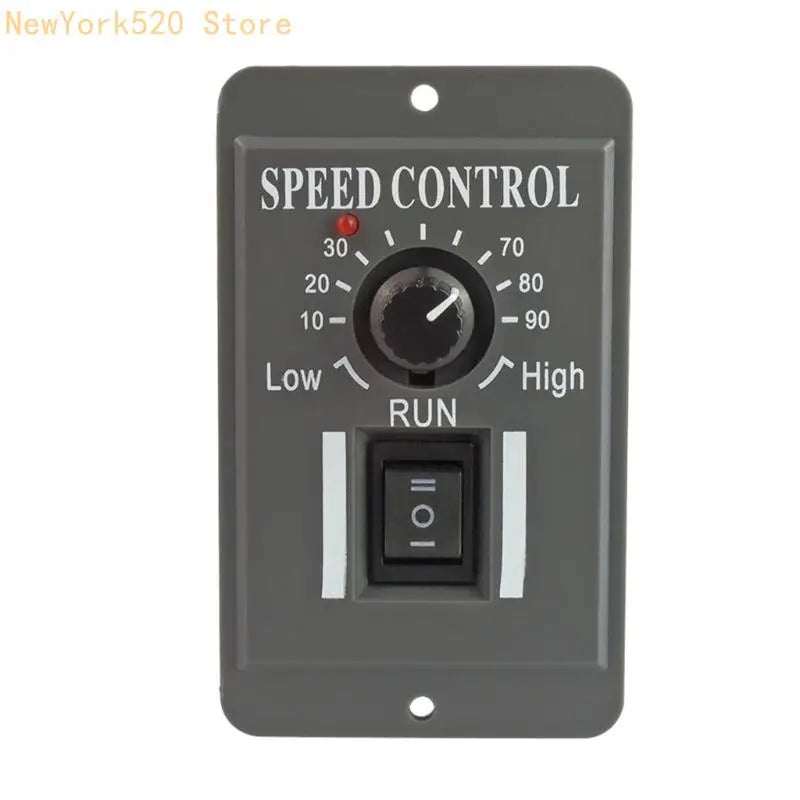

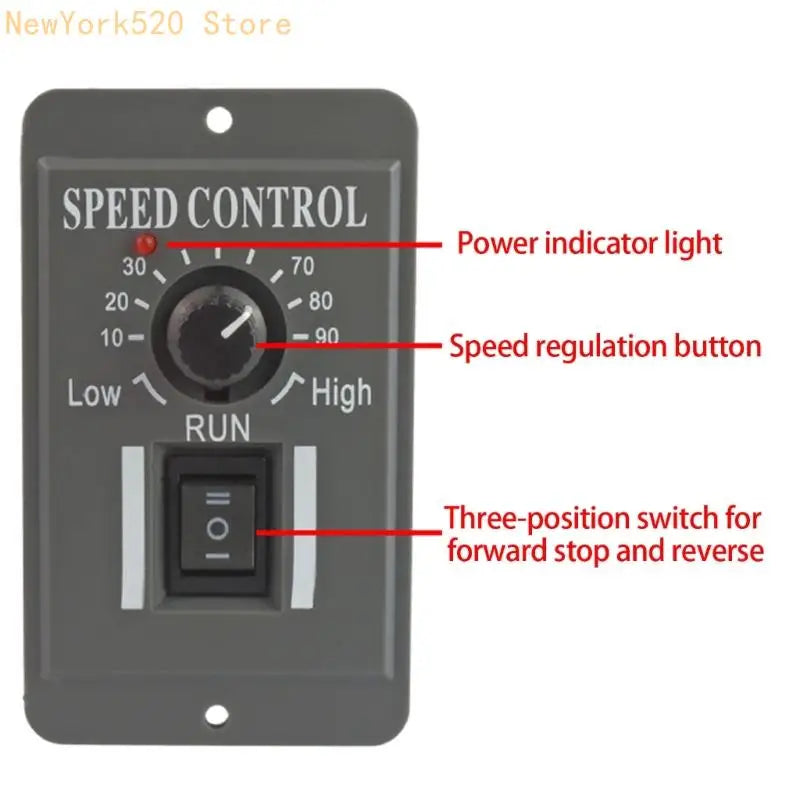

- Forward / Stop / Reverse Control: Three-position switch provides instant directional control at your fingertips — no extra components needed.
- Smooth Potentiometer Adjustment: Dial in exact speed settings easily and intuitively with the onboard potentiometer.

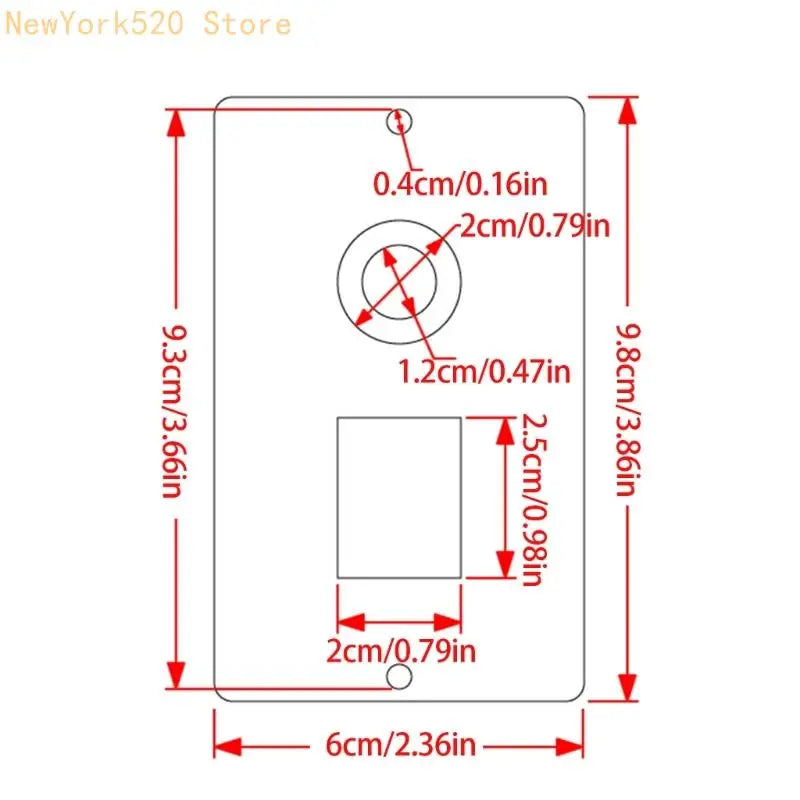

- Compact ABS Housing: Rugged ABS enclosure measures just 60 × 91 × 98mm, fitting into tight installation spaces without compromise.

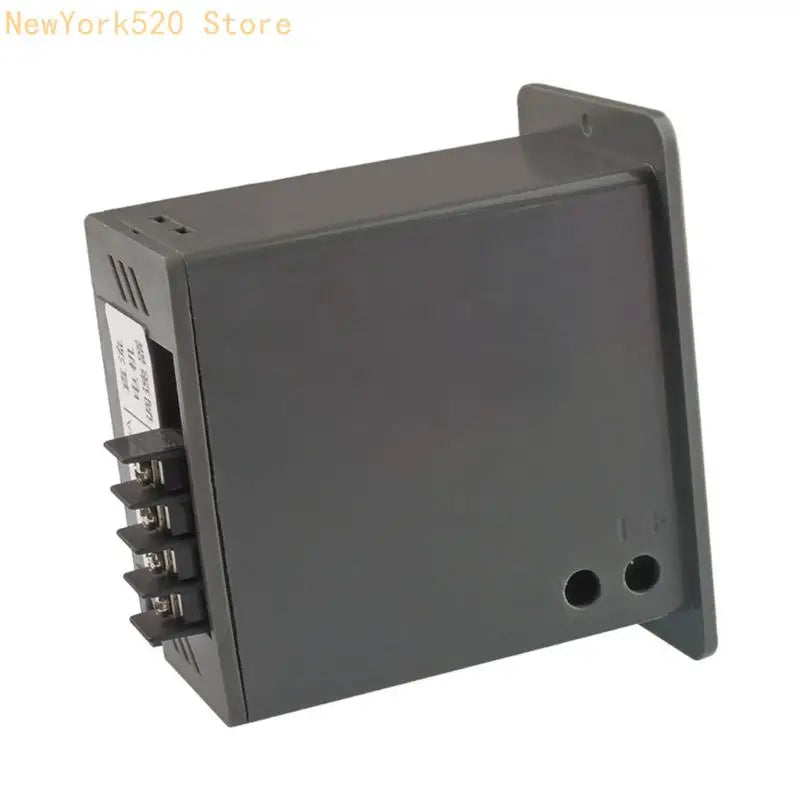

- Secure Terminal Wiring: Screw-terminal connections ensure a solid, vibration-resistant electrical connection for demanding machinery environments.
Specifications
| Input Voltage Range | 10V – 60V DC |
| Output Current | 6A (continuous) |
| PWM Frequency | 15KHz |
| Motor Type | DC Brushed Motor |
| Housing Material | ABS |
| Dimensions | 60mm (W) × 91mm (D) × 98mm (H) / approx. 2.4" × 3.6" × 4" |
| Direction Control | Forward / Stop / Reverse Switch |
| EU LVD Classification | Low Voltage (below 50V AC or 75V DC) |
| Battery Included | No |
| Wireless | No |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × DC Brushed Motor Speed Controller
Ideal Applications
This controller is well-suited for mechanical engineers and equipment operators working with:
- Automated packaging systems
- Conveyor belt drives
- Printing press machinery
- Industrial automation and production lines
- DIY robotics and custom motor drive projects
Related Tools & Hardware
Looking for more workshop and mechanical tools? Check out these popular picks:
- 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16 in 1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
Important Notes
- Please allow 1–2cm variance due to manual measurement.
- Colors may vary slightly due to differences in monitor calibration.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of motors is this DC motor speed controller compatible with?
A: This controller is designed specifically for DC brushed motors. It supports a wide input voltage range of 10V–60V DC, making it compatible with common 12V, 24V, 36V, and 48V brushed motor configurations used in industrial machinery, conveyor systems, and automation equipment.
Q: Does this motor speed controller support both forward and reverse operation?
A: Yes. The controller features a three-position switch for Forward, Stop, and Reverse operation, allowing you to change the motor's direction of rotation directly from the unit without additional wiring changes or external components.
Q: What is the maximum continuous output current this controller can handle?
A: The controller supports a continuous output of 6A. It also includes overload protection to safeguard both the controller and your connected motor during extended operation at full load.
Q: Why does this controller use a 15KHz PWM frequency?
A: The 15KHz PWM (Pulse Width Modulation) frequency is chosen to minimize electromagnetic interference (EMI) while providing smooth, stable speed control. This is especially important in industrial environments where electrical noise can affect nearby sensitive equipment.
