DC5V Type-C Mist Maker Driver Board & Atomizer Sheet 1/5PCS
DC5V Type-C Mist Maker Driver Board & Atomizer Sheet 1/5PCS

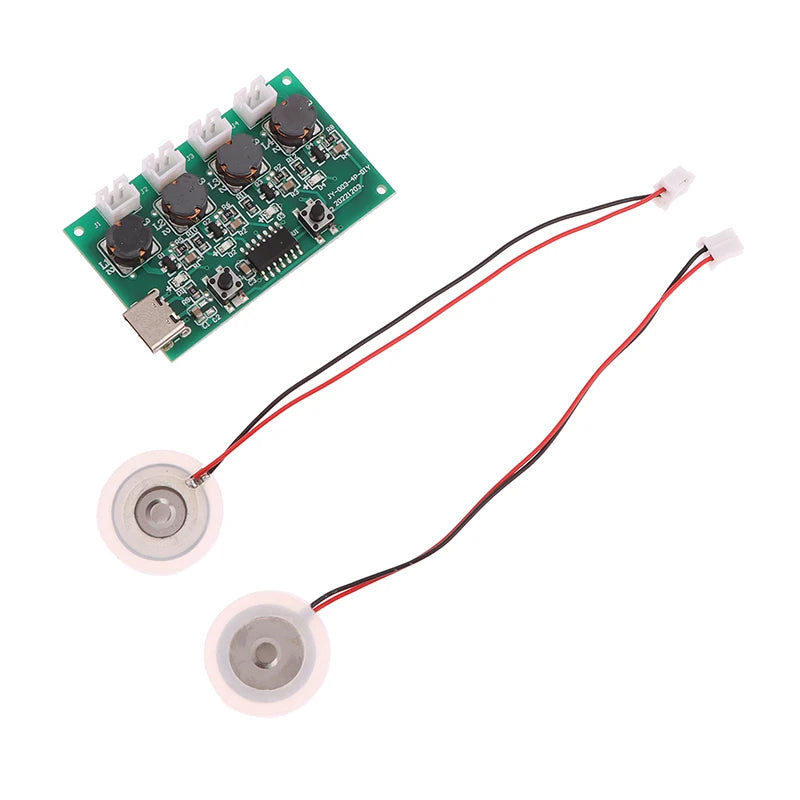

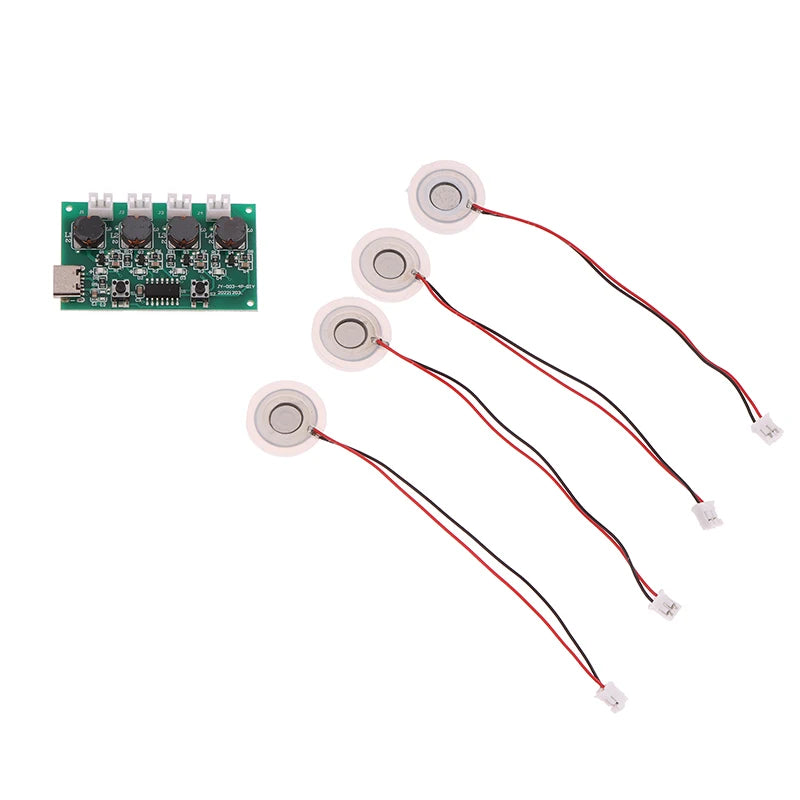

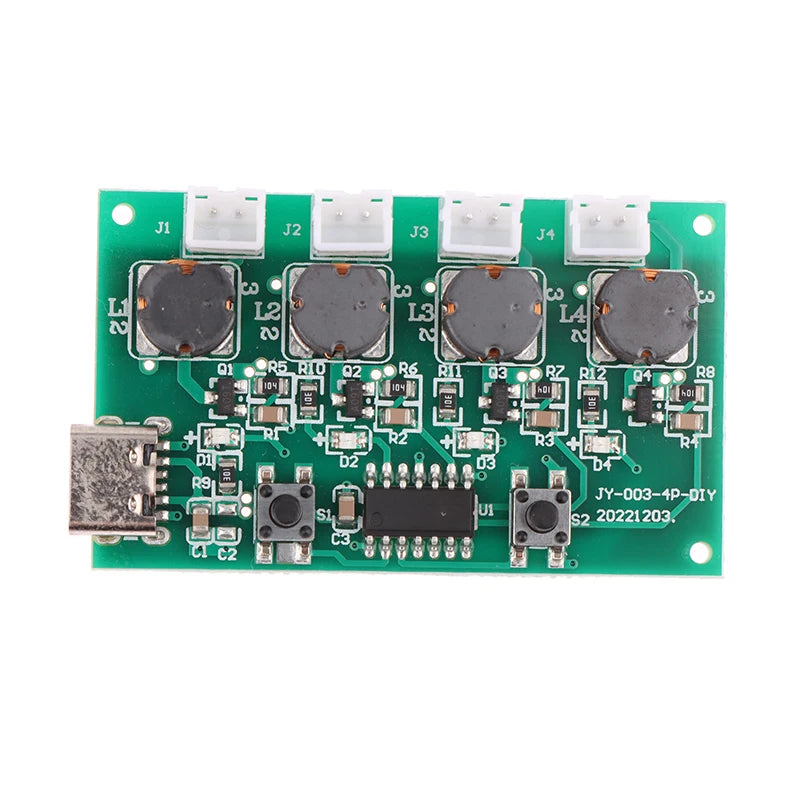

DC5V Type-C Mist Maker Driver Circuit Board with 4-Head Fogger Atomizer Sheet
Build your own compact humidifier or fogger with this high-performance DC5V Mist Maker Driver Circuit Board and Atomization Sheet. Featuring four spray nozzles, ultrasonic oscillation technology, and USB/Type-C power input, this module is a versatile solution for DIY humidifier builds, plant moisture maintenance, home office air quality improvement, and creative maker projects. Available in 1-piece or 5-piece packs. Made in Mainland China.
Key Features
- 4-Head Atomization Design: Four spray nozzles deliver wide-area mist coverage, keeping your space within ideal humidity levels consistently.
- Ultrasonic Microporous Sheet: Produces ultra-fine mist particles for high atomization output (25–660 ml/h) with minimal surface wetness — no wet desktop effect.
- USB / Type-C Powered: Rated at DC 5V, 300mA, 2.5–3W — plug into any standard USB or Type-C power source for easy, flexible use.
- Multiple Spray Modes: Choose from four-spray, single-spray, dynamic spray, or multi-spray modes to match your exact humidity needs.
- Near-Silent Operation: Oscillates at 108KHz ±2KHz for whisper-quiet performance that won't disturb work, rest, or sleep.
- Automatic Low-Water Cut-Off: Built-in water level monitoring automatically cuts power when levels drop too low, preventing overheating and ensuring safe, worry-free operation.
- Compact & Easy to Install: PCB measures just 50 × 2.5 × 1.2mm; the atomizer sheet silicone sleeve has a 20mm outer diameter — small, lightweight, and DIY-friendly.
- Wide Application Range: Ideal for DIY homemade humidifiers, desktop mini foggers, plant moisturizing setups, terrariums, and product display misting effects.
Technical Specifications
| Rated Voltage | DC 5V |
| Rated Current | 300mA |
| Power | 2.5–3W |
| Atomization Frequency | 108KHz ±2KHz |
| Power Mode | USB / Type-C |

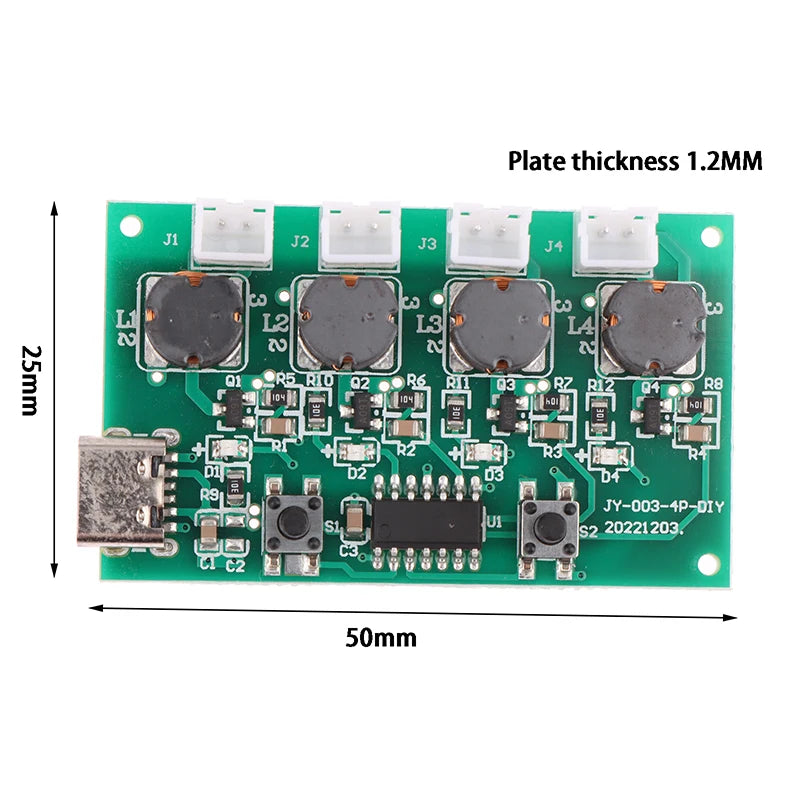

| PCB Size | 50 × 2.5 × 1.2mm |
| Atomizer Sheet Driving Voltage | DC 3–12V |
| Atomizer Sheet Rated Power | 1.5W (range: 0.6–3W) |
| Atomization Output | 25–660 ml/h |
| Resonant Frequency | 103–113KHz ±5 |
| Silicone Sleeve Outer Diameter | 20mm |
| Wire Terminal | 2.0 |
| Line Length | 100–300mm |
| Packaging Options | 1 PCS or 5 PCS |
Package Includes
- 1× or 5× Mist Maker Driver Circuit Board + Atomizer Sheet Module (as selected)
Related Products You May Like
- Adjustable Faucet Hanging Sink Sponge Holder Drain Basket Kitchen Storage Organizer
- 100ml Glass Oil Spray Bottle Anti-Leak Press-Type Mister
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What power source does this mist maker driver board require?
A: The mist maker driver circuit board runs on DC 5V via USB or Type-C connection, drawing 300mA at 2.5–3W. Any standard USB power adapter, power bank, or Type-C charger is compatible, making it easy to integrate into DIY humidifier or fogger builds.
Q: Is this module safe to leave running unattended?
A: Yes — the module features built-in water level monitoring with automatic power cut-off. When the water level drops too low, the circuit immediately disconnects power to prevent overheating, making it suitable for extended or overnight use in humidifier DIY projects.
Q: What are the best use cases for this atomizer sheet and driver board set?
A: This kit is ideal for a wide range of applications including DIY desktop mini humidifiers, indoor plant moisturizing systems, terrarium fog effects, decorative misting displays, and any maker or electronics project requiring compact, low-power ultrasonic atomization at DC 5V.
