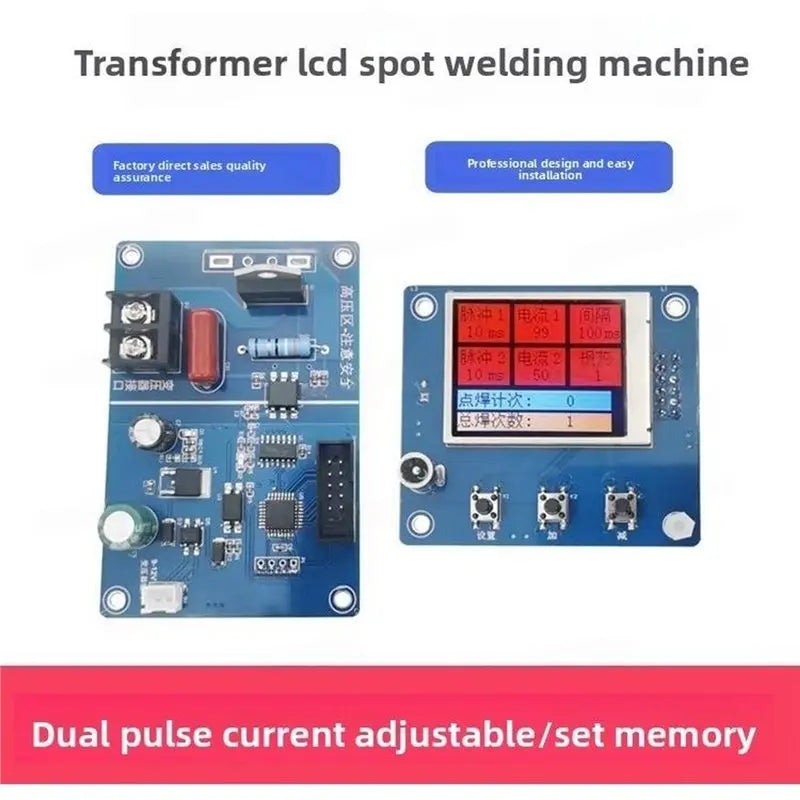

VIBE DIY Spot Welder Control Board – Adjustable Current, Dual Pulse & LCD Display
Take full command of your home welding projects with the VIBE DIY Spot Welder Control Board. Engineered for makers and hobbyists who want professional-level control from a microwave transformer-based spot welder, this board brings precision timing, dual pulse functionality, and clear real-time feedback to your bench — all in one compact, easy-to-wire package.
Key Features
- Adjustable Current & Timer: Fine-tune weld intensity and duration for consistent, repeatable results on thin metal sheets, battery tabs, and more.
- Dual Pulse Function: Pre-pulse cleans the workpiece surface before the main weld pulse, improving joint quality and reducing spatter.

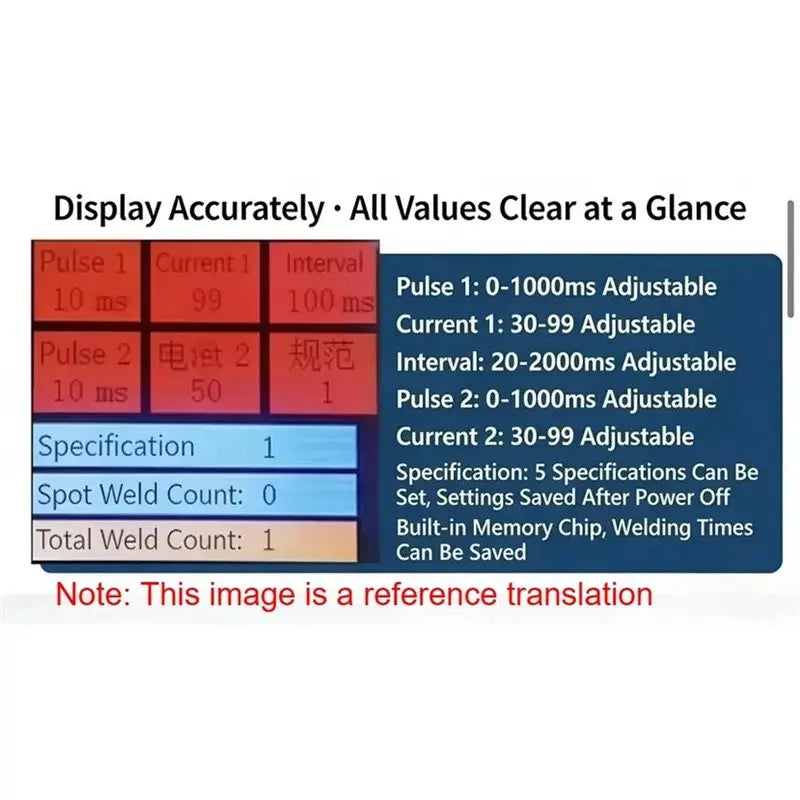

- LCD Display: Real-time readout of current and timing parameters so you always know exactly what settings are active.

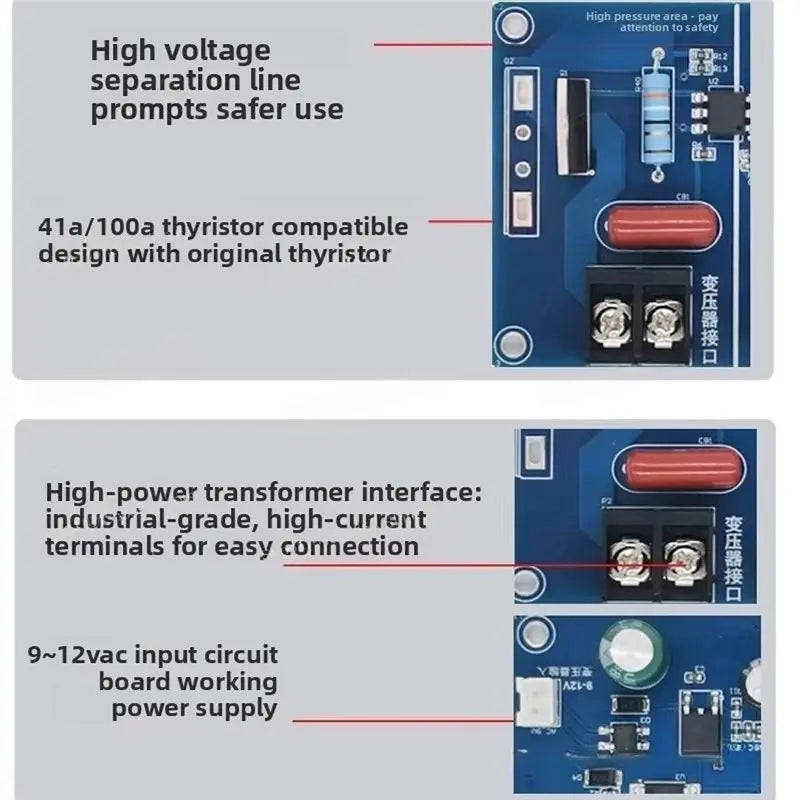

- Wide Current Range: Available in 41A and 100A specifications to suit a variety of transformer builds and material thicknesses.
- DIY-Friendly Design: Designed specifically for microwave oven transformer (MOT) spot welder kits — a popular and cost-effective DIY welding solution.
- Durable Construction: Plastic and metal housing built to withstand workshop conditions.
Specifications
| Material | Plastic + Metal |
| Specification | 41A / 100A |
| Display | LCD |
| Pulse Mode | Dual Pulse |
| Compatible With | Microwave Transformer Spot Welder Kits |
| Country of Origin | Made in Mainland China |

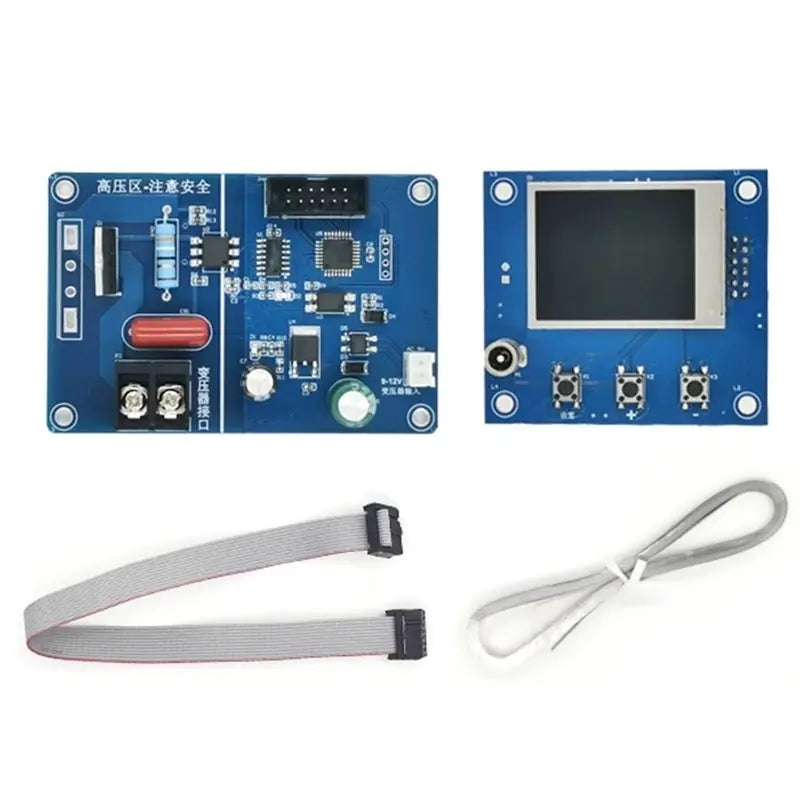

Package Contents
- 1 × Control Board
- 1 × Display Board
- 2 × Cables
Note: Only the items listed above are included. Product color may vary slightly due to lighting and screen differences. Measurement tolerance is ±1–3 cm.
Related Tools You May Like
- 10 in 1 Multi Functional Bone Wrench – Portable Repair Hand Tool
- 16 in 1 Multi-function Bike Repair Tool – Folding Hex Wrench Set
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is this DIY spot welder control board compatible with?
A: This control board is specifically designed for microwave oven transformer (MOT) based DIY spot welder kits. It works with standard transformer spot welding machine setups commonly built by hobbyists and makers for welding battery tabs and thin metal sheets.
Q: What is the difference between the 41A and 100A specifications?
A: The current rating relates to the control capacity of the board. The 100A version supports heavier-duty transformer setups and thicker materials, while the 41A version is well-suited for lighter MOT builds and thinner metals such as nickel battery tabs. Choose based on your transformer's output capability.
Q: What does the dual pulse function do?
A: The dual pulse function sends a short pre-pulse before the main weld pulse. This pre-pulse helps clean and prepare the metal surface, reducing oxidation and contamination at the weld point, which results in a stronger and cleaner weld joint with less spatter.
Q: Is the LCD display easy to read and configure?
A: Yes. The included LCD display board shows your current and timer settings in real time, making it straightforward to adjust parameters and monitor your weld configuration at a glance — even for first-time builders.
