Double-Sided Thermal Conductive Adhesive Tape – LED, PCB & CPU Heatsink Bonding
Keep your electronics running cool and secure with this high-performance double-sided thermal conductive adhesive tape. Engineered for reliable heat transfer between components and heatsinks, this self-adhesive tape is the go-to solution for LED lighting assemblies, PCB boards, CPUs, microprocessors, and packaged chips — no screws or mechanical fasteners required.
Key Features
- High & Stable Thermal Conductivity: Efficiently transfers heat between heat-generating components and heatsinks, helping to maintain optimal operating temperatures.
- Long Service Life: Built to last a minimum of 5 years under normal operating temperatures of 80–120°C — outlasting standard thermal double-sided tapes.
- Versatile Die-Cutting Compatible: Can be cut to any shape or size and pre-applied to surfaces for future use, making production and assembly faster and more efficient.
- Strong Acrylic Adhesive Bond: Bonds heating components and radiators together firmly as a single unit for a consistent, effective cooling solution.
- Replaces Screws & Fasteners: Simplifies installation by eliminating the need for mechanical fixings — clean, fast, and reliable.
Specifications
- Material: Glass Cloth
- Adhesive Type: Acrylic Adhesive

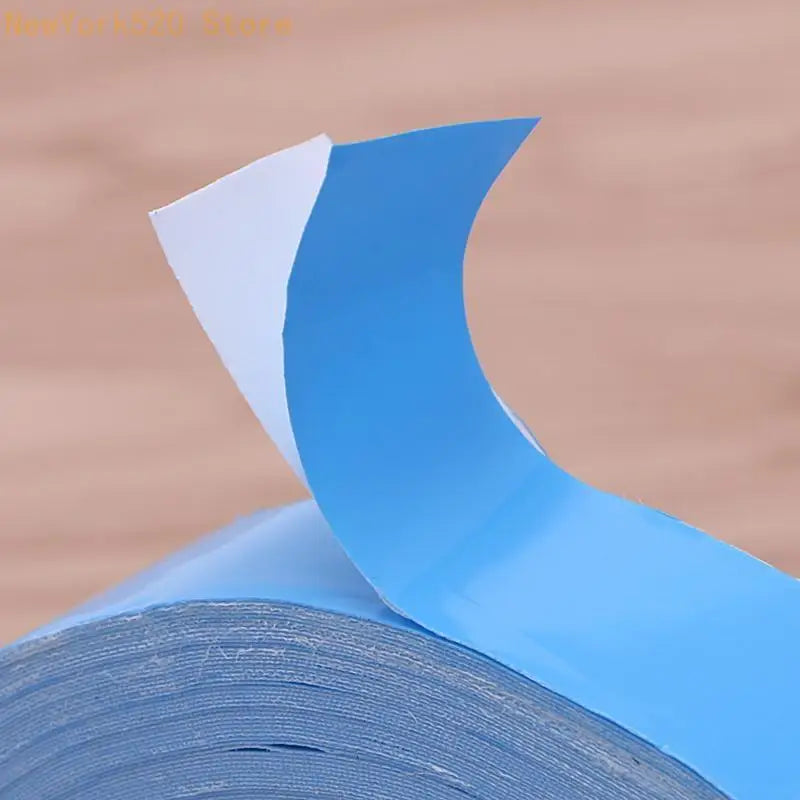

- Color: White Tape with Blue Liner
- Working Temperature: 80–120°C
- Thickness: 0.2mm
-

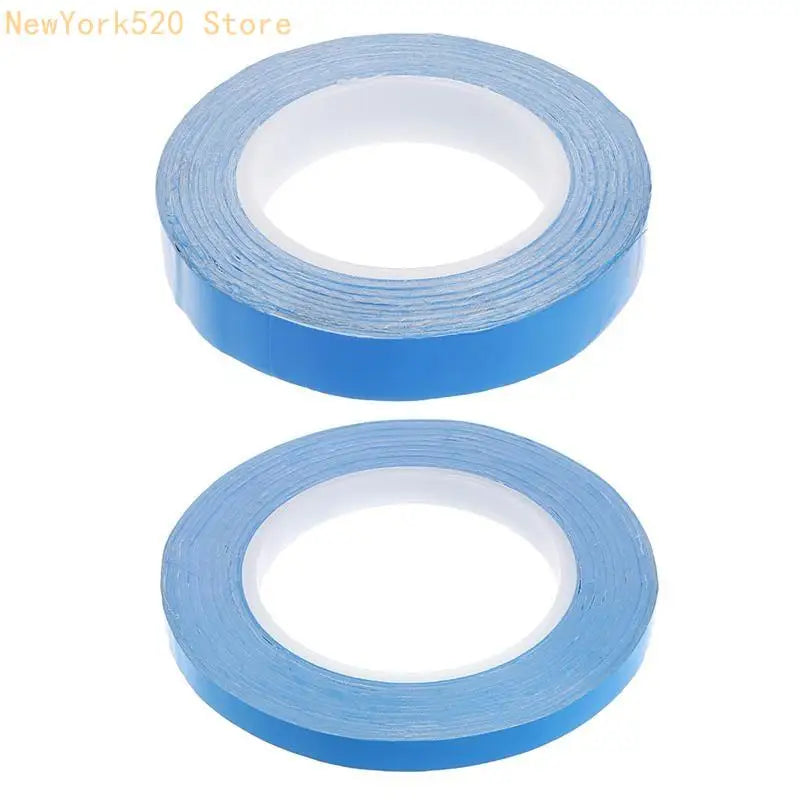

Available Sizes:

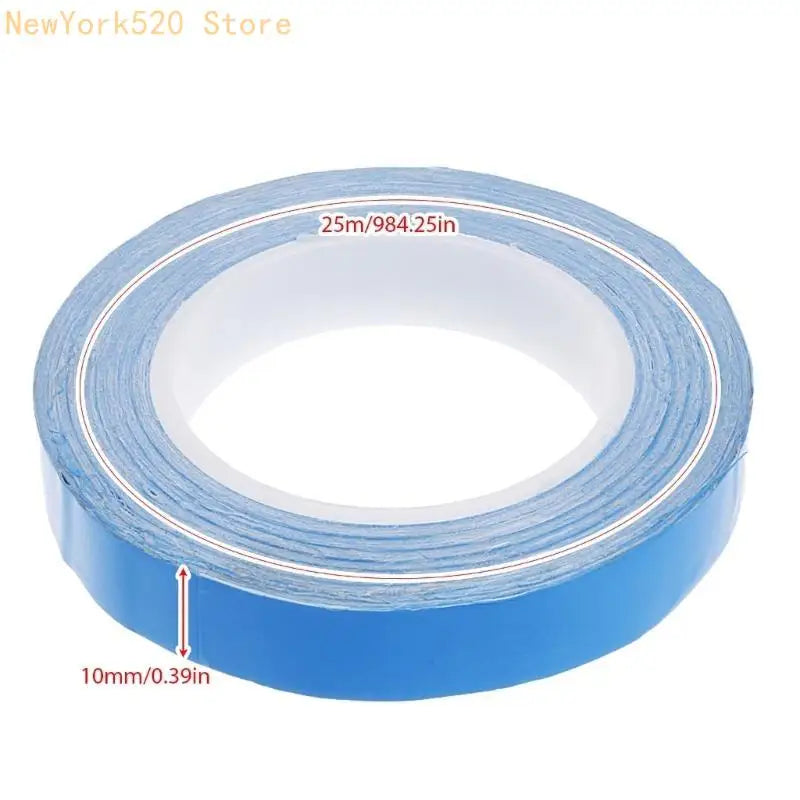

- 10mm (Width) × 25m (Length) × 0.2mm (Thickness)
- 20mm (Width) × 25m (Length) × 0.2mm (Thickness)
- Quantity: 1 Roll
- Model Number: N84C1A50342
Applications
- CPU and LED heatsink attachment
- Microprocessor and power semiconductor bonding
- Fixing heatsinks to power supply circuit boards
- Fixing heatsinks to vehicle control circuit boards
- Securing heatsinks onto packaged chips
- Widely used in the LED lighting industry
Package Contents
- 1 × Roll of Double-Sided Thermal Conductive Adhesive Tape
Please allow 1–3mm variance due to manual measurement. Colors may vary slightly between monitors and actual product.
Made in Mainland China.
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What surfaces is this double-sided thermal conductive tape compatible with?
A: This thermal conductive adhesive tape is compatible with a wide range of surfaces including metal heatsinks, PCB boards, CPU housings, LED fixtures, power supply boards, and packaged chip surfaces. Its acrylic adhesive ensures a strong bond on most clean, dry surfaces used in electronics assembly.
Q: Can I cut this tape to custom shapes and sizes?
A: Yes! The tape supports die-cutting, so it can be trimmed to any shape or size required for your specific application. It can also be pre-applied to surfaces in advance and used when needed, which is ideal for batch production and assembly workflows.
Q: What is the maximum working temperature of this tape?
A: This thermal tape is rated for working temperatures between 80°C and 120°C, making it suitable for most standard electronics and LED applications. Under these normal operating conditions, it is designed to perform reliably for a minimum of 5 years.
