DR-30-24 30W DIN Rail Power Supply 24V AC to DC Converter

DR-30-24 30W DIN Rail Switching Power Supply – 100–240V AC to 24V DC

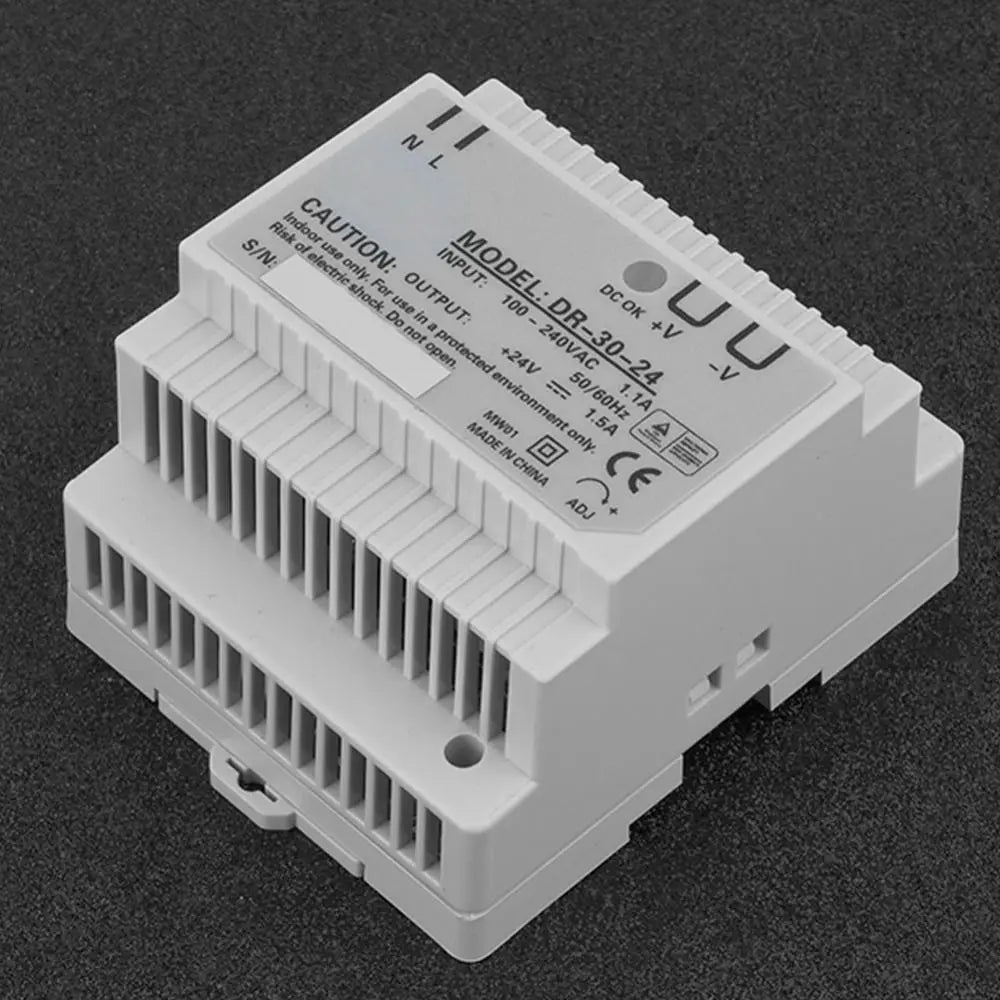

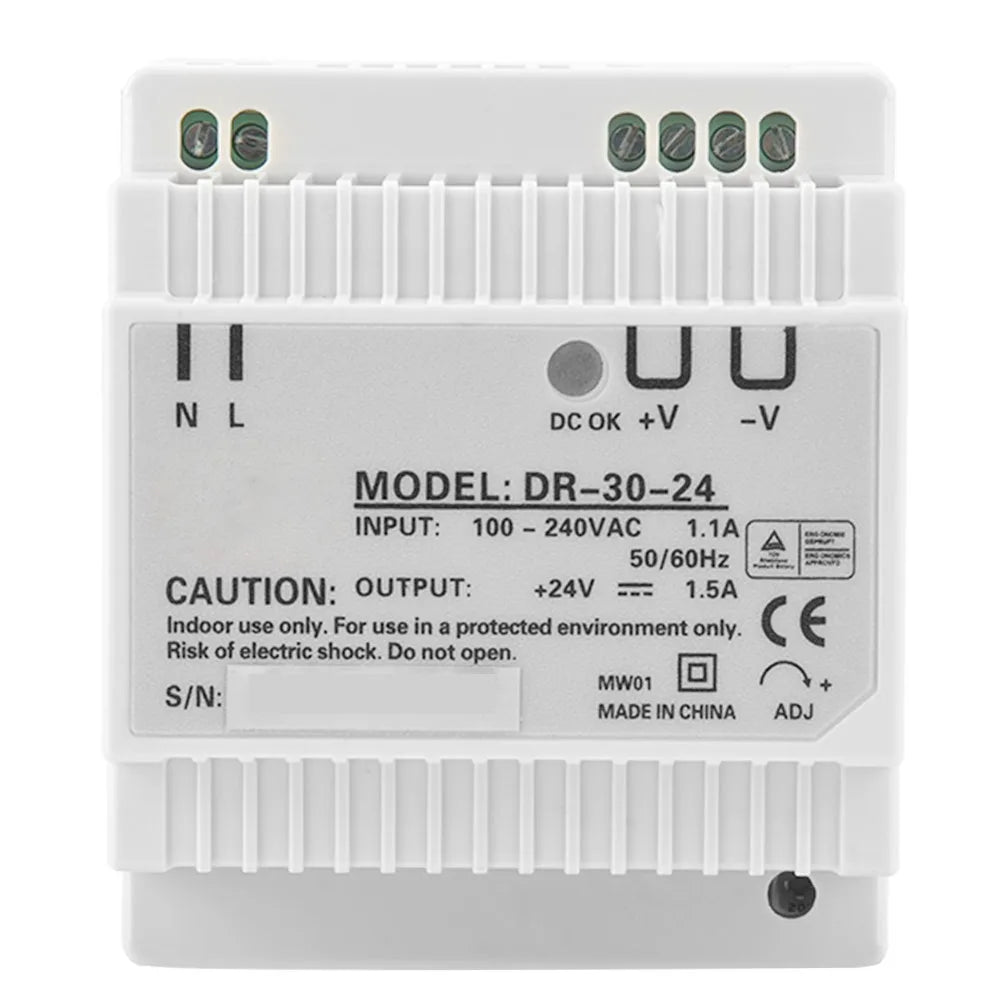

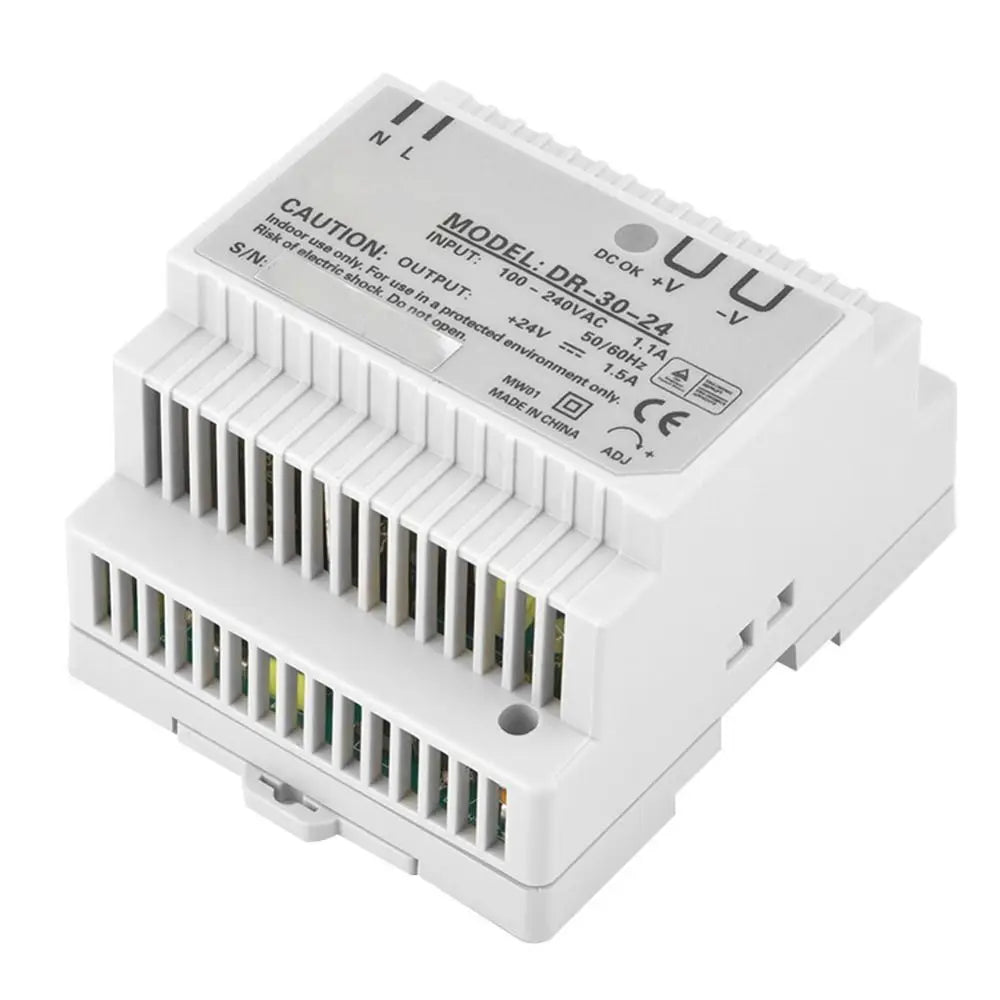

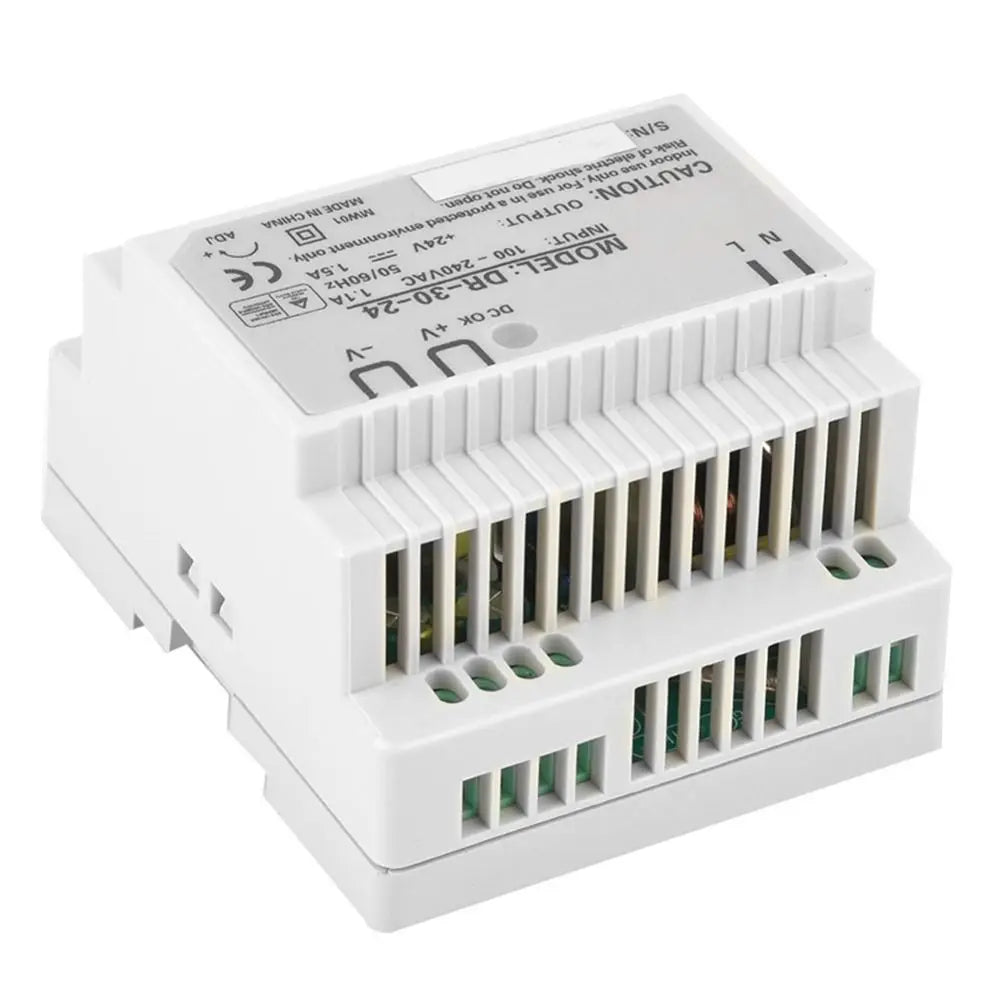

The DR-30-24 is a compact, industrial-grade DIN rail power supply delivering a stable 24V DC output at 1.5A (30W) from a wide-range 100–240V AC input. Built for professional electrical panels, automation cabinets, and control systems, it combines robust construction with smart protection features for dependable, long-term operation.

Made in China.

Key Features

• Wide Input Range: Accepts 100–240V AC input, making it compatible with global mains voltages and versatile across installations worldwide.
• Stable 24V DC Output: Delivers 24V at 1.5A (30W) with ±2% voltage accuracy and ±1% load regulation for consistent, reliable power.
• Quick DIN Rail Mounting: Snap-on DIN rail design enables fast, tool-free installation on standard rails — ideal for panel builders and system integrators.

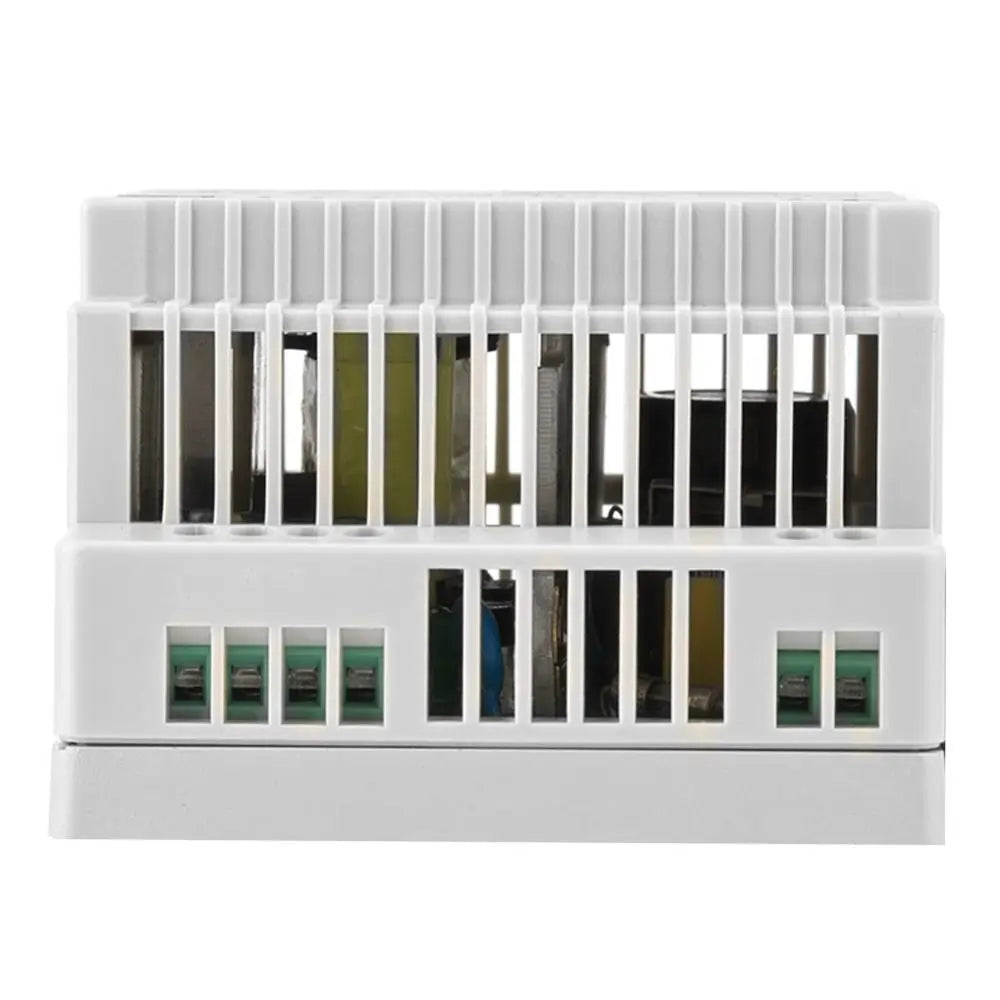

• Durable Ventilated Enclosure: Thickened housing with a vented hollow design ensures structural integrity while promoting efficient passive heat dissipation.
• Integrated Protection Suite: Built-in overload (105–150%), overcurrent, and overvoltage protection with automatic recovery after fault clearance keeps your equipment safe.
• PWM Modulation: Pulse Width Modulation technology and push-pull transistor topology deliver high efficiency and low output ripple noise (≤100mVp-p).
• Adjustable Output Voltage: Output voltage is trimmable from 24V to 28V to fine-tune system requirements.
• Broad Operating Range: Functions reliably from −10°C to +60°C at 20–65% RH, suitable for demanding industrial environments.

Technical Specifications

Typical Applications

• LED lighting systems and commercial lighting controls
• Industrial automation and PLC control panels
• Security monitoring and surveillance systems
• Instrumentation and measurement equipment
• Textile machinery and automotive accessories

Package Contents

• 1 × DR-30-24 DIN Rail Power Supply

Related Products You May Like

• 10-in-1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
• 48-Pc MIG Welding Nozzle & Tip Set – MB15 AK15 Torch
• A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What input voltage does the DR-30-24 DIN rail power supply support?

A: The DR-30-24 accepts a wide-range AC input of 100–240V at 50–60 Hz, making it compatible with standard mains voltages used across different countries and regions without requiring manual voltage switching.

Q: What overload and protection features are built into this switching power supply?

A: This DIN rail power supply includes overload protection (activating at 105–150% of rated output power), overcurrent protection, and overvoltage protection. All protections feature automatic recovery — once the fault condition is removed, the unit resumes normal operation without manual reset.

Q: Can the output voltage of the DR-30-24 be adjusted?

A: Yes. While the nominal output is 24V DC, the DR-30-24 includes an output voltage adjustment range of 24V to 28V, allowing fine-tuning to meet specific equipment requirements in your control panel or automation system.

Q: How is the DR-30-24 power supply installed?

A: The DR-30-24 is designed for standard DIN rail mounting, enabling quick snap-on installation inside electrical enclosures or control panels without additional hardware — ideal for industrial control and automation cabinet assembly.
