DSE501K Manual Engine Control Module – Key Start Generator Controller

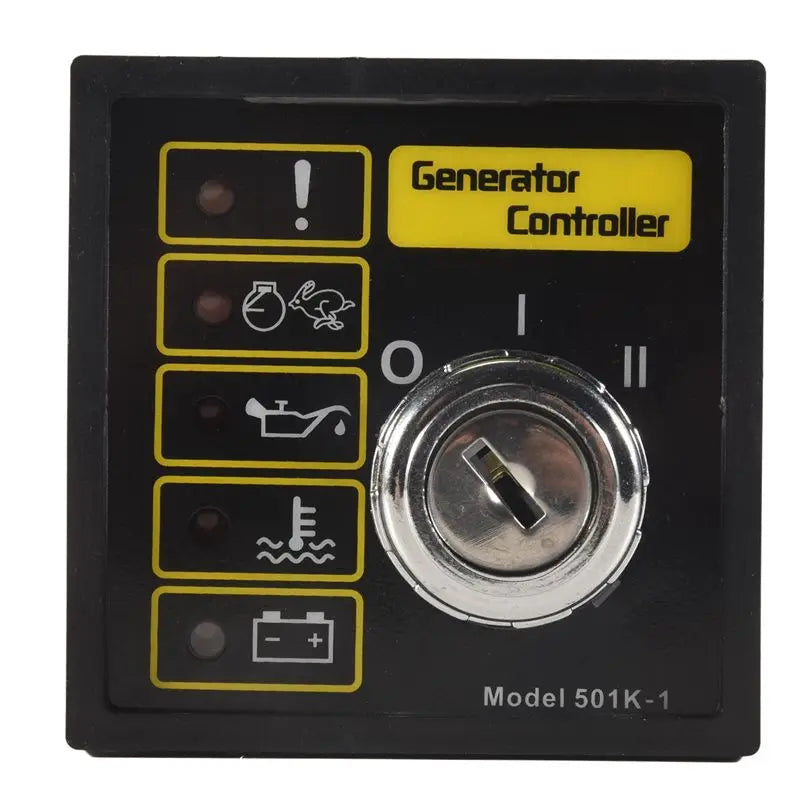

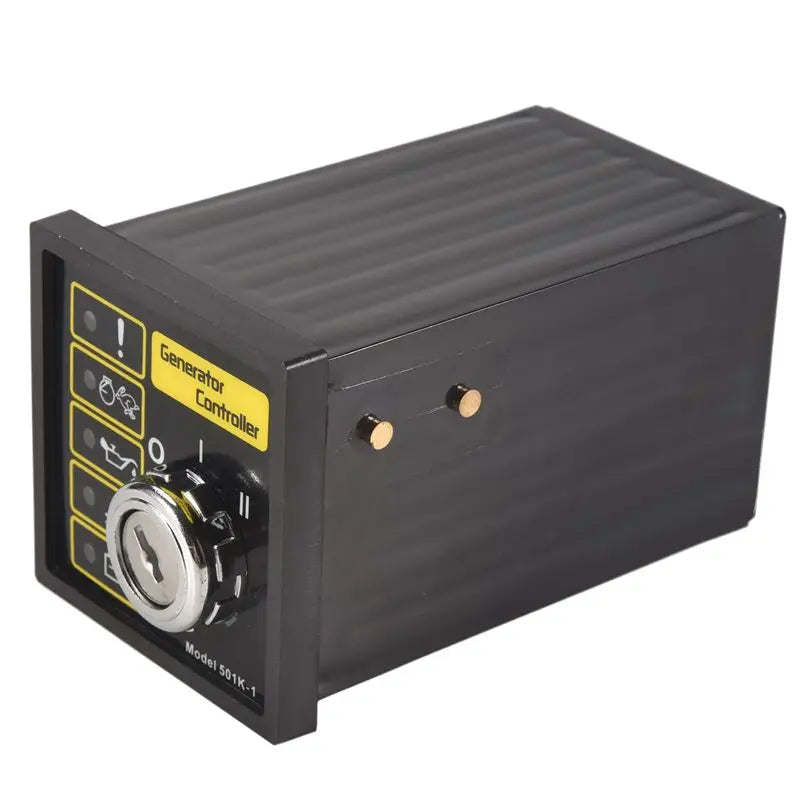

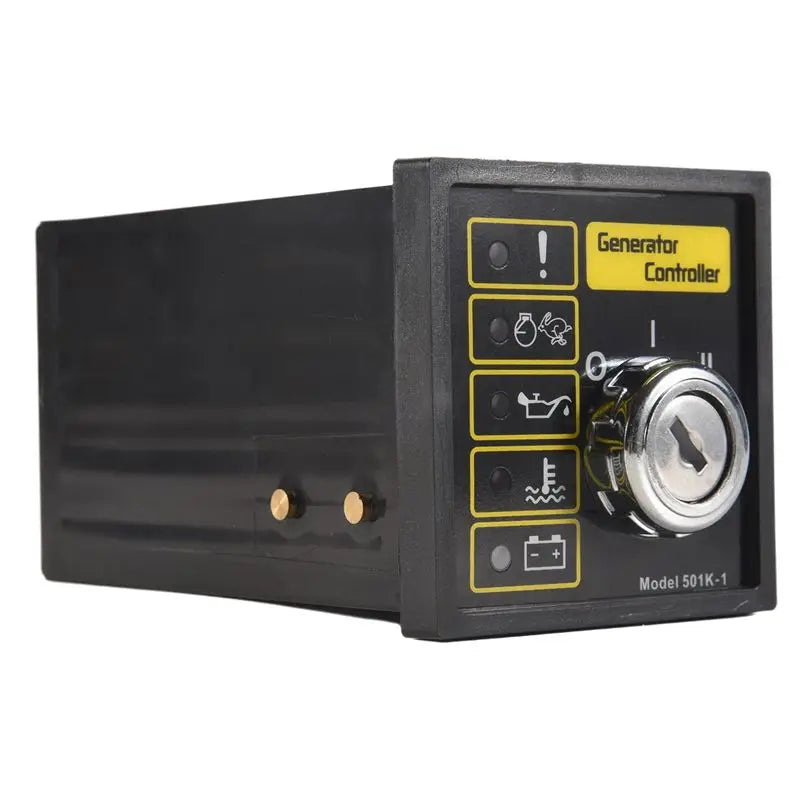

The DSE501K (Model 501K-1) is a robust Manual Engine Control Module designed to give you direct, reliable control over your generator engine via a key switch on the front panel. Whether you're maintaining a standby generator or replacing a worn-out unit, this drop-in replacement module provides seamless start/stop operation, LED fault annunciation, and automatic engine shutdown on fault detection — keeping your equipment protected and your operation running smoothly.
Made in Mainland China.
Key Features
- Manual Key Start & Stop — Intuitive front-panel key switch for direct engine control
- LED Fault Indication — True first-up fault annunciation for rapid diagnostics
- Automatic Shutdown on Fault — Protects your engine by shutting down automatically when a fault is detected
- Wide DC Supply Range — Operates on 9–33V DC for broad generator compatibility
- Durable Construction — Black plastic housing built to withstand demanding environments
- Wide Operating Temperature — Rated from -30°C to +70°C for use in varied climates
Technical Specifications
| DC Supply | 9–33V continuous |
| Alternator Input Range | 15–305V AC RMS |
| Alternator Input Frequency | 50–60Hz at rated engine speed |
| Magnetic Input Range | 0.5V – ±80V |
| Magnetic Input Frequency | 2300Hz – 6000Hz |
| Start Relay Output | 16A DC at supply voltage |
| Run Relay Output | 16A DC at supply voltage |
| Alarm Output | 1A DC at supply voltage |
| Operating Temperature | -30°C to +70°C |
| Colour | Black |
| Material | Plastic |

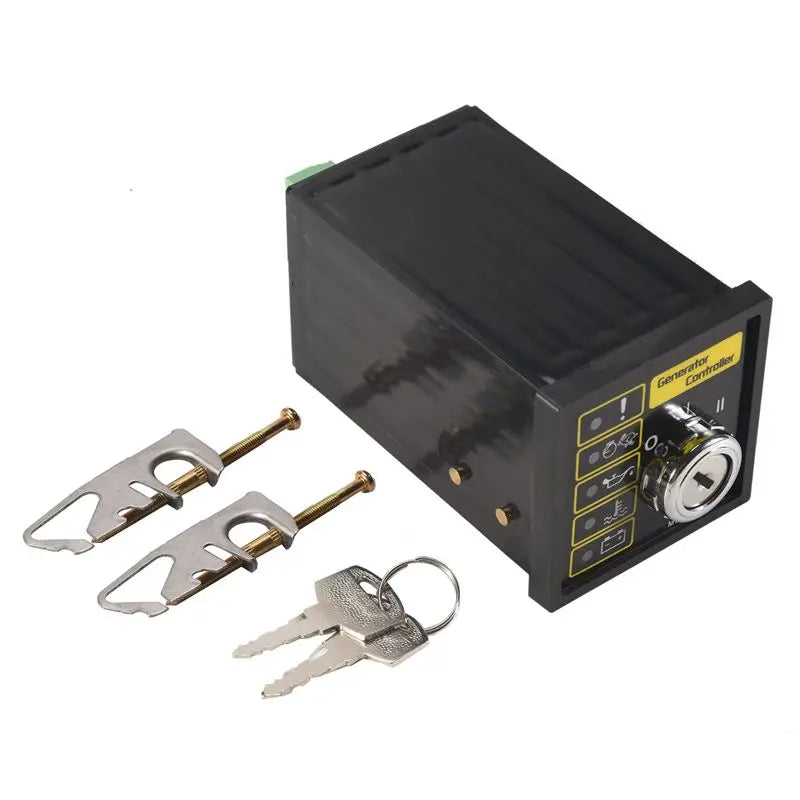

What's in the Box
- 1 × DSE501K Engine Control Module

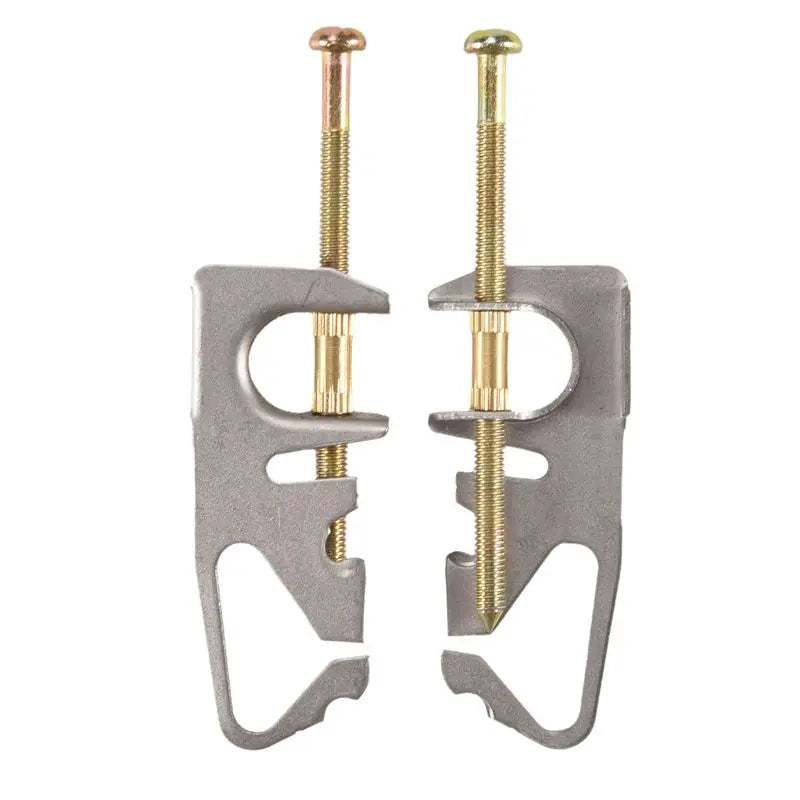

- 2 × Accessories
- 2 × Keys
Related Products You May Find Useful
- 10-in-1 Multi-Functional Bone Wrench – Portable Repair Hand Tool
- 16-in-1 Multi-Function Folding Hex Wrench Set – Maintenance Hand Tools
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Is the DSE501K compatible with all generator models?
A: The DSE501K manual engine control module is designed as a direct replacement for the DSE 501 series controller. It is compatible with a wide range of diesel and gas generator sets that use this control panel standard. We recommend verifying your existing module's model number (DSE501K / DSE 501) before purchasing to confirm compatibility.
Q: What voltage does the DSE501K control module require?
A: The DSE501K operates on a DC supply voltage range of 9–33V continuous, making it broadly compatible with 12V and 24V generator systems. This wide input range ensures reliable operation across many engine configurations.
Q: Does this module support automatic engine shutdown?
A: Yes. The DSE501K features automatic engine shutdown on fault detection, along with LED first-up fault annunciation on the front panel. This allows operators to quickly identify and respond to engine fault conditions, helping to protect the engine from further damage.
Q: What is included in the package?
A: Each package includes 1 × DSE501K Engine Control Module, 2 × Accessories, and 2 × Keys. No additional components or external wiring harnesses are included.
