Upgrade Your Elegoo Neptune 4 / Neptune 4 Pro with Precision Nozzles

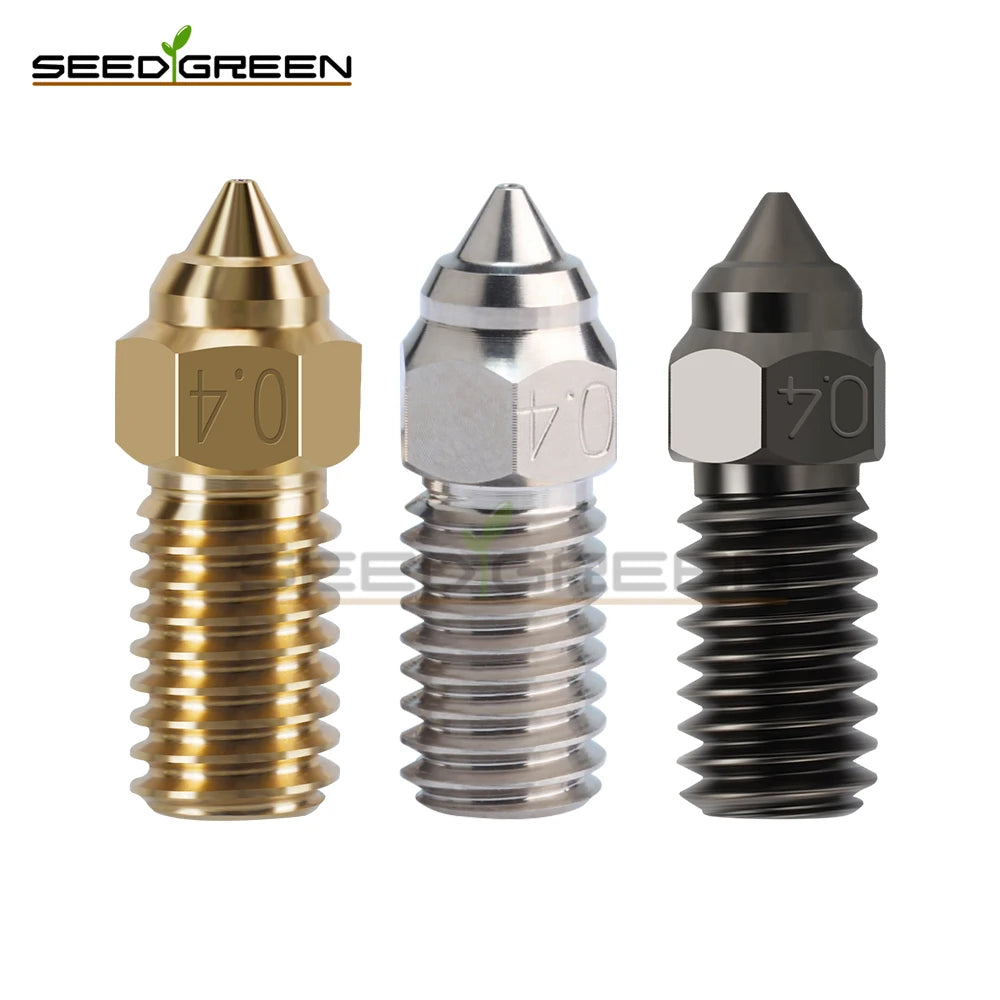

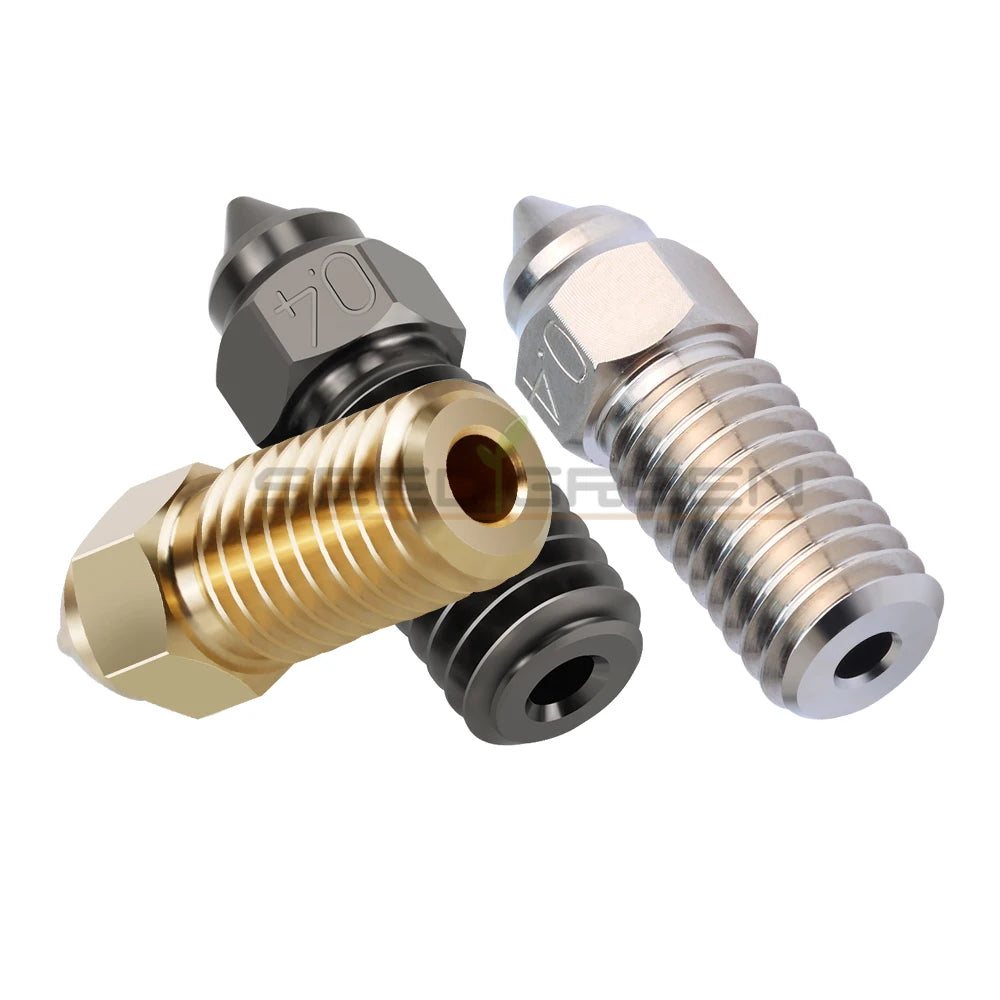

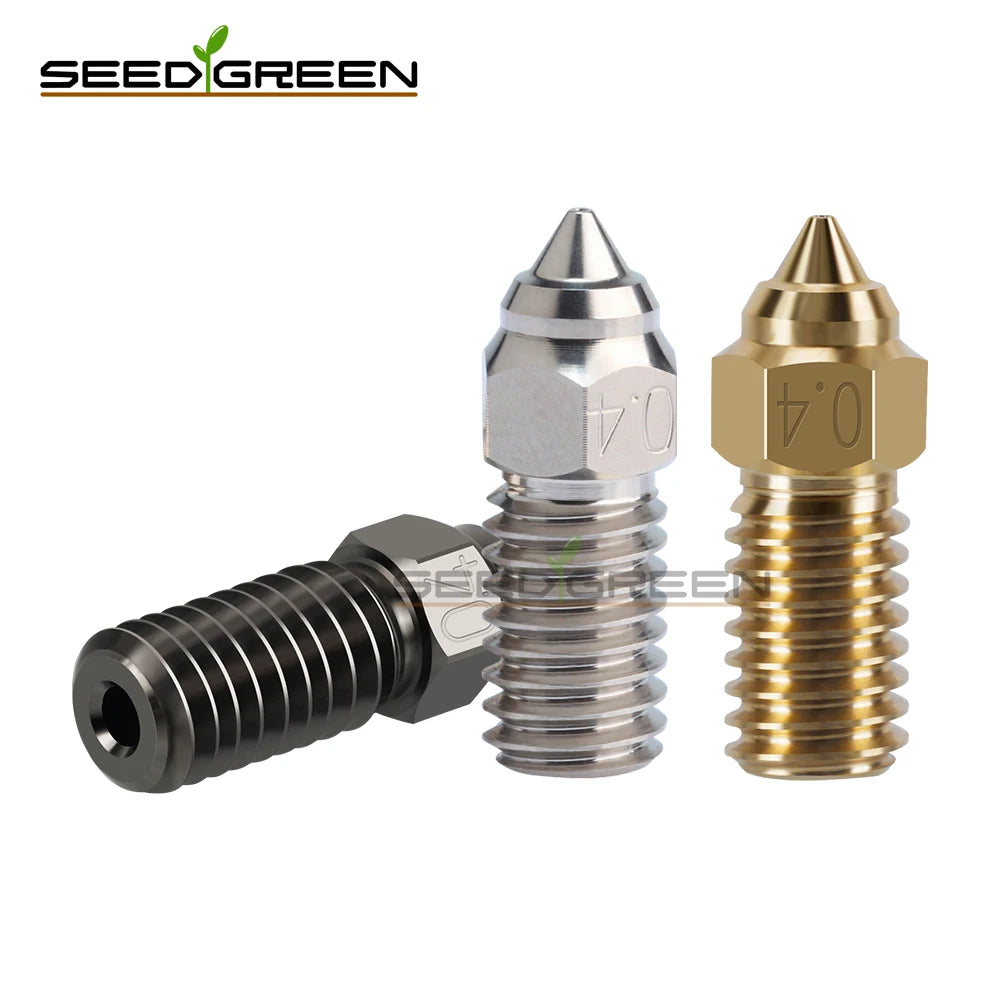

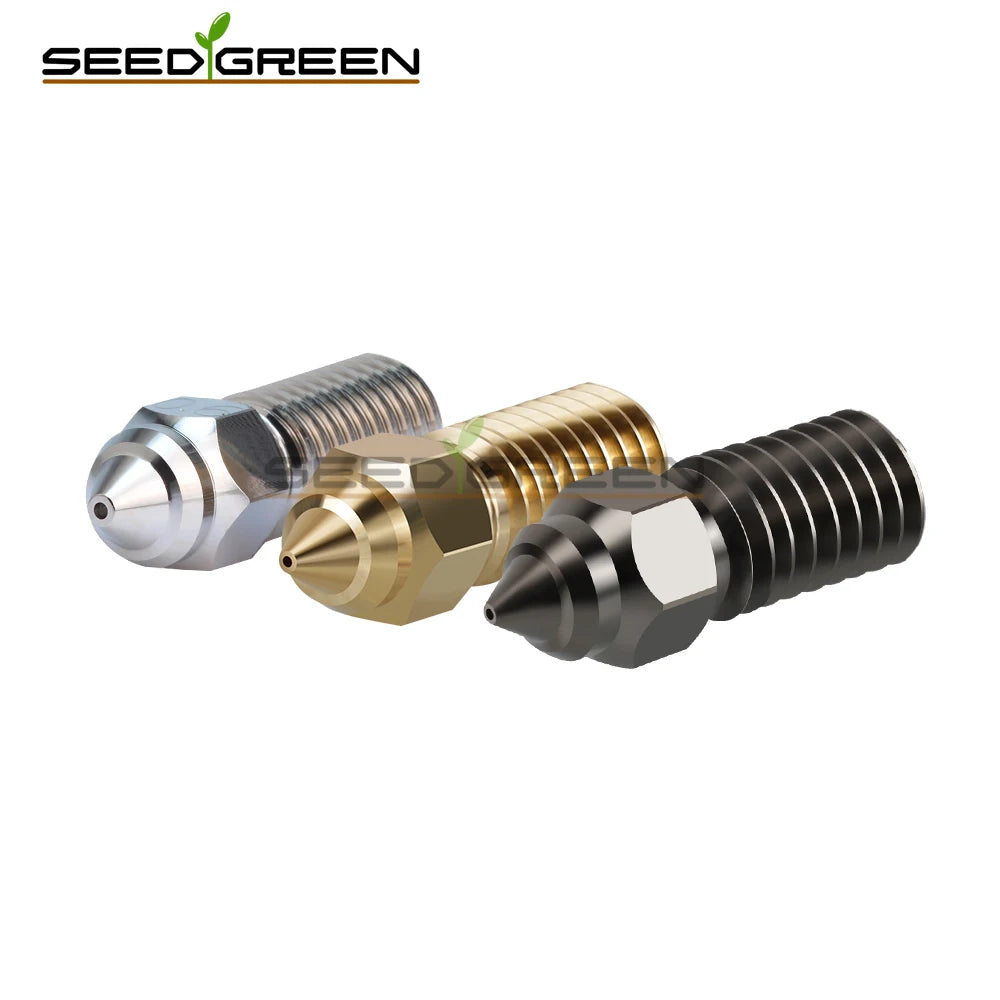

Get consistently clean, reliable prints with these high-quality replacement nozzles, purpose-built for the Elegoo Neptune 4 and Neptune 4 Pro 3D printers. Available in three premium materials — Hardened Steel, Stainless Steel, and Brass — and four tip sizes (0.2 mm, 0.4 mm, 0.6 mm, and 0.8 mm), this set lets you match the right nozzle to any filament type or print resolution. Made in Mainland China.
Why Choose These Nozzles?
- Hardened Steel: Engineered for abrasive filaments such as carbon fiber, glow-in-the-dark, and metal-infused materials — resists wear for a longer service life.
- Stainless Steel: Corrosion-resistant and food-safe compatible, ideal for food-grade PLA and engineering filaments requiring chemical resistance.
- Brass: The classic choice for PLA, PETG, ABS, and TPU — excellent thermal conductivity for smooth, fast extrusion.

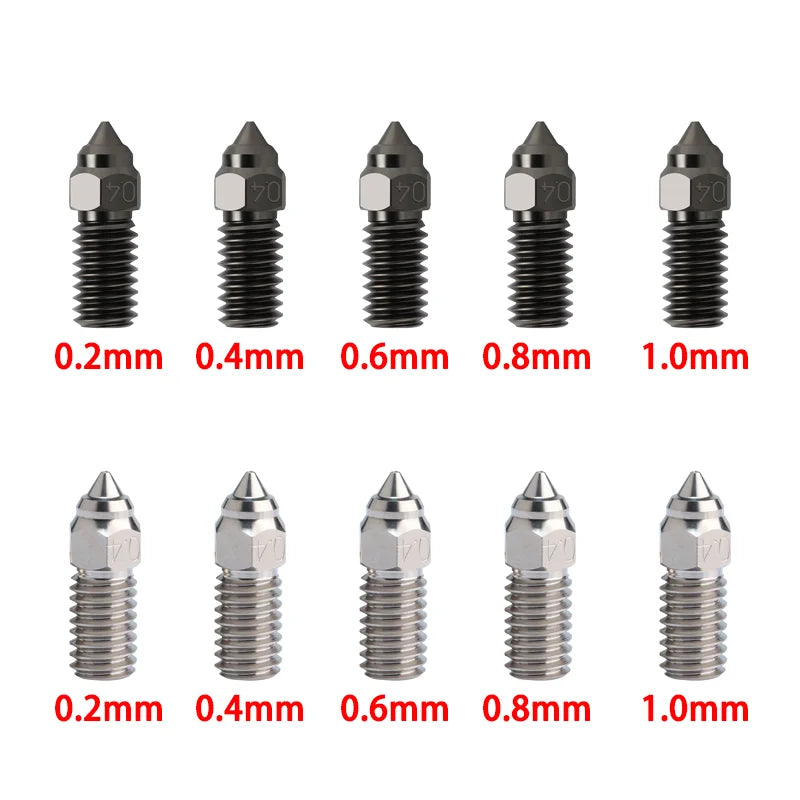

- Multiple Tip Sizes: 0.2 mm for ultra-fine detail, 0.4 mm for versatile everyday printing, 0.6 mm and 0.8 mm for rapid high-volume output.
- Direct Fit: Designed specifically for Elegoo Neptune 4 and Neptune 4 Pro hotends — no modification required.
- Available in 1, 2, or 3-piece sets so you can stock spares or try multiple materials at once.

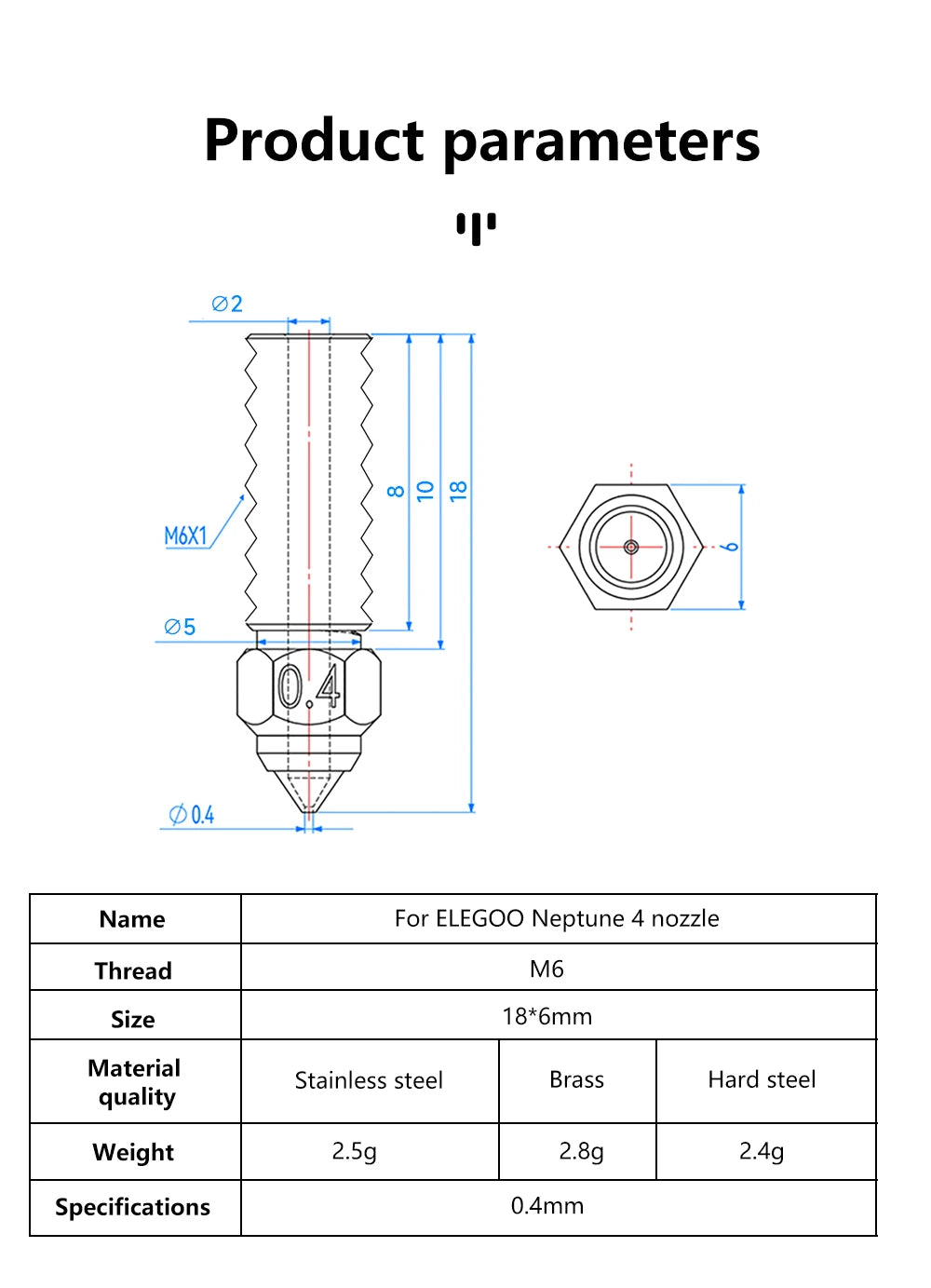

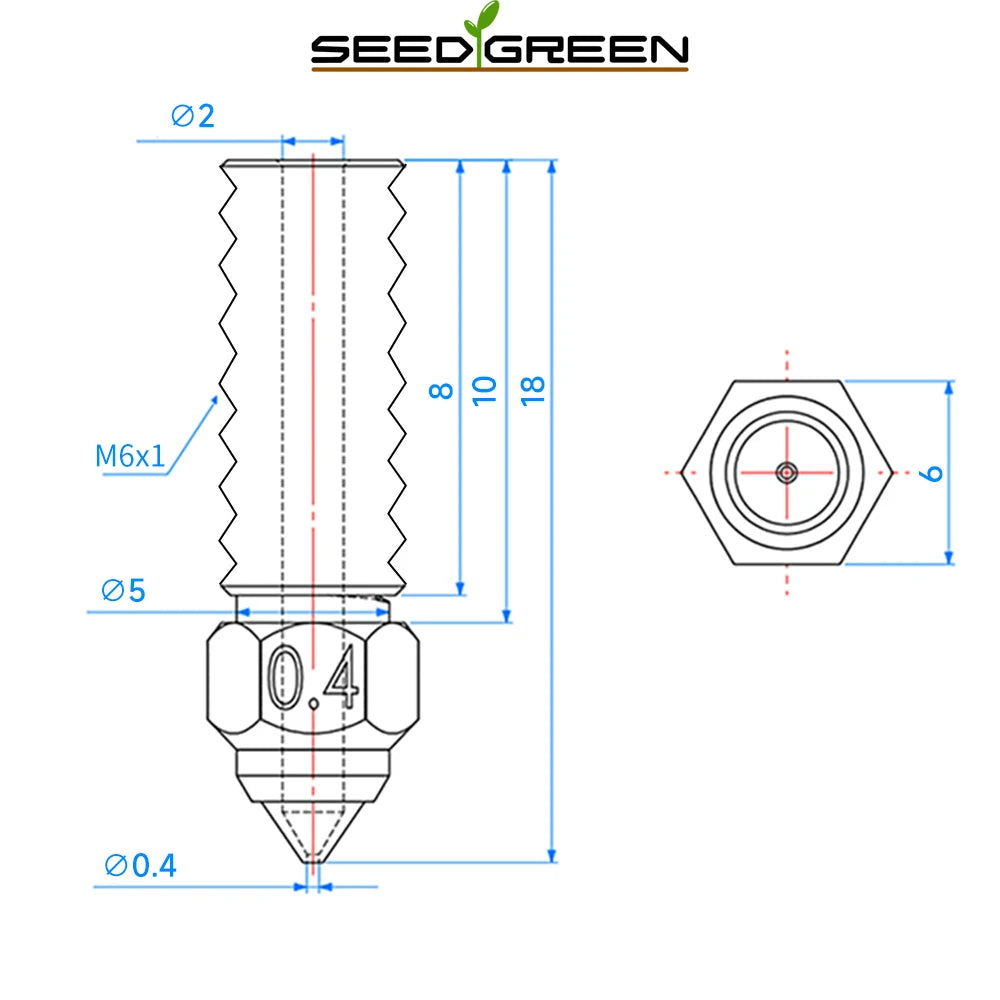

Key Specifications
| Compatible Printers | Elegoo Neptune 4, Neptune 4 Pro |
|---|---|
| Materials | Hardened Steel / Stainless Steel / Brass |
| Tip Diameters | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Assembly Required | No |
| Pack Size | 1, 2, or 3 pieces |
| Country of Origin | Mainland China |
When to Replace Your Nozzle
Nozzle wear is one of the most common causes of under-extrusion, stringing, and inconsistent layer quality. Swap in a fresh nozzle when you notice print quality degrading, switch to a new filament material, or want to experiment with a different tip diameter for detail work versus speed.
Related Products You May Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Portable Folding Hex Wrench Set – Repair Hand Tools
- 3-in-1 Precision Mini Screwdriver Keychain – Portable Repair Hand Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Are these nozzles compatible with both the Elegoo Neptune 4 and Neptune 4 Pro?
A: Yes. These nozzles are specifically designed to fit both the Elegoo Neptune 4 and the Neptune 4 Pro hotend assemblies with no modification or adapters needed.
Q: Which nozzle material should I choose for abrasive filaments like carbon fiber or glow-in-the-dark?
A: The Hardened Steel nozzle is the best choice for abrasive filaments. Its hardened construction resists wear significantly better than brass or standard stainless steel, extending the nozzle's usable lifespan when printing with particle-filled materials.
Q: What tip diameter is best for detailed miniatures versus fast functional prints?
A: A 0.2 mm nozzle delivers the finest surface detail for miniatures and intricate models, while a 0.6 mm or 0.8 mm nozzle allows much faster print speeds and is ideal for larger functional parts where fine detail is less critical. The 0.4 mm is the versatile all-rounder for everyday printing.
Q: Do I need any tools to swap the nozzle on my Neptune 4?
A: A standard nozzle wrench or spanner is recommended to avoid damaging the hotend. Always change the nozzle while the hotend is heated to its working temperature for easier removal and a secure fit. No additional assembly is required — the nozzles arrive ready to install.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
