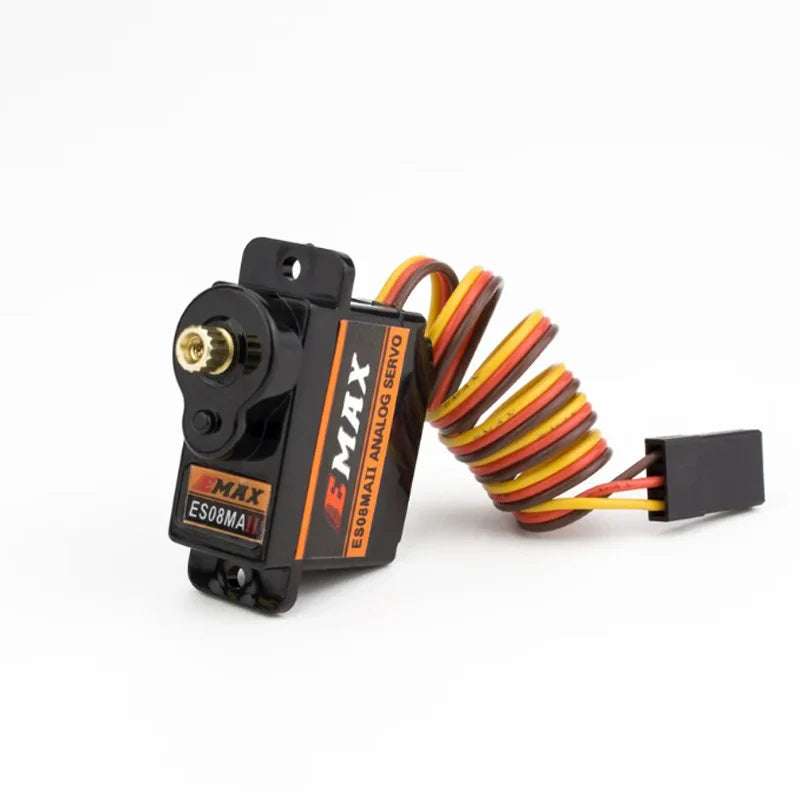

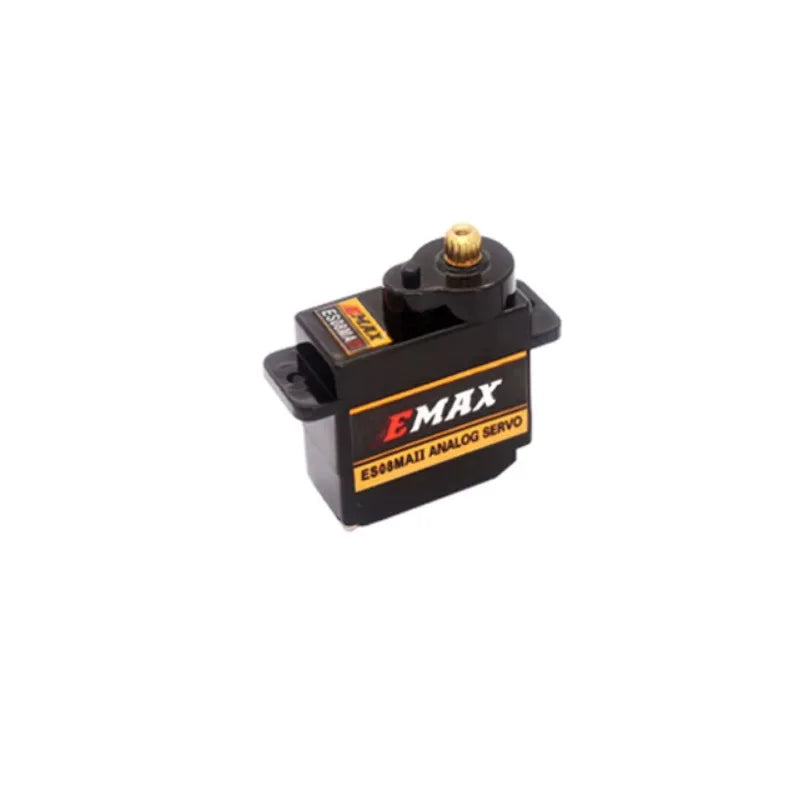

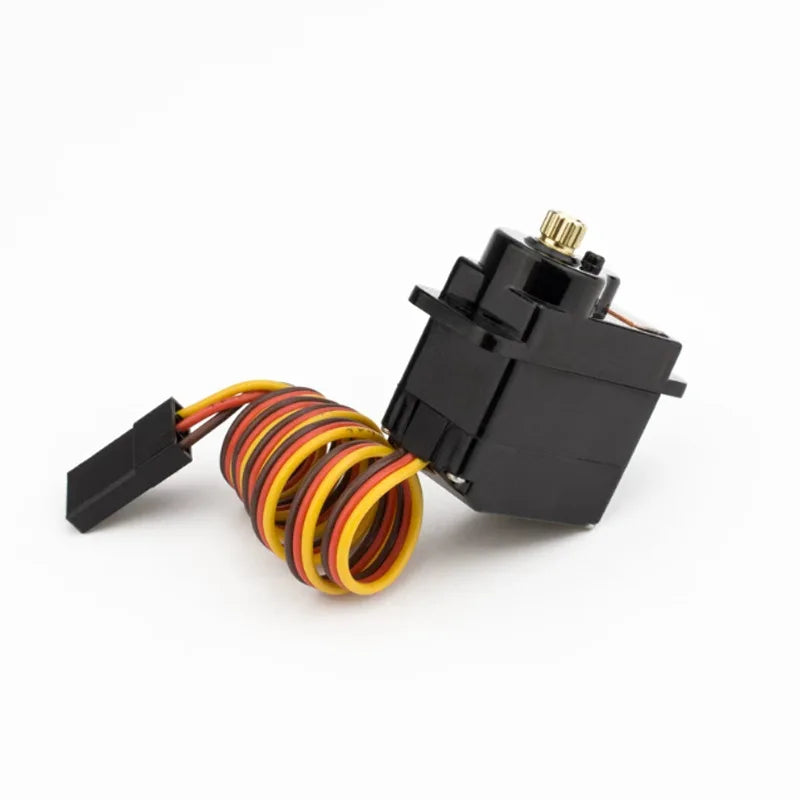

EMAX ES08MA II Mini Metal Gear RC Servo – 12g Analog Servo
EMAX ES08MA II Mini Metal Gear RC Servo – 12g Analog Servo
Upgrade your RC aircraft or FPV drone build with the EMAX ES08MA II Mini Metal Gear Analog Servo — a compact, high-performance servo designed for precision control in RC planes, FPV racing drones, helicopters, and other radio-controlled models. With an all-metal gear train and aluminum alloy construction, this servo delivers reliable torque and fast response in a lightweight 12g package that won't weigh down your build.
Whether you're dialing in aileron throws on a fixed-wing or fine-tuning your FPV racer's control surfaces, the ES08MA II offers the accuracy and durability that serious RC enthusiasts demand. The Futaba/JR universal plug standard ensures broad compatibility across most RC receivers and flight controllers.
Key Features
- All-Metal Gear Train — Superior durability and wear resistance over plastic gears
- Ultra-Lightweight — Only 12g (0.42oz), ideal for weight-sensitive builds
- Fast Response Speed — 0.14 sec/60° at 4.8V; 0.12 sec/60° at 6V
- Strong Torque Output — 1.6 kg·cm at 4.8V / 2.0 kg·cm at 6V
- Wide Voltage Range — Operates on 4.8V to 6.0V
- Universal Plug Standard — Futaba/JR compatible for easy integration
- Compact Dimensions — 32.3 × 11.85 × 24.25 mm fits tight servo bays
- Generous Angle Range — Up to 145° operation range (700–2300 μs)
- 26 cm Lead Wire — Ample length for most airframe routing
Specifications
| Model | ES08MA II |
| Weight | 12g / 0.42 oz |
| Dimensions | 32.3 × 11.85 × 24.25 mm |
| Working Voltage | 4.8V – 6.0V |
| Working Current | 200 mA / 60° |
| Speed | 0.14 sec/60° (4.8V) | 0.12 sec/60° (6V) |
| Torque | 1.6 kg·cm (4.8V) | 2.0 kg·cm (6V) |
| Gear Material | All-Metal |
| Lead Wire Length | 26 cm |
| Plug Standard | Futaba/JR Universal |
| Angle Range | 145° ±10° (700–2300 μs) |
| Body Material | Aluminum Alloy |
What's Included
- 1 × ES08MA II Servo
- 1 × Servo Rocker Arm Set (Plastic)
Made in Mainland China.
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench & Hex Socket Spanner
- 16-in-1 Multi-Function Folding Hex Wrench Repair Tool Set
- 3-in-1 Precision Mini Screwdriver Keychain
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is the EMAX ES08MA II compatible with standard RC receivers and flight controllers?
A: Yes. The ES08MA II uses the Futaba/JR universal plug standard, making it compatible with the vast majority of RC receivers, flight controllers, and radio systems used in RC planes, FPV drones, and helicopters.
Q: What is the difference between the ES08MA II (analog) and ES08MD II (digital) versions?
A: The ES08MA II is an analog servo, which is generally well-suited for standard RC aircraft applications and is a cost-effective choice. The ES08MD II is the digital variant, which typically offers faster update rates, higher holding torque, and more consistent response — ideal for FPV racing and applications requiring precise, rapid control inputs.
Q: Can this servo handle the demands of FPV drone racing?
A: Absolutely. The all-metal gear train, compact 12g weight, and fast 0.12 sec/60° response at 6V make the ES08MA II well suited for FPV racing builds and fixed-wing RC aircraft where low weight and responsive control are essential.
Q: What is the maximum operating angle of this servo?
A: The ES08MA II supports a maximum use angle range of 145° ±10° with a pulse width range of 700–2300 μs. For applications requiring a wider angle range, custom configurations are available — please contact customer service for details.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
