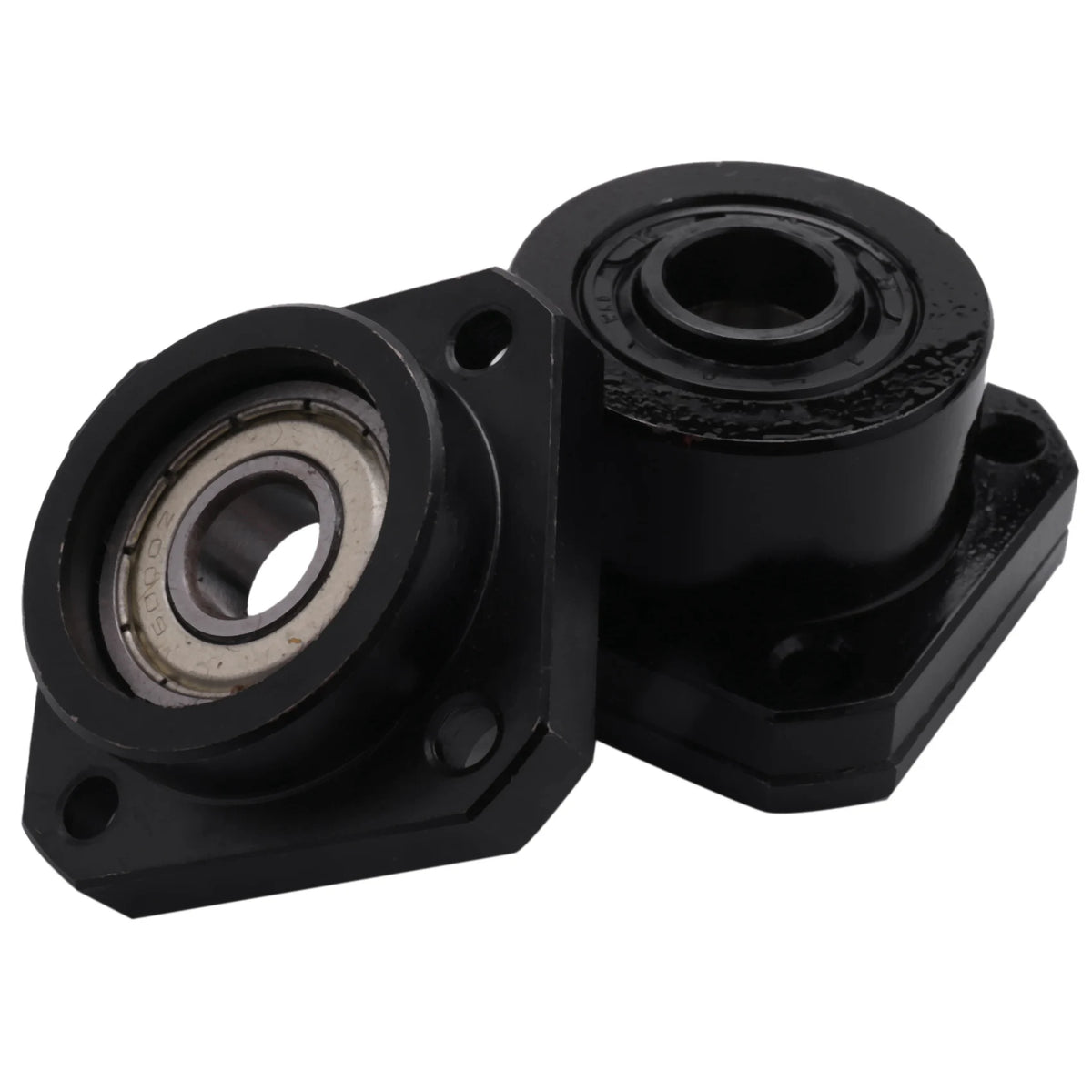

FK12 & FF12 Ball Screw End Support Set – CNC 1605 Fixed & Floating Side Bearing Blocks
Upgrade your CNC machine build with this precision-engineered FK12/FF12 Ball Screw End Support Set. Designed for 1605 ball screw assemblies, this kit includes both the FK12 fixed-side and FF12 floating-side bearing blocks to deliver stable, accurate, and long-lasting linear motion performance. Made from carbon steel with a black oxidizing surface treatment, these supports offer excellent rigidity and corrosion resistance for demanding workshop environments.
Made in Mainland China.
Key Features
- Pre-lubricated FK-type bearings — loaded with the correct amount of lithium soap grease and sealed with a special gasket for immediate installation and extended service life
- Black oxidized surface finish — high-precision treatment that enhances corrosion resistance and durability
- High rigidity & precision — ensures stable rotational performance and minimizes backlash for accurate CNC positioning
- Carbon steel construction — robust material choice for demanding machine tool environments
- Straightforward mounting — fixed side secures to the threaded rod with a lock nut, cushion block, and hex bolts; floating side bearing is retained with a stop ring and loaded into the bearing housing
Product Specifications
| Specification | Details |
|---|---|
| Model | FK12 (Fixed) / FF12 (Floating) |
| Compatible Ball Screw | 1605 Ball Screw |
| Material | Carbon Steel |
| Color | Black |
| Surface Treatment | Black Oxidizing (Blackening Process) |
| Lubrication | Pre-filled lithium soap grease |
| Package Contents | 2 × FK12 Bearing Blocks + 2 × FF12 Bearing Blocks |
Installation Guide

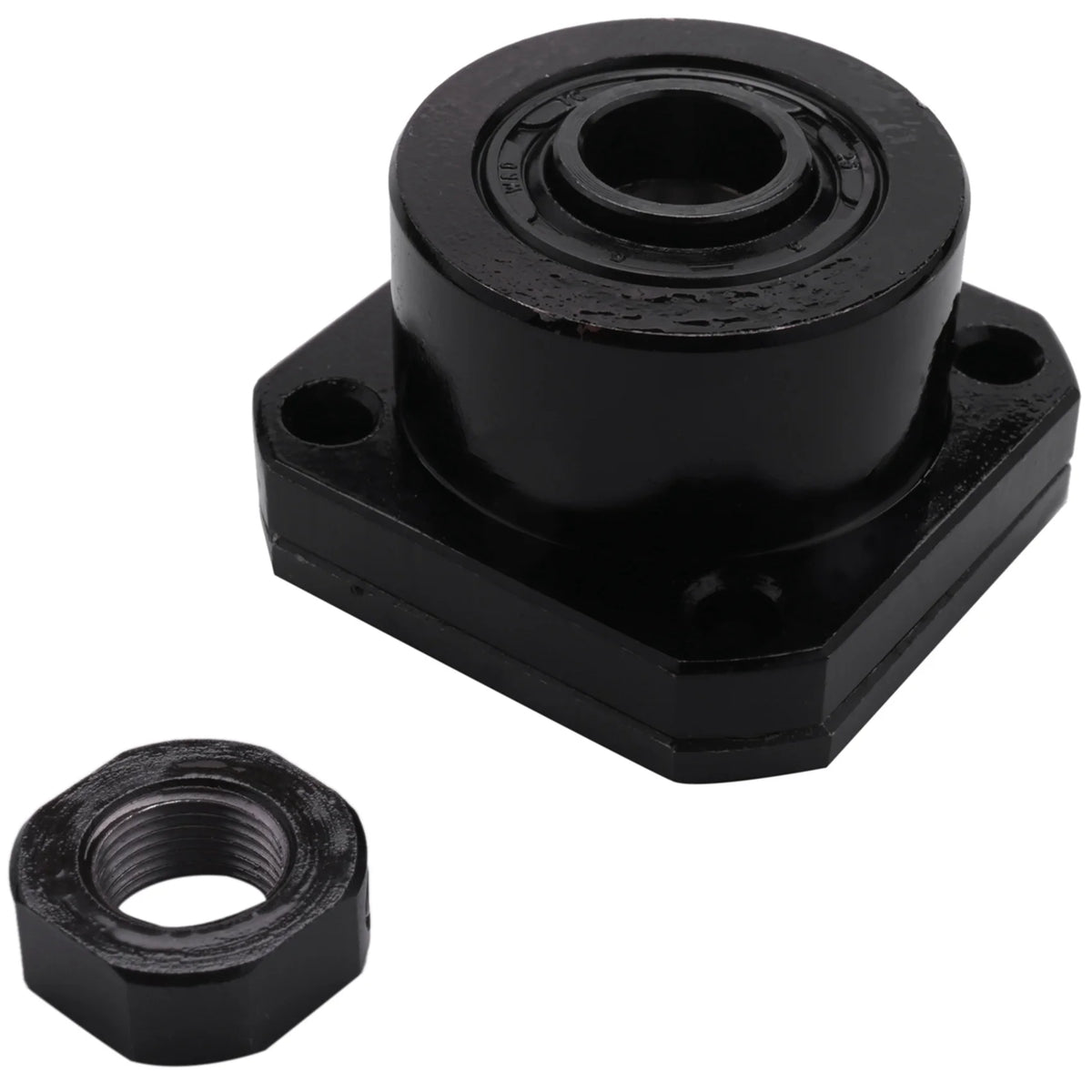

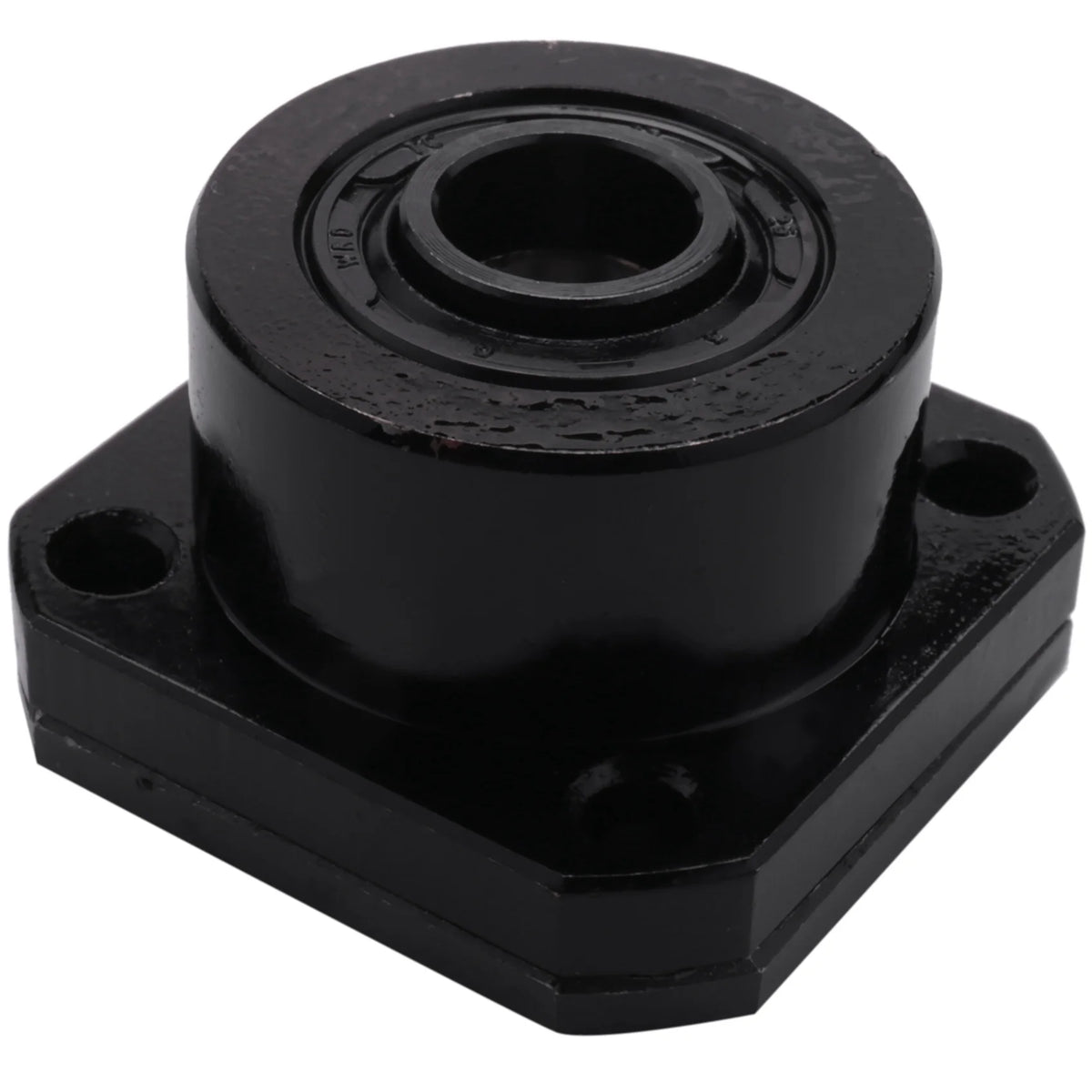

- Secure the FK12 fixed-side block onto the threaded rod end of the ball screw.
- Tighten the lock nut and fasten with a cushion block and hex socket bolts.

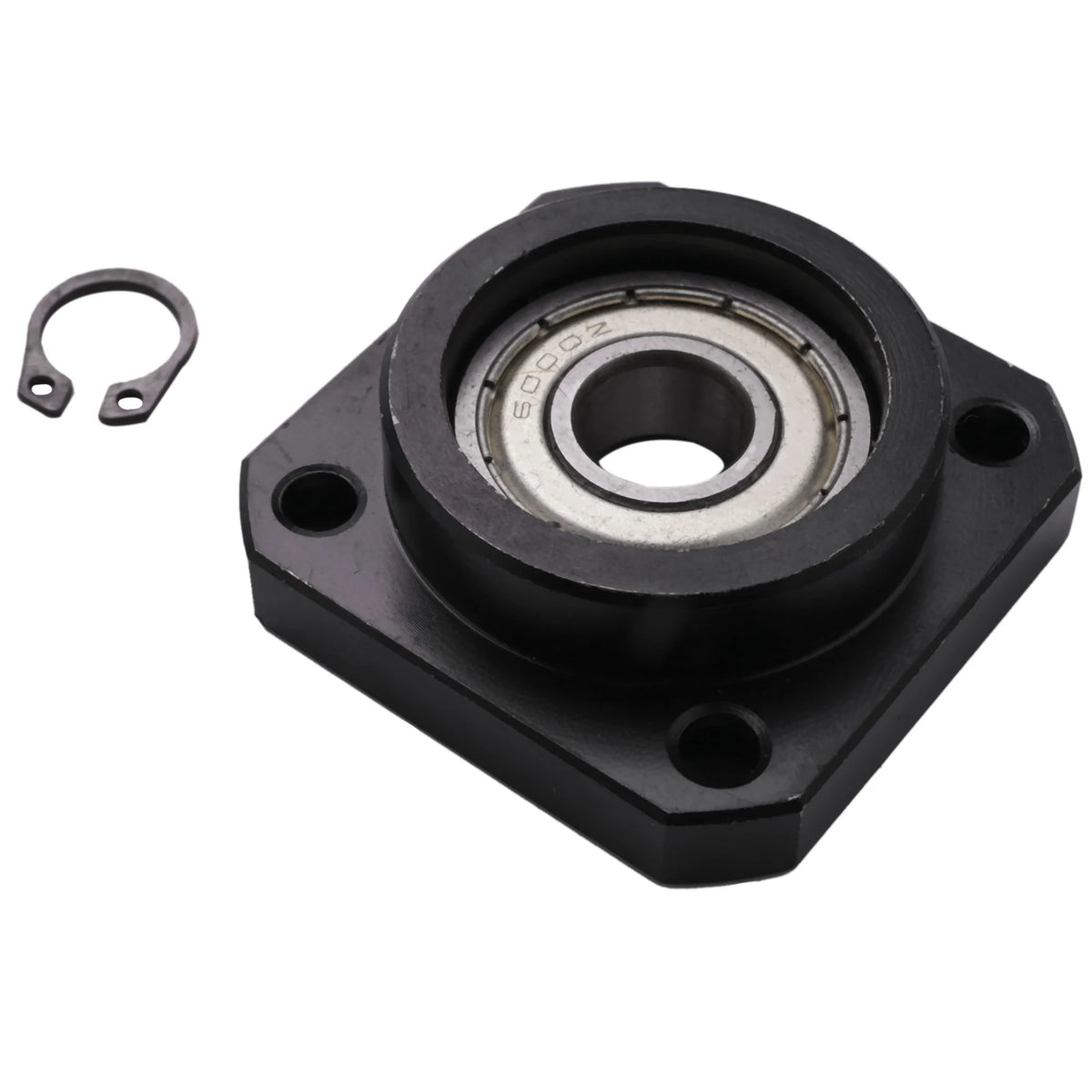

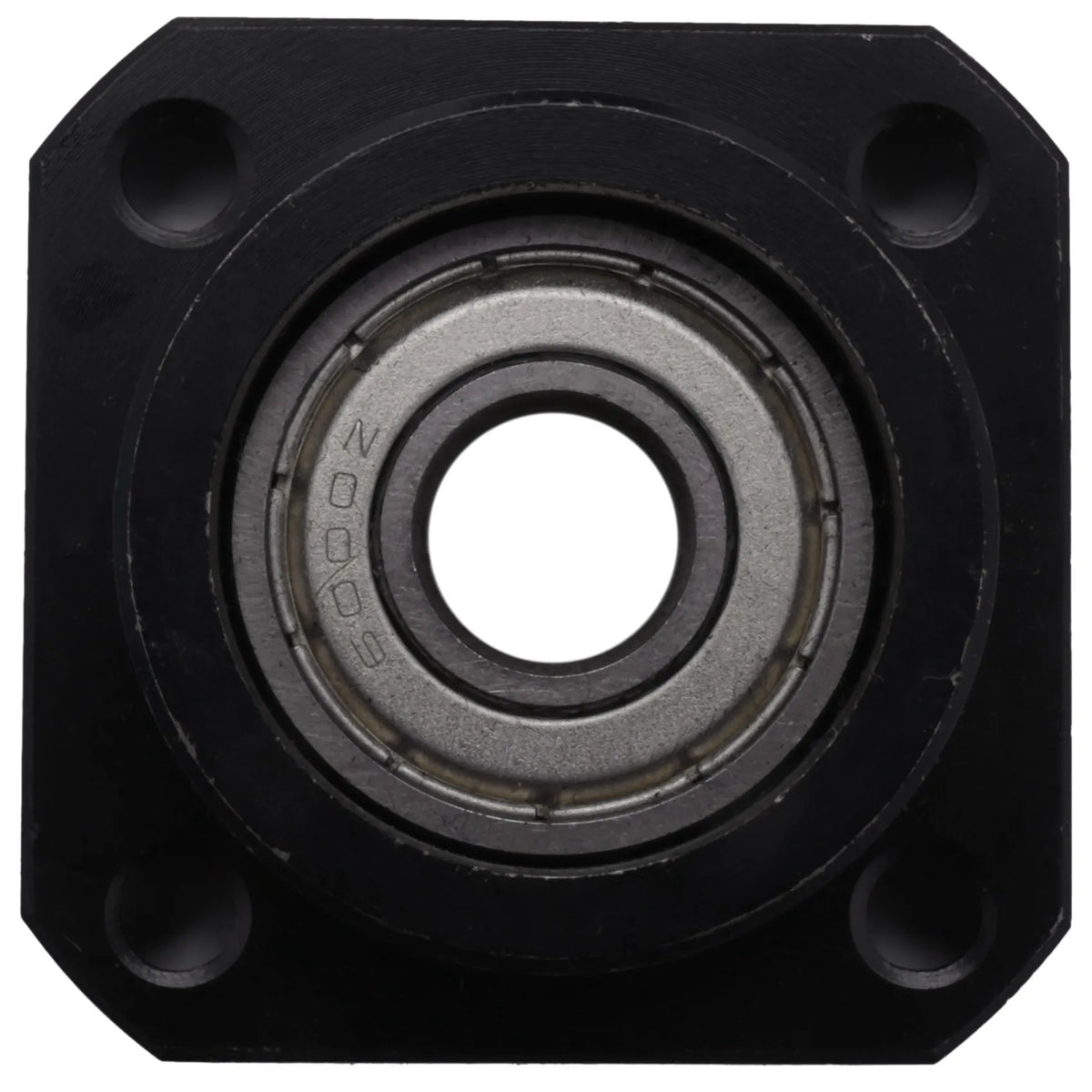

- On the floating side, insert the FF12 bearing block and retain the bearing with a stop ring before loading it into the bearing housing.
Note: Due to lighting conditions and monitor calibration, the item color in photos may vary slightly from the actual product. Dimensional measurements carry a tolerance of ±1–3 mm.
Related Products You May Like
- 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16 in 1 Multi-function Folding Hex Wrench Set – Bicycle & Furniture Maintenance
- 48-Pc MIG Welding Nozzle & Tip Set – MB15 AK15 Torch
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What ball screw diameter is this FK12 FF12 support set compatible with?
A: This FK12/FF12 end support set is designed specifically for 1605 ball screws (16 mm diameter, 5 mm lead). The FK12 handles the fixed end while the FF12 accommodates thermal expansion on the floating end, making them ideal for DIY CNC router and milling machine builds.
Q: Do I need to lubricate these bearing blocks before installation?
A: No — the FK12 bearing blocks come pre-filled with lithium soap grease and are sealed with a special gasket, so they are ready to install straight out of the package. Periodic re-lubrication is recommended for high-duty-cycle applications to maintain optimal performance.
Q: What is the difference between the FK12 (fixed side) and the FF12 (floating side) bearing block?
A: The FK12 fixed-side block fully constrains the ball screw axially and radially using a lock nut and hex bolts, preventing any end movement. The FF12 floating-side block supports the screw radially while allowing slight axial movement to compensate for thermal expansion during operation, preventing binding and extending screw life.
Q: What material are these ball screw support blocks made from?
A: Both the FK12 and FF12 support blocks are manufactured from carbon steel with a black oxidizing surface treatment. This combination provides high rigidity, good wear resistance, and protection against corrosion in typical workshop environments.
