G1/2 Brass Thermostatic Mixing Valve 3-Way 20–50°C
G1/2 Brass Thermostatic Mixing Valve 3-Way 20–50°C

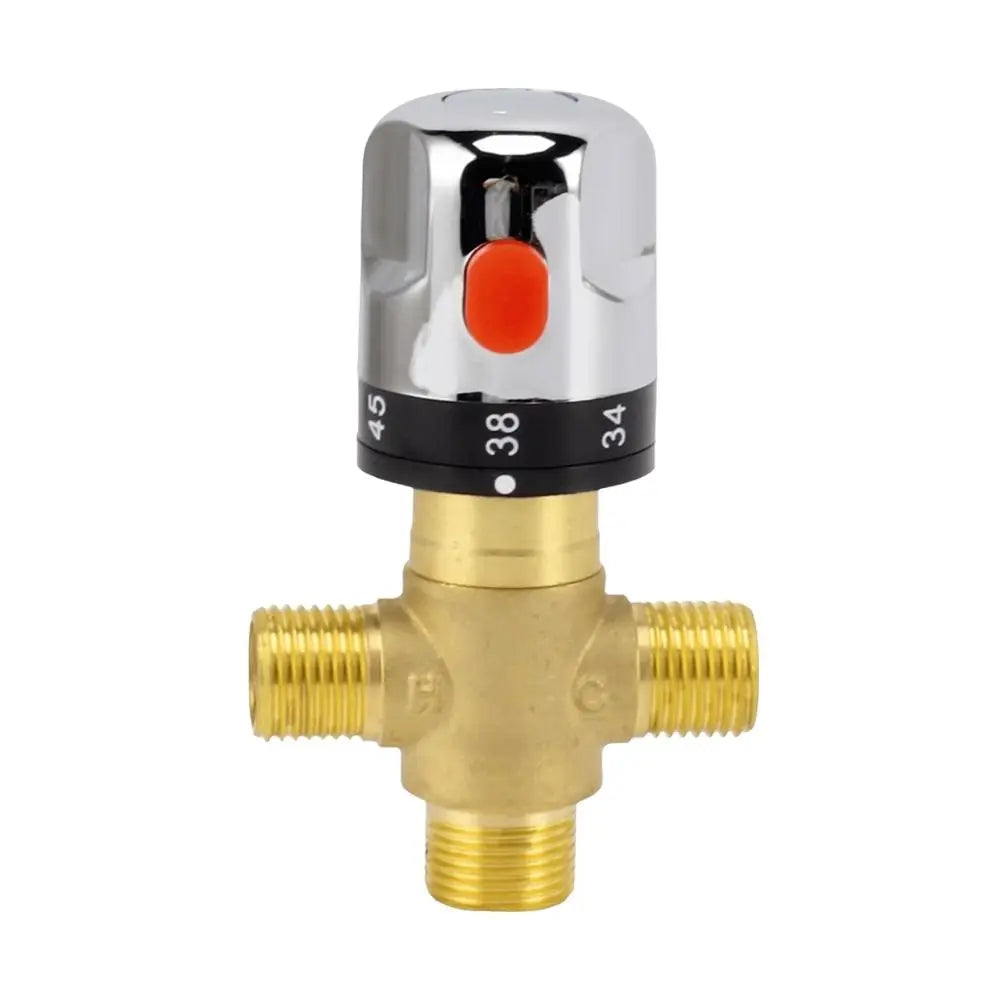

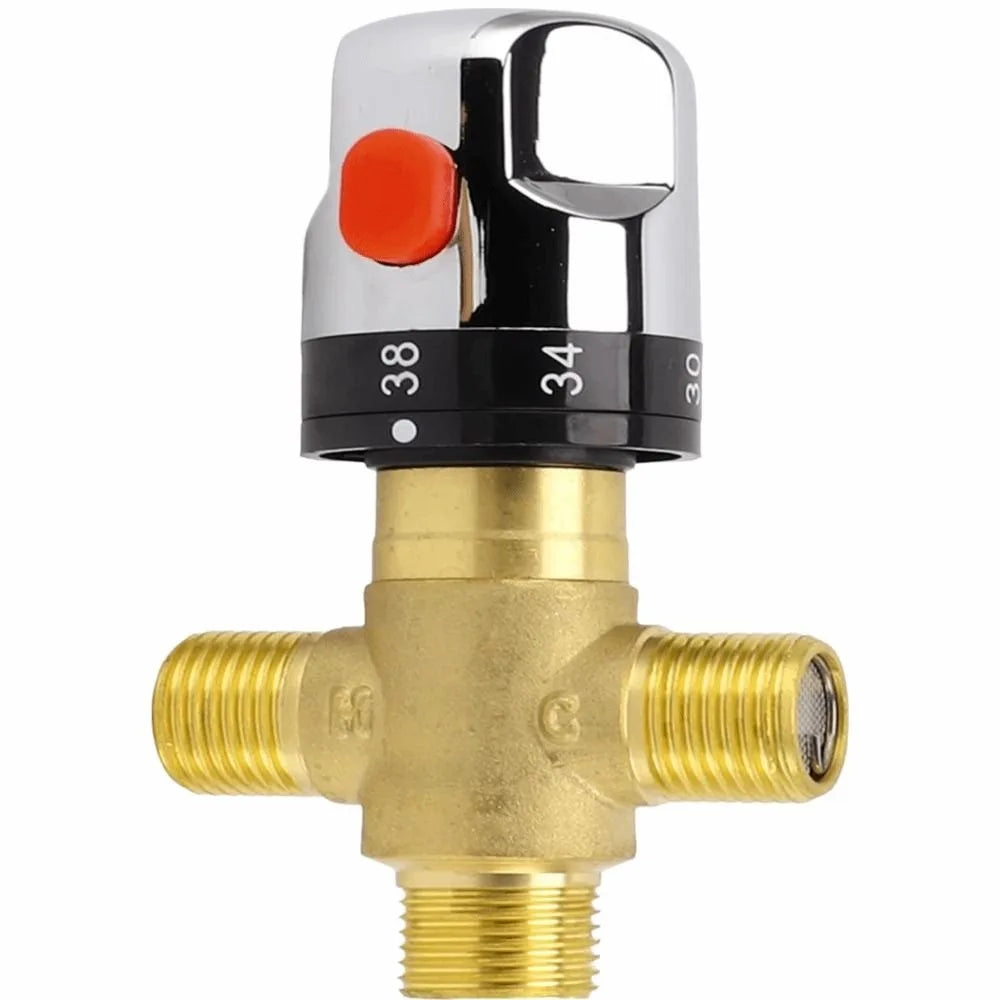

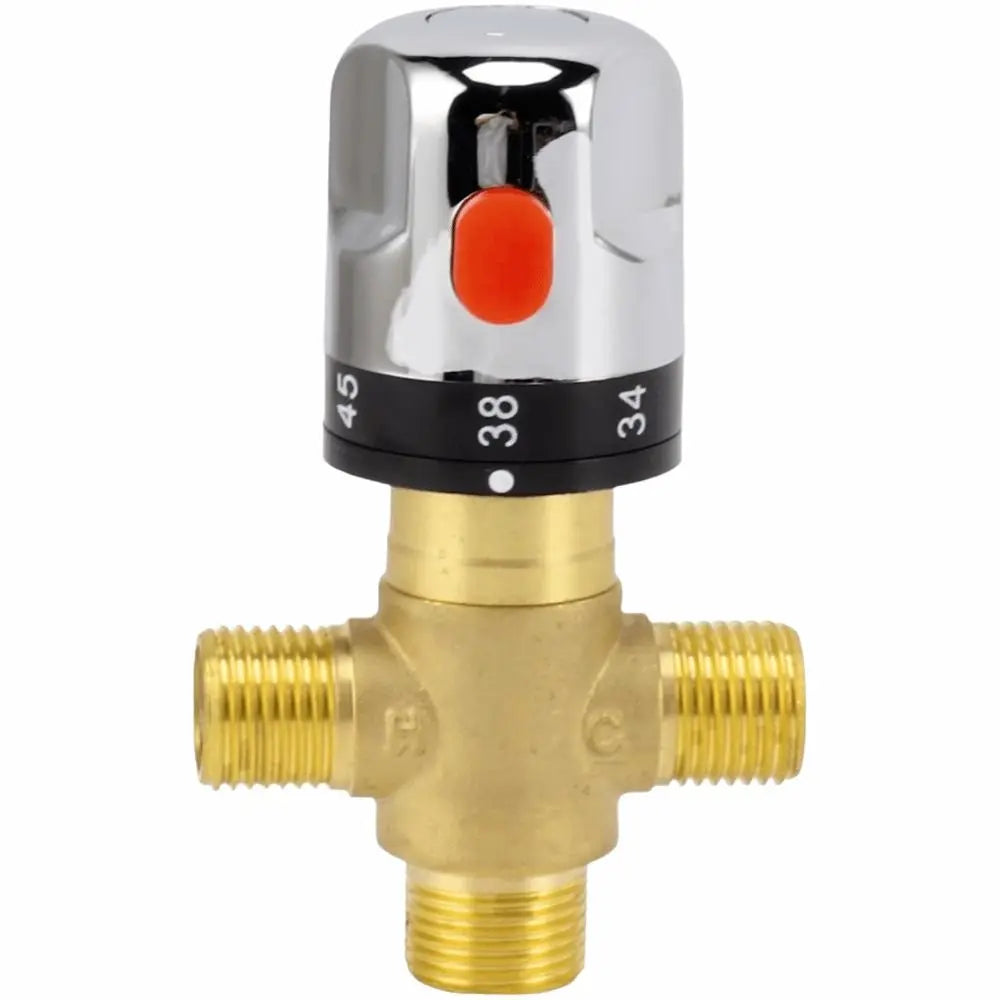

G1/2 Brass Thermostatic Mixing Valve – Precise 3-Way Water Temperature Control
Take full control of your hot water with this durable G1/2 Thermostatic Mixing Valve. Crafted from solid polished brass, this 3-way blending valve automatically regulates water temperature between 20°C and 50°C — delivering a consistently comfortable flow every time. Ideal for kitchens, bathrooms, electric water heaters, and a wide range of home hot water systems.
Made in Mainland China.
Key Features
- Automatic Thermal Sensing: Built-in thermosensitive element at the mixing outlet continuously monitors and adjusts the hot/cold water blend — maintaining your set temperature without manual re-adjustment.
- Accurate Temperature Control: Adjustable range of 20–50°C suits everyday hot water needs. Recommended normal use temperature: 60–70°C input, 20–50°C output.

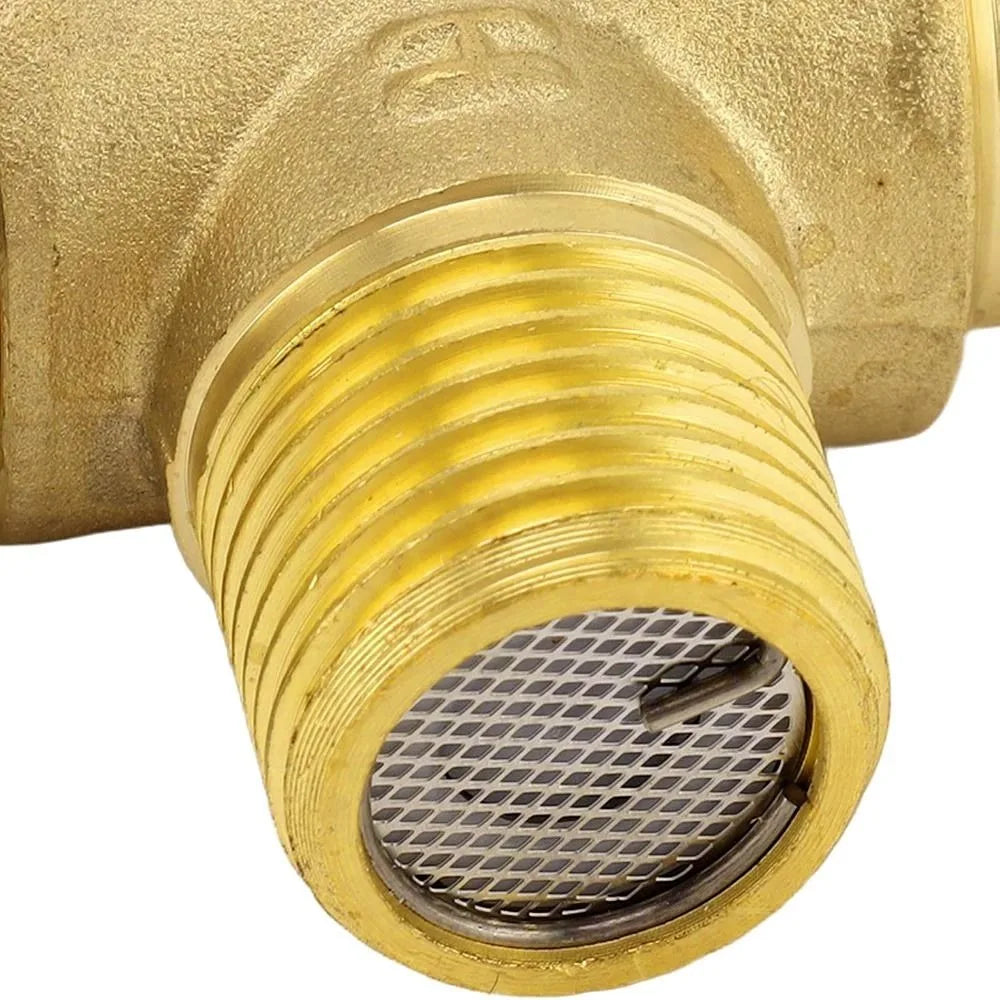

- Built-In Filters: Integrated filters on both hot and cold water inlets keep sediment and impurities out of your water lines, protecting your fixtures and extending valve life.
- Safety Shut-Off Button: A dedicated safety device automatically cuts off hot water when temperature exceeds 38°C threshold, protecting against scalding accidents.
- Solid Brass Construction: Polished brass body resists corrosion and withstands daily use — sturdy, long-lasting, and easy to operate.
- Easy Installation: Standard G1/2 thread fits most existing hot water systems. Simple to install — no specialist tools required.
Specifications
| Item Type | Thermostatic Mixing Valve |
| Material | Brass, Polished |
| Color | Gold |
| Weight | Approx. 335 g / 11.8 oz |

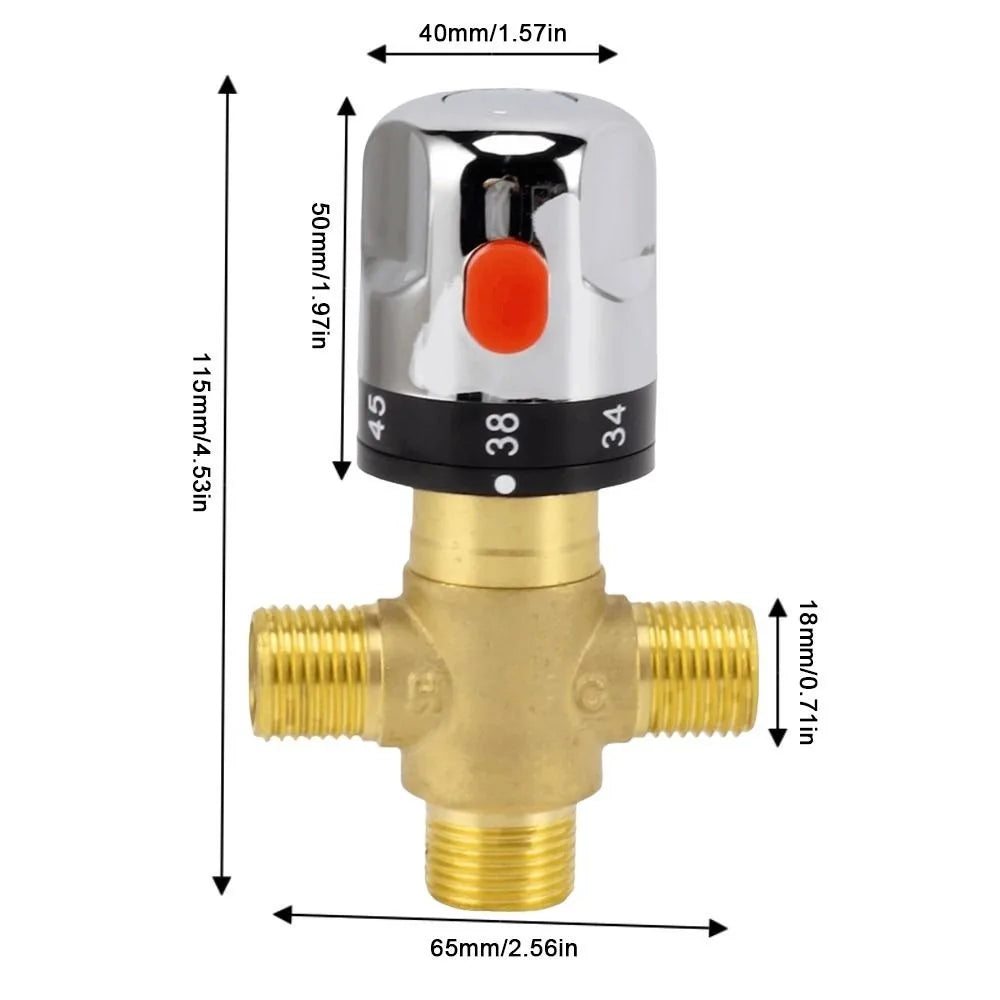

| Product Size | 115 × 65 mm (4.53 × 2.56 in) |
| Thread Size | G1/2 |
| Working Pressure | 0.05 – 1 MPa |
| Recommended Pressure | 0.1 – 0.5 MPa |
| Cold Water Supply Temp. | 4 – 29°C |
| Hot Water Supply Temp. | 55 – 85°C |
| Output Temperature Range | 20 – 50°C |
| Safety Button Temp. | 38°C |
What's in the Box
- 1 × G1/2 Thermostatic Mixing Valve
Related Products You May Like
- Adjustable Faucet Hanging Sink Sponge Holder & Drain Basket
- 100ml Glass Oil Spray Bottle – Kitchen Cooking Tool
- 3-in-1 Stainless Steel Vegetable Peeler & Julienne Slicer
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What thread size does this thermostatic mixing valve use?
A: This valve features a standard G1/2 (BSP 1/2 inch) thread, which is compatible with the vast majority of residential hot water systems, electric water heaters, and bathroom or kitchen plumbing fixtures.
Q: What is the output water temperature range of this mixing valve?
A: The thermostatic mixing valve provides an adjustable output temperature range of 20°C to 50°C, with a recommended normal use range of 60–70°C at the hot water inlet for optimal performance.
Q: Does this valve include a safety feature to prevent scalding?
A: Yes. The valve includes a built-in safety shut-off device that automatically stops the flow of hot water when the temperature reaches 38°C, helping to protect users — especially children and the elderly — from accidental scalding.
Q: Is the thermostatic mixing valve easy to install yourself?
A: Absolutely. The standard G1/2 thread connection makes installation straightforward and compatible with most home plumbing setups. No specialist tools are required, making it a practical choice for DIY home improvement projects.
