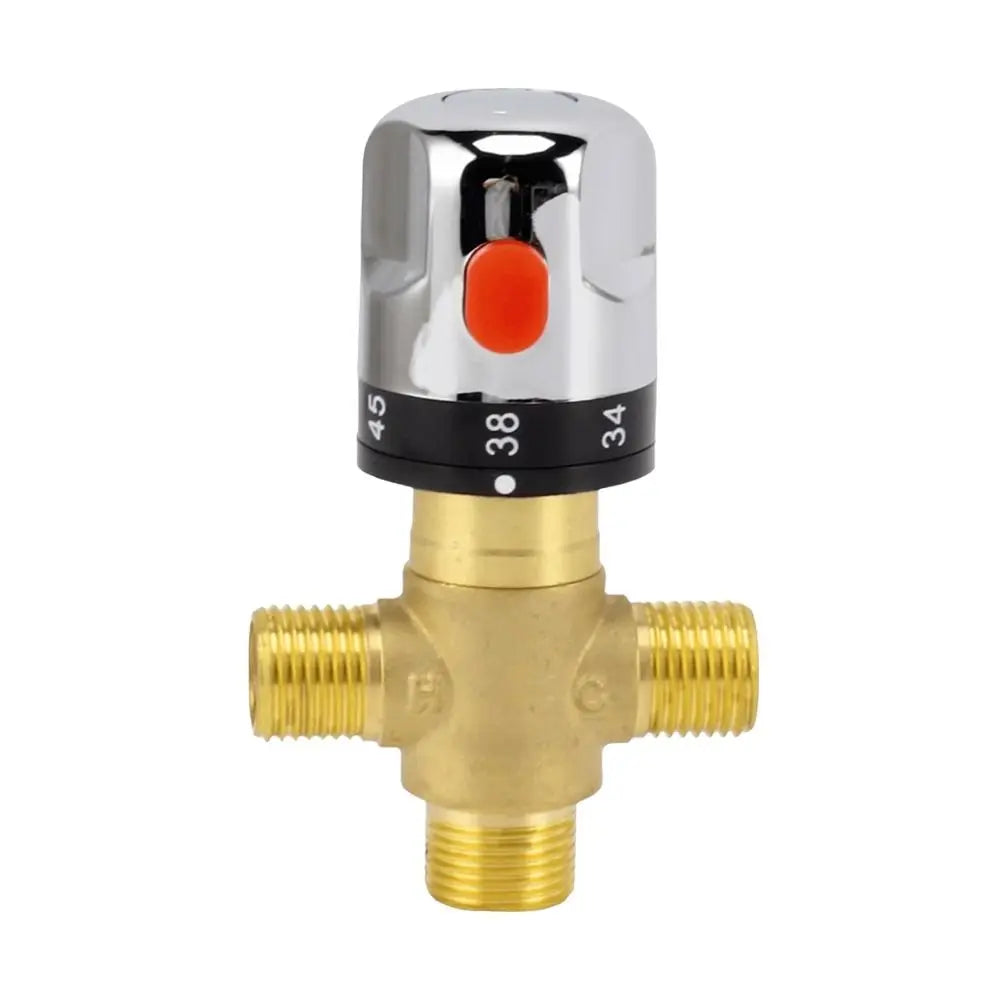

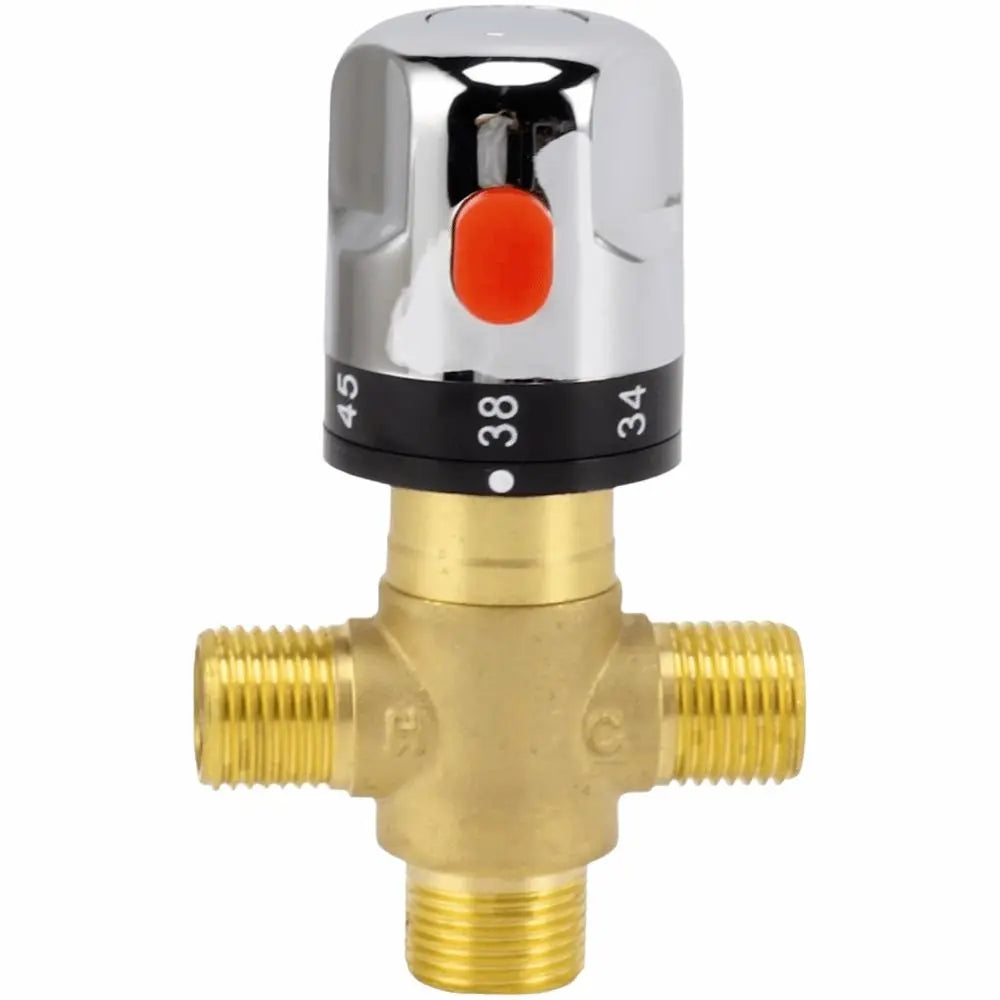

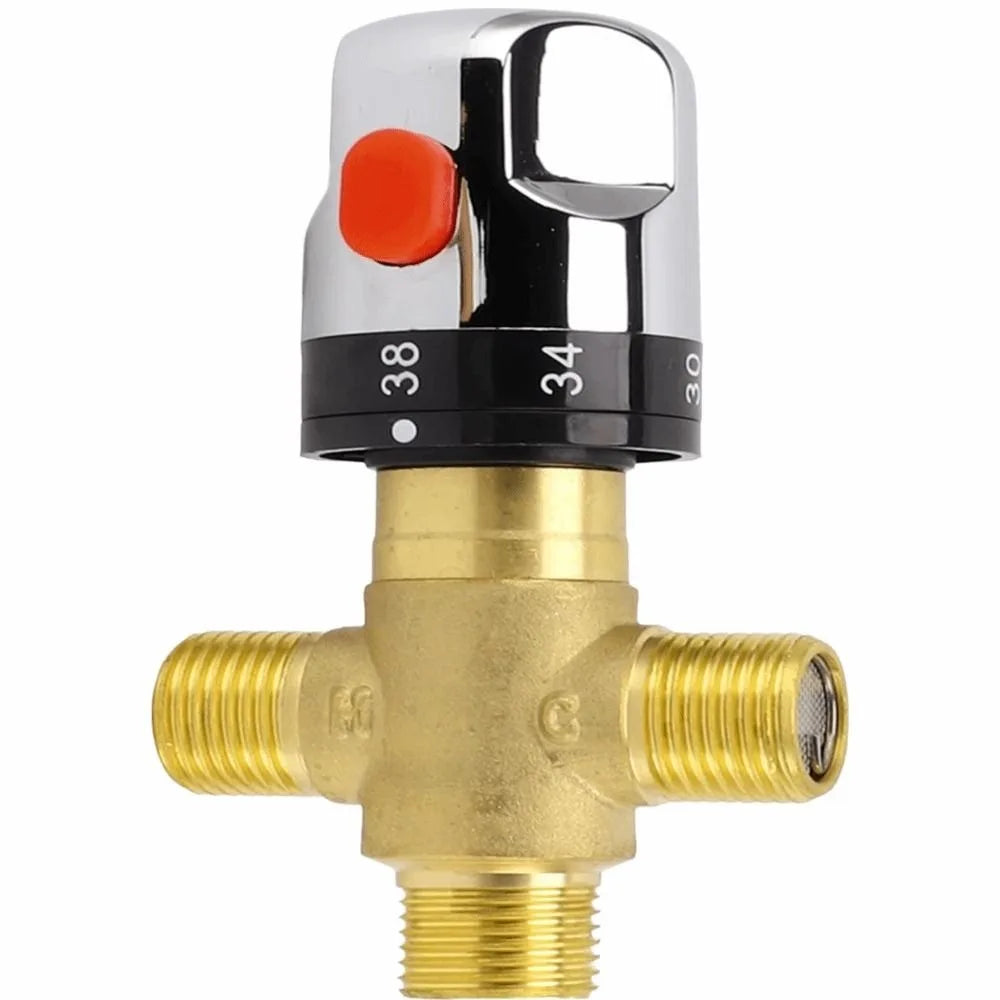

G1/2 Brass Thermostatic Mixing Valve 3-Way 20–50°C Temp Control
G1/2 Brass Thermostatic Mixing Valve 3-Way 20–50°C Temp Control
G1/2 Brass Thermostatic Mixing Valve — Precise 3-Way Water Temperature Control
Take full control of your hot water system with this durable G1/2 Thermostatic Mixing Valve. Crafted from solid polished brass and engineered for accuracy, this 3-way blending valve automatically balances hot and cold water to deliver a consistent, comfortable temperature between 20°C and 50°C — perfect for kitchens, bathrooms, showers, and electric water heater systems.
Made in Mainland China.
Key Features
- Automatic Thermal Sensing: A built-in thermal sensing element at the mixing outlet continuously monitors and adjusts the ratio of hot and cold water, delivering a steady, comfortable flow every time.
- Accurate Temperature Control: Designed for hot water systems including electric water heaters, pipe valves, and bathroom fixtures — keeps your set temperature stable even when supply pressure fluctuates.
- Built-In Filters & Safety Device: Integrated inlet filters block sediment and impurities from entering the valve. A built-in safety shut-off automatically cuts hot water flow at 38°C to protect against scalding.
- Solid Brass Construction: Made from corrosion-resistant polished brass for long-lasting durability, a premium gold finish, and easy temperature adjustment.
- Easy Installation: Standard G1/2 thread connection fits most existing hot water systems — no specialist tools required, ideal for DIY home improvement.
Technical Specifications
| Item Type | Thermostatic Mixing Valve |
| Material | Solid Brass (Polished Gold) |
| Connection Size | G1/2 |
| Weight | Approx. 335 g / 11.8 oz |

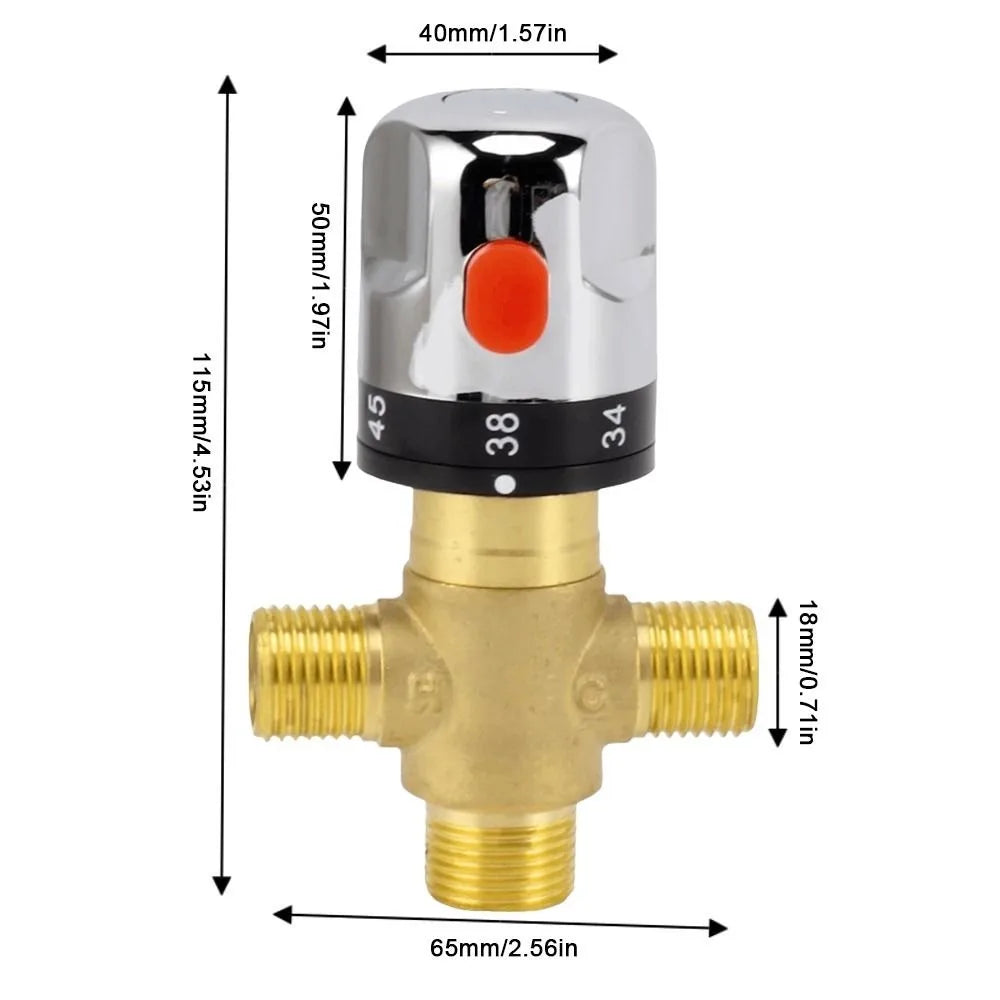

| Product Size | 115 × 65 mm (4.53 × 2.56 in) |
| Working Pressure | 0.05 – 1 MPa |
| Recommended Pressure | 0.1 – 0.5 MPa |
| Standard Dynamic Pressure | 0.3 ± 0.02 MPa |
| Cold Water Supply Temp | 4 – 29°C |
| Hot Water Supply Temp | 55 – 85°C |
| Recommended Use Temp | 60 – 70°C (supply) |
| Temperature Control Range | 20 – 50°C (output) |
| Safety Button Temperature | 38°C auto shut-off |
| Color | Gold |
What's in the Box
- 1 × G1/2 Thermostatic Mixing Valve
You May Also Like
- 100ml Glass Oil Spray Bottle – Anti-Leak Kitchen Mister
- Adjustable Faucet Hanging Sink Sponge Holder & Drain Basket
- 3-in-1 Stainless Steel Vegetable Peeler & Julienne Slicer
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What thread size does this thermostatic mixing valve use?
A: This valve uses a standard G1/2 thread connection, which is compatible with most domestic water heaters, shower systems, and kitchen or bathroom plumbing fixtures.
Q: What is the output temperature range of this blending valve?
A: The thermostatic mixing valve controls the blended water output between 20°C and 50°C. For optimal performance, the hot water supply should be set between 60°C and 70°C, and the cold supply between 4°C and 29°C.
Q: Does this valve have a safety feature to prevent scalding?
A: Yes. The valve includes a built-in safety device that automatically shuts off the hot water supply at 38°C, helping to prevent accidental exposure to excessively hot water — a great safety feature for households with children or elderly users.
Q: Is this thermostatic mixing valve suitable for electric water heaters?
A: Absolutely. This valve is specifically designed for use with electric water heaters, solar water heating systems, pipe valves, and a wide range of bathroom and kitchen hot water applications.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
