H3Y-2 Delay Timer Relay AC 220V 10s 8-Pin Time Relay

Q: What is the delay time of the H3Y-2 time relay?

The H3Y-2 delay timer relay has a fixed delay time of 10 seconds. Once powered, it counts down 10 seconds before activating or switching its output contacts, making it ideal for ON-delay timing applications in electrical circuits and automation systems.

Q: What voltage does this delay timer relay operate on?

This H3Y-2 timer relay is designed to operate at 220V AC (coil voltage). Its contact rating is 250V AC at 5A, allowing it to switch standard mains-voltage loads safely within those rated limits.

Q: How many pins does the H3Y-2 relay have and what socket does it use?

The H3Y-2 features 8 pins, which is the standard pin configuration compatible with 8-pin relay sockets (also known as PYF08A or equivalent octal sockets). The pins ensure stable electrical contact for reliable circuit switching.

H3Y-2 Delay Timer Relay AC 220V 10s 8-Pin Time Relay

$18.71 $25.16

H3Y-2 Delay Timer Relay – AC 220V, 10-Second, 8-Pin

Take precise control of your electrical circuits with the H3Y-2 Delay Timer Relay. Designed for industrial and DIY automation applications, this compact time relay features an intuitive rotating dial for effortless delay-time setting and delivers consistent, stable switching performance. Whether you're building automation control panels, sequential circuits, or motor start-delay systems, this relay offers reliable 10-second delay timing in a durable, low-power package.

Key Features

Rotating Dial: Simple, tool-free adjustment for quick setup and configuration

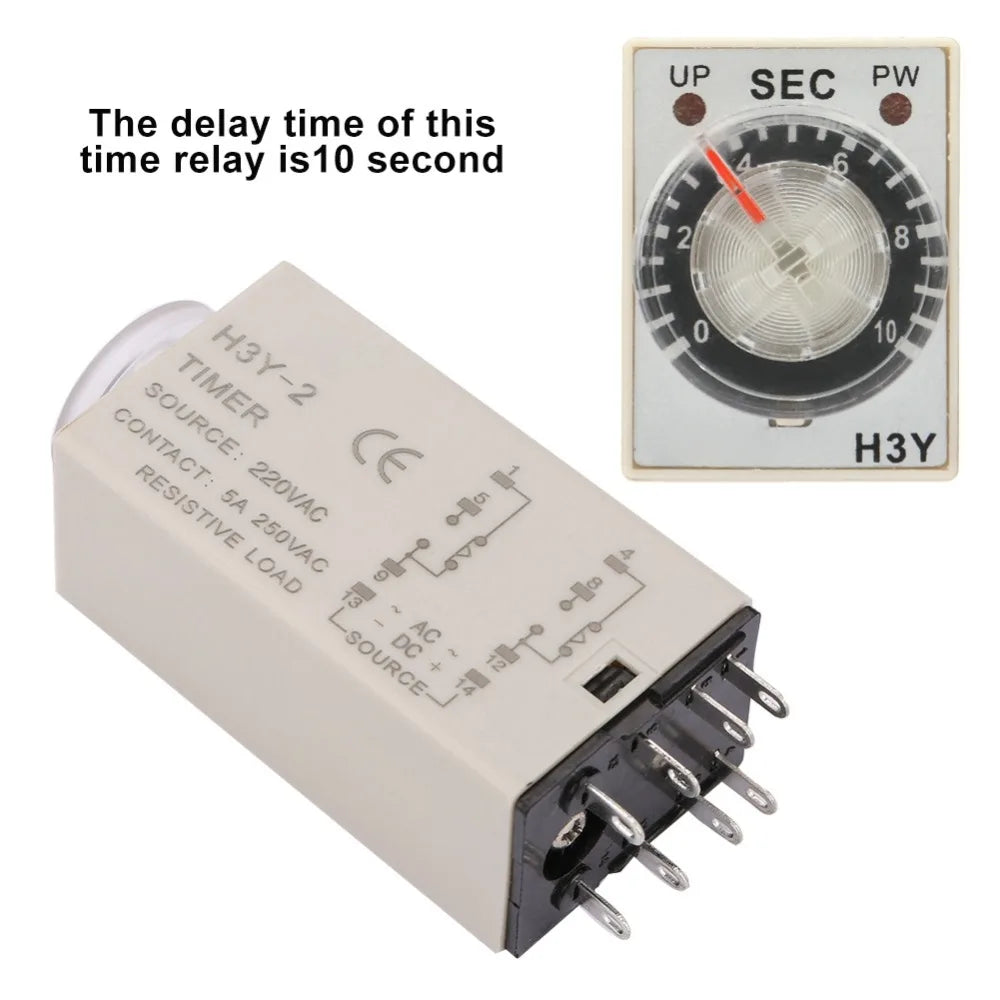

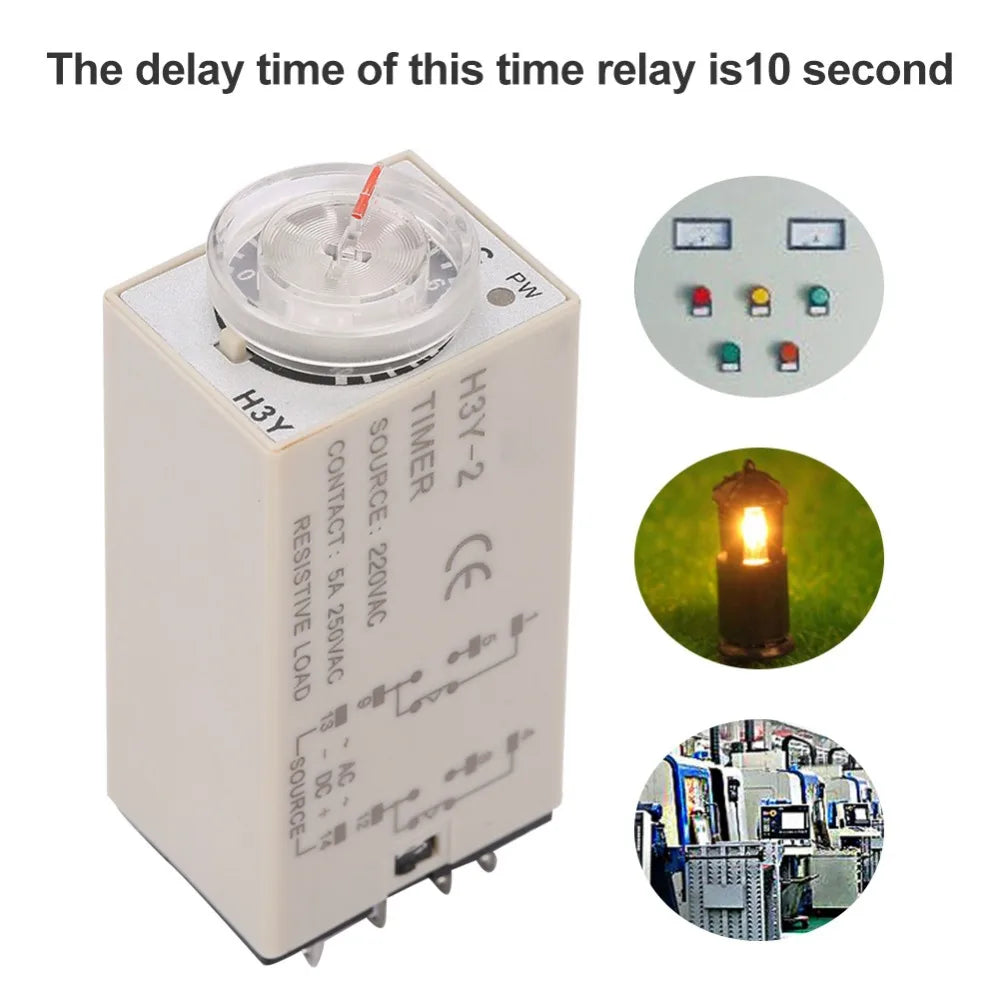

10-Second Delay Time: Fixed 10s ON-delay for precise timing control in electrical circuits
Low Power Consumption: Energy-efficient design suitable for continuous operation
Premium Build Quality: Constructed from durable materials for long-lasting, reliable performance

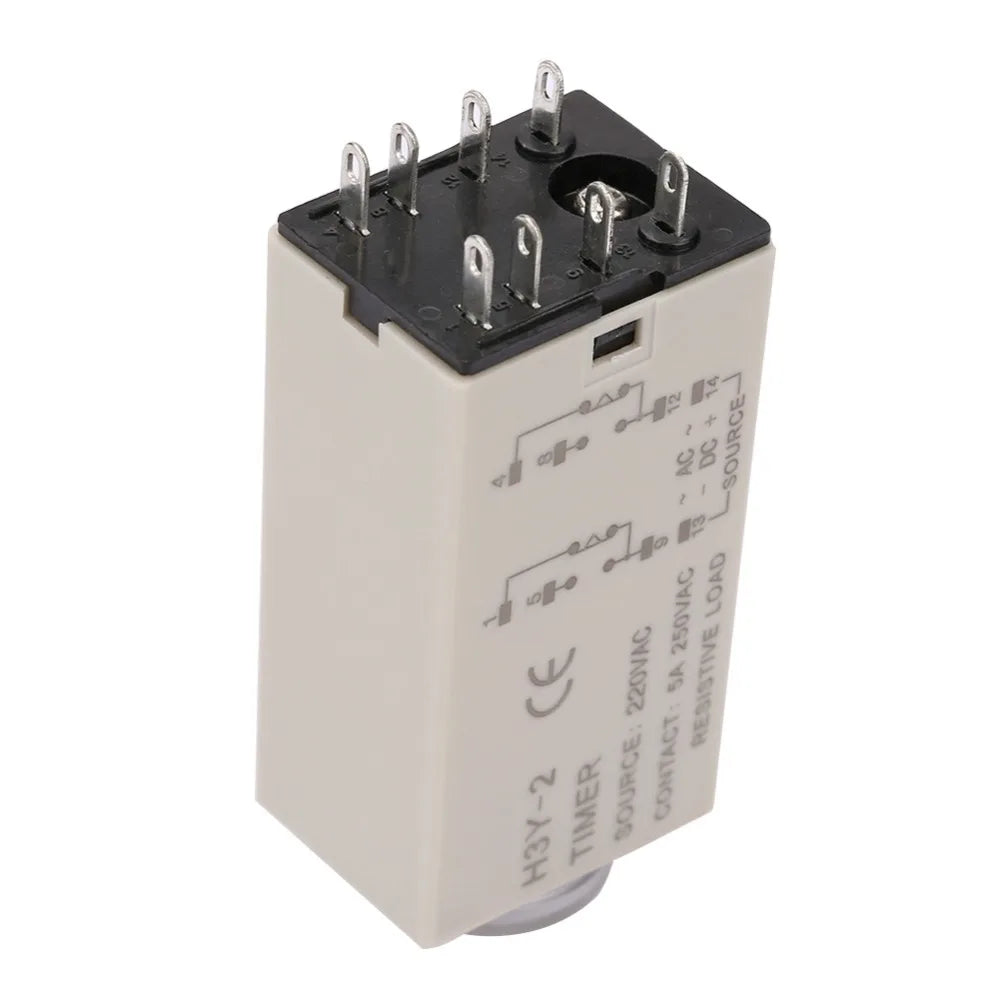

Stable Contact Performance: 8 high-quality pins ensure solid, consistent electrical contact

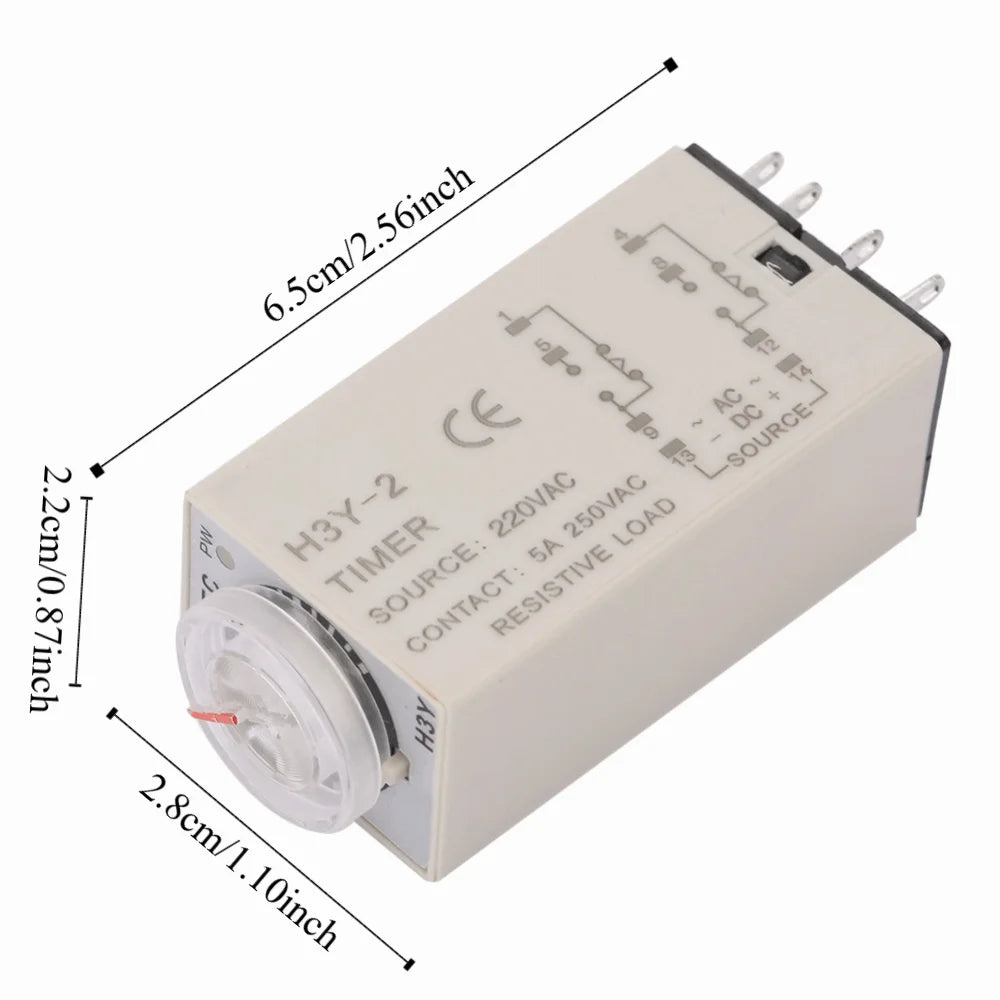

Compact & Lightweight: Small footprint at just 65×28×22 mm and approximately 40 g makes it easy to integrate into panels or enclosures

Specifications

Model	H3Y-2
Working Voltage	220V AC
Delay Time	10 Seconds
Contact Rating	250V AC, 5A
Number of Pins	8 Pins
Dimensions	65 × 28 × 22 mm (2.56 × 1.10 × 0.87 in)
Weight	Approx. 40 g / 1.4 oz

What's in the Box

1 × H3Y-2 Delay Timer Relay

Made in Mainland China.

Frequently Asked Questions

Q: What is the delay time of the H3Y-2 time relay?

A: The H3Y-2 delay timer relay has a fixed delay time of 10 seconds. Once powered, it counts down 10 seconds before activating or switching its output contacts, making it ideal for ON-delay timing applications in electrical circuits and automation systems.

Q: What voltage does this delay timer relay operate on?

A: This H3Y-2 timer relay is designed to operate at 220V AC (coil voltage). Its contact rating is 250V AC at 5A, allowing it to switch standard mains-voltage loads safely within those rated limits.

Q: How many pins does the H3Y-2 relay have and what socket does it use?

A: The H3Y-2 features 8 pins, which is the standard pin configuration compatible with 8-pin relay sockets (also known as PYF08A or equivalent octal sockets). The pins ensure stable electrical contact for reliable circuit switching.

Q: Can this relay be used in DIY home automation projects?

A: Yes — the H3Y-2 delay timer relay is popular in both industrial control panels and DIY automation setups. Its compact size, rotating dial, and straightforward 8-pin wiring make it easy to incorporate into custom timing circuits, motor start-delay sequences, and other electrical automation applications.
