Handheld Wall Scanner Metal Detector – AC Wire & Pipe Finder
Handheld Wall Scanner Metal Detector – AC Wire & Pipe Finder
Locate Hidden Metals, Pipes & Live Wires with Confidence

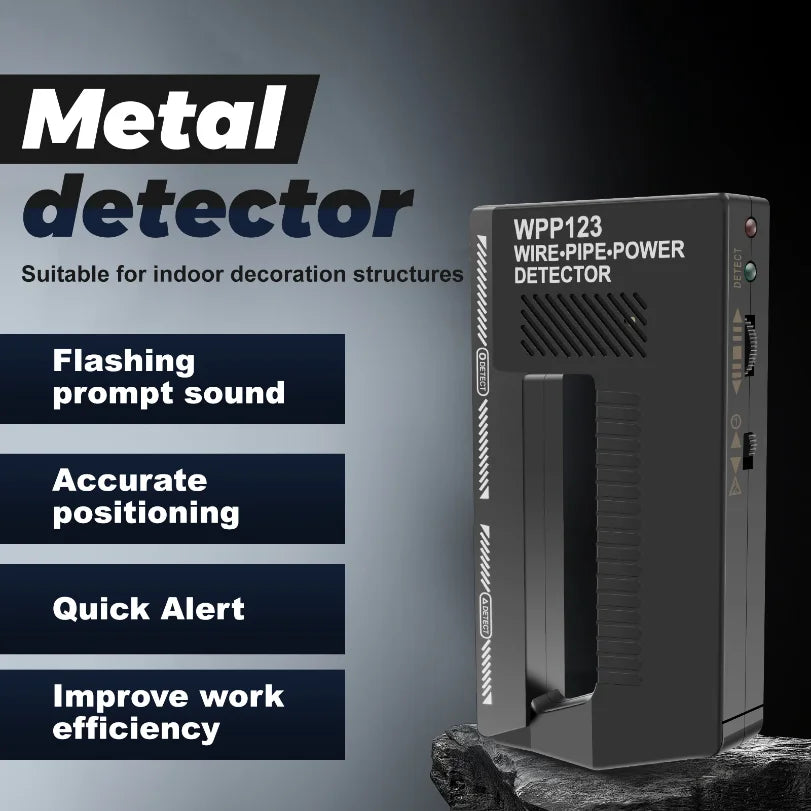

The VIBE Handheld Wall Scanner is your go-to tool for locating concealed metal objects, steel pipes, and live AC wires behind walls before you drill, nail, or cut. Compact, lightweight, and easy to operate, this high-sensitivity detector delivers both visual and audio alerts so you can work safely and accurately every time.
Key Features
- Dual Detection Modes: Switch between metal detection mode and AC voltage detection mode with a simple function selector.
- High Sensitivity: Detects steel pipes with a diameter of 15 mm at a depth of up to 24 mm, and live AC wires above 100V at depths up to 30 mm.
- Visual & Audio Alarm: Instant light and sound alerts notify you the moment a target is detected, so there's no guesswork.
- Compact & Ergonomic Design: Slim ABS body (148 × 78 × 24 mm) fits comfortably in hand for extended use.
- Battery-Powered Portability: Operates on a standard 9V (6F22) battery (not included), making it ready to use anywhere — no cords, no hassle.
- No LCD Screen Needed: Simple controls mean faster setup and easier operation on the job site or at home.
Specifications
- Material: ABS Plastic

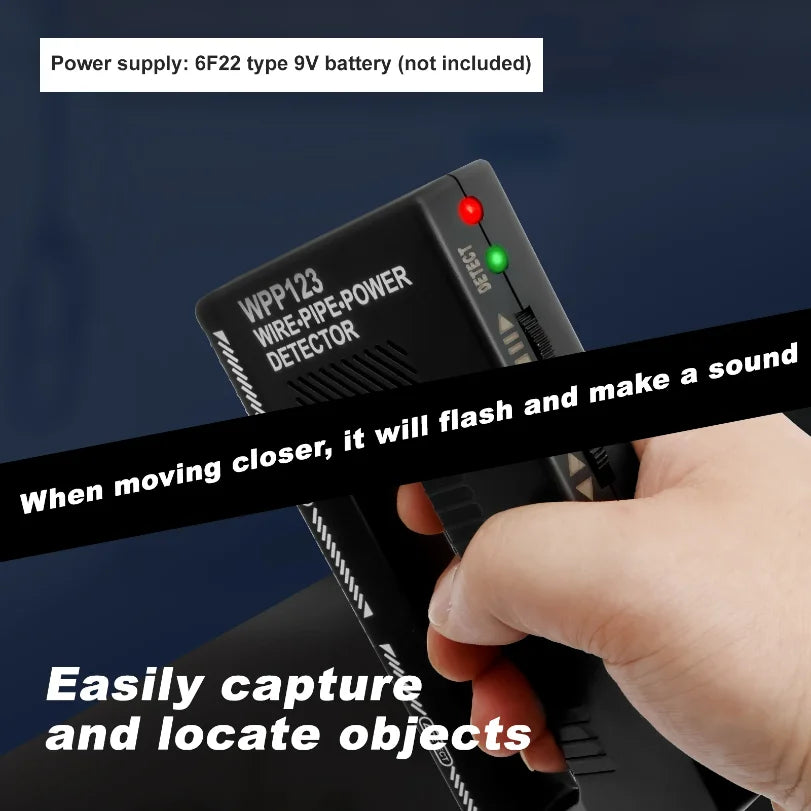

- Power Supply: 6F22 type 9V battery (not included)

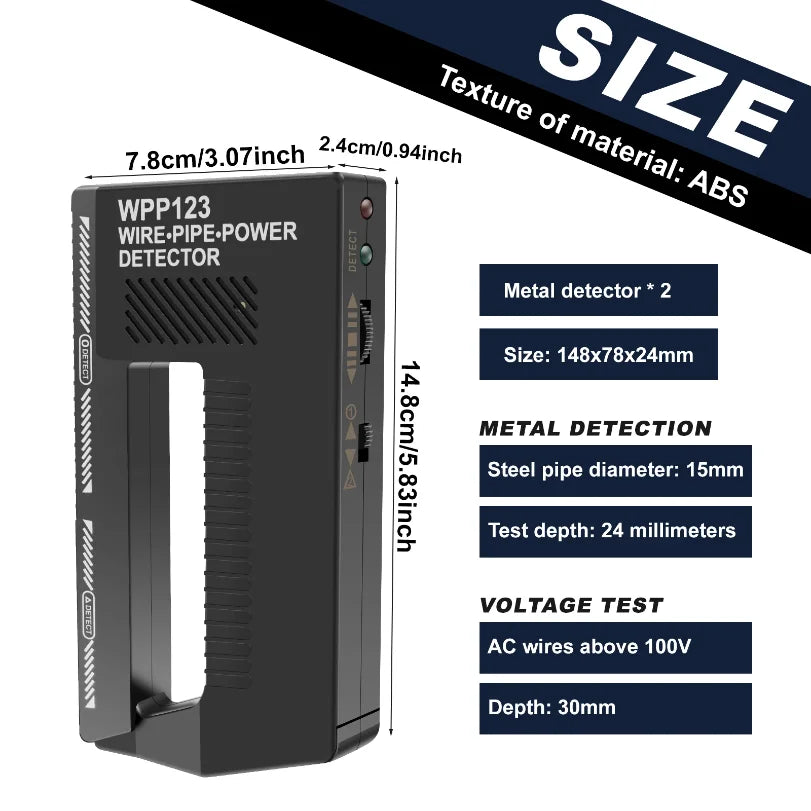

- Product Size: 148 × 78 × 24 mm (5.83 × 3.07 × 0.94 in)
- Metal Detection: Steel pipe ≥ 15 mm diameter, depth up to 24 mm (reference value)
- Voltage Detection: AC wire above 100V, depth up to 30 mm
- Color: Black
- Country of Origin: Made in China
How to Use
- Keep the detector away from the surface to be tested and power it on. Set the function switch to position 1. Slowly adjust the rotary knob until the device is in a silent, lightless standby state.
- For Metal Detection: In the silent/lightless state, place the DETECT bar parallel to the surface and slowly sweep the area. The alarm will trigger when metal is found.
- For AC Wire Detection: Switch the function selector to position 2, then move the DETECT bar slowly left and right across the detection area. An alert will sound and light when a live wire is detected.
- Always cut the power after use to preserve battery life.
Perfect For
- DIY home renovations and remodeling projects
- Electricians and plumbers verifying safe drilling zones
- Locating rebar, conduit, and steel pipes in concrete or drywall
- Identifying live electrical wires before cutting or nailing
Related Products You May Like
- 10-in-1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Bike Repair Tool Portable Folding Hex Wrench Set
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What type of battery does the wall scanner metal detector require?
A: The VIBE handheld wall scanner runs on a standard 6F22 type 9V battery. Please note the battery is not included with the device and must be purchased separately.
Q: Can this detector find both metal pipes and live electrical wires?
A: Yes! The detector features two selectable modes. Mode 1 is for locating metal objects and steel pipes (up to 24 mm depth), while Mode 2 is specifically for detecting live AC wires above 100V (up to 30 mm depth). Simply toggle the function switch to switch between modes.
Q: How do I know when the detector has found something?
A: The device provides both a visual light alert and an audible alarm the moment it detects metal or a live wire, giving you clear, instant feedback without needing to watch a screen.
Q: Is this wall scanner suitable for use on concrete walls?
A: This scanner is designed for typical wall surfaces including drywall and similar materials. Metal detection depth is rated at up to 24 mm for steel pipes (reference value), making it suitable for standard interior walls. Results may vary on thicker concrete or masonry surfaces.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
