Wall Scanner Metal Detector – AC Wire & Pipe Finder | VIBE
Wall Scanner Metal Detector – AC Wire & Pipe Finder | VIBE
Locate Hidden Metal, Pipes & Live AC Wires Before You Drill

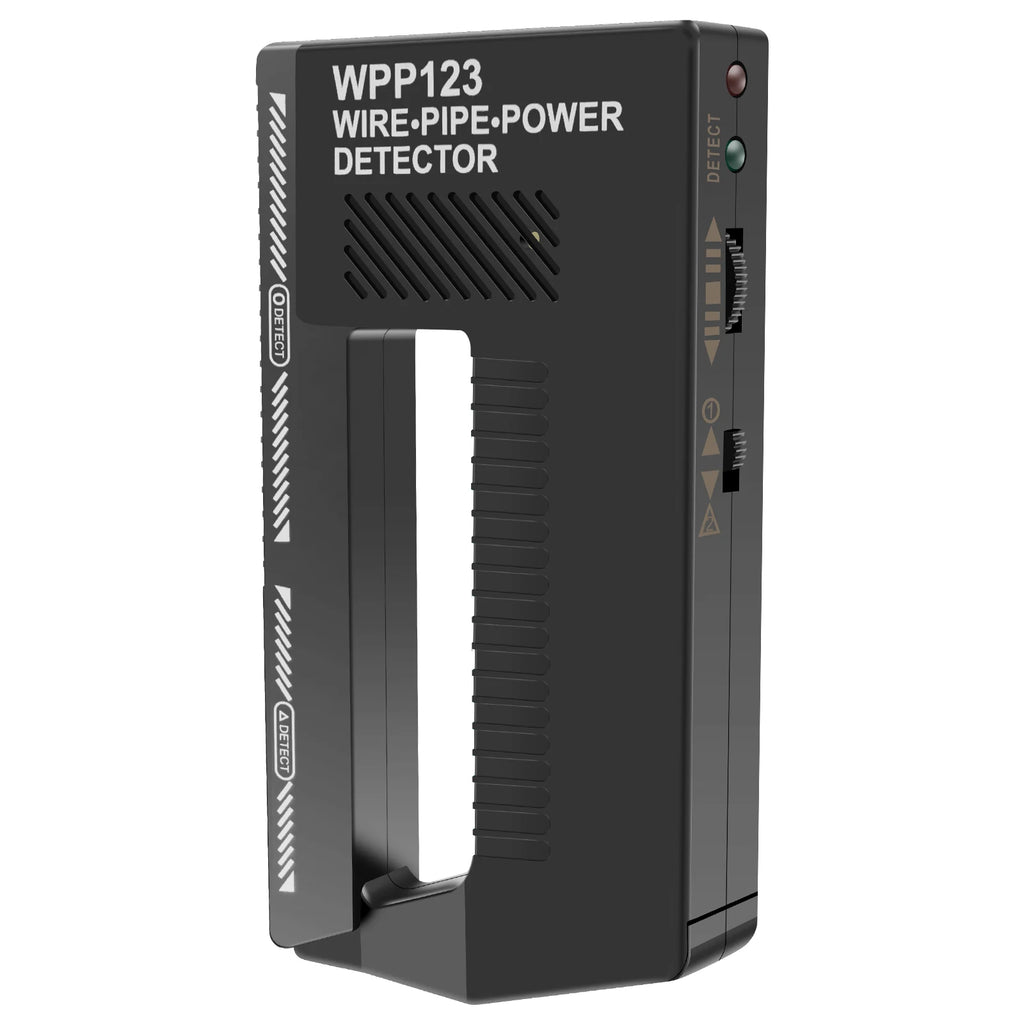

The VIBE Handheld Wall Scanner is a compact, high-sensitivity detection tool designed for homeowners, contractors, and DIY enthusiasts. Whether you're hanging shelves, running new wiring, or planning a renovation, this pocket-sized detector helps you pinpoint steel pipes and live AC wires hidden behind walls — before any damage is done.
Key Features
- Dual Detection Modes: Switch between metal detection mode and AC voltage detection mode (100V and above) for versatile wall scanning.
- High Sensitivity: Detects steel pipes with a diameter of 15 mm at depths up to 24 mm, and live AC wires at depths up to 30 mm.

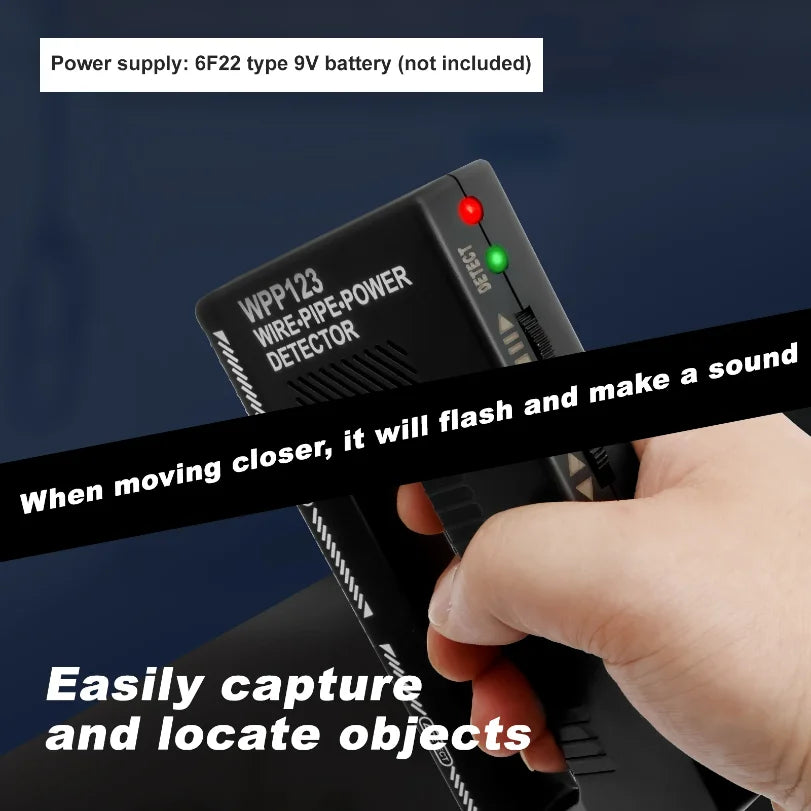

- Visual & Audio Alert: Clear visual alarm combined with an audible signal alerts you the moment a target is detected — no guesswork required.
- Ergonomic Handheld Design: Slim ABS body measuring 148 × 78 × 24 mm fits comfortably in one hand for easy, steady scanning.
- Simple Two-Step Operation: Intuitive rotary function switch makes calibration and detection straightforward, even for first-time users.
- Battery-Powered Portability: Runs on a standard 9V (6F22) battery (not included), so you can take it anywhere on the job site.
- Durable ABS Construction: Lightweight yet rugged housing stands up to regular workshop and job-site use.
Specifications
| Material | ABS Plastic |
| Color | Black |

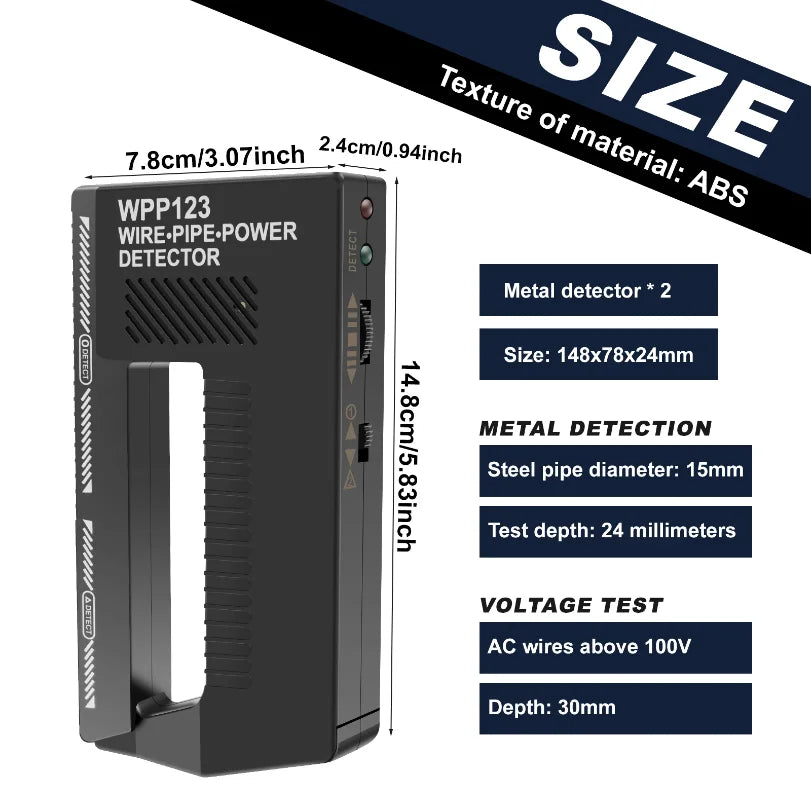

| Dimensions | 148 × 78 × 24 mm (5.83 × 3.07 × 0.94 in) |
| Power Supply | 9V 6F22 Battery (not included) |
| Metal Detection Depth | Up to 24 mm (steel pipe ≥15 mm diameter) |
| AC Wire Detection Depth | Up to 30 mm (AC voltage ≥100V) |
| LCD Screen | No |
| Country of Origin | Made in China |
How to Use
- Move the device away from any metal objects, power on the unit, and set the function switch to position 1. Slowly adjust the rotary knob until the indicator light goes off and the buzzer is silent — this is your calibrated baseline.

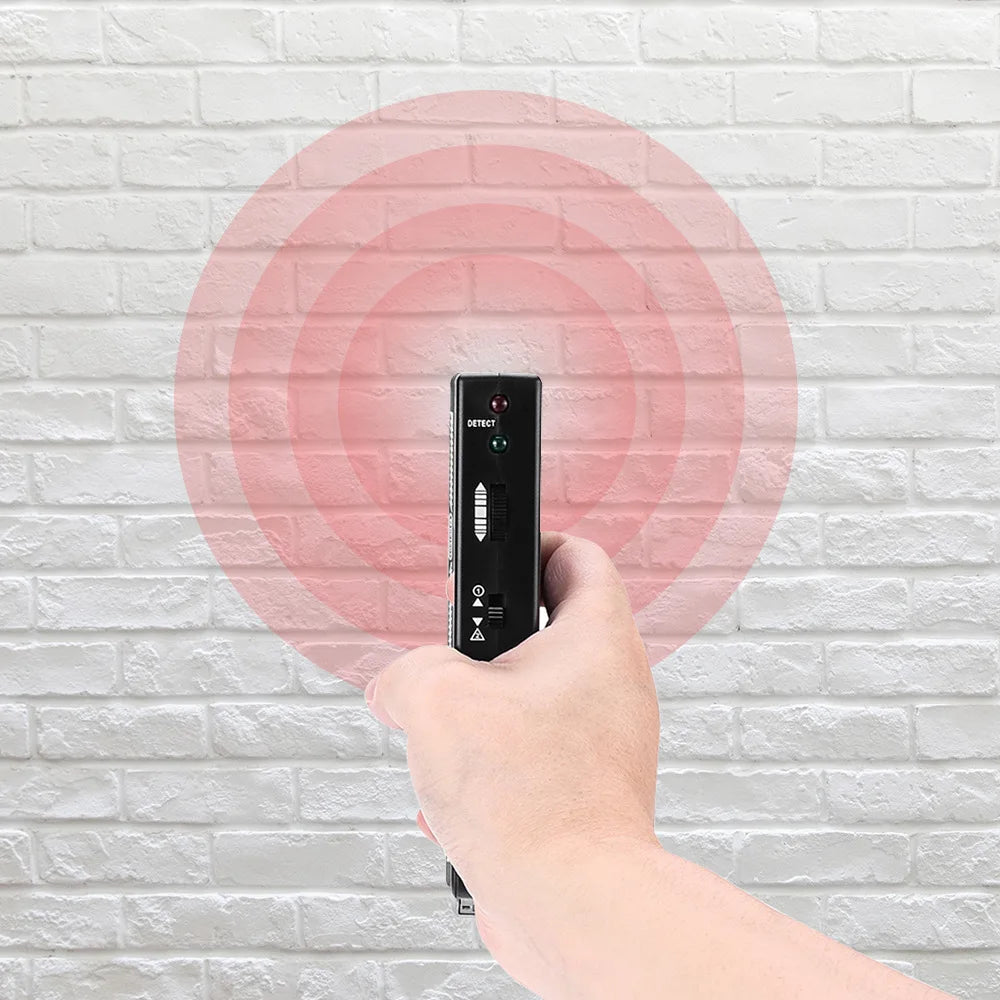

- Hold the detection bar parallel to the wall surface and slowly scan. Any metal object within range will trigger the alert.
- To check for live AC wires, switch to position 2 and move the detection bar slowly left and right across the wall surface.
- When finished, switch off the power to conserve battery life.
Great for These Tasks
- Pre-drill checks before hanging pictures, shelves, or TV mounts
- Locating hidden conduit, rebar, or plumbing pipes in walls and floors
- Identifying live electrical wires before cutting or drilling
- General home renovation and construction projects
Related Products You May Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Does the handheld wall scanner come with a battery?
A: No, the VIBE wall scanner requires one standard 9V (6F22) battery to operate, which is not included in the package. These batteries are widely available at hardware and convenience stores.
Q: What is the maximum detection depth for metal pipes?
A: This wall scanner can detect steel pipes with a diameter of at least 15 mm at depths of up to 24 mm below the surface. AC wire detection extends up to 30 mm for wires carrying 100V or more.
Q: Can this detector find both metal pipes and live electrical wires?
A: Yes! The device features a two-position function switch. Position 1 is calibrated for metal detection (pipes, rebar, etc.), while position 2 is dedicated to AC voltage wire detection (100V and above). Simply toggle between modes as needed.
Q: Is the detector suitable for use on floors and ceilings as well as walls?
A: Absolutely. The handheld design allows you to scan any flat surface — walls, floors, and ceilings — wherever you need to locate hidden metal or live wiring before drilling or cutting.
