HAT310 ATS Controller – Diesel Generator Control Panel Module

HAT310 ATS Controller for Diesel Generator Set Control Panel

The HAT310 Automatic Transfer Switch (ATS) Controller is a compact, reliable control panel module designed for diesel generator sets. Featuring automatic mains-to-generator transfer and restore functionality, this module ensures your power switching is seamless and fully automated — ideal for industrial, commercial, and backup power applications.

Made in Mainland China.

Key Features

• Automatic Transfer & Restore: Automatically switches between mains and generator power and restores when mains supply returns.
• Under-Voltage & Phase-Loss Detection: Monitors all phases and triggers generator start if any phase voltage drops below the minimum working threshold or a phase loss is detected.

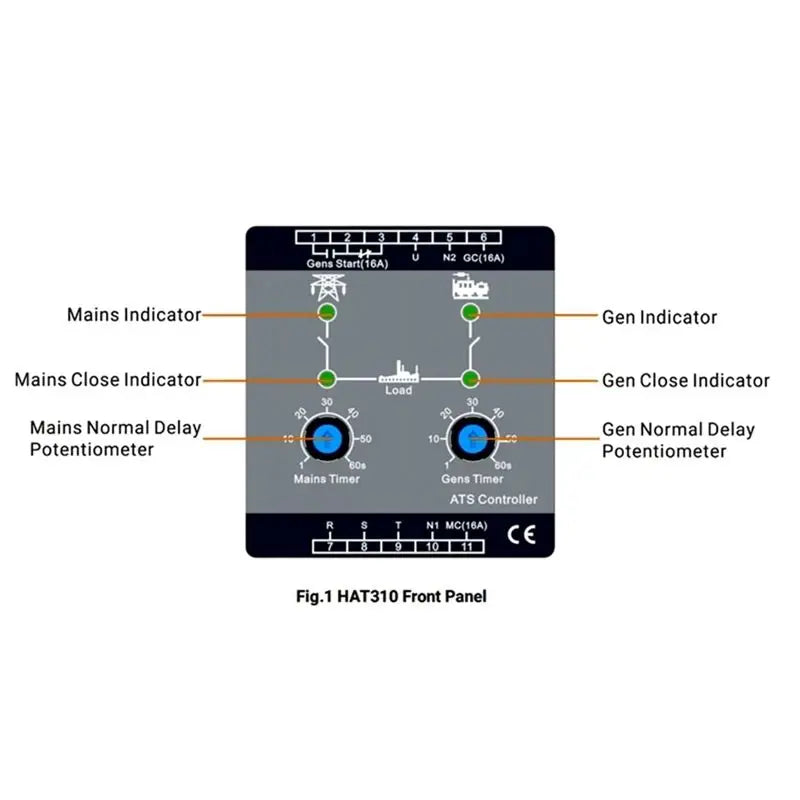

• Clear LED Status Indicators: Front-panel LED indicators provide at-a-glance visibility of the controller's working status at all times.
• Dual Neutral Line Support: Compatible with 2 isolated neutral line configurations for flexible installation.
• Adjustable Delay Timers: Mains normal delay and generator normal delay are each independently configurable via potentiometer (range: 1–60 seconds each).
• High-Capacity Relay Outputs: Mains and generator transfer relay output contact capacity: 16A AC250V — can directly drive switch conversion. Generator start relay output: 16A AC250V, volt-free normally open / normally closed contact.
• Strong EMI Resistance: Engineered with robust anti-electromagnetic interference performance, suitable for environments with high electromagnetic activity.
• Modular & Compact Design: Self-extinguishing ABS plastic shell with pluggable terminals for easy wiring and maintenance.
• Dual Mounting Options: Supports both 35mm DIN guide rail and internal screw mounting for versatile panel installation.

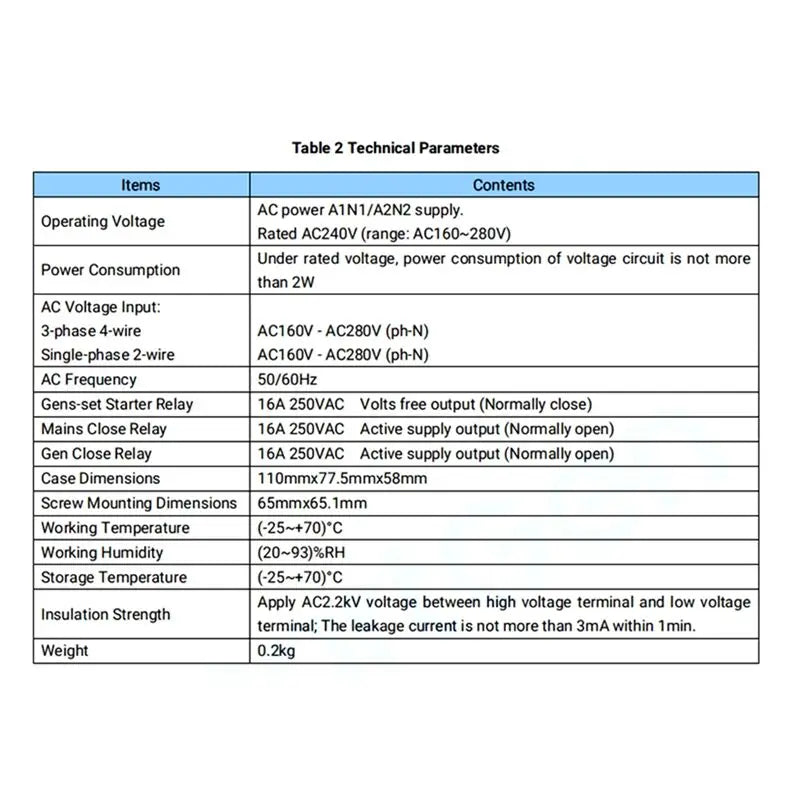

Specifications

• Model: HAT310 ATS Controller
• Material: Self-extinguishing ABS Plastic
• Relay Output Capacity: 16A AC250V
• Delay Range: 1–60 seconds (adjustable via potentiometer)
• Mounting: 35mm DIN rail or screw mount
• Color: As shown

Package Contents

• 1 × HAT310 ATS Controller Module

Note: Due to different product batches, the appearance may vary slightly, which does not affect functionality. Color may differ slightly from images due to display settings. Measurement tolerance: ±1–3cm.

Related Products You May Like

• 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
• 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
• A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the HAT310 ATS Controller used for?

A: The HAT310 ATS (Automatic Transfer Switch) Controller is designed for diesel generator set control panels. It automatically transfers the power supply from mains to a generator when mains voltage drops below the threshold or a phase loss is detected, and restores it when mains power returns — ensuring uninterrupted power management.

Q: How are the transfer delay times configured on the HAT310?

A: Both the mains normal delay and the generator normal delay are independently adjustable via onboard potentiometers, with a configurable range of 1 to 60 seconds each. This allows you to fine-tune transfer timing to suit your specific power application requirements.

Q: What mounting options does the HAT310 ATS Controller support?

A: The HAT310 supports two installation methods: standard 35mm DIN guide rail mounting and internal screw mounting, providing flexible options for integration into various control panel configurations.

Q: Is the HAT310 suitable for use in electrically noisy environments?

A: Yes. The HAT310 features strong anti-electromagnetic interference (EMI) performance, making it suitable for environments with significant electrical noise, such as industrial facilities and generator rooms.
