HDMI KVM Extender 60m Cat5e/6 1080P USB POC Loop Out TX RX
HDMI KVM Extender 60m Cat5e/6 1080P USB POC Loop Out TX RX

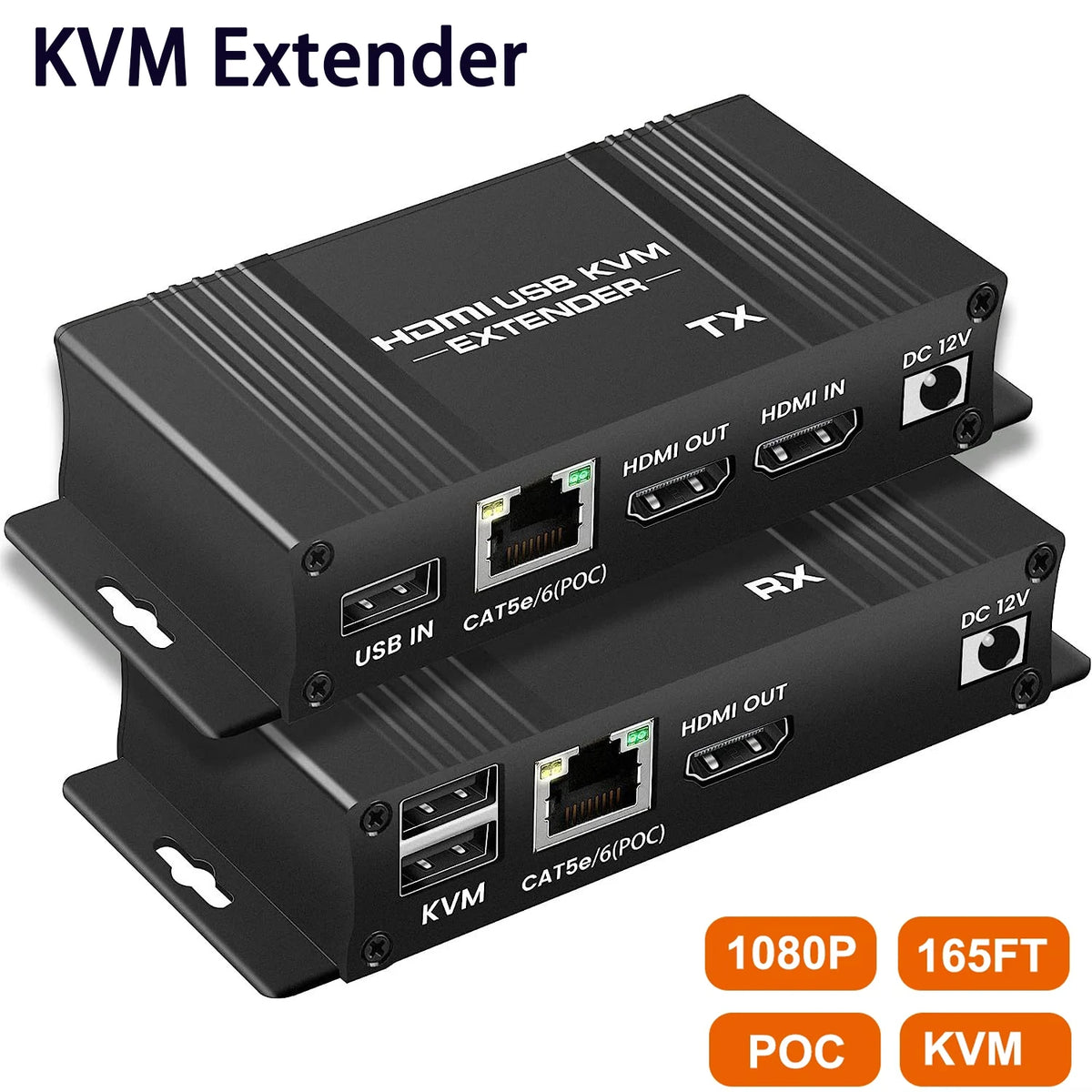

Extend Your HDMI & USB KVM Signal Up to 60 Metres Over Ethernet
Take full control of your PC from up to 60 metres away using just a single Cat5e or Cat6 cable. This HDMI KVM Extender transmits crisp 1080p @ 60Hz video along with keyboard and mouse signals over standard Ethernet infrastructure — no expensive dedicated cabling required. Featuring Power over Cable (POC) support, an HDMI loop-out on the transmitter for local monitoring, and a compact, CE-certified design, this extender is ideal for boardrooms, server rooms, digital signage, classrooms, and home offices.
Made in Mainland China.
Key Features
- 60m Transmission Range: Extends HDMI & USB KVM signals up to 60 metres over Cat5e/Cat6 Ethernet cable (tested at 50m with Cat6e 26AWG).

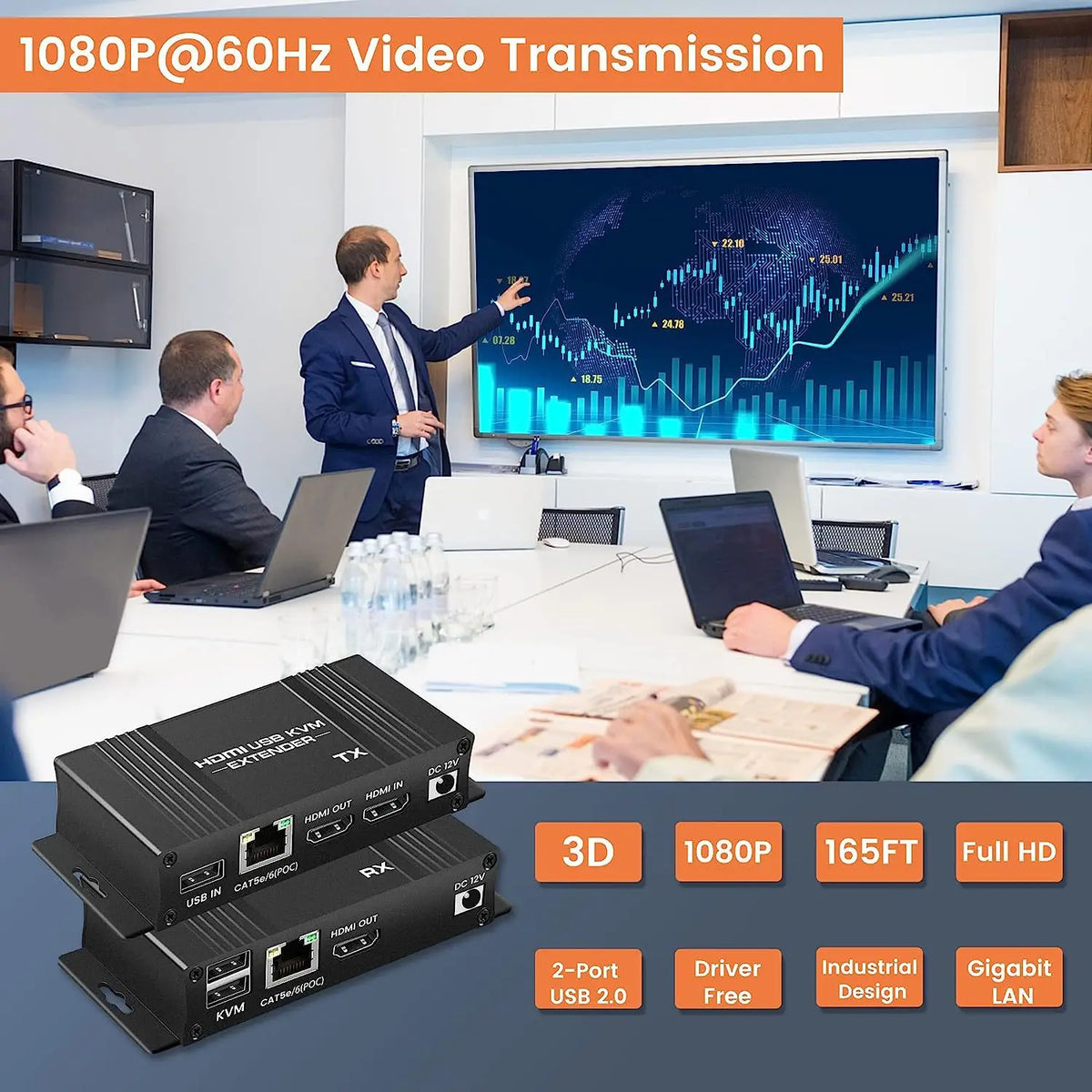

- Full HD 1080p @ 60Hz: Delivers smooth, high-definition video with no visible lag or quality loss.
- HDMI Loop-Out on TX: Connect a local monitor to the transmitter unit for simultaneous on-site viewing while extending to a remote display.
- POC (Power over Cable): Supports POC at both TX and RX — power just one unit and the other is powered through the cable, reducing clutter.

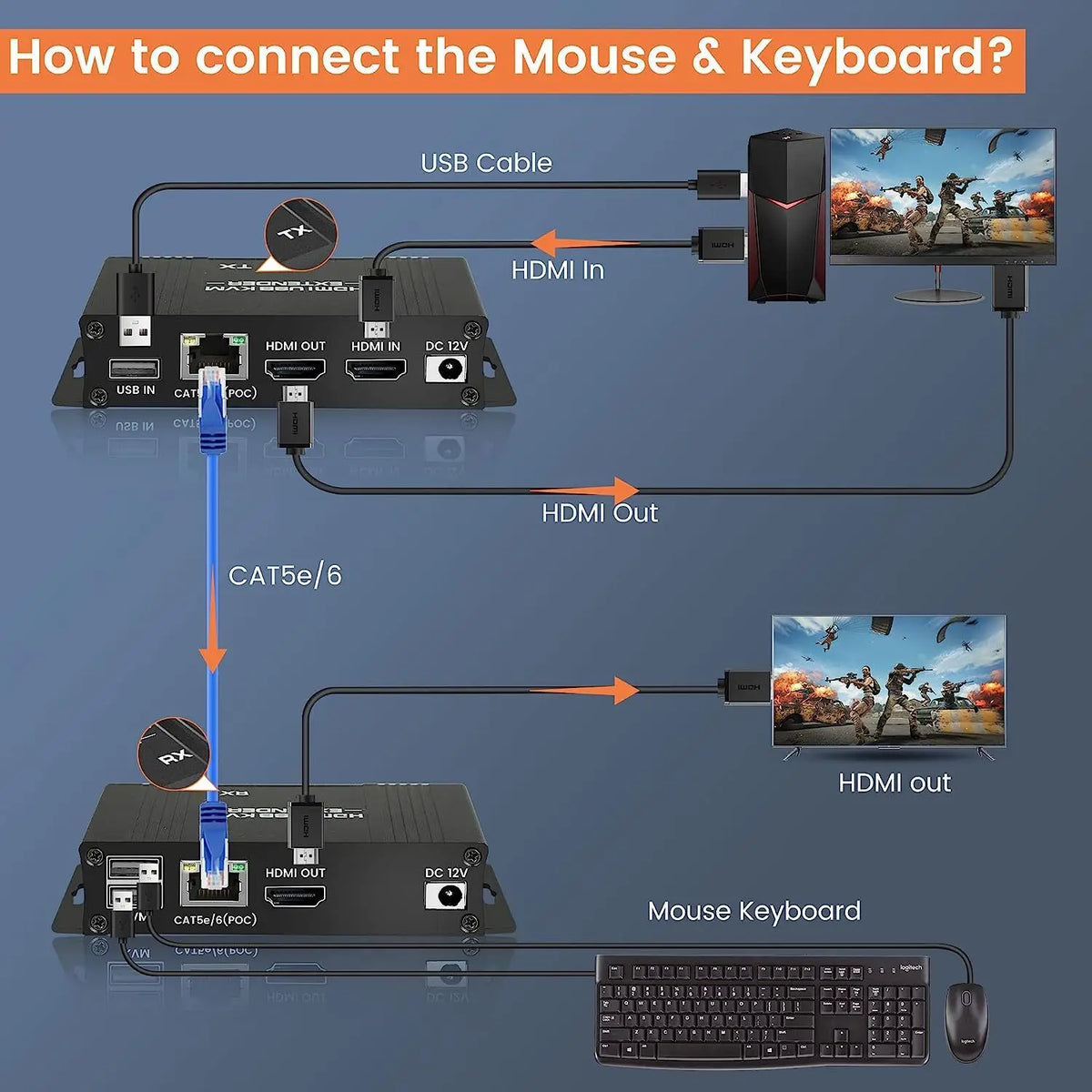

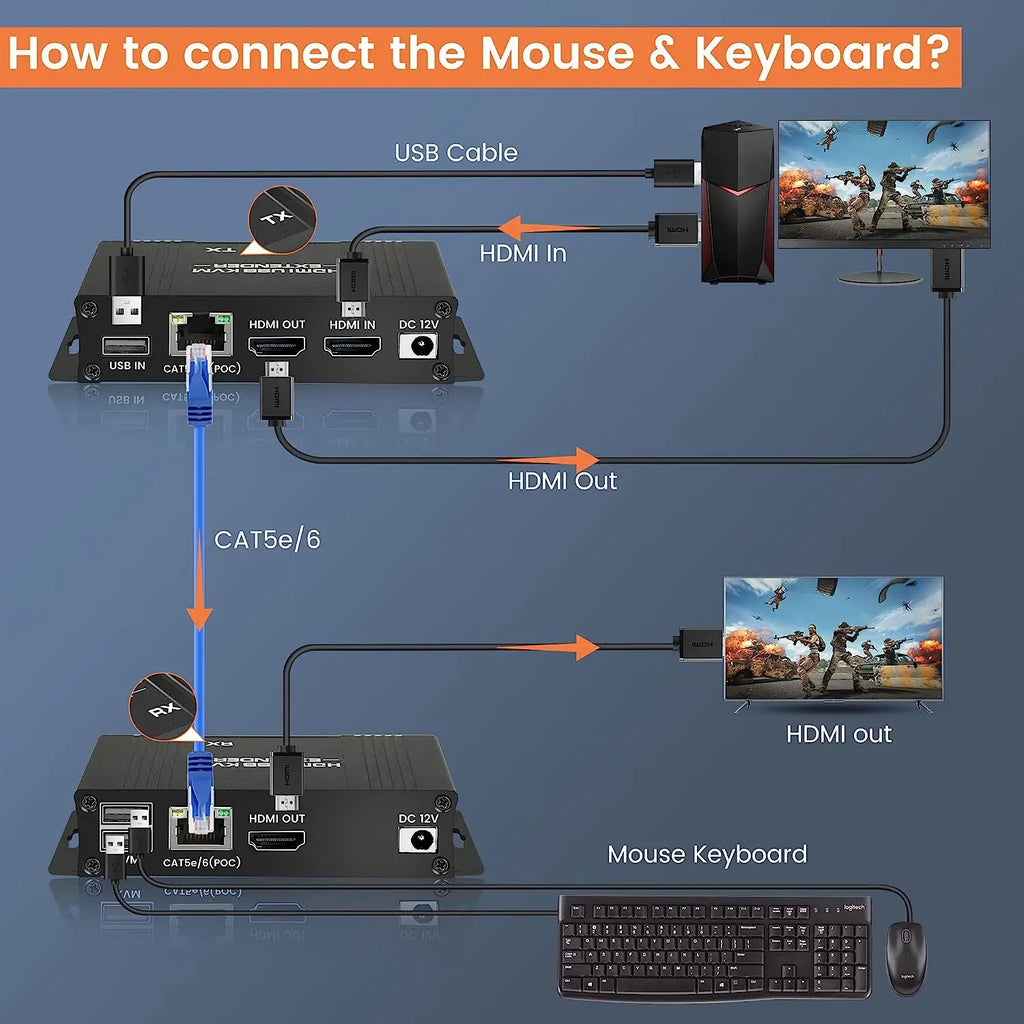

- USB KVM Support: Connects a standard wired keyboard and mouse at the remote end for full computer control. Best compatibility with 104-key standard keyboards and wired mice.
- Point-to-Point Connection: Plug-and-play setup — no network switch or router required.

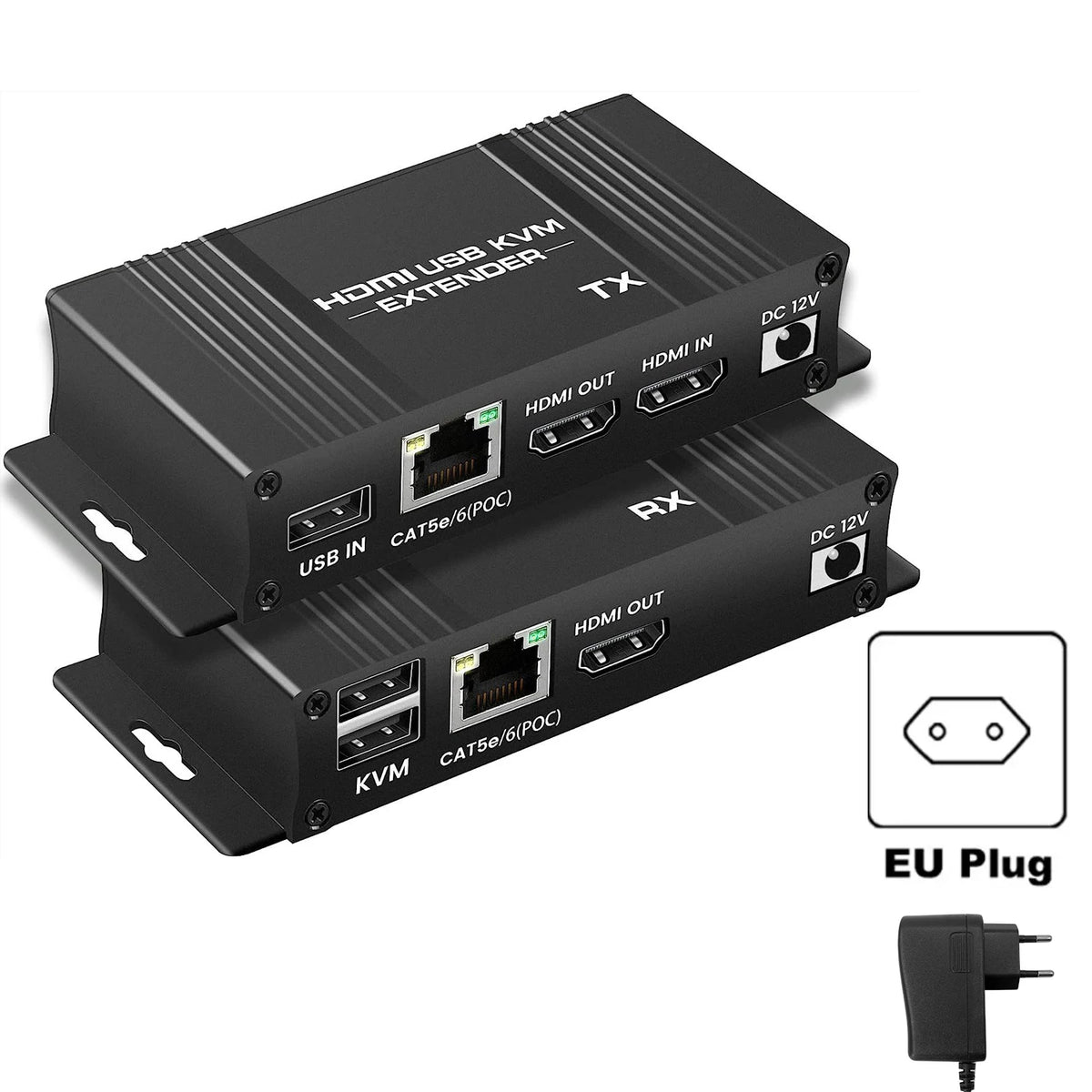

- 12V External Power Supply Included: EU plug power adapter included; only one power supply is needed thanks to POC.
- CE Certified: Meets European safety and electromagnetic compatibility standards.
Important Notes Before You Buy
- A Cat5e or higher cable with a pure copper conductor is required for optimal performance. Copper-clad aluminium (CCA) cables are not recommended.
- Use an HDMI ATC-certified cable to connect your video source and display.
- This KVM extender has limited compatibility with wireless and mechanical keyboards/mice. A standard 104-key wired keyboard and wired mouse are strongly recommended.
- Only one 12V power supply is included. POC allows this single supply to power both TX and RX units.
- Transmission distance depends on the quality of the Ethernet cable used. Tested at 50m with Cat6e 26AWG.
Technical Specifications
| Video Resolution | Up to 1080p @ 60Hz |
| Transmission Distance | Up to 60m (Cat5e/Cat6) |

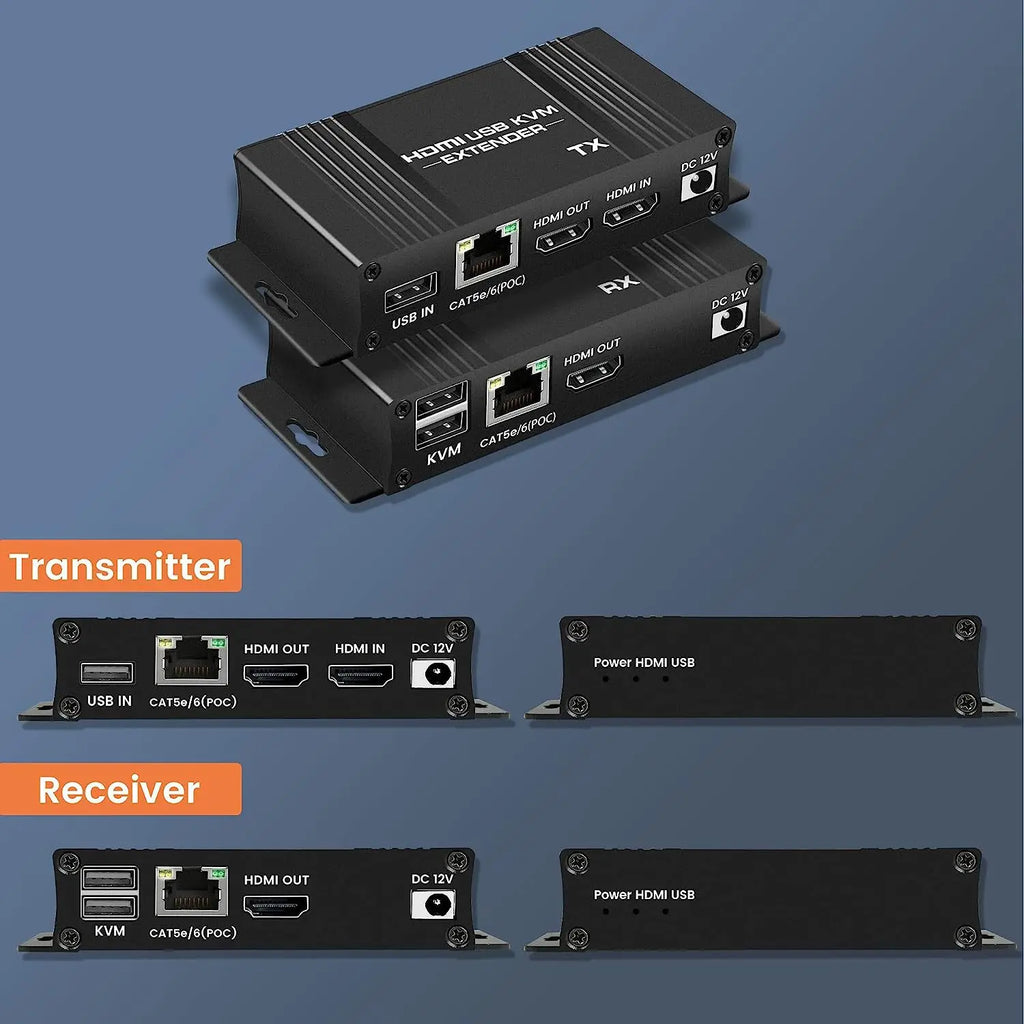

| Connector A (TX) | HDMI + USB |
| Connector B (RX) | HDMI |
| Power | 12V External (EU Plug, included) |
| POC Support | Yes – TX & RX |
| Loop Out | Yes – HDMI Loop Out on TX |
| Connection Type | Point-to-Point |
| Dimensions | 170 × 147 × 51 mm |
| Weight | 365g |
| Certification | CE |

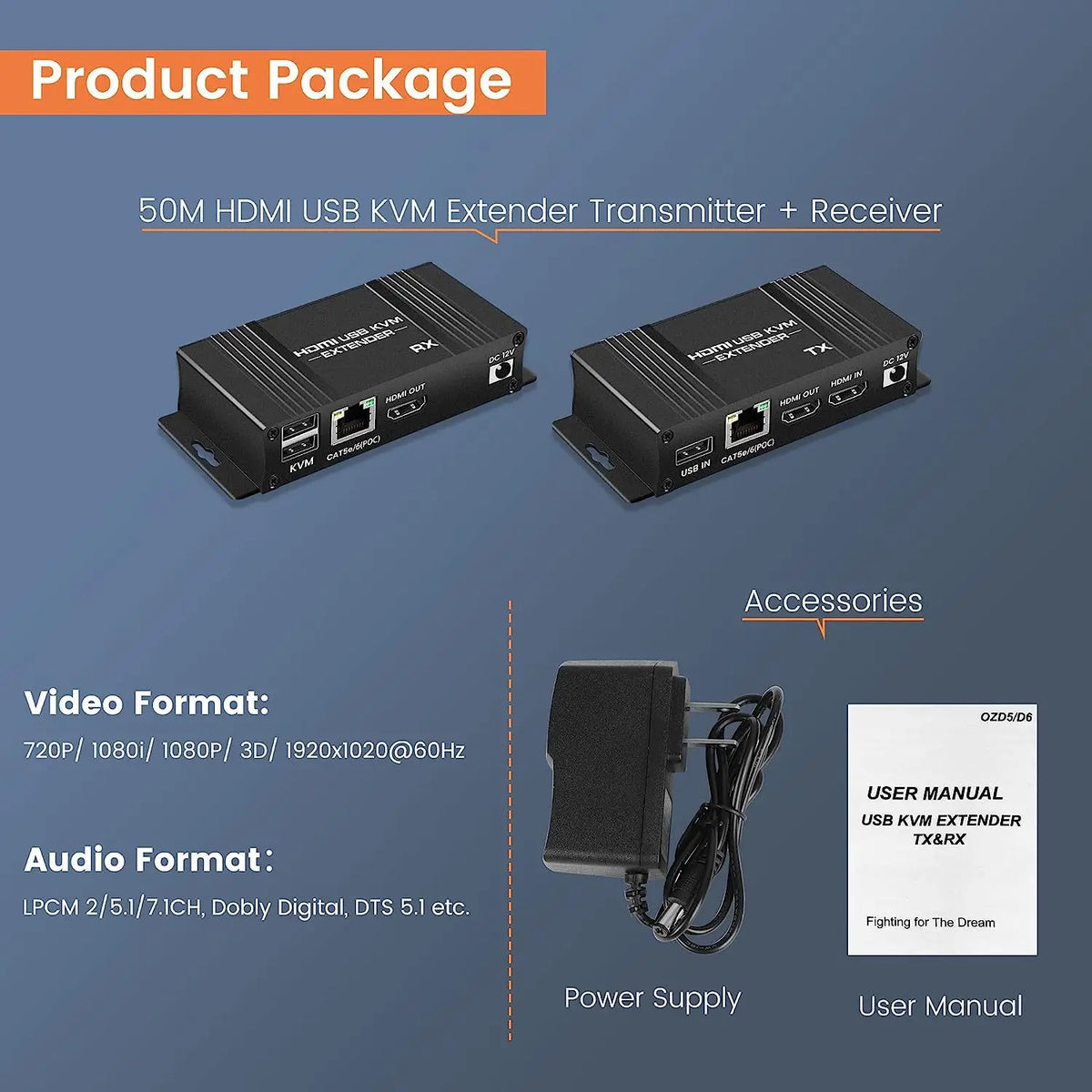

What's in the Box
- 1 × HDMI KVM Extender TX Unit
- 1 × HDMI KVM Extender RX Unit
- 1 × USB Data Cable
- 1 × 12V Power Supply (EU Plug)
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench – Portable Repair Hand Tool
- 16-in-1 Multi-Function Repair Tool – Portable Folding Hex Wrench Set
- 3-in-1 Precision Screwdriver Keychain – Portable Mini Repair Tool
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What cable do I need to use with this HDMI KVM Extender?
A: You need a qualified Cat5e or Cat6 Ethernet cable with a pure copper conductor for reliable transmission. Copper-clad aluminium (CCA) cables may cause signal degradation. The unit has been tested and verified at 50 metres using Cat6e 26AWG cable. Maximum range is up to 60 metres depending on cable quality.
Q: Does this KVM extender work with wireless keyboards and mice?
A: Compatibility with wireless and mechanical keyboards/mice is very limited. For the best experience, we recommend a standard 104-key wired USB keyboard and a standard wired USB mouse at the remote (RX) end.

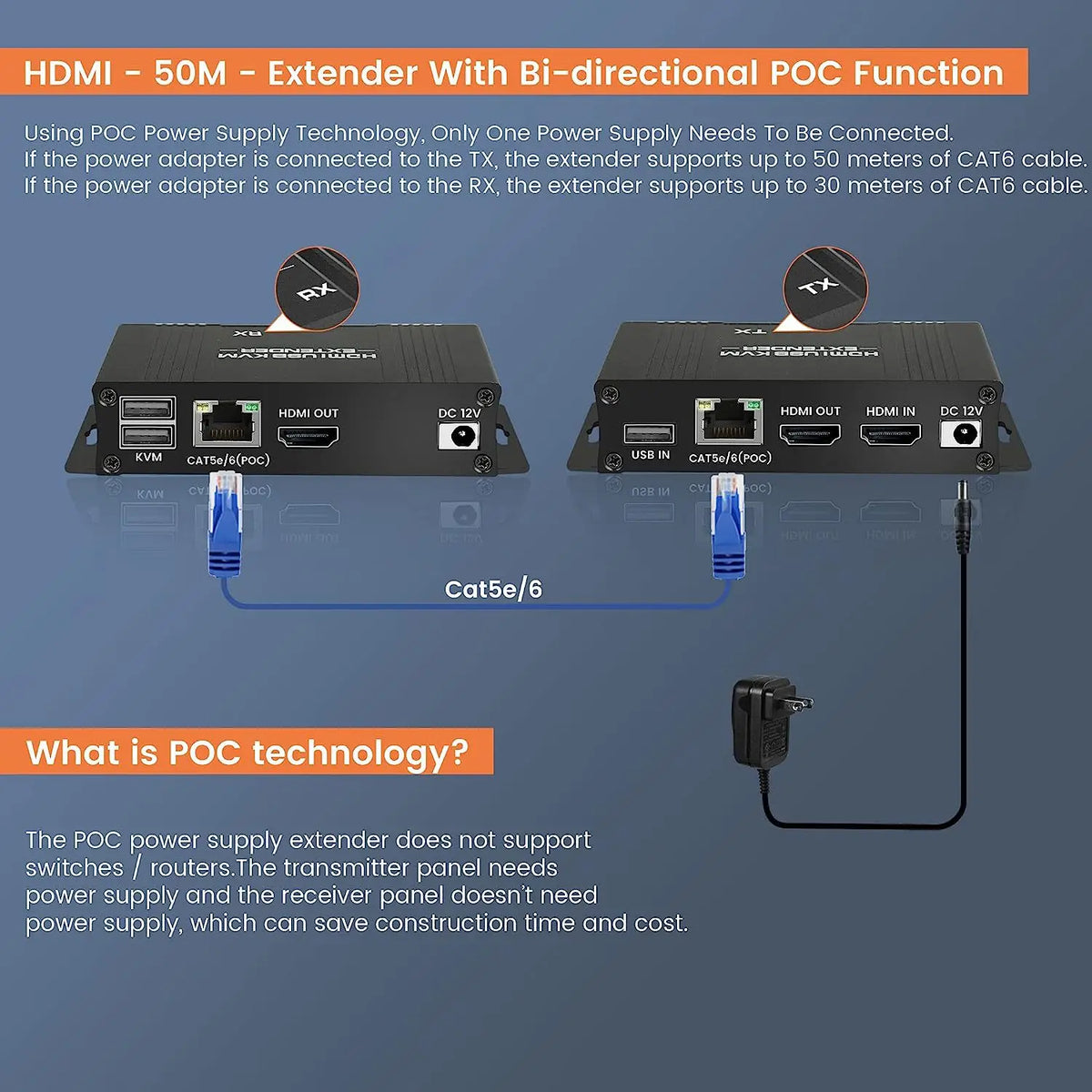

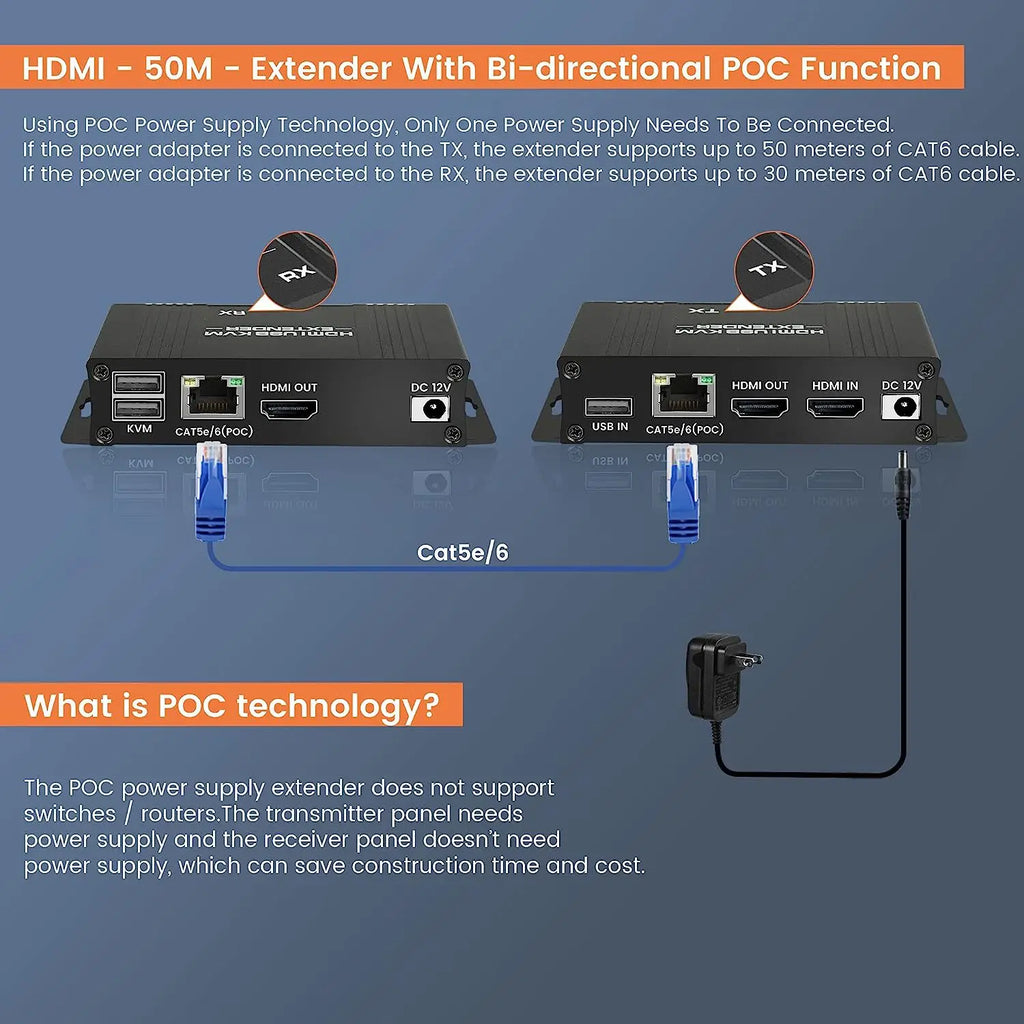

Q: How does the POC (Power over Cable) feature work?
A: POC allows the included single 12V power supply to power both the transmitter (TX) and receiver (RX) units through the Cat5e/6 cable itself. You only need to plug in the power adapter at one end — either TX or RX — and the other unit will receive power through the cable, keeping your setup clean and simple.
Q: Can I use the HDMI loop-out to view the source on a local monitor at the same time?
A: Yes. The transmitter (TX) unit features an HDMI loop-out port that lets you connect a local display alongside the remote extended display, enabling simultaneous viewing at both locations.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
