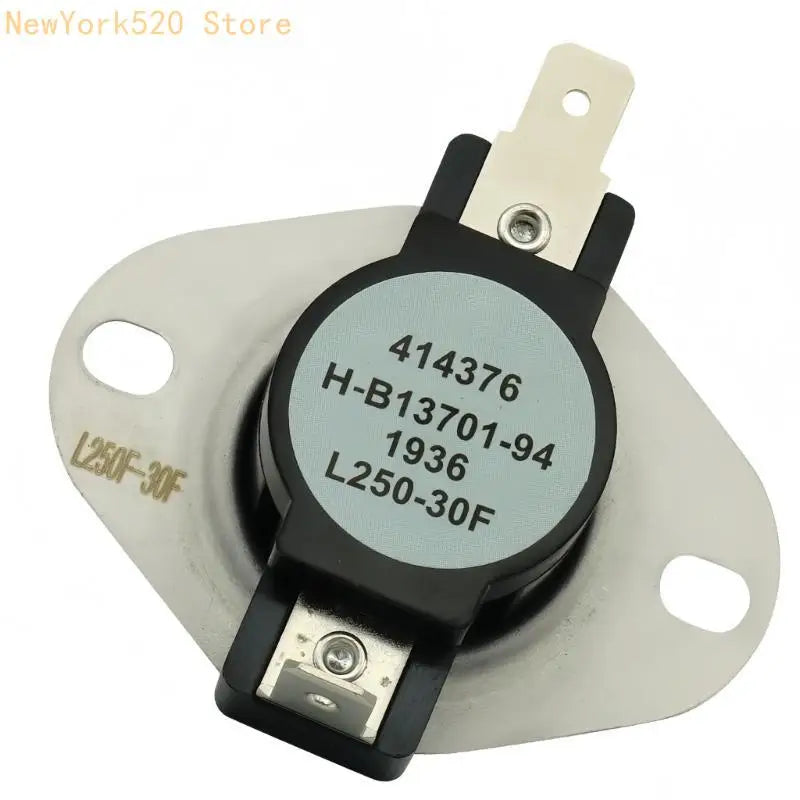

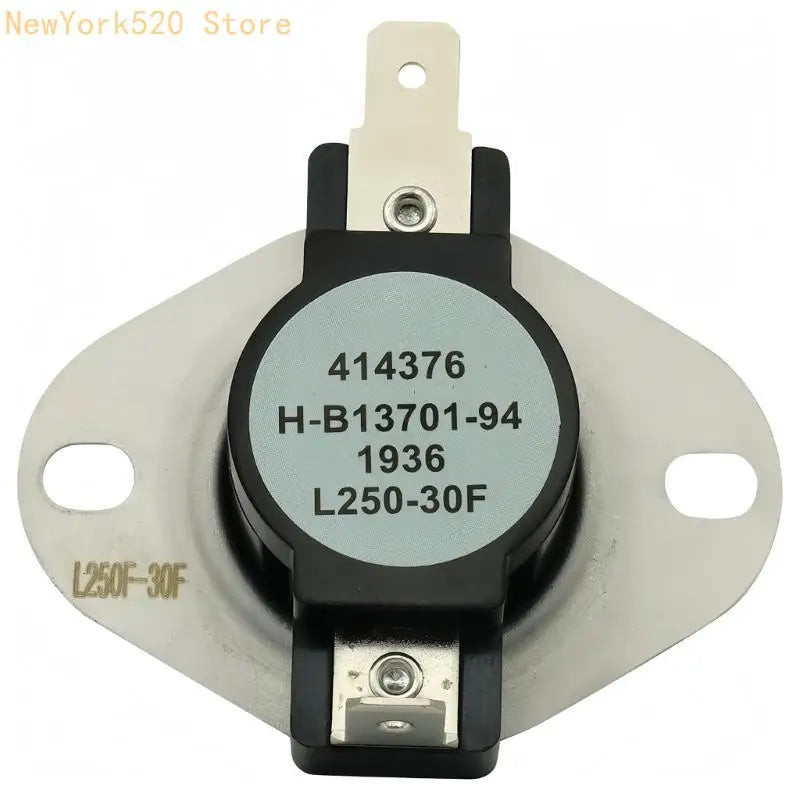

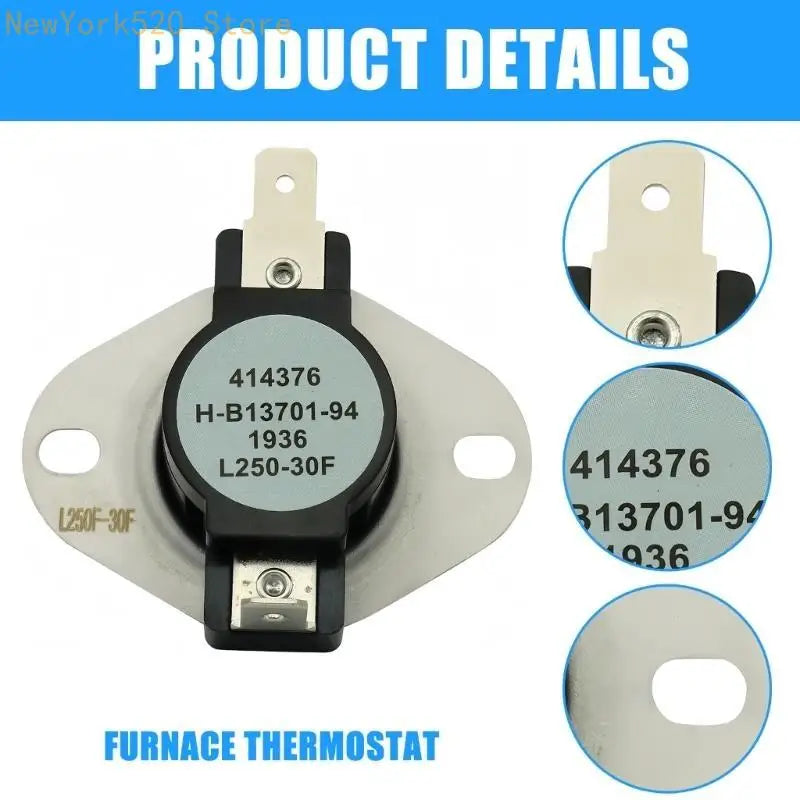

L250-30F Auto Reset Limit Switch – Reliable Thermostat Replacement Part
Keep your home heating system running safely and efficiently with this L250-30F Auto Reset Limit Switch. Designed as a direct replacement for a wide range of compatible heating units, this metal-constructed component offers dependable overheat protection and automatic resetting — no manual intervention required.
Key Features
- Automatic Reset Function: Remains closed (continuous) during normal operation. Disconnects at 250°F to cut power and prevent overheating, then automatically resets and closes once the temperature cools to 220°F — no manual reset needed.
- Durable Metal Construction: Built from heat-resistant metal for long-lasting performance in demanding heating environments.
- Easy Installation: Simple, tool-friendly design allows replacement in just a few minutes.
- Broad Compatibility: Suitable for a wide range of models including ADS81155CNA, ADS81155CXA, DDS81155CXA, GDH80453AX, GDH80453AXAA, GDH80453AXAB, GDH80453AXAC, GDH80703AX, GDH80703AXAA, GDH80703AXAB, GDH80703AXAC, GDH81155CX, GDH81155CXAA, GDH81155CXAB, GDH81155CXAC, and GDS81155CN.
- Protects Your System: Effectively prevents overheating, helping to safeguard your heating equipment from thermal damage.
Specifications
| Material | Metal |

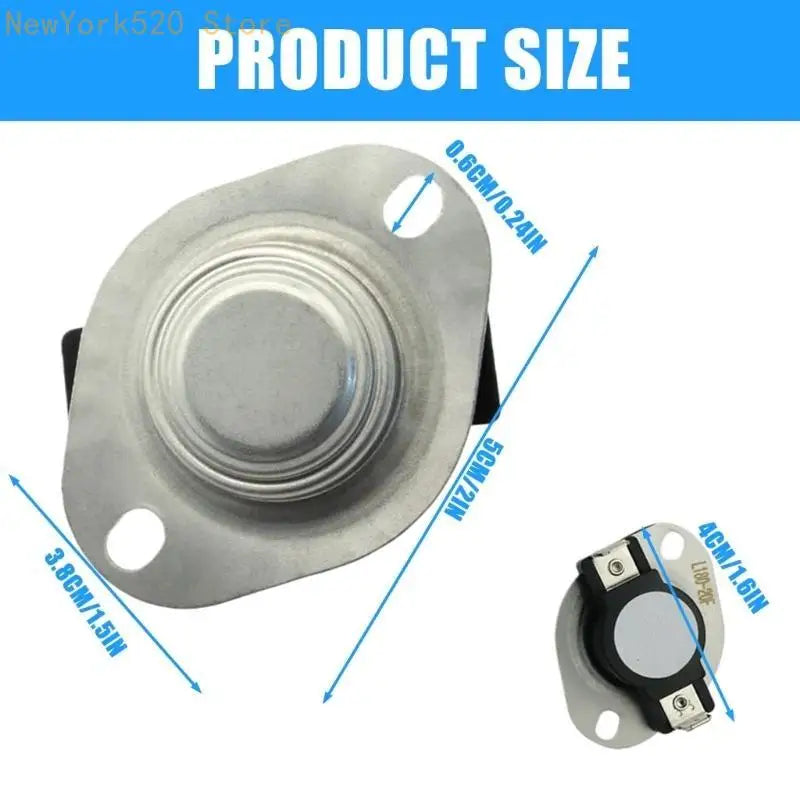

| Dimensions | Approx. 5 × 3.8 cm / 2 × 1.5 inches |
| Trip Temperature | 250°F (disconnect) / 220°F (reset) |
| Reset Type | Automatic |
| Package Includes | 1 × Limit Switch |
| Country of Origin | Made in Mainland China |

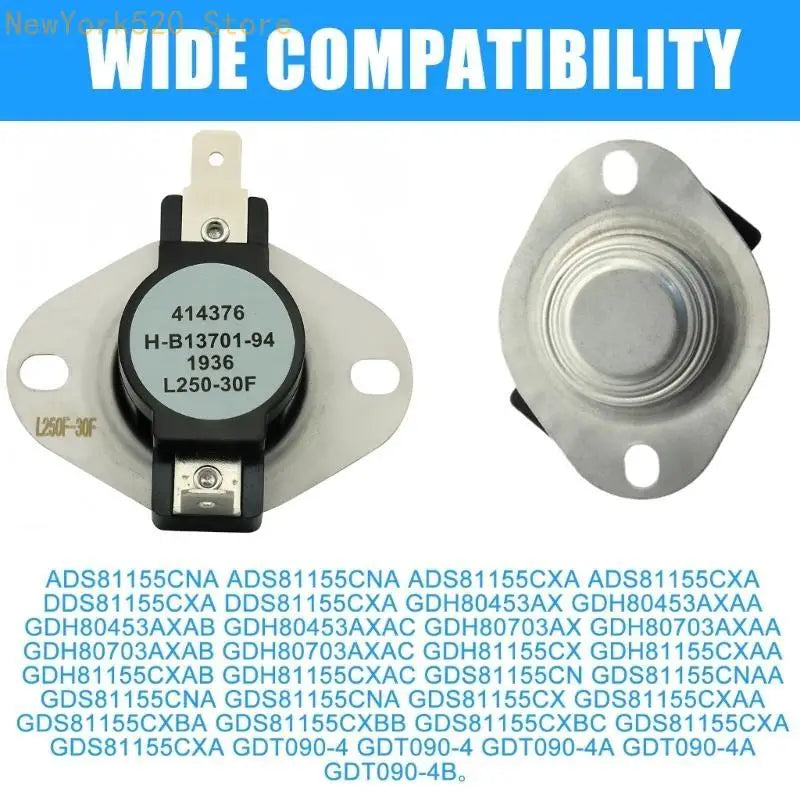

Compatible Models
ADS81155CNA · ADS81155CXA · DDS81155CXA · GDH80453AX · GDH80453AXAA · GDH80453AXAB · GDH80453AXAC · GDH80703AX · GDH80703AXAA · GDH80703AXAB · GDH80703AXAC · GDH81155CX · GDH81155CXAA · GDH81155CXAB · GDH81155CXAC · GDS81155CN
Note: Please allow 1–2 cm tolerance due to manual measurement. Colors may vary slightly between monitors and actual product.
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Folding Hex Wrench Set – Portable Repair Tool
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Mini Repair Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does the L250-30F auto reset limit switch do in a heating system?
A: The L250-30F limit switch monitors the temperature in your heating unit. It stays closed during normal operation, automatically disconnects power at 250°F to prevent overheating, and resets itself once temperatures drop back to 220°F — protecting your system without any manual reset required.
Q: Which heating unit models is this limit switch compatible with?
A: This limit switch is compatible with a wide range of models including ADS81155CNA, ADS81155CXA, DDS81155CXA, GDH80453AX series, GDH80703AX series, GDH81155CX series, and GDS81155CN. Please verify your model number before purchasing to ensure compatibility.
Q: How difficult is it to install the L250-30F limit switch?
A: Installation is straightforward. The component is designed for easy DIY replacement and can typically be swapped out within a few minutes with basic hand tools — making it a convenient upgrade or repair option for home heating systems.
