LCD Whiteness Meter Tester – Precision Measurement for Paper, Paint & More
The VIBE Leucometer Whiteness Meter delivers fast, accurate whiteness measurements across a 0–120 range, making it the go-to instrument for quality control in paper manufacturing, paint production, woodworking, and material inspection. Featuring a clear LCD screen, high-precision sensors, and a standard RS232 interface for PC and printer connectivity, this tester combines professional-grade accuracy with everyday ease of use.
Made in Mainland China.
Key Features
- Wide Measurement Range: 0–120 whiteness units with a resolution of 0.1 for highly detailed readings.

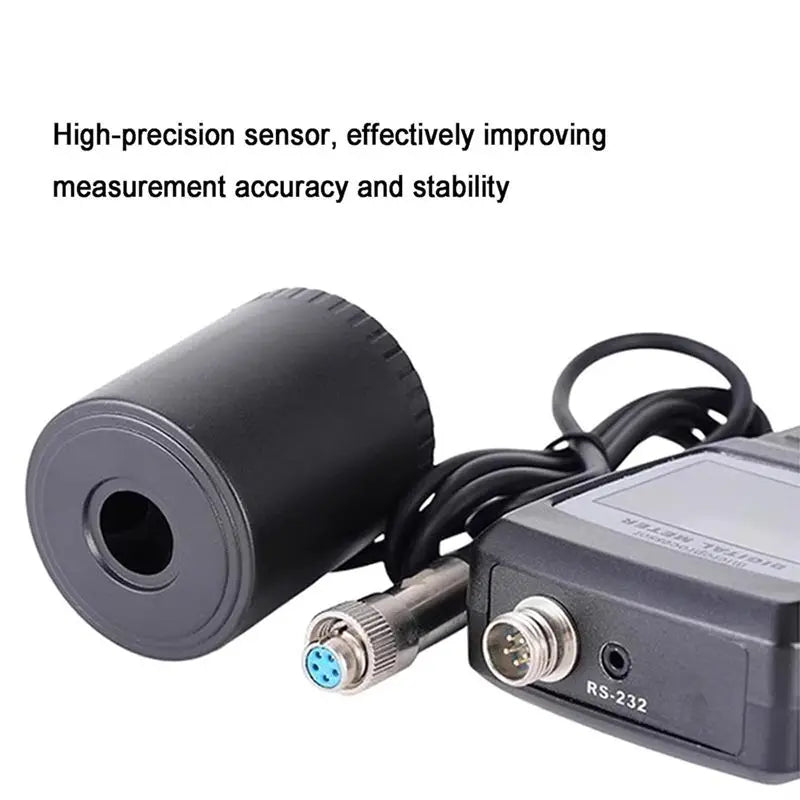

- Advanced Optical Design: Built-in high-precision sensors combined with corrective filters ensure stable, repeatable measurements every time.

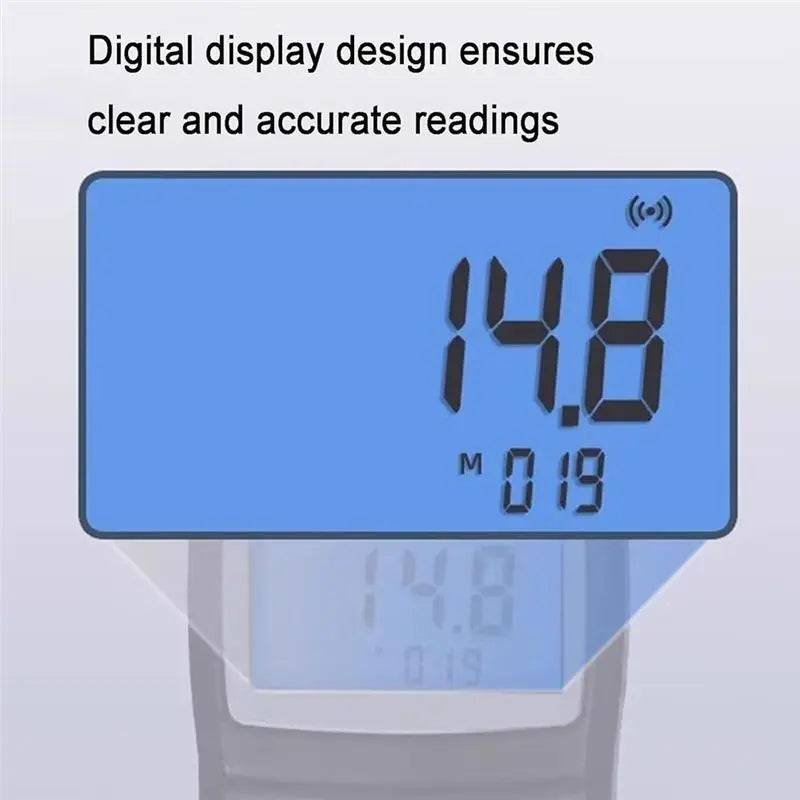

- Clear Digital LCD Display: Eliminates reading errors — every measurement result is presented clearly and instantly.

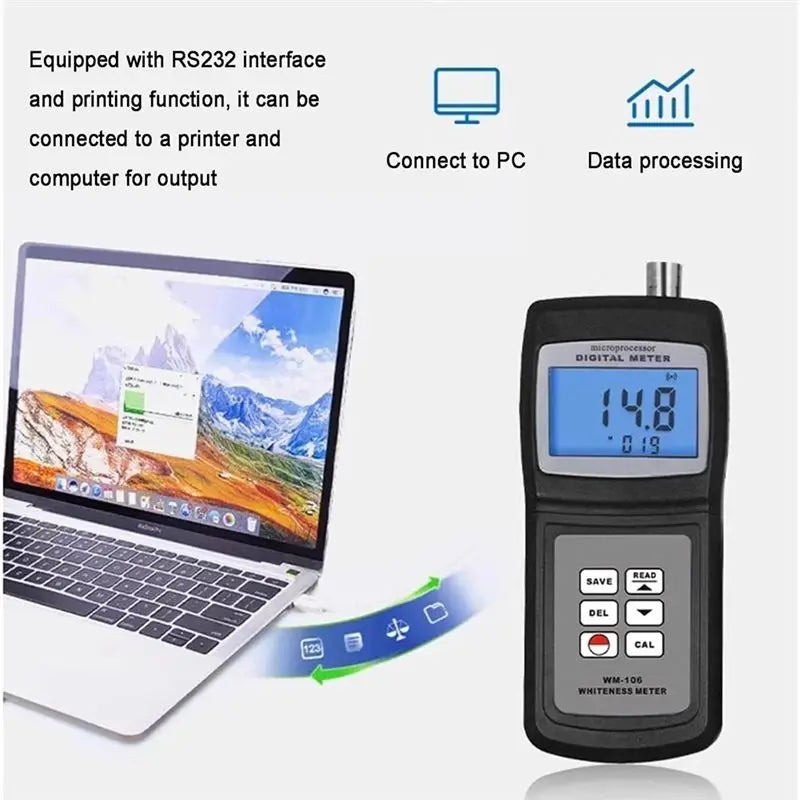

- PC & Printer Compatible: Standard RS232 interface allows direct connection to computers and printers for seamless data output, analysis, and record-keeping.

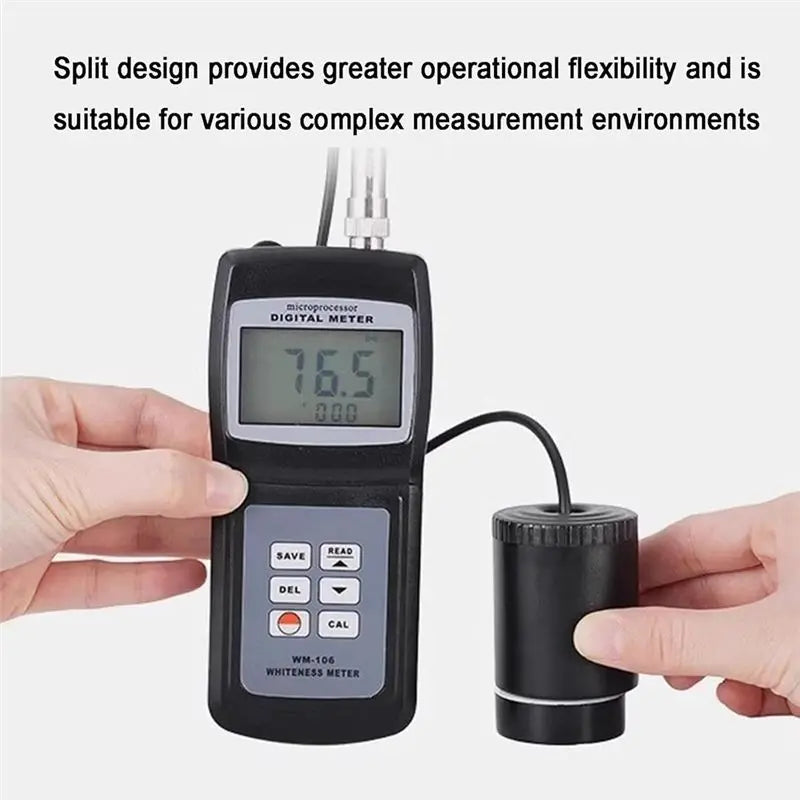

- Split Design: Offers greater operational flexibility, making it suitable for a variety of complex measurement environments and hard-to-reach surfaces.
- LED 457nm Light Source: Uses blue-light whiteness formula (WB = R457) — the industry standard for accurate whiteness determination.
Technical Specifications
| Measuring Range | 0 – 120 |
| Resolution | 0.1 |
| Light Source | LED 457 nm |
| Whiteness Formula | Blue Light Whiteness WB = R457 |
| Measurement Aperture | 15 mm |
| Zero Drift | 0.1 |
| Indication Stability | 0.5 |
| Measurement Repeatability | 1 |
| Material | Plastic + Metal |
| Battery | Not included |
| Interface | RS232 (PC & Printer compatible) |
What's in the Box

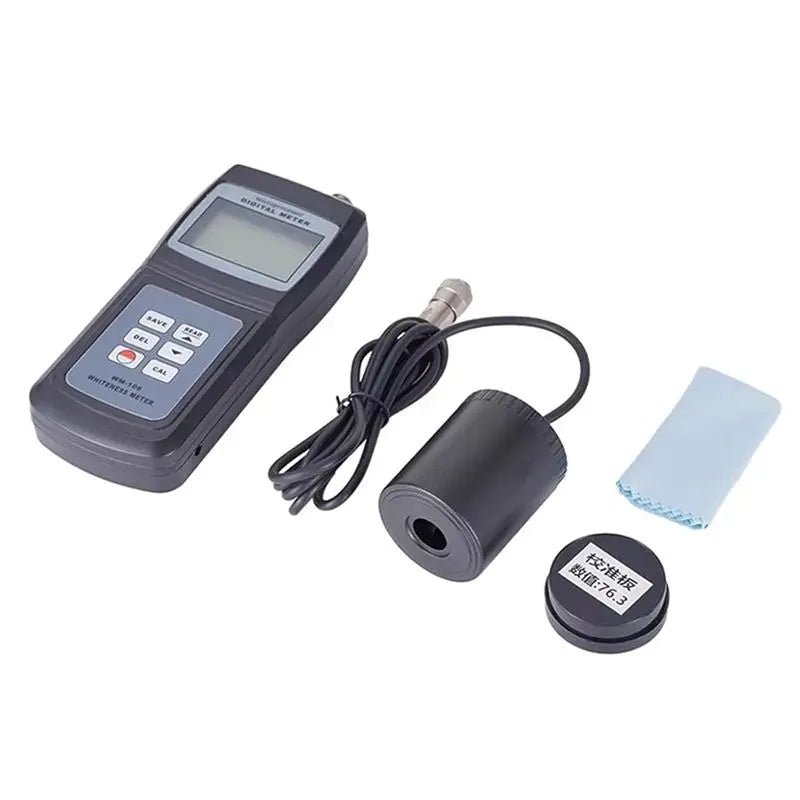

- 1 × Whiteness Meter (Leucometer Tester)
Related Products You May Like
- A01F Full Spectrum PAR PPFD Light Meter for Indoor Grow Lights
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
- 10-in-1 Multi Functional Bone Wrench Hex Socket Spanner Portable Repair Hand Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What materials can the LCD Whiteness Meter measure?
A: The whiteness meter is designed to measure the whiteness of a wide range of materials including paper, cardboard, paint coatings, textiles, plastics, and other flat surfaces. Its 15mm measurement aperture and blue-light whiteness formula (WB = R457) make it suitable for both industrial and laboratory quality-control applications.
Q: How do I connect this whiteness tester to a PC?
A: The meter features a standard RS232 interface, allowing you to connect it to a computer or printer via a compatible RS232 cable (not included). Once connected, measurement data can be transmitted directly to your PC for analysis, record-keeping, or printing — making it ideal for production quality control workflows.
Q: What does the measurement range of 0–120 mean?
A: The 0–120 measurement range covers whiteness values from completely non-reflective (0) up to and beyond standard white reference (100), with values above 100 accounting for fluorescent brightening agents commonly found in high-whiteness paper and textile products. The resolution of 0.1 ensures highly precise readings throughout this range.
Q: Is the battery included with the whiteness meter?
A: No, the battery is not included in the package. Please ensure you have the appropriate battery type on hand before first use. The package contains only the whiteness meter unit itself.
