Precision Whiteness Meter with LCD Display & PC Connectivity

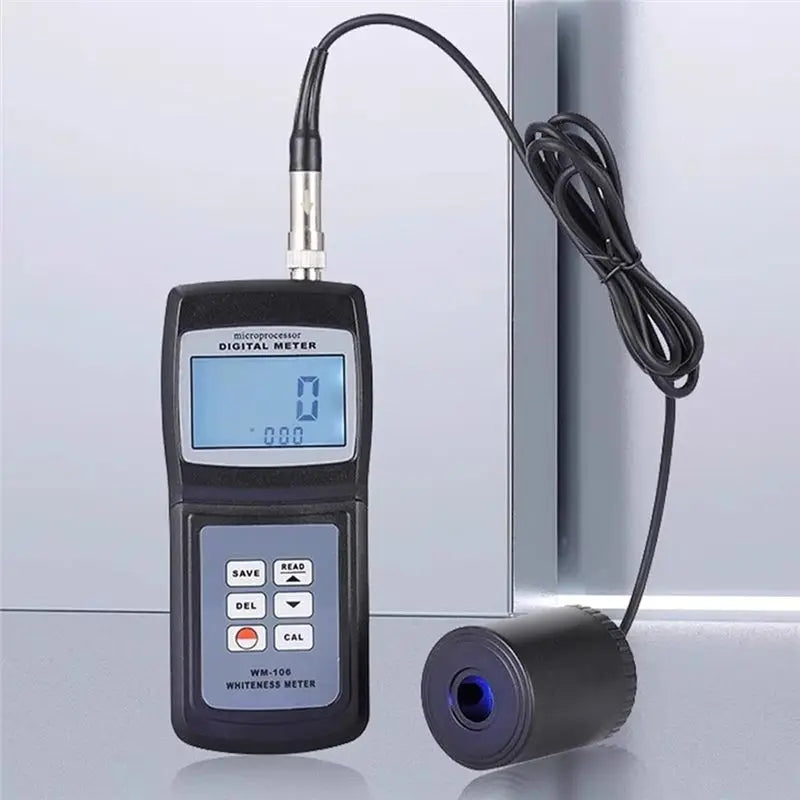

The VIBE Leucometer Whiteness Tester is a professional-grade optical measurement instrument designed for accurately quantifying the whiteness of paper, paint, textiles, and other materials. With a wide measurement range of 0–120 and a high-resolution LCD screen, this device delivers clear, reliable readings every time — no estimation or reading errors involved.
Made in Mainland China.
Key Features
- Wide Measurement Range: 0–120, suitable for a broad spectrum of materials including paper, paint, coatings, and plastics.

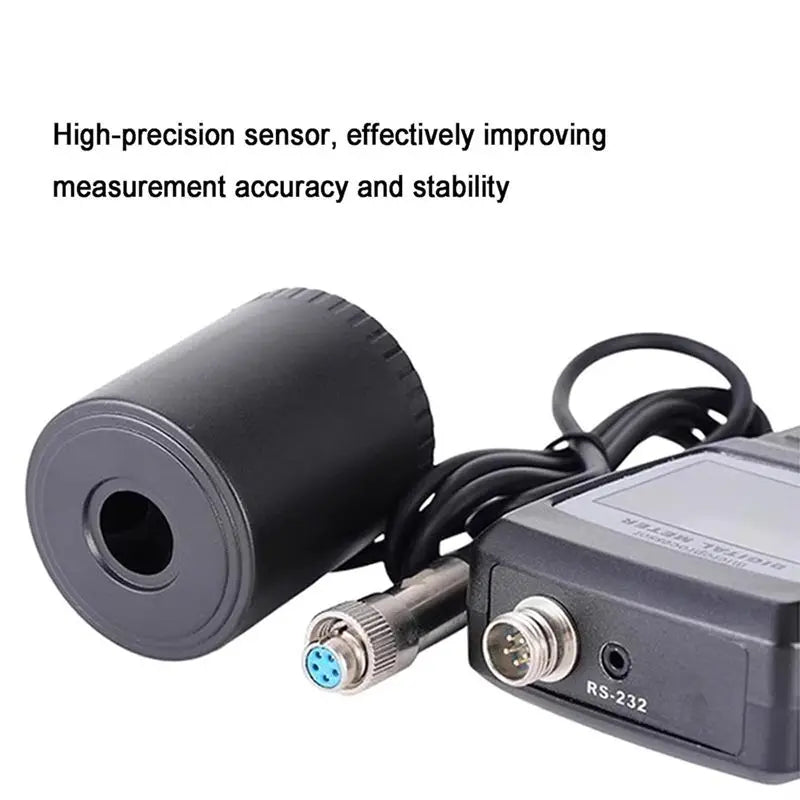

- High-Precision Optical Sensor: Built-in advanced sensor combined with quality optics for enhanced accuracy and stability across repeated measurements.

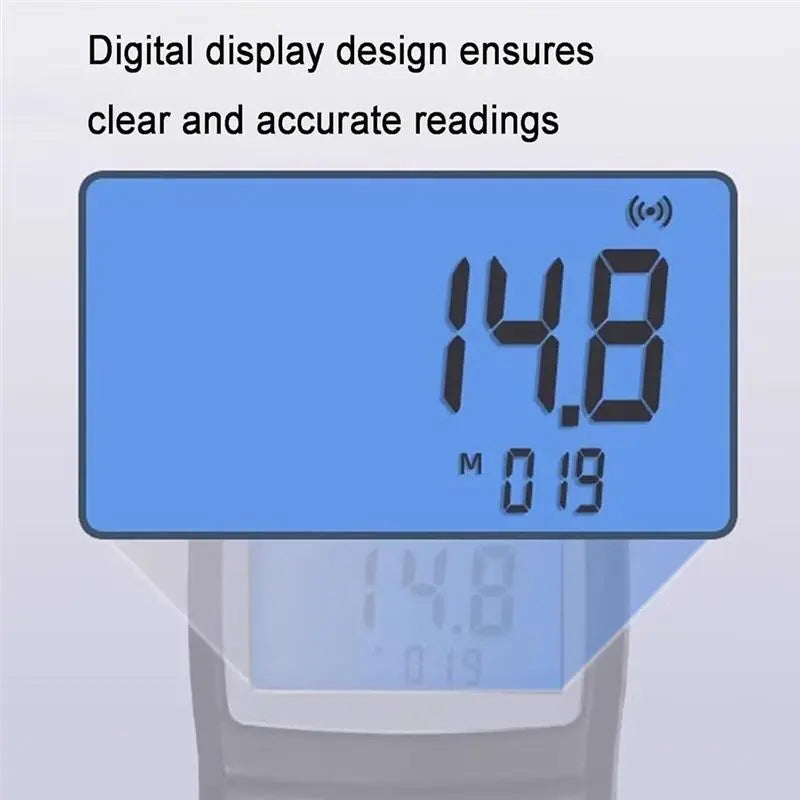

- Clear LCD Digital Display: Ensures accurate, easy-to-read results with a resolution of 0.1 — every measurement is presented without ambiguity.

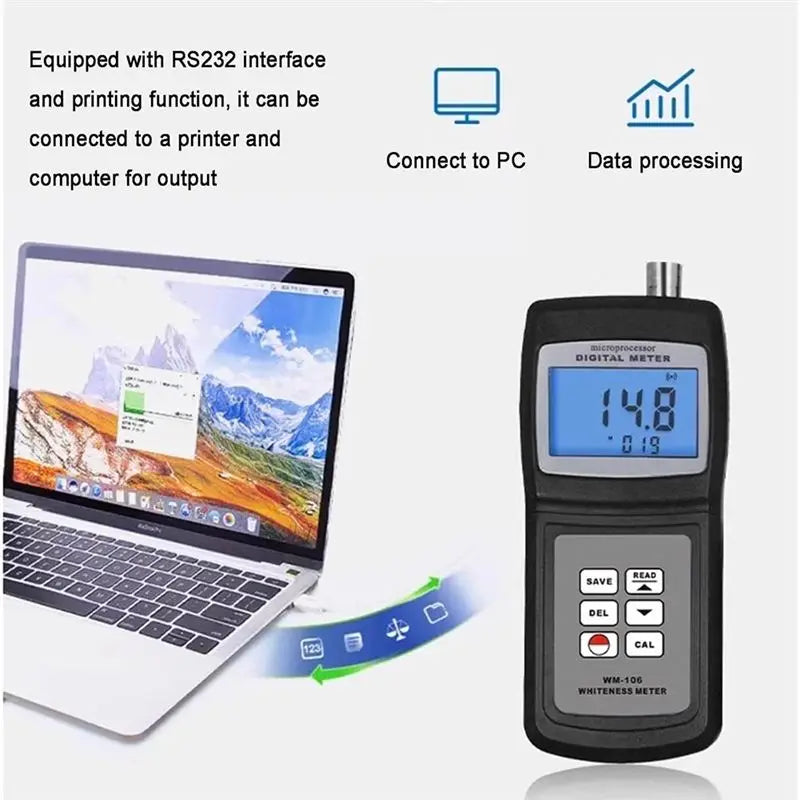

- Standard RS232 Interface: Connect directly to a PC or printer for seamless data output, logging, and analysis.

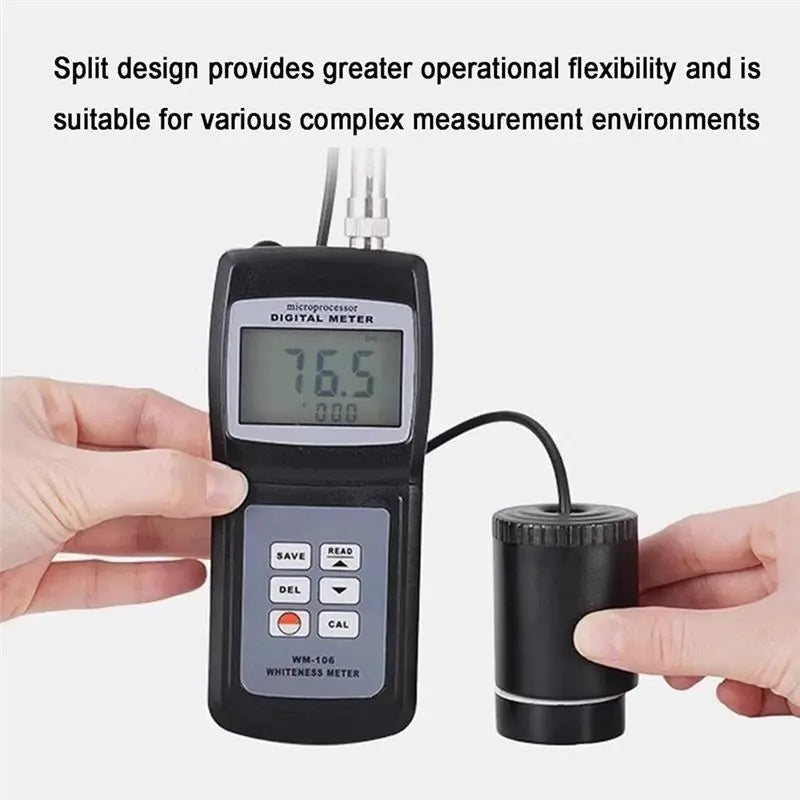

- Split Design: Greater operational flexibility, making it ideal for complex or varied measurement environments.
- Blue Light Whiteness Formula: Uses the industry-standard WB = R457 formula with a 457 nm LED light source for consistent, comparable results.
- 15mm Measurement Aperture: Provides a reliable contact area for consistent surface readings.
- Plastic & Metal Construction: Durable build for long-term professional use.
Technical Specifications
| Measuring Range | 0 – 120 |
| Resolution | 0.1 |
| Light Source | LED 457 nm |
| Whiteness Formula | Blue light whiteness WB = R457 |
| Measurement Aperture | 15 mm |
| Zero Drift | 0.1 |
| Indication Stability | 0.5 |
| Measurement Repeatability | 1 |
| Interface | Standard RS232 |
| Material | Plastic + Metal |
| Battery Included | No |

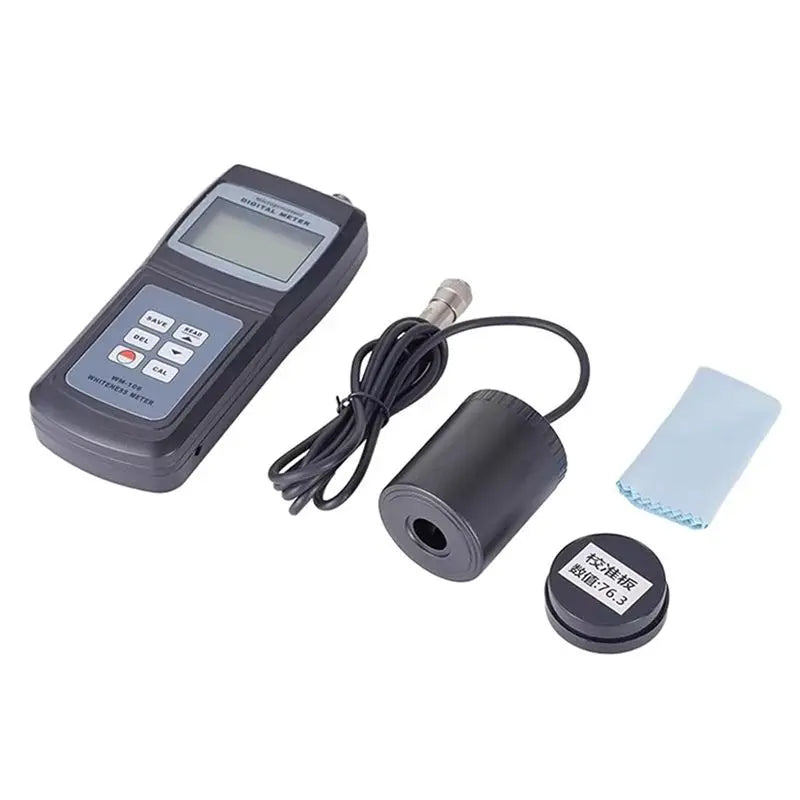

Package Contents
- 1 × Whiteness Meter (Leucometer Tester)
Note: Only the above package content is included. Light reflection and display variation may cause slight color differences from actual product. Measurement tolerance: ±1–3 cm.
Related Products You May Like
- A01F Full Spectrum PAR PPFD Light Meter for Indoor Grow Lights
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
- 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner Portable Repair Hand Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What materials can the whiteness meter measure?
A: This whiteness meter is designed to measure the whiteness of a wide variety of surfaces including paper, paint, coatings, textiles, plastics, and other light-reflecting materials. Its 0–120 measurement range covers virtually all common whiteness values found in industrial and commercial applications.
Q: How do I connect the whiteness tester to a computer or printer?
A: The device is equipped with a standard RS232 interface, which allows you to connect it directly to a PC or compatible printer using an RS232 cable. This enables you to export measurement data for analysis, reporting, and record-keeping with ease.
Q: Does the whiteness meter come with a battery?
A: No, a battery is not included with this unit. Please refer to the product manual for the compatible battery type required before use.
Q: What is the blue light whiteness formula used in this device?
A: This meter uses the internationally recognized blue light whiteness formula WB = R457, which measures the reflectance of a surface at a 457 nm wavelength (blue light). This is the standard method used in the paper, paint, and textile industries for consistent and comparable whiteness assessments.
