LCR-AR1 LCD Digital Multimeter & MOSFET Transistor Tester

LCR-AR1 LCD Digital Multimeter & Transistor Component Tester

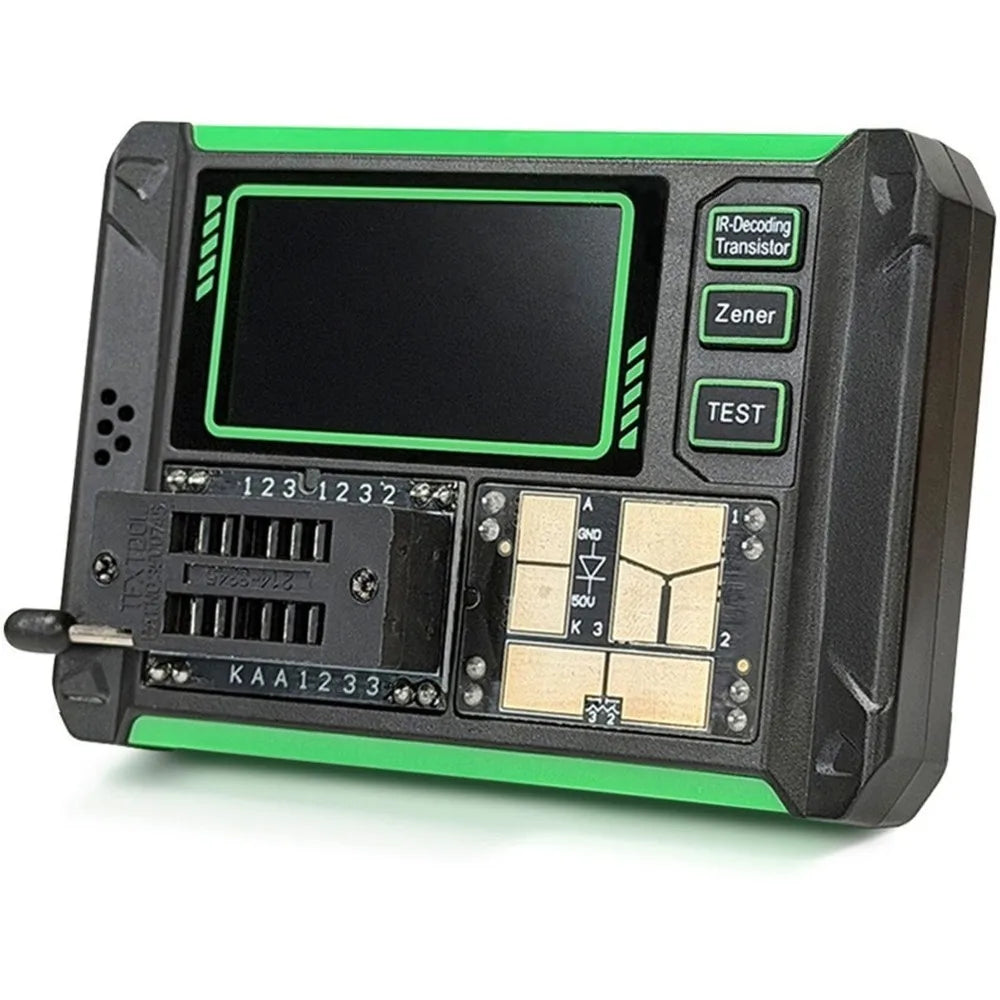

The A01F-MOS LCR-AR1 LCD Digital Multimeter is a versatile, all-in-one electronic component tester designed for engineers, hobbyists, students, and technicians. With automatic component recognition and a clear LCD display, this compact instrument makes testing transistors, diodes, capacitors, inductors, MOSFETs, and resistors faster and easier than ever before.

Key Features

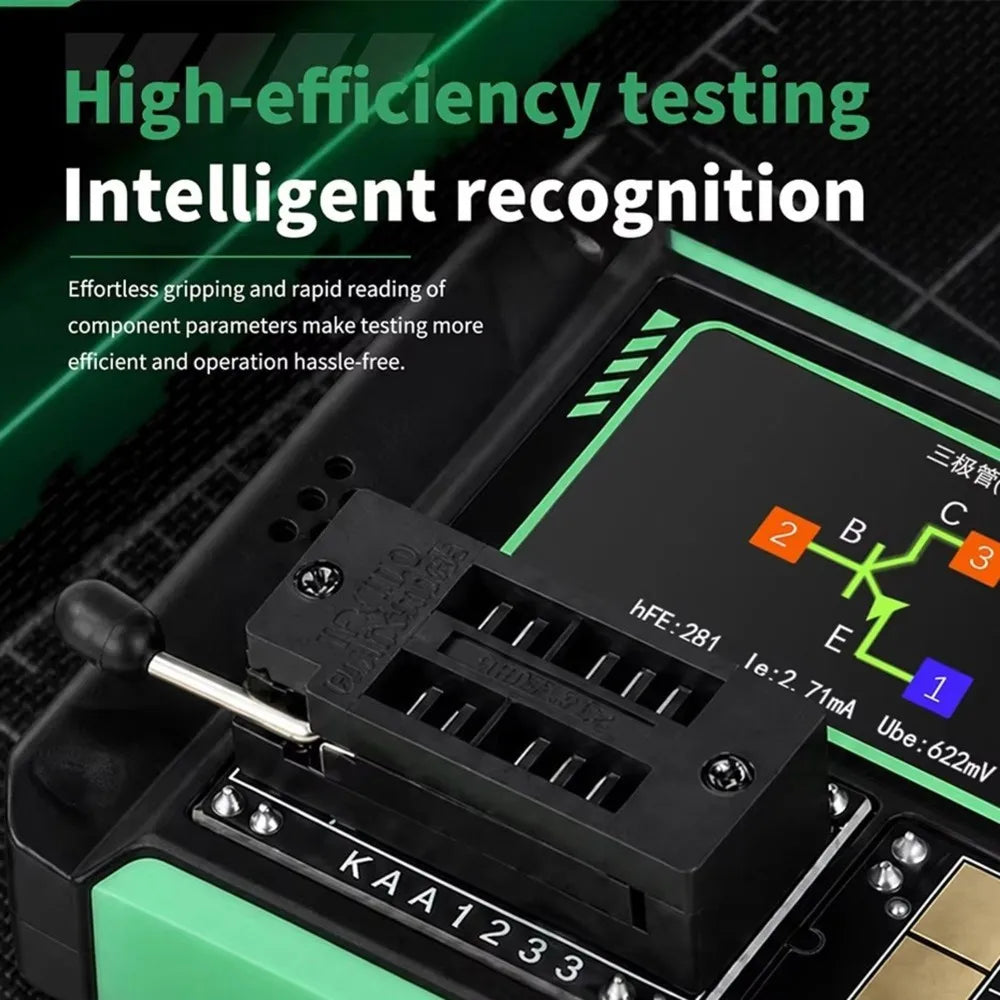

• Auto-Identification Mode: Simply short-press the TEST button and the device automatically identifies and measures the component type — transistors, diodes, capacitors, inductors, and resistors — no manual mode selection required.
• Patch Mount for SMD Components: The included patch mount lets you test surface-mount (SMD) components directly and simultaneously, eliminating the need for constant adaptor swaps and making SMD testing effortless.
• Manual Mode Selection: Lightly press the button to manually switch to any specific measurement mode. The LCD screen displays the corresponding icon in real-time for clear, instant feedback.
• Self-Calibration Function: For reliable accuracy, short-circuit ports 1-2-3 on the test terminal and hold the TEST button for 3 seconds to initiate a self-calibration process. Perform regular calibration to maintain precise measurement data.
• Wide Application Range: Ideal for product development, home appliance servicing, educational experiments, scientific research, and general electronics diagnostics.
• ABS Construction: Durable and lightweight ABS housing built to withstand everyday workshop and lab use.
• USB-C Powered: Powered via the included Type-C data cable for convenient, modern connectivity.

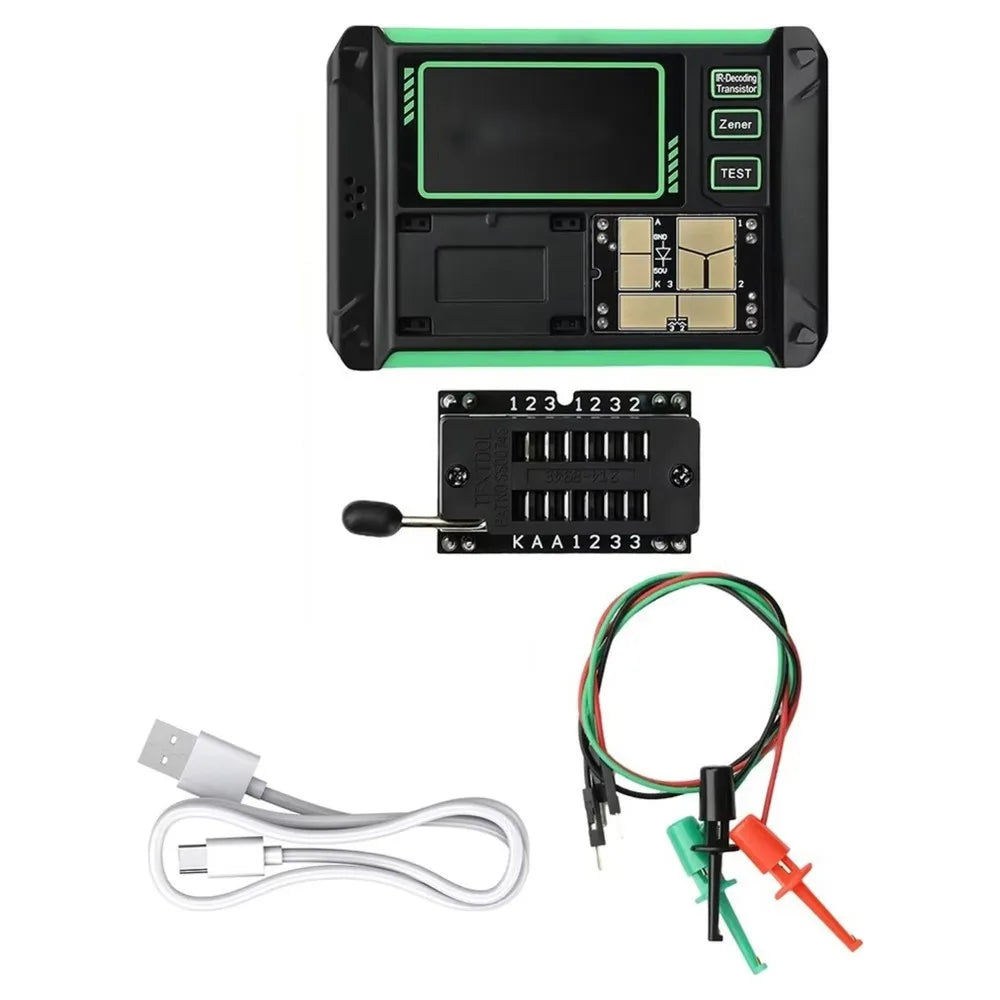

What's in the Box

• Transistor Tester × 1
• Test Stand × 1
• Type-C Data Cable × 1
• Instruction Manual × 1
• Test Hook × 3

Note: The product contains battery accessories. Please keep out of reach of children to prevent accidental ingestion. Measurement tolerance is ±1–3%. Minor color variation may occur due to screen calibration differences.

Made in Mainland China.

Related Products You May Like

• 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
• 16 in 1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
• 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What types of electronic components can the LCR-AR1 Digital Multimeter test?

A: The LCR-AR1 can automatically identify and test a wide range of components including transistors (NPN/PNP), MOSFETs (field-effect transistors), diodes, capacitors, inductors, and resistors. Simply switch to Auto mode and press the TEST button to begin.

Q: Does the LCR-AR1 tester support surface-mount (SMD) components?

A: Yes. The included patch mount accessory lets you test SMD components synchronously without needing to swap adaptors repeatedly, making it highly efficient for modern circuit board diagnostics and development work.

Q: How do I calibrate the LCR-AR1 for accurate readings?

A: To perform self-calibration, short-circuit ports 1, 2, and 3 on the test terminal simultaneously, then press and hold the TEST button for approximately 3 seconds until the calibration process begins. Performing regular calibration ensures consistent and reliable measurement results.

Q: Does the LCR-AR1 come with a battery included?

A: No, the unit does not include a battery. It is powered via the included Type-C data cable. Ensure you have a compatible USB power source available before use.
